Fillet Weld Consumable Calculation — Complete Step-by-Step Guide
Master electrode and wire estimation for SMAW, GMAW, FCAW and SAW with formulas, worked examples, ready-reckoner tables and quick thumb rules.
Every welder, fabrication engineer and project planner on site faces the same fundamental question before raising a purchase order: how much electrode or wire do I actually need? For fillet welds — the most common weld type in structural steel, pipework support and general fabrication — getting this number right is the difference between a smooth job and a costly disruption.
Order too little, and you stop the job mid-weld. Order too much, and you tie up budget on consumables gathering dust in the store. This guide gives you the complete method to calculate fillet weld consumable requirements accurately — from first principles, with a real worked example, and the quick thumb rules you can use on site in minutes.
📋 Table of Contents
Why Consumable Calculation Matters
In a busy fabrication environment, weld consumable estimation is often treated as an afterthought. But proper calculation has real, measurable benefits across every stage of a project.
Cost Control
Buy exactly what you need — avoid over-purchasing.
No Last-Minute Shortages
Prevent job stoppages from running out mid-weld.
Inventory Management
Keep the right quantity in store — reduce dead stock.
Vendor Supply Control
Supply sub-contractors with precisely what they need.
Early Procurement
Raise accurate POs early to secure better pricing.
Wastage Monitoring
Compare theoretical vs actual to track weld efficiency.
What Is a Fillet Weld?
A fillet weld is a triangular cross-section weld joining two surfaces at an angle — most commonly 90 degrees. It is the most frequently specified weld type in structural fabrication. The key parameter is the leg size (s) — the length of each triangle leg. For an equal-leg fillet weld, both legs are identical, and this single value drives the entire consumable calculation.

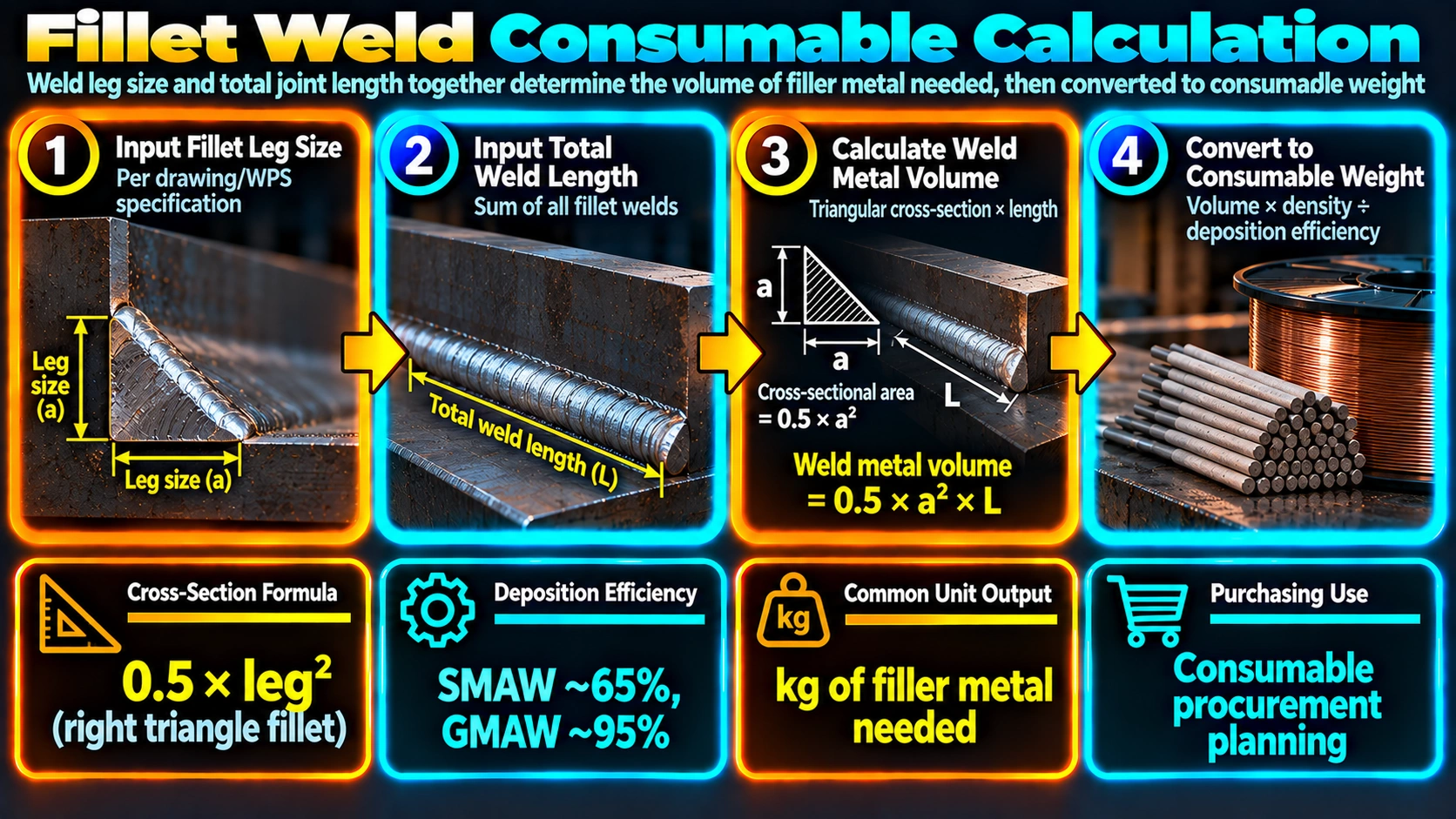

Step 1 & 2 — Volume and Weight Formulas
Step 1 — Fillet Weld Volume
The cross-section of an equal-leg fillet weld is a right-angled isosceles triangle. The formula is: V = 0.5 × Leg² × Length. Work in centimetres: 10 mm = 1 cm, 10 m = 1000 cm.
Step 2 — Weld Metal Weight
Convert volume to weight using steel density (7.85 g/cm³) divided by the deposition efficiency of your process: W = (Volume × 7.85) ÷ Efficiency. The result is kilograms of electrode or wire to purchase.
The calculated weight is what you need to purchase — not just what ends up in the joint. Always divide by deposition efficiency to account for spatter, slag and stub losses.
Deposition Efficiency by Welding Process
| Welding Process | Deposition Efficiency | Typical Value Used | Primary Loss |
|---|---|---|---|
| SMAW (Stick / MMA) | 55 – 60% | 0.60 | Stub ends, slag, spatter |
| GMAW (MIG/MAG) | 93 – 95% | 0.94 | Minimal spatter loss |
| FCAW (Flux-Cored) | 85 – 90% | 0.87 | Flux core slag |
| SAW (Submerged Arc) | 98 – 100% | 0.99 | Virtually none |
Worked Example — 10 mm Fillet Weld, 10 m Length
10 mm Equal-Leg Fillet Weld × 10 m Length
Given Data
- Leg Size (s): 10 mm = 1 cm
- Weld Length: 10 m = 1000 cm
- Steel Density: 7.85 g/cm³

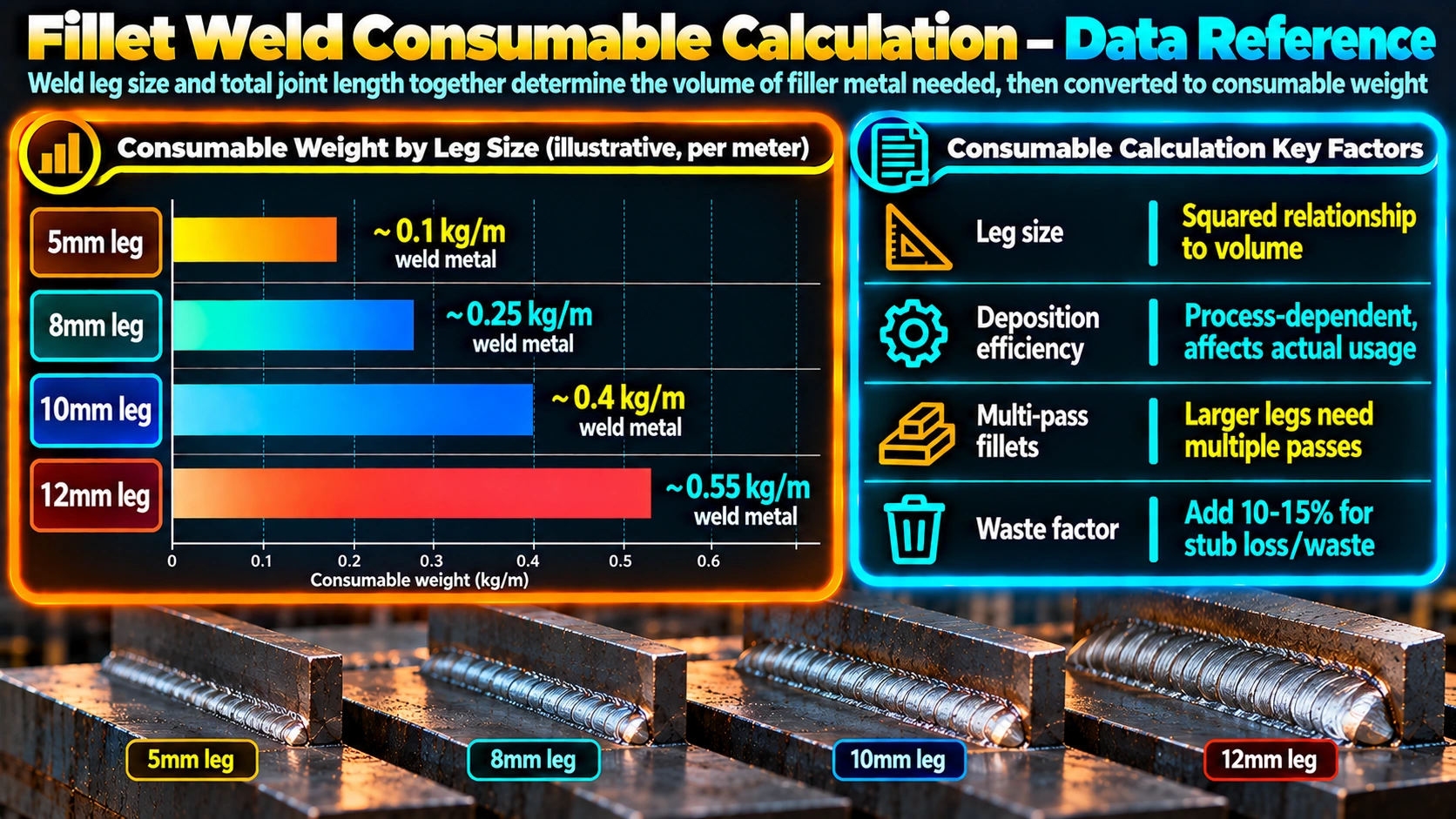

Ready-Reckoner Table — Weld Metal Consumption (kg per Metre)
Use these pre-calculated values directly in material take-offs — no calculation required. Multiply by your total weld length to get the purchase quantity.
Example: 50 metres of 10 mm fillet weld with GMAW.
Wire Required = 0.42 kg/m × 50 m = 21.0 kg
With 15% contingency: 21.0 × 1.15 = 24.2 kg → order 25 kg
Quick Thumb Rules for Site Use
Enter the leg size in millimetres and multiply by Leg². For a 10 mm GMAW fillet: 0.0042 × 10² = 0.0042 × 100 = 0.42 kg/m — matches the table exactly. Perfect for instant site estimates, planning meetings and tender checks.
Practical Tips and Common Mistakes
Add a 10–15% buffer above your calculated quantity when ordering. This covers setup welds, repairs, trial runs and handling waste. Round up to the nearest standard pack size.
Common Mistakes to Avoid
Mixing Units
If leg size is in mm, convert to cm before the formula. Or use thumb rules which accept mm directly. Never mix mm and m in one calculation.
Ignoring Deposition Efficiency
Weld deposit weight ≠ electrode weight. Always divide by efficiency. Using deposit weight as the order quantity will leave you 40–60% short with SMAW.
Using the Wrong Efficiency Figure
For conservative estimates, use the lower bound of the efficiency range — this gives a higher, safer consumable quantity.
Applications
Frequently Asked Questions
🔑 Key Takeaways
- Fillet weld volume = 0.5 × Leg² × Length (use centimetres for consistent results)
- Weld metal weight = (Volume × 7.85) ÷ Deposition Efficiency
- SMAW efficiency 55–60%; SAW 98–100% — the most efficient process
- SMAW requires ~65% more electrode than SAW for the same joint
- Use the ready-reckoner table for fast take-offs on 6, 8, 10 and 12 mm fillets
- Thumb rules give instant kg/m estimates — GMAW: 0.0042 × Leg², SMAW: 0.0065 × Leg²
- Always add 10–15% contingency when placing purchase orders
- Track theoretical vs actual consumption to monitor welding efficiency
