Hardness Testing: Methods, Scales, Loads and Standards Explained
Hardness testing is one of the most frequently performed material characterisation procedures in welding, fabrication, and manufacturing quality control. It measures a material’s resistance to permanent surface deformation under a controlled load — giving engineers a fast, largely non-destructive window into strength, wear resistance, and the metallurgical effects of welding, heat treatment, and cold working. Whether you are qualifying a weld procedure to ASME Section IX, verifying that a heat-affected zone (HAZ) meets sour-service hardness limits per NACE MR0175, or checking the hardness of a tool steel after quench-and-temper, selecting the right test method and understanding what the result means are skills every inspector and metallurgist must have.
This guide covers every major hardness testing method — Rockwell, Brinell, Vickers, Knoop, Shore, and Mohs — with detailed explanations of indenter geometry, load ranges, applicable standards, conversion principles, and the practical considerations that govern reliable testing. A hardness conversion calculator is included below for quick reference.
Hardness Conversion Calculator (Steel)
Based on ASTM E140 conversion tables for carbon and alloy steels. Conversions are approximate — always verify with material-specific data.
Conversions per ASTM E140. Approximate only — not to be used as substitutes for direct measurement in critical applications.
What Is Hardness?
Hardness is not a single, intrinsic material property in the same sense as density or melting point. It is a response characteristic — a measure of how a surface resists the concentrated compressive stress applied by a harder indenter. Because the deformation mode (elastic + plastic), contact area, load magnitude, and loading rate all influence the result, hardness is always scale-dependent. A value of “300” means nothing without specifying the test method: 300 HV (Vickers) and 300 HBW (Brinell) are close in steel but use entirely different physics of measurement.
Despite this subtlety, hardness correlates remarkably well with tensile strength in steels (roughly UTS in MPa ≈ 3.3 × HV), which is why the property finds such wide industrial use as a quick quality check. It also correlates inversely with ductility and toughness in most alloy systems — a hardened HAZ with 380 HV after welding of P91 steel is a red flag for potential cracking, just as it is a deliberate feature of a case-hardened gear tooth.

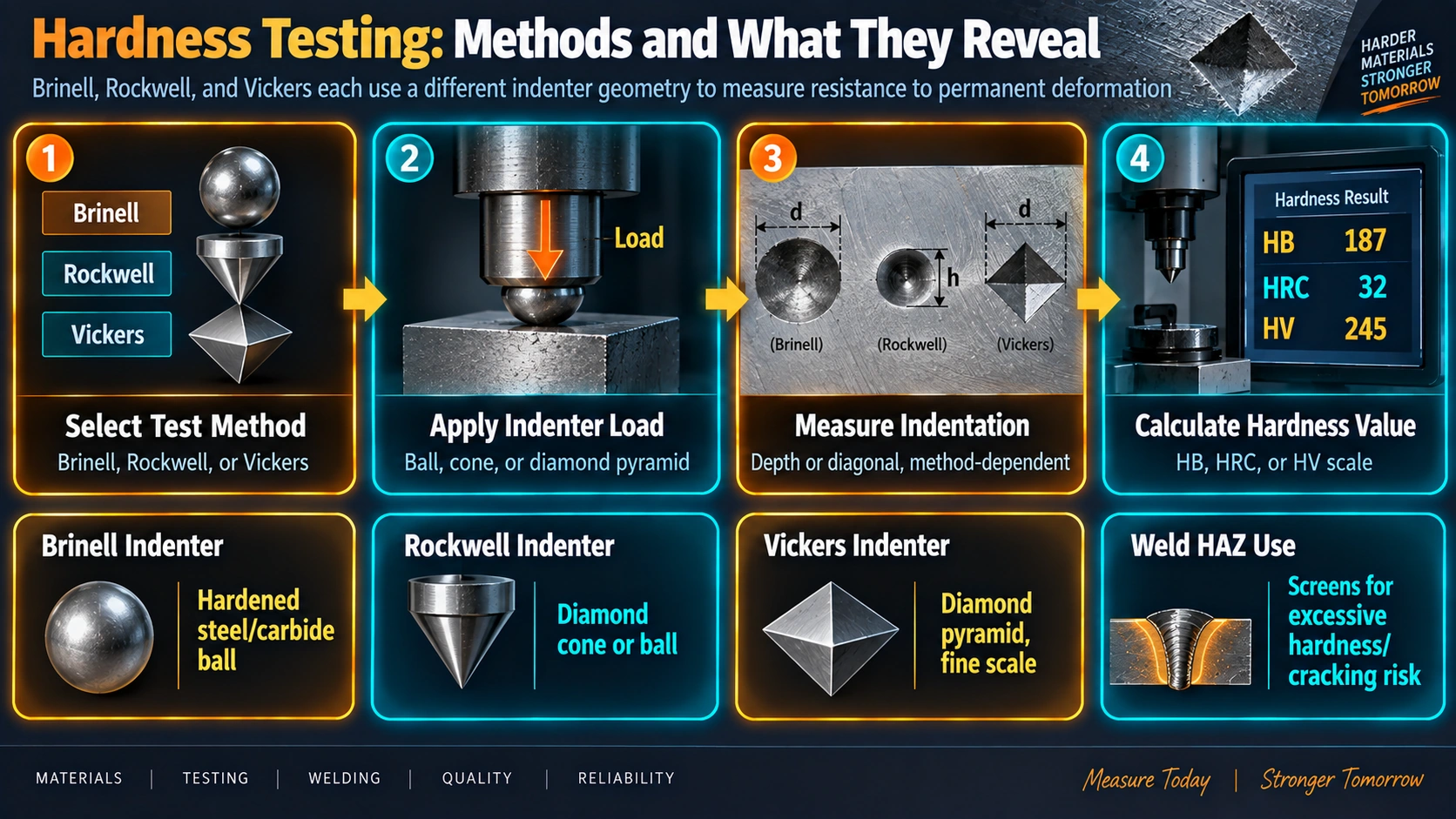

How Hardness Testing Works
All static indentation hardness tests follow the same fundamental sequence: a calibrated indenter is pressed into the sample surface under a defined load for a defined dwell time, the load is removed, and the resulting permanent impression is measured. The measurement is then substituted into a scale-specific formula to produce a dimensionless hardness number.
The critical distinction between methods is what is measured. Brinell and Vickers measure the area or diagonal of the residual impression under an optical microscope. Knoop measures only the longer diagonal of its elongated indent, allowing shallower penetration into thin films and case layers. Rockwell, uniquely, measures the depth of the impression directly during the test using a differential depth gauge — which is why Rockwell results are faster but require no microscopy.
Static vs Dynamic Methods
Static methods (Rockwell, Brinell, Vickers, Knoop) maintain the indenter stationary under load throughout the dwell period. The indenter moves through the material’s elastic range and forces plastic deformation. These methods are the most accurate and are used in laboratory and workshop settings.
Dynamic methods (Leeb rebound, UCI) are designed for field use on large fixed components. The Leeb tester fires a spring-loaded carbide ball at the surface and measures the ratio of rebound to impact velocity. The UCI tester vibrates a Vickers diamond at ultrasonic frequency and detects the resonant frequency shift caused by contact stiffness. Both are standardised (ASTM A956 for Leeb) and are indispensable for in-situ hardness surveys of large pressure vessels, pipe systems, and structural welds.
Rockwell Hardness Test
The Rockwell test is the most widely used hardness method in industrial manufacturing. It is fast (typically 5–10 seconds), requires minimal surface preparation, and reads hardness directly from a dial gauge or digital display without microscopy. Testing is governed by ASTM E18 and ISO 6508.
Principle
A minor load (typically 10 kgf) is first applied to seat the indenter and eliminate surface irregularities. The depth position is zeroed. A major load is then applied and held for a specified dwell time (10–15 s). The major load is removed and, under the minor load only, the increase in penetration depth due to the permanent deformation is measured. The Rockwell number is calculated as:
HRC = 100 − (h / 0.002)
h = permanent increase in penetration depth (mm) after removing major load
0.002 mm = one Rockwell unit
Rockwell B (HRB) formula:
HRB = 130 − (h / 0.002)
The 130 constant is used for the B, F, G scales; 100 is used for C, A, D scales
Example — HRC 45:
Permanent depth h = (100 − 45) × 0.002 = 0.110 mm (110 µm)
Rockwell Scales
The Rockwell system defines over 30 scales, each denoted by a letter suffix (HRA, HRB, HRC, etc.). The most important for metallic materials in welding and fabrication are:
| Scale | Indenter | Major Load | Typical Materials | Useful Range |
|---|---|---|---|---|
| HRA | Diamond Brale | 60 kgf | Cemented carbides, thin hard coatings | 70–85 HRA |
| HRB | 1/16" steel ball | 100 kgf | Aluminium, brass, mild steel, copper | 25–100 HRB |
| HRC | Diamond Brale | 150 kgf | Hardened steel, cast iron, deep case | 20–67 HRC |
| HRF | 1/16" steel ball | 60 kgf | Soft copper, thin soft sheet | 60–100 HRF |
| HR15N / 30N / 45N | Diamond Brale | 15 / 30 / 45 kgf | Superficial — thin case layers, sheet | Scale dependent |
Brinell Hardness Test
The Brinell test, standardised in ASTM E10 and ISO 6506, uses a tungsten carbide ball (10 mm diameter for most metals) pressed into the surface under a load from 500 kgf to 3,000 kgf. After removal of the load, the diameter of the circular indentation is measured optically using a calibrated low-power microscope, and the Brinell Hardness number (HBW) is calculated from the surface area of the impression.
HBW = (2F) / (π D (D − √(D² − d²)))
F = applied force (kgf)
D = ball diameter (mm)
d = mean diameter of indentation (mm)
Standard conditions:
Steel/cast iron: D = 10 mm, F = 3,000 kgf (HBW 10/3000)
Aluminium alloys: D = 10 mm, F = 500 kgf (HBW 10/500)
Worked example:
D = 10 mm, F = 3,000 kgf, d (mean) = 4.00 mm
HBW = (2 × 3000) / (π × 10 × (10 − √(100 − 16)))
= 6000 / (π × 10 × (10 − 9.165))
= 6000 / (31.416 × 0.835)
= 6000 / 26.23 ≈ 229 HBW
The Brinell method is preferred for cast irons, forgings, and weld deposits where the microstructure is coarse and heterogeneous — the large impression averages hardness across multiple grains and constituents. However, the Brinell test is unsuitable for thin material (typically < 8 mm), case-hardened surfaces, or small specimens where the impression footprint would approach the edge or the minimum thickness limit.
One important variation is the portable Brinell test using a hydraulic deadweight press, widely used in pressure vessel inspection to verify PWHT effectiveness on carbon steel weld HAZs without laboratory access.
Vickers Hardness Test
The Vickers test, standardised in ASTM E384 (micro) and ISO 6507 (macro and micro), uses a square-based diamond pyramid with a face angle of 136° pressed into the surface under a load ranging from 1 gf (micro-hardness) to 120 kgf (macro-hardness). After load removal, the diagonals of the square indentation are measured under a calibrated microscope. The Vickers Hardness number (HV) is calculated from the surface area of the impression.
HV = 1.8544 × F / d²
F = applied force (kgf)
d = mean of the two diagonals (mm)
1.8544 = geometric factor for 136° pyramid
Worked example (HV10 test):
F = 10 kgf, d1 = 0.420 mm, d2 = 0.416 mm
d (mean) = (0.420 + 0.416) / 2 = 0.418 mm
HV10 = 1.8544 × 10 / 0.418² = 18.544 / 0.1747
HV10 ≈ 106 HV10
The Vickers method is by far the most important in welding inspection. Its key advantages are:
- The same formula applies at all load levels — HV10 and HV0.1 are directly comparable without conversion.
- The small indentation size allows precise placement in the weld metal, HAZ, and base metal as required by ASME Section IX and ISO 15614-1.
- It is sensitive enough to detect softened zones in over-tempered P91 steel and hardened zones in the HAZ of duplex stainless steels.
- The scale extends from very soft (5 HV) to very hard (1,500 HV for diamond itself).
Load Classification for Vickers
| Category | Load Range | Designation | Typical Application |
|---|---|---|---|
| Macro | 5 kgf – 120 kgf | HV5, HV10, HV20, HV30, HV50, HV100 | Weld HAZ surveys, weld procedure qualification, pressure vessel inspection |
| Micro | 1 gf – 1 kgf | HV0.001 to HV1 | Individual grain assessment, thin coatings, case depth measurement, phase identification |
| Low-force | 1 kgf – 5 kgf | HV1, HV2, HV3 | Small parts, thin sections (< 2 mm), surface-treated layers |
Knoop Hardness Test
The Knoop test shares its load range and standardisation (ASTM E384, ISO 4545) with the Vickers micro-hardness method but uses a distinctly different elongated rhombic diamond pyramid with a longitudinal to transverse diagonal ratio of approximately 7:1. Only the long diagonal is measured. This asymmetry produces a shallower indentation for the same load and diagonal size, making Knoop particularly suited to:
- Very brittle materials (ceramics, glass) where the constrained deformation prevents cracking around the indent.
- Thin coatings, carburised or nitrided case layers where the shallow depth avoids substrate influence.
- Testing with the indent oriented along a specific crystallographic direction in anisotropic materials.
HK = 14.229 × F / L²
F = applied force (kgf)
L = length of long diagonal (mm)
14.229 = geometric constant for Knoop indenter (1/C where C = 0.07028)
Shore Hardness Test
Shore hardness, standardised in ASTM D2240, is specifically designed for elastomers, rubbers, and soft polymers. It uses a spring-loaded pointed pin (durometer) pressed into the material surface under a fixed load. Two main scales are used:
- Shore A — truncated cone indenter, for soft rubbers, neoprene, gaskets, sealing compounds. Range 0–100 Shore A.
- Shore D — sharp cone indenter, for hard rubbers, rigid plastics, fibreglass. Range 0–100 Shore D.
Shore hardness is relevant to welding and fabrication engineering when specifying sealing gaskets, elastomeric pipe supports, vibration isolation pads, and neoprene liners. A typical elastomeric pipe support pad is specified at 50–70 Shore A.
Mohs Hardness Scale
The Mohs scale is a qualitative scratch-resistance ranking developed in 1812 by Friedrich Mohs. Ten reference minerals define the scale from talc (1) to diamond (10). A material’s Mohs hardness is the hardest reference mineral it can scratch. The scale is non-linear and semi-quantitative — the difference between corundum (9) and diamond (10) is far greater than the difference between any two adjacent lower values. Mohs hardness is used in geology and mineralogy for field identification and has limited direct engineering application, but the concept appears in abrasive selection and wear liner material choice.
| Mohs Value | Reference Mineral | Approx. HV | Engineering Analogy |
|---|---|---|---|
| 1 | Talc | ~1–2 HV | Soft wax |
| 2 | Gypsum | ~30–40 HV | Fingernail |
| 3 | Calcite | ~100 HV | Copper coin |
| 4 | Fluorite | ~160–190 HV | Mild steel |
| 5 | Apatite | ~300–500 HV | Glass, hardened steel |
| 6 | Feldspar | ~540–800 HV | File, chrome steel |
| 7 | Quartz | ~900–1,100 HV | Hardened tool steel |
| 8 | Topaz | ~1,200–1,400 HV | Tungsten carbide |
| 9 | Corundum | ~1,800–2,000 HV | Alumina ceramic |
| 10 | Diamond | ~6,000–10,000 HV | Industrial diamond |

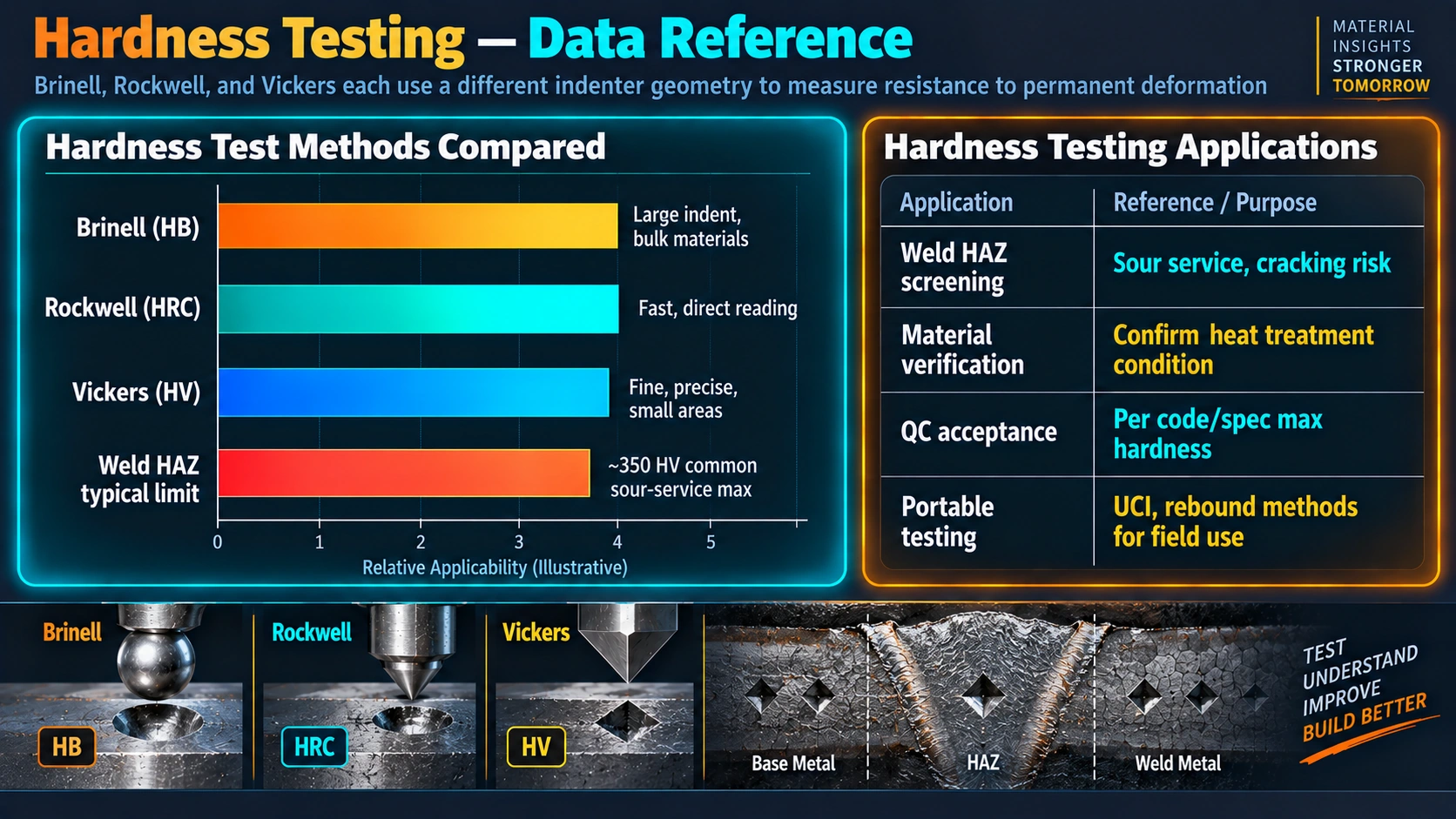

Hardness Test Loads — Complete Reference Table
Each hardness testing method operates within a defined load range. The selection of load must match the material, specimen thickness, and test purpose. The following table consolidates load ranges and applicable standards for all major methods.
| Method | Indenter | Load Range | ASTM Standard | ISO Standard | Best For |
|---|---|---|---|---|---|
| Brinell (HBW) | WC ball, 10 mm | 1 kgf – 3,000 kgf | ASTM E10 | ISO 6506 | Castings, forgings, weld HAZ (coarse) |
| Rockwell (HR) | Ball or diamond cone | 15 kgf – 150 kgf | ASTM E18 | ISO 6508 | Production testing, tool steels, case depths |
| Vickers HV (macro) | 136° diamond pyramid | 5 kgf – 120 kgf | ASTM E92 | ISO 6507 | Weld procedure qualification, HAZ surveys |
| Vickers HV (micro) | 136° diamond pyramid | 1 gf – 1 kgf | ASTM E384 | ISO 6507 | Case depth, individual phases, thin films |
| Knoop (HK) | Elongated rhombic diamond | 1 gf – 1 kgf | ASTM E384 | ISO 4545 | Ceramics, brittle coatings, anisotropic tests |
| Shore A/D | Durometer pin | Spring-loaded (0–1 kgf) | ASTM D2240 | ISO 868 | Elastomers, polymers, gaskets |
| Leeb (rebound) | WC ball (spring-fired) | Impact energy ~11 N·mm | ASTM A956 | ISO 16859 | In-situ field testing of large components |
Hardness Testing in Welding Quality Control
In the fabrication of pressure vessels, piping systems, and structural components, hardness testing serves three primary functions: weld procedure qualification, production weld quality monitoring, and verification of post-weld heat treatment (PWHT) effectiveness.
Weld Procedure Qualification
ASME Section IX (QW-462.5) and ISO 15614-1 require Vickers hardness traverses on cross-sections of procedure qualification test coupons. Typically, three rows of indents are made: one at 2 mm below the cap surface, one at mid-thickness, and one at 2 mm above the root. Each row must include indents in the weld metal, each HAZ, and the base metal. The maximum permitted hardness values depend on the applicable construction code and service environment:
| Application | Max HAZ Hardness | Reference |
|---|---|---|
| General pressure vessel (carbon steel) | 350 HV10 | ISO 15614-1 |
| Sour service (H2S environments) | 250 HV10 (≈ 22 HRC) | NACE MR0175 / ISO 15156 |
| P91 (Gr. 91) steel — after PWHT | 265 HV10 (min. 190 HV) | ASME B31.1, EPRI guidelines |
| Duplex stainless steel | 320 HV10 | ISO 15614-1, ASTM A923 |
| Austenitic stainless (general) | 220 HV10 | ISO 15614-1 |
PWHT Verification
One of the most common field applications of hardness testing is the verification of PWHT on carbon and low-alloy steel weldments. Before PWHT, the as-welded HAZ in a carbon-manganese steel may reach 350–420 HV due to martensitic transformation. After a standard PWHT at 595–640°C, the tempered martensite should read 180–250 HV. A portable Leeb or Brinell tester applied directly to the vessel shell provides rapid, cost-effective confirmation of temper without cutting test coupons.
For delta ferrite in austenitic stainless steel welds, hardness is less critical than for carbon steels, but Vickers microhardness of individual phases can detect sigma phase embrittlement if the delta ferrite zones show unexpectedly high hardness (sigma phase: ~1,000 HV).
Hardness Conversion Between Scales
No single conversion formula accurately relates all hardness scales across all materials. ASTM E140 provides conversion tables for carbon and low-alloy steels, nickel alloys, and austenitic stainless steels — but these are empirical correlations valid only within the ranges tested. Extrapolation outside the table limits or application to non-ferrous alloys without material-specific data is a frequent source of error.
Approximate conversions for carbon steel:
HRC ≈ (HV − 100) / 9.8
Valid for HV 210 to HV 700 approximately
Approximate HV to HBW (carbon steel):
HBW ≈ 0.95 × HV (for HV < 400)
HV and HBW converge near 100 and diverge significantly above 400 HV
Approximate HV to Tensile Strength (carbon/alloy steel):
UTS (MPa) ≈ 3.3 × HV
Useful only as a screening estimate; varies ±15% depending on heat treatment condition
Challenges and Common Errors in Hardness Testing
Surface Preparation
Inadequate surface preparation is the single most common source of error. A rough or decarburised surface on a Vickers or Knoop test will produce a falsely low and variable hardness. For micro-hardness testing, a metallographic finish (1 µm diamond or colloidal silica) is required. For macro-tests (Brinell, Rockwell HV10), a smooth grinding finish is usually adequate.
Indentation Spacing
Indents must be spaced at least 2.5 times the indent diagonal apart (Vickers), or 3 times the indent diameter (Brinell), to prevent strain field interactions from adjacent impressions. Failure to observe minimum spacing is a systematic error that inflates apparent hardness scatter.
Specimen Thickness
The specimen must be thick enough that the plastic deformation zone beneath the indent does not reach the back surface. ASTM E18 minimum thickness tables for Rockwell, and ASTM E384 guidance for Vickers, should always be consulted. Thin sheet, platings, or carburised layers must be tested with low loads and checked against the minimum thickness requirement.
Edge Effects
Testing too close to a specimen edge causes asymmetric constraint on the plastic zone, producing a falsely high hardness reading. ASTM E18 specifies that the distance from the indent centre to any edge should be at least 2.5 times the indent diameter for Rockwell.
Materials Suitable (and Unsuitable) for Hardness Testing
Hardness testing applies to a broad range of solid materials, but certain conditions preclude reliable results. The material must be solid with a reasonably flat, stable surface. Highly porous materials (some cast irons, sintered metals), very thin foils, small wire, and materials with severe surface curvature require special fixtures or adaptations.
Materials routinely hardness-tested in welding and fabrication contexts include carbon steels, alloy steels, stainless steels (austenitic, ferritic, martensitic, duplex), nickel alloys, titanium alloys, aluminium alloys, copper alloys, and cast irons. Polymers and elastomers require Shore hardness rather than indentation hardness because they exhibit significant viscoelastic recovery.
For further coverage of mechanical property testing in the context of code compliance, see the complete guide to mechanical testing in ASME Section IX and the UG-84 Charpy impact testing requirements under ASME Section VIII.
