Brazing vs Welding — Principles, Advantages & Limitations

By WeldFabWorld Published: April 7, 2024 Updated: September 4, 2025 8 min read

When engineers and fabricators need to join metals, three primary thermal processes are available: welding, brazing, and soldering. Of these, brazing vs welding is the most critical comparison for structural and industrial applications — both involve heat and filler metal, yet their underlying mechanisms and performance characteristics differ fundamentally. Understanding those differences allows you to select the right process for your application, optimise joint strength, control heat distortion, and reduce overall fabrication cost.

This guide covers the working principles of both processes, the role of capillary action in brazing, temperature ranges, filler metal classification, joint design requirements, comparative strengths and limitations, and a practical selection framework for real-world engineering decisions. Whether you are designing assemblies for aerospace, HVAC, pressure equipment, or general fabrication, the information here will give you a solid technical foundation for making the right choice.

Process Temperature Ranges: Soldering, Brazing & Welding Temperature (°C) 3000 2500 1500 1000 500 200 450°C SOLDERING <450°C BRAZING 450°C–1200°C WELDING 1400°C–3000°C+ ARC / FUSION Base metal melts Base metal stays solid 450°C threshold (ISO 857-2 / AWS C3)
Fig. 1 — Temperature range comparison for soldering, brazing, and welding. The 450°C threshold defined by AWS C3 and ISO 857-2 distinguishes brazing (above) from soldering (below). Fusion welding operates far above the melting point of most base metals.

What is Brazing?

Brazing is a thermal metal-joining process in which a filler metal is melted and drawn into the joint gap between two base metals by capillary action, forming a metallurgical bond without melting the base metal itself. This single characteristic — that the base metal remains solid throughout the process — sets brazing apart from fusion welding and determines its unique combination of advantages and limitations.

According to AWS and ISO 857-2, brazing is distinguished from soldering solely by temperature: brazing uses filler metals with a liquidus above 450°C (840°F), while soldering uses fillers with a liquidus below that threshold. The brazing temperature for most silver and copper alloy fillers lies in the range of 620°C to 870°C (1150°F to 1600°F), well below the melting point of structural steels, copper alloys, and stainless steels.

How Capillary Action Works in Brazing

Capillary action is the phenomenon by which a liquid wets and is drawn through a narrow gap against or independently of gravity, driven by surface tension and adhesion forces between the liquid filler and the solid base metal surfaces. For effective brazing:

  • Joint clearance must be controlled — typically 0.025 mm to 0.13 mm (0.001 in to 0.005 in) for silver and copper filler metals at temperature
  • Base metal surfaces must be chemically clean and free of oxides (achieved through flux or controlled atmosphere)
  • The filler metal must wet the base metal — that is, the surface tension must be low enough to allow spreading
  • Heat must be applied uniformly to the joint area to draw the filler through the gap rather than pooling it at one point
AWS Standard Reference: Brazing procedures and filler metals for general engineering are classified under AWS C3.2 (Standard Method for Evaluating the Strength of Brazed Joints in Shear), AWS C3.3 (Design, Manufacture, and Inspection of Critical Brazed Components), and AWS A5.8 (Specification for Filler Metals for Brazing and Braze Welding). For pressure-equipment applications, ASME Section IX Part QB governs brazing procedure and performance qualification.

Brazing vs. Welding: The Key Physical Distinction

In welding, the heat source raises the temperature of the base metal above its liquidus — melting a portion of it — and the filler (if used) fuses with this molten pool to form a continuous metallurgical union upon solidification. In brazing, the base metal temperature is raised above the filler’s liquidus but below the base metal’s own solidus, so the base metal never melts. The bond is formed at the interface between the solidified filler and the base metal surface through atomic diffusion and alloying at the boundary layer.

This distinction has practical consequences you should keep in mind when reviewing welding joint types or designing assemblies for processes governed by P-Number and F-Number classification.

Joint Cross-Sections: Brazing vs Welding Brazed Lap Joint Base Metal (solid) Base Metal (solid) Filler Metal (brazed film) Capillary action Overlap length L gap 0.05– 0.13mm Key characteristics: • Base metal NOT melted • Bond by atomic diffusion at interface • Filler liquidus >450°C, base stays solid • Minimal distortion, clean appearance • Joins dissimilar metals readily Welded Butt Joint Base Metal (HAZ present) Base Metal (HAZ present) Weld Bead (fusion zone) HAZ HAZ Key characteristics: • Base metal MELTED at fusion zone • HAZ created in adjacent base metal • High tensile / bending strength • Distortion risk with thin sections • Requires formal procedure qualification Note: Diagrams not to scale — for illustrative comparison only
Fig. 2 — Cross-section comparison: brazed lap joint (left) versus fusion-welded butt joint (right). The brazed joint relies on a thin filler film and atomic diffusion; the welded joint fuses base metal with a visible HAZ on both sides of the fusion zone.

What is Welding?

Welding is a metal-joining process that achieves a permanent bond by melting and fusing the base metals, with or without a filler metal, through a concentrated heat source. When the molten pool solidifies, the metals are joined in a continuous metallurgical union. The resulting weld zone — comprising the fusion zone and the heat-affected zone (HAZ) — has mechanical properties determined by the composition of the base metal, the filler metal, the welding process, and the thermal cycle imposed during welding.

Major welding processes include SMAW (Shielded Metal Arc Welding), GMAW/MIG, GTAW/TIG, and SAW (Submerged Arc Welding). Each process delivers heat differently but all achieve fusion of the base metal.

Key point: Welding demands a formal Welding Procedure Specification (WPS) qualified under codes such as ASME Section IX or AWS D1.1. The welder must also be performance-qualified. Brazing for pressure applications is qualified under ASME Section IX Part QB, but the regulatory burden for general fabrication brazing is considerably lower.

The Heat-Affected Zone in Welding

A critical characteristic of welding that distinguishes it from brazing is the formation of a heat-affected zone (HAZ) — the region of base metal adjacent to the fusion zone that is not melted but is thermally cycled to temperatures sufficient to alter its microstructure and properties. In steels, the HAZ may experience grain coarsening, hardening, softening, or sensitisation depending on the composition and welding heat input. This is why carbon equivalent (CE) calculations are essential when welding carbon and low-alloy steels: high CE values increase HAZ hardening and hydrogen-induced cracking risk.

In brazing, no HAZ forms because the base metal temperature, while elevated, never reaches the transformation range of most structural metals. This is a significant practical advantage when joining hardened tool steels, heat-treated aluminium alloys, or other materials whose properties would be degraded by the temperatures required for fusion welding.

Brazing vs Soldering: How Do They Differ?

Both brazing and soldering are capillary joining processes that leave the base metal unmelted, and both rely on flux or controlled atmosphere to remove oxides. The single distinguishing criterion, as defined by AWS and ISO 857-2, is the liquidus temperature of the filler metal:

PropertySolderingBrazing
Filler metal liquidus<450°C (<840°F)>450°C (>840°F)
Typical filler metalsTin-lead, tin-silver, tin-bismuthSilver alloys (BAg), copper (BCu/BCuP), aluminium-silicon (BAlSi), nickel (BNi)
Joint strengthLow to moderate (service loads only)High (can equal base metal strength)
Primary applicationsElectronics, plumbing (domestic), low-load assembliesHVAC/R, aerospace, automotive, cutting tools, structural
Heat sourceSoldering iron, hot air, wave solderingTorch, furnace, induction, resistance
Base metal changeNone (minimal heating)None (base stays solid; slight diffusion at interface)

In practice, soldering is appropriate for electrical connections and light-duty plumbing, while brazing is the correct choice wherever structural integrity, pressure containment, or high-temperature service is required.

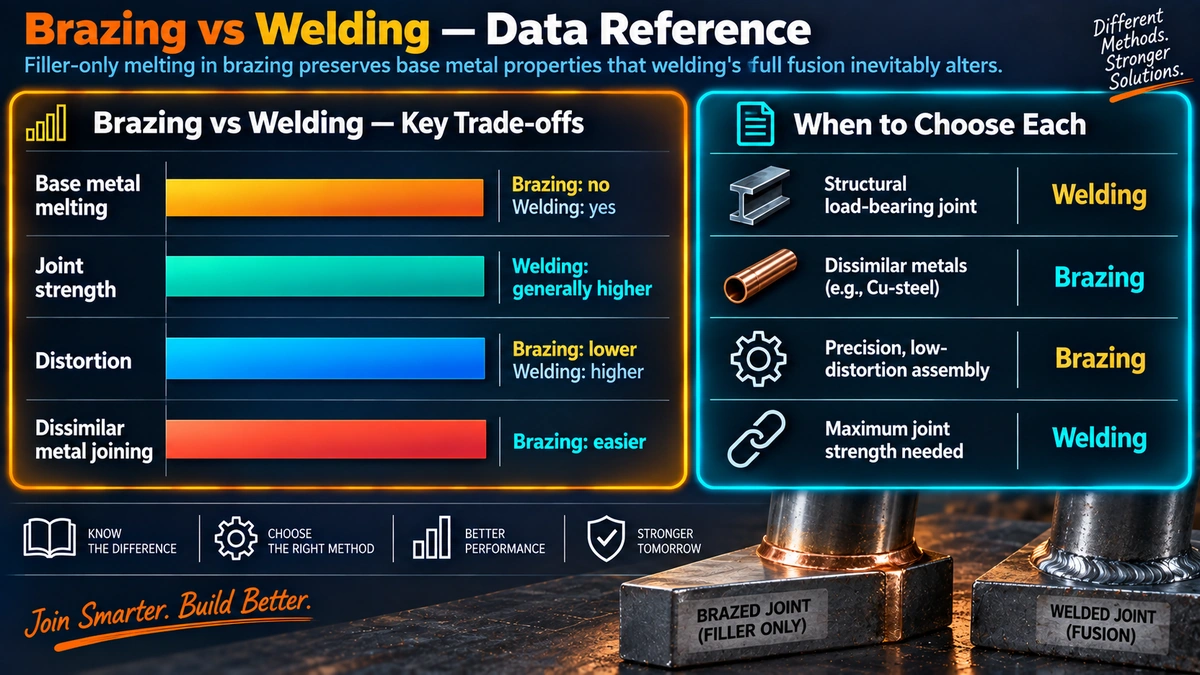

Brazing vs Welding: Comprehensive Process Comparison

ParameterBrazingWelding (Fusion)
Base metal condition Solid (never melted) Melted at fusion zone
Operating temperature 620°C–1200°C (process-dependent) 1400°C–3500°C (arc/plasma)
Heat input Low to moderate High
Distortion risk Low Moderate to high
HAZ formation None Yes — metallurgical changes in base metal
Joining dissimilar metals Excellent Difficult (dilution / metallurgical incompatibility)
Joint tensile strength High (lap joint design-dependent) Very high (butt weld can equal base metal Rm)
Appearance of joint Smooth, clean, minimal finishing Reinforced bead, requires dressing for cosmetic finish
Skill level required Moderate (joint design critical) High (arc control, position, interpass)
Automation suitability High (furnace, induction, resistance) Moderate to high (robotic GMAW, SAW)
Procedure qualification required Yes (ASME Sec IX QB for pressure; AWS C3 general) Yes (ASME Sec IX QW; AWS D1.x; EN ISO 15614)
Typical base metal thickness Thin to medium (preferred) Thin to very thick
Energy consumption Lower Higher

Brazing Filler Metals and Classification

Brazing filler metals are classified under AWS A5.8 / ASME SFA-5.8. The designation system uses a prefix B (for brazing), followed by element symbols indicating the alloy composition. The major families are:

AWS SeriesBase AlloyLiquidus RangeTypical Applications
BAgSilver-based630°C–870°CHVAC/R, aerospace, cutting tools, general engineering; joins most metals
BCuCopper1085°CFurnace brazing of steel and copper alloys in hydrogen/vacuum atmospheres
BCuPCopper-phosphorus645°C–820°CSelf-fluxing on copper; HVAC/R copper tube joints
BAlSiAluminium-silicon555°C–615°CAluminium heat exchangers, automotive radiators
BAuGold-based890°C–1030°CAerospace, electronics, nuclear; high-temperature and corrosion resistance
BNiNickel-based970°C–1200°CHigh-temperature service, stainless, superalloys, gas turbine components
BCoCobalt-based1150°C–1250°CCobalt-base and nickel-base superalloy components at extreme temperatures
Practical tip: BCuP series fillers are self-fluxing on copper-to-copper joints because the phosphorus in the alloy reacts with surface oxides during heating. However, they must never be used on ferrous metals or nickel alloys — phosphorus causes severe embrittlement at grain boundaries in these materials.

Role of Flux and Atmosphere

During brazing, the base metal surfaces must be free of oxides to allow the filler to wet and flow. This is achieved either by applying a flux (a chemical compound that dissolves oxides at brazing temperature) or by conducting the brazing process in a controlled atmosphere (hydrogen, nitrogen, vacuum) that prevents oxide formation. Furnace brazing in controlled atmospheres is the standard approach for high-volume production and for materials sensitive to flux residue, such as stainless steel in food-grade applications or aerospace components.

Joint Design for Brazing

Because brazing bonds a thin film of filler metal in shear, joint geometry is the primary determinant of joint strength. The two fundamental joint configurations are:

Lap Joint

The lap joint is the preferred configuration for brazing because the bond area is in shear, and shear loading distributes stress uniformly across the joint. Joint strength increases with overlap length up to a practical limit (typically 3 to 4 times the thinner member thickness). The formula for shear load capacity of a brazed lap joint is:

Brazed Lap Joint Shear Capacity

  F = τ × A

  where:
    F  = shear load capacity (N)
    τ  = shear strength of filler metal (N/mm²)
    A  = bond area = width × overlap length (mm²)

  Typical BAg-7 shear strength: ~200 N/mm² (29 ksi)
  Example: 25 mm wide × 6 mm overlap × 200 N/mm² = 30,000 N (30 kN)

Butt Joint

Butt joints in brazing are weaker than welded butt joints because the filler film in tension has a limited cross-sectional area. Brazed butt joints are used where assembly geometry dictates it — for example, in pipe-to-pipe end-face joints — but they should be avoided under cyclic tensile loading. In such cases, a lap or sleeve joint offers far superior fatigue performance.

Warning: Never design a brazed butt joint for primary tensile or bending loads in a safety-critical application without adequate analysis. The thin filler cross-section means the joint’s tensile capacity is substantially lower than an equivalent welded butt joint. Consult AWS C3.3 or ASME Section IX Part QB for design and qualification guidance.

Industrial Applications

Where Brazing is Used

  • HVAC/R: BCuP filler metals are used for millions of copper-to-copper and copper-to-brass joints in refrigeration and air conditioning systems globally
  • Automotive: Aluminium heat exchangers, radiators, oil coolers, and fuel system components are brazed in controlled-atmosphere furnaces
  • Aerospace: Turbine blades, aircraft hydraulic fittings, and satellite structures use BAg, BAu, and BNi fillers for their strength-to-weight and high-temperature properties
  • Cutting tools: Tungsten carbide inserts are brazed to steel shanks — a classical dissimilar-metal application that welding cannot achieve
  • Electronics: Hermetic package seals, vacuum tube construction, and waveguide assemblies rely on controlled-atmosphere brazing
  • Jewellery: Silver brazing (often called “silver soldering” colloquially, though technically above 450°C) produces clean, strong joints with minimal heat distortion

Where Welding is Used

  • Structural fabrication: Bridges, buildings, offshore platforms, and shipbuilding use SMAW, GMAW, and SAW for thick-section structural steelwork
  • Pressure vessels: Pressure vessels and boilers manufactured to ASME Section VIII are fusion-welded, with joints qualified under ASME Section IX
  • Pipelines: Oil and gas pipelines are welded to API 1104 or ASME B31.3/B31.8, requiring full-penetration butt welds radiographically or ultrasonically inspected
  • Repair welding: In-service repair of cracked or damaged components in plant equipment typically requires fusion welding due to the section thickness and structural requirements
  • Special materials: P91 chrome-moly steel, duplex stainless steels, and nickel alloys for high-temperature or corrosion service are always welded using carefully qualified procedures

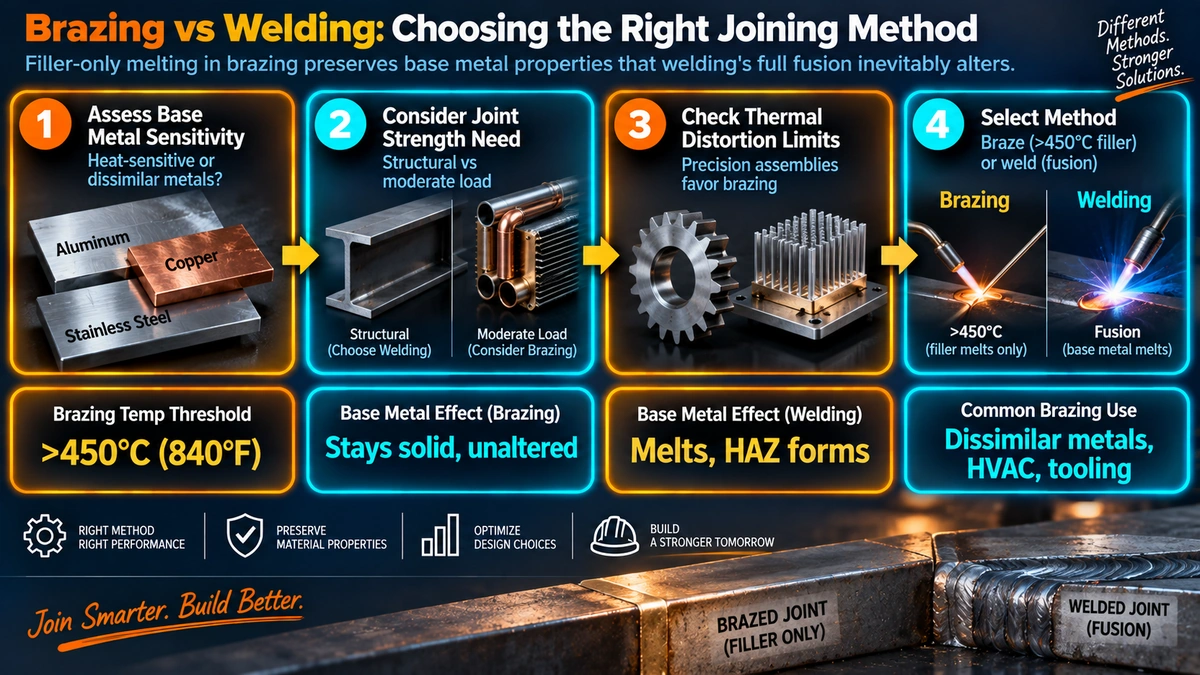

How to Choose: Brazing vs Welding

When both processes are technically feasible, the following decision factors should guide your selection:

FactorFavour BrazingFavour Welding
Base metal thicknessThin (<3 mm) or medium sectionsMedium to thick sections (>3 mm)
Base metal typesDissimilar metals (e.g. copper to steel)Same or similar metals
Distortion toleranceLow distortion requiredDistortion acceptable or controllable
Joint appearanceCosmetic finish requiredStructural finish acceptable
Production volumeHigh volume; furnace/induction automationLow to high volume; robotic welding feasible
Service temperatureUp to ~850°C (BAg), up to ~1100°C (BNi)Up to base metal service limit
Load typeShear-dominant loading (lap joint)Tensile and bending loading (butt weld)
Code requirementAWS C3.x, ASME QB for pressureASME Section IX, AWS D1.x mandatory for structural/pressure
Skill availabilityFaster operator trainingQualified welder required; longer training
Base metal propertiesPreserve heat-treated or hardened stateAccept HAZ property changes
Engineering note: When neither brazing nor welding is suitable — for example, with very different coefficients of thermal expansion, one metal being non-metallic, or where mechanical disassembly may be needed — consider mechanically fastened joints or adhesive bonding. However, for permanent, leak-tight, or high-strength assemblies, brazing or welding will nearly always outperform mechanical fastening in structural performance.

Automation Considerations

Both processes can be automated, but brazing lends itself particularly well to high-volume automated production. Furnace brazing places all components in a controlled-atmosphere furnace simultaneously, brazing hundreds of assemblies in a single cycle. Induction brazing can be integrated inline with manufacturing cells and requires only accurate part fixturing. In welding, robotic GMAW and submerged arc welding offer high automation capability for linear joints but require more sophisticated path programming and seam tracking than typical brazing automation.

Recommended Books on Brazing and Welding Technology

Brazing Handbook (AWS)

The definitive AWS reference covering brazing metallurgy, filler metals, joint design, fluxes, atmospheres, and process applications across all industries.

View on Amazon

Welding Metallurgy (Sindo Kou)

A rigorous academic and industry reference covering weld microstructure, solidification, HAZ behaviour, and cracking in all major alloy systems.

View on Amazon

Handbook of Welding Technology

A comprehensive guide to arc welding processes, parameters, consumables, and quality control — ideal for workshop engineers and inspectors.

View on Amazon

Metal Joining Processes

Covers the full spectrum of metal joining — welding, brazing, soldering, and adhesive bonding — with process selection guidance and worked examples.

View on Amazon

Disclosure: WeldFabWorld participates in the Amazon Associates programme (StoreID: neha0fe8-21). If you purchase through these links, we may earn a small commission at no extra cost to you. This helps support free technical content on this site.


Frequently Asked Questions

What is the fundamental difference between brazing and welding?
The fundamental difference is whether the base metal is melted. Welding melts both the base metal and the filler metal to form a fusion bond. Brazing never melts the base metal — it only melts the filler metal (liquidus above 450°C), which flows into the joint by capillary action and bonds metallurgically to the solid base metal surfaces. This distinction has significant consequences for heat input, distortion, and the ability to join dissimilar metals. For more on welded joint types, see our guide to different types of joints in welding.
What is the difference between brazing and soldering?
The key distinction is temperature. Both processes join metals without melting the base metal, using a filler that flows by capillary action. However, soldering uses filler metals with a liquidus below 450°C (840°F), while brazing uses filler metals with a liquidus above 450°C. Brazed joints are considerably stronger than soldered joints and can withstand higher service temperatures. This 450°C threshold is defined by both AWS and ISO 857-2.
Can a brazed joint be as strong as a welded joint?
Yes, a properly designed and executed brazed joint can match or even exceed the strength of the base metals. The joint geometry is critical: because brazing relies on a thin filler film rather than fusion, brazed joints perform best in shear loading (lap joints) rather than tension loading (butt joints). When correctly designed with adequate overlap length, brazed lap joints can equal welded joint strength. However, welded butt joints in thick sections will generally outperform brazed butt joints in tensile loading. Understanding mechanical testing methods helps verify joint performance.
What filler metals are used in brazing?
AWS A5.8 classifies brazing filler metals into several groups: silver-based (BAg series) for general engineering, copper-based (BCu, BCuP) for steel and copper alloys, aluminium-silicon (BAlSi) for aluminium alloys, gold-based (BAu) for aerospace and electronics, and nickel-based (BNi) for high-temperature and corrosion applications. The selection depends on the base metals, service temperature, strength requirements, and cost. BCuP fillers are self-fluxing on copper but must never be used on steels or nickel alloys due to phosphorus embrittlement. For welding consumable classification context, see our guide to welding consumable nomenclature.
Why is capillary action important in brazing?
Capillary action is the mechanism that draws molten filler metal into the tight gap between base metal surfaces. For effective brazing, the joint clearance must be maintained within a specific range — typically 0.025 mm to 0.13 mm (0.001 in to 0.005 in) for most silver and copper filler metals. Too large a gap weakens the joint because the filler cannot fully bridge it; too small a gap prevents filler penetration. The joint surfaces must also be chemically clean and properly fluxed to allow wetting. Correct joint clearance at brazing temperature (accounting for thermal expansion) is the most common source of brazing quality problems.
When should I choose welding over brazing?
Choose welding when you are joining thick-section components of the same or similar base metal where fusion strength is required, when the joint will be subject to high tensile or bending loads in service, when the assembly must withstand very high temperatures beyond the filler metal’s service limit, or when a pressure vessel or structural code (such as ASME Section IX or AWS D1.1) mandates a fusion welding process with formal procedure and welder qualification. Review our discussion of welding positions and process selection for structural applications.
Does brazing require formal procedure qualification like welding?
For most general fabrication, brazing does not carry the same formal qualification burden as welding. However, for pressure-containing applications governed by ASME codes, brazing procedures and operators are qualified under ASME Section IX, Part QB. AWS C3.2, C3.3, and related standards provide classification and qualification requirements for brazing. In regulated industries such as aerospace and nuclear, brazing procedures require rigorous documentation, testing, and operator qualification. See our ASME Section IX quiz to test your understanding of procedure qualification requirements.
Can brazing be used on stainless steel?
Yes, stainless steel can be brazed using BAg, BAu, BCu, or BNi filler metals. The key challenge is the tenacious chromium oxide layer on the surface, which resists wetting unless a highly active flux or a reducing atmosphere (hydrogen, vacuum, or dissociated ammonia) is used. For austenitic stainless steels, the brazing temperature range must be chosen carefully to avoid the sensitisation temperature range (450°C to 850°C) where chromium carbide precipitation can occur, leading to weld decay or intergranular corrosion. BNi fillers brazed above 1000°C avoid this risk. For duplex and duplex stainless steels, brazing must be conducted above the sensitisation range with rapid cooling.
