Complete Guide to Welding Duplex Stainless Steels (P No. 10H)
Duplex stainless steels (DSS) sit at the intersection of strength and corrosion resistance that neither austenitic nor ferritic stainless grades can achieve alone. Their two-phase microstructure — roughly equal proportions of austenite and ferrite — delivers yield strengths nearly double that of standard 316L, outstanding resistance to stress corrosion cracking (SCC), and a service life in aggressive chloride environments that has made them the material of choice across oil & gas, desalination, chemical processing, and offshore structural applications. Classified as P-Number 10H under ASME Section IX, these materials demand a welding approach that is thoughtfully different from conventional stainless steel practice.
Welding DSS is not technically difficult, but it is unforgiving of shortcuts. Incorrect interpass temperature, wrong shielding gas, improper heat input, or the absence of back purging can push the weld microstructure far from the required 30–70% ferrite range — compromising both the corrosion resistance and the mechanical properties that justified specifying the material in the first place. This guide consolidates the key requirements from AWS D10.18, API 582 (2023), API 938-C (2015), and ASM Handbook guidance into a single practical reference for engineers, welding inspectors (CWIs), and fabricators working with these materials.
Whether you are qualifying a WPS for the first time on S32205, trouble-shooting ferrite readings on a super duplex S32750 assembly, or selecting filler metal for a DSS-to-carbon-steel dissimilar joint, this article provides the technical depth you need to work with confidence.
PREN Calculator — Pitting Resistance Equivalent Number
Enter weld chemistry or base material composition. Formula per API 582/938-C.
What Are Duplex Stainless Steels?

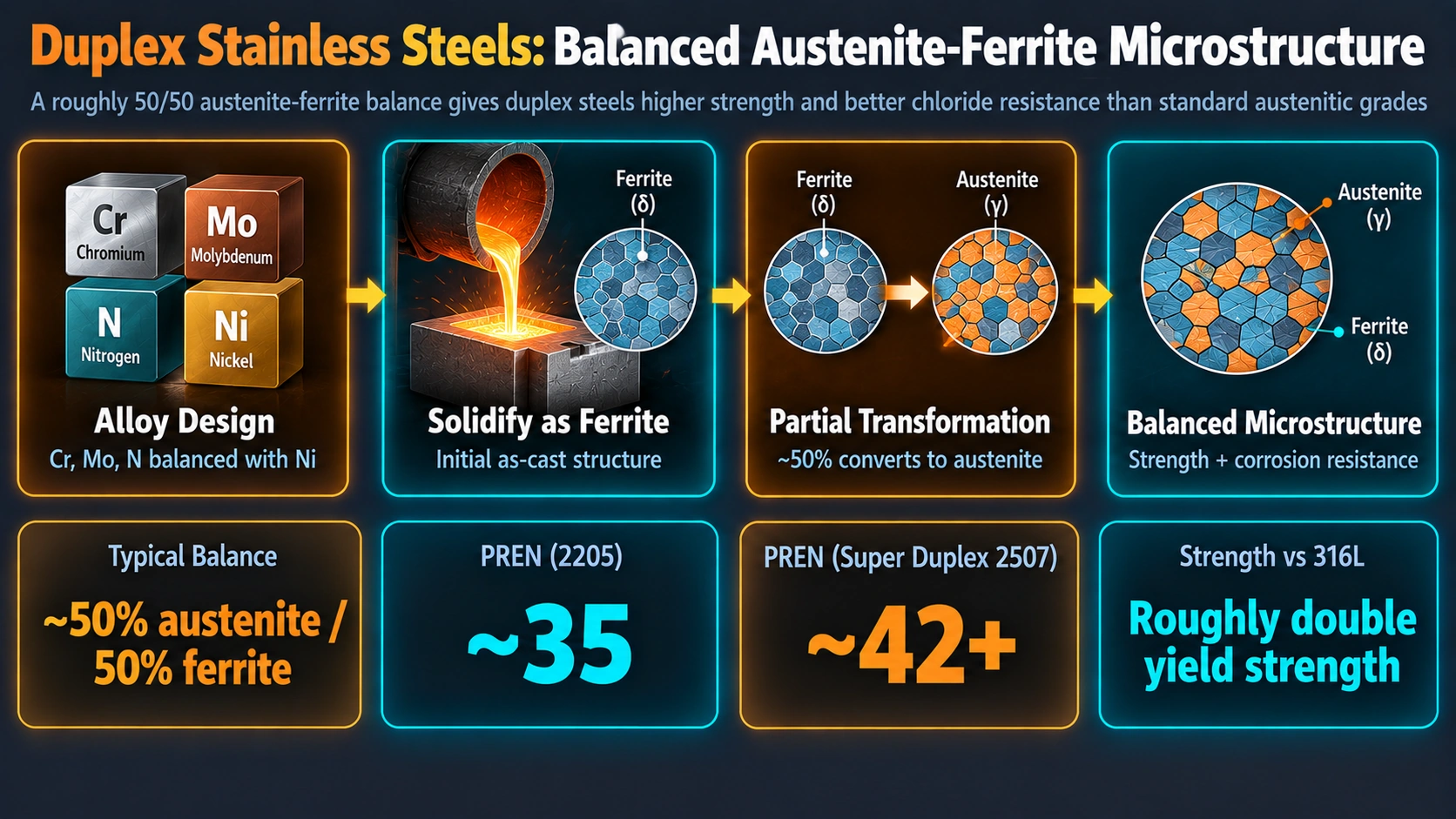

Duplex stainless steels are iron-chromium-nickel (Fe-Cr-Ni) alloys with deliberate additions of molybdenum (Mo), nitrogen (N), and in some grades, copper (Cu) and tungsten (W). The term “duplex” refers to their two-phase microstructure: a matrix of body-centred cubic (bcc) ferrite with islands of face-centred cubic (fcc) austenite, each phase present in roughly 45–55% proportion in the solution-annealed base metal condition.
This balanced microstructure is not accidental — it is engineered. The austenite phase provides ductility, toughness, and resistance to uniform corrosion, while the ferrite phase provides high strength, resistance to stress corrosion cracking in chloride environments, and lower cost (ferrite uses less nickel than austenite). The combination delivers a property profile that neither phase alone can match.
Classification of Duplex Stainless Steels
Duplex stainless steels are classified into four tiers based on their alloy content, PREN, and corrosion resistance capability. Understanding this classification is essential for correct filler metal selection, back-purge specification, and corrosion qualification testing.
1. Lean DSS
Lean duplex grades contain lower levels of molybdenum and nickel compared to standard DSS, making them more economical while still offering better SCC resistance than 304/316 austenitics. Typical application: structural components, tanks, and storage in moderately corrosive environments.
- Grade 2304 (UNS S32304): 23% Cr, 4% Ni, no deliberate Mo addition
- PREN typically below 30
- Filler: ER2209 (over-alloyed relative to base material to maintain ferrite balance)
2. Standard DSS
Grade 2205 (UNS S31803/S32205) is the most widely specified duplex grade globally, accounting for approximately 80% of DSS usage. It offers an excellent balance of strength, corrosion resistance, and weldability for the majority of oil & gas and chemical processing applications. Learn more about PREN calculation for stainless selection in our dedicated calculator article.
- Grade 2205 (S31803/S32205): 22% Cr, 5–6% Ni, 3% Mo, 0.14–0.20% N
- PREN typically 33–38
- Filler: ER2209 (GTAW/GMAW), E2209 (SMAW)
3. Super DSS
Super duplex grades (Grade 2507, UNS S32750) carry significantly higher alloy content — 25% Cr, 7% Ni, 4% Mo, 0.27% N — pushing PREN above 40. These materials are specified for offshore topside piping, seawater injection systems, and subsea umbilicals where standard 2205 is insufficient.
- Grade 2507 (S32750): PREN > 40, max service temperature limited to ~300°C
- Grade 2507 with Cu/W additions (S32760): Enhanced crevice corrosion resistance
- Filler: ER2594 (GTAW/GMAW), E2594 (SMAW)
- Critical Pitting Temperature (CPT) > 50°C in seawater
4. Hyper DSS
Hyper duplex grades (e.g., UNS S32707) represent the extreme end of the DSS family, with PREN values of 48–55. They are used in very aggressive chloride and acid environments where even super duplex proves inadequate. Filler metal selection must be made in consultation with the material supplier, as standard consumables may not be available off-the-shelf.
Classification Summary Table
| Type | Common Grade | UNS | %Cr | %Mo | %N | PREN Range | Standard Ref. |
|---|---|---|---|---|---|---|---|
| Lean DSS | 2304 | S32304 | 23 | 0.1–0.6 | 0.05–0.20 | < 30 | AWS D10.18, API 582 |
| Standard DSS | 2205 | S31803 / S32205 | 22 | 2.5–3.5 | 0.14–0.20 | 30–38 | AWS D10.18, API 582 |
| Super DSS | 2507 | S32750 | 25 | 3.5–5.0 | 0.24–0.32 | 40–48 | API 582, NORSOK M-601 |
| Hyper DSS | — | S32707 | 27 | 4.0–5.0 | 0.30–0.50 | 48–55 | Supplier specification |
PREN — Pitting Resistance Equivalent Number
PREN is the industry-standard index for quantifying a stainless steel’s resistance to localised pitting corrosion, particularly in chloride environments. It accounts for the three most influential alloying elements: chromium, molybdenum (and tungsten), and nitrogen. Higher PREN indicates greater resistance to pitting initiation. The formula per API 582 and API 938-C is:
Where:
%Cr = Chromium content (wt%)
%Mo = Molybdenum content (wt%)
%W = Tungsten content (wt%); 0 if not present
%N = Nitrogen content (wt%)
Example — Grade 2205 (S32205):
PREN = 22.5 + 3.3 × (3.1 + 0) + 16 × 0.18
= 22.5 + 10.23 + 2.88
PREN = 35.6 (Standard DSS — suitable for most industrial chloride environments)
Example — Grade 2507 (S32750):
PREN = 25.0 + 3.3 × (3.8 + 0) + 16 × 0.27
= 25.0 + 12.54 + 4.32
PREN = 41.9 (Super DSS — suitable for seawater and aggressive chloride service)

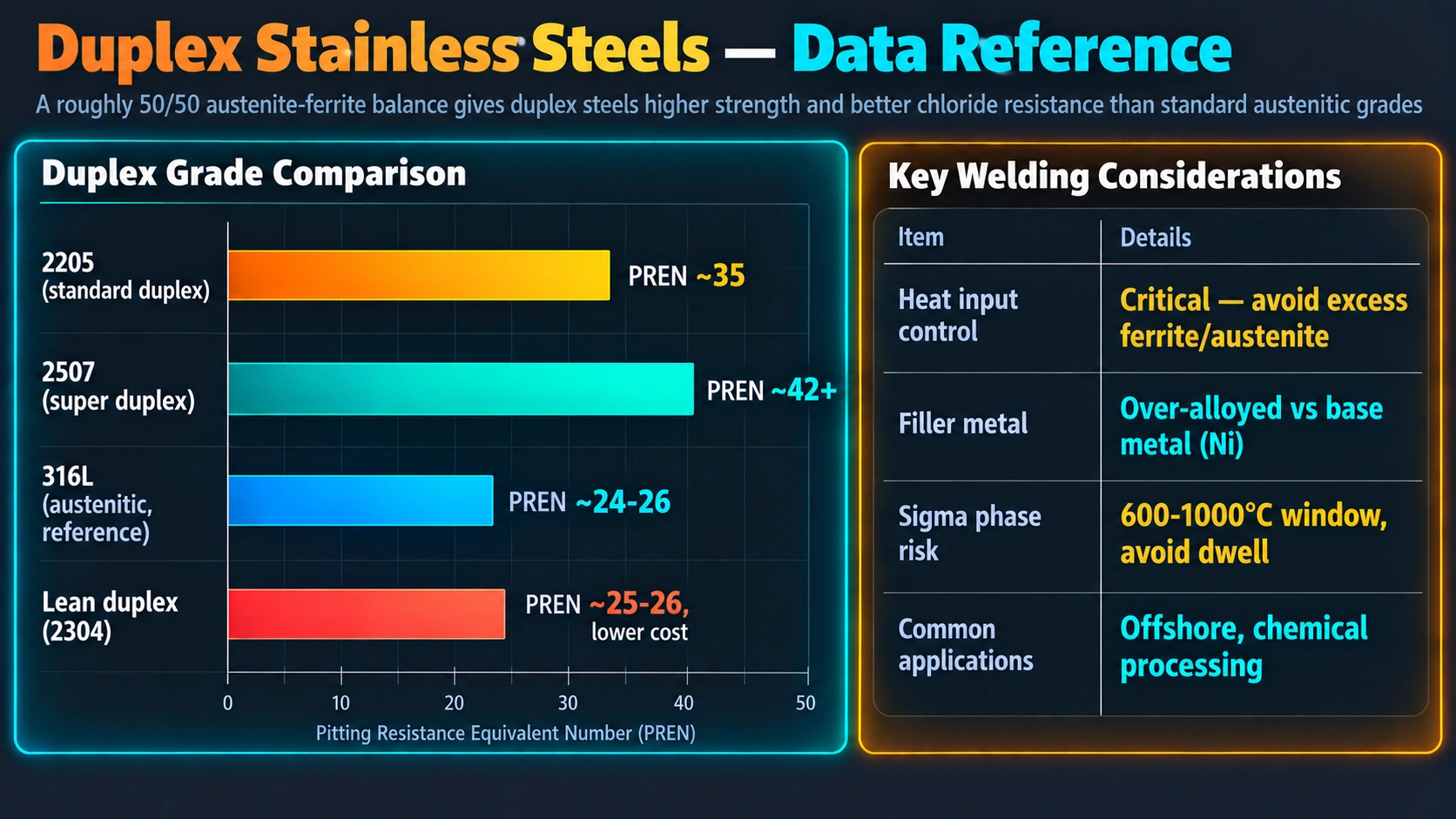

| DSS Type | PREN Range | Typical Service Environment | Example Grade |
|---|---|---|---|
| Lean DSS | < 30 | Freshwater, mild industrial | S32304 |
| Standard DSS | 30–38 | Seawater (ambient), process streams <40°C Cl | S32205 |
| Super DSS | 40–48 | Seawater injection, offshore topside, acidic Cl | S32750 |
| Hyper DSS | 48–55 | Highly aggressive acids, hot chloride brines | S32707 |
Key Welding Challenges for Duplex Stainless Steels
The dual-phase microstructure of DSS is its greatest asset in service — but it is also the source of the material’s welding sensitivity. Each welding variable directly influences the ferrite-austenite balance in the weld metal and HAZ, and deviations from the correct range have consequences that may not be visible to the naked eye but are devastating in service.
Ferrite Content Management
The ferrite content in DSS welds is the single most important quality parameter. It is influenced by heat input, cooling rate, filler metal composition, shielding gas nitrogen content, and the number of weld passes (reheating from subsequent passes promotes austenite reformation).
- Target: 30–70% ferrite (30–70 FN) in production welds per API 582
- Ferrite below 30%: increased SCC susceptibility in chloride service
- Ferrite above 70%: risk of sigma phase embrittlement in service >300°C
- Prediction: WRC-1992 constitution diagram (Cr-equivalent vs. Ni-equivalent)
- Measurement: Ferritescope (magnetic induction), calibrated to WRC FN scale
- Root/cap passes typically show different ferrite than fill passes — all must be checked
Interpass Temperature Control
Interpass temperature is one of the most tightly controlled variables in DSS fabrication. Elevated interpass temperatures extend the time spent in the sigma and chi phase precipitation range (700–1000°C), degrading both toughness and PREN-equivalent corrosion resistance. The following limits, derived from practical experience and aligned with API 582, apply as a minimum baseline — always defer to the approved WPS and project specification.
| Wall Thickness | Max Interpass Temperature | Rationale |
|---|---|---|
| < 3 mm | 50°C | Thin section; rapid heat accumulation; high distortion risk |
| 3–6 mm | 70°C | Moderate section; back-purge maintained until >6 mm |
| 6–9.5 mm | 100°C | Standard range for most piping schedules |
| > 9.5 mm | 150°C | Heavy wall; greater heat sink; slower accumulation |
Shielding and Back-Purge Gas Requirements
Gas selection is critical for maintaining the nitrogen content and phase balance in DSS welds. Nitrogen loss during welding drives the weld towards an over-ferritic structure, while oxygen contamination of the root side produces chromium oxide scale that severely degrades corrosion resistance and is difficult to detect visually until a corrosion test is performed.
Shielding Gas (Torch Side)
- 100% Argon: Standard for GTAW root passes; produces clean welds
- Ar + 2–3% N₂: Preferred for multi-pass GTAW and GMAW; compensates for nitrogen loss and promotes austenite reformation in the HAZ
- Ar + 2% N₂ + 30% He: Used for higher productivity GMAW on thick sections (improved arc stability)
- Avoid CO₂ or O₂ additions: These oxidise the weld pool and can alter ferrite balance
- Avoid H₂ additions: Hydrogen embrittlement risk in the ferritic phase
Back-Purge Gas (Root Side)
Back purging is mandatory for GTAW root passes in DSS piping and must be maintained until the cumulative deposited thickness covers the root pass sufficiently (typically until at least 6 mm of fill is deposited above the root). The purge atmosphere must be verified for oxygen content before welding begins.
- Standard: Ar + 2% N₂ minimum (maintains nitrogen in root zone)
- Maximum residual O₂: 0.10% (1000 ppm) — verify with calibrated oxygen monitor
- Root colour acceptance: Silver or light straw acceptable; brown marginal; blue or black = reject and grind out
- Avoid nitrogen (100%) back purge alone — it can cause porosity in some conditions
Filler Metal Selection (Per API 582)
Filler metal selection for DSS is intentionally over-alloyed relative to the base material — particularly in nickel content — to compensate for nickel dilution during welding and to ensure that the as-welded deposit achieves the target ferrite range. Using a “matching” filler in the conventional sense (same composition as base metal) typically produces an excessively ferritic weld for DSS. Refer to our guide on ER2209 and ferrite number per ASME SFA-5.9 for detailed classification information.
| Process | Lean DSS (2304) | Standard DSS (2205) | Super DSS (2507) | Hyper DSS |
|---|---|---|---|---|
| SMAW | E2209 | E2209, E2553 | E2594, E2595 | Supplier |
| GTAW | ER2209 | ER2209, ER2553 | ER2594 | Supplier |
| GMAW | ER2209 | ER2209, ER2553 | ER2594 | Supplier |
| SAW | ER2209 + flux | ER2209 + flux | ER2594 + flux | Supplier |
| FCAW | E2209TX / EC2209 | EC2553, E2594TX | EC2594 | Not applicable |
Filler Metal Storage and Handling
- Store GTAW wires and SMAW electrodes in dry, temperature-controlled conditions
- SMAW electrodes: re-dry per manufacturer instructions if exposed to humidity (>4 hours open)
- Keep DSS filler metals segregated from carbon steel consumables — cross-contamination risk
- Use dedicated wire brushes and grinding discs for DSS — never shared with carbon steel
Joint Preparation and Fit-Up
Proper joint preparation for DSS directly influences root pass ferrite balance and the effectiveness of the back purge. Poor fit-up forces the welder to use excessive heat input to bridge gaps, driving the root weld toward an over-ferritic or oxidised condition.
Recommended Joint Geometry
| Parameter | Recommended Value | Note |
|---|---|---|
| Bevel angle (single-V) | 60–70° included angle | Wider bevel reduces root heat input requirement |
| Root gap | 2.0–2.5 mm | Consistent gap ensures full root fusion without excessive heat |
| Root face | 1.0–1.5 mm | Reduces risk of burn-through on thin-wall pipe |
| Joint type preference | X-joint for thick sections (>20 mm) | Reduces total filler volume and distortion |
| Fit-up tolerance | Hi-lo < 1.5 mm | Misalignment increases root HAZ heat concentration |
Pre-Weld Preparation Checklist
- Store DSS separately from carbon and low-alloy steels on site — use colour-coded marking
- Remove plasma-cut HAZ by grinding before fit-up — plasma-cut edge has depleted nitrogen zone
- Do NOT use carbon arc gouging without subsequent grinding to remove contaminated surface
- Clean joint faces with dedicated stainless wire brush, then degrease with acetone
- Check oxygen monitor reads < 0.10% O₂ at the purge outlet before striking the arc
- Tack welds must use the same filler metal as the root pass — record in weld traveller
Post-Weld Heat Treatment — Why It Is Avoided
Unlike carbon steels and chrome-moly alloys, conventional PWHT (stress relief in the range 600–720°C) is categorically not recommended for DSS. Within this temperature range, the following intermetallic and secondary phases precipitate rapidly from the ferrite phase:
| Phase | Temperature Range | Effect on Properties |
|---|---|---|
| Sigma (σ) phase | 700–950°C | Severe loss of toughness; reduced Cr and Mo in adjacent matrix (PREN degradation) |
| Chi (χ) phase | 700–900°C | Similar to sigma; harder to detect metallographically |
| Chromium nitrides (Cr₂N) | 700–950°C | Precipitation at ferrite grain boundaries; reduces nitrogen in solution and degrades corrosion resistance |
| Secondary austenite (γ₂) | 650–800°C | Lean in Cr, Mo, N — lower corrosion resistance than primary austenite |
| 475°C embrittlement | 300–520°C | Alpha-prime ordering in ferrite; DBTT shift upward; detected by Charpy testing |
If solution annealing is genuinely required (e.g., after cold forming beyond the specification limit), it must be performed at 1040–1100°C followed by immediate water quenching to dissolve all intermetallics. This is typically impractical for completed assemblies. For the vast majority of fabrication scenarios, the correct approach is to weld correctly within the heat input and interpass temperature envelope — eliminating the need for post-weld heat treatment. For more background, read our article on why PWHT is generally not applied to stainless steels.
Welding Techniques and Sequence
Root Pass (GTAW with Back Purge)
The root pass is the most critical pass in DSS pipe welding. Use GTAW with the appropriate shielding/purge gas combination. Maintain a tight arc length (2–3 mm) and consistent travel speed. For root passes in pipe positions 5G or 6G, use a cold wire (no weave) technique. A “cold pass” (approximately 75% of normal heat input) immediately after the open root helps drive austenite reformation before the fill sequence begins.
Fill and Cap Passes
- Horizontal (2G, 5G): stringer beads preferred to minimise width and heat accumulation
- Vertical-up (3G, 6G): controlled weave with pause at toes acceptable; avoid excessive oscillation
- Monitor interpass temperature between every pass — not just every few passes
- Allow cap weld to cool to < 80°C before post-weld cleaning
Dissimilar Joints — DSS to Carbon Steel
DSS-to-carbon steel dissimilar welding is common in process plant tie-ins. The procedure requires careful sequencing to protect both materials:
Butter the carbon steel side with E309L or E309MoL (SMAW) in 1–2 layers. Use low heat input to minimise HAZ hardness in the carbon steel.
PWHT the carbon steel buttered end only — this tempers any martensite in the carbon steel HAZ. The buttering layer is not harmed by this PWHT at standard temperatures.
Machine the butter layer to remove surface oxides and achieve the required joint geometry for the subsequent weld.
Weld DSS to buttered carbon steel using ER2209 or ER2553 filler without additional PWHT. The buttered interface acts as a metallurgical buffer.
Perform ferrite measurement on the weld deposit and document on the weld traveller. Reference P-Number and F-Number guidance for the WPS qualification record.
Industrial Applications of Duplex Stainless Steels
| Industry Sector | Application | Grade Typically Used | Key Property Driver |
|---|---|---|---|
| Oil & Gas Upstream | Subsea pipelines, manifolds, wellheads | S32750, S32760 (Super DSS) | High PREN, SCC resistance, fatigue |
| Oil & Gas Midstream | Process piping, heat exchangers | S32205 (Standard DSS) | Strength, corrosion, weldability |
| Desalination | Evaporator vessels, RO membrane housings | S32750 (Super DSS) | Seawater pitting resistance |
| Chemical Processing | Reactor vessels, columns, process piping | S32205, S32750 | Acid/chloride resistance, strength |
| Pulp & Paper | Digesters, bleach plant equipment | S32205 (Standard DSS) | SCC resistance in acidic chloride |
| Civil/Marine | Bridges, barriers, jetty structures, floodgates | S32304 (Lean DSS) | Strength, atmospheric corrosion |
| Pressure Vessels | Storage tanks, pressure vessels | S32205, S32304 | Strength, ASME Code compliance |
Post-Weld Cleaning and Inspection
Surface Cleaning Methods
After welding, the passive chromium oxide film must be restored across the weld zone and HAZ. Heat tint oxidation products on the weld surface contain chromium-depleted layers underneath, which are susceptible to pitting and crevice corrosion — even if the PREN of the base composition is acceptable.
- Mechanical grinding: Remove heat tint by grinding with a dedicated stainless abrasive wheel, then follow with 120-grit or finer finishing. Effective for weld cap and visible surfaces.
- Pickling (chemical): Application of nitric-hydrofluoric acid paste or circulation solution. Removes all heat tint and restores the passive film uniformly. Preferred for internal bore surfaces of piping after back purging is confirmed acceptable.
- Passivation: Follow pickling with a nitric acid passivation treatment per ASTM A380 or project specification to maximise passive film quality.
- Wire brushing alone is insufficient if heat tint is present — it merely polishes the oxide rather than removing the chromium-depleted sub-surface layer.
Inspection Requirements
- Visual inspection per AWS D1.6 or applicable code
- Ferrite measurement on production welds — document all readings
- PMI (Positive Material Identification) — XRF on weld deposits and base metal
- Corrosion testing per ASTM G48 Method A or E if required by specification (particularly for super duplex)
- Charpy impact testing if low-temperature service is specified (ferrite content directly affects DBTT)
- Radiography or PAUT per applicable construction code for pressure-containing welds
