Cellulosic vs Rutile Electrodes — Which One to Choose?

Choosing between cellulosic and rutile electrodes is one of the most consequential decisions a welding engineer makes when specifying a Shielded Metal Arc Welding (SMAW / MMA) procedure. The two electrode types share a similar external appearance — a flux-coated mild steel core wire — but differ fundamentally in flux chemistry, shielding gas composition, arc characteristics, and the risks they introduce to the completed weld. Using the wrong electrode type for the application can result in slag inclusions, lack of fusion, inadequate toughness, or in the worst case, hydrogen-induced cold cracking — a delayed, often invisible failure mechanism that can occur hours or days after welding.

This guide provides a thorough technical comparison of cellulosic (E6010/E6011) and rutile (E6012/E6013) electrodes, covering flux chemistry and shielding gas, arc behaviour, mechanical properties, welding positions, and the critical topic of hydrogen cracking management. A third category — basic (low-hydrogen) electrodes such as E7016/E7018 — is introduced for context, as it represents the preferred choice for many structural and pressure vessel applications where toughness requirements are paramount. Understanding where each type excels and where it must not be used is essential for anyone working in structural fabrication, pipeline construction, or pressure equipment manufacture.

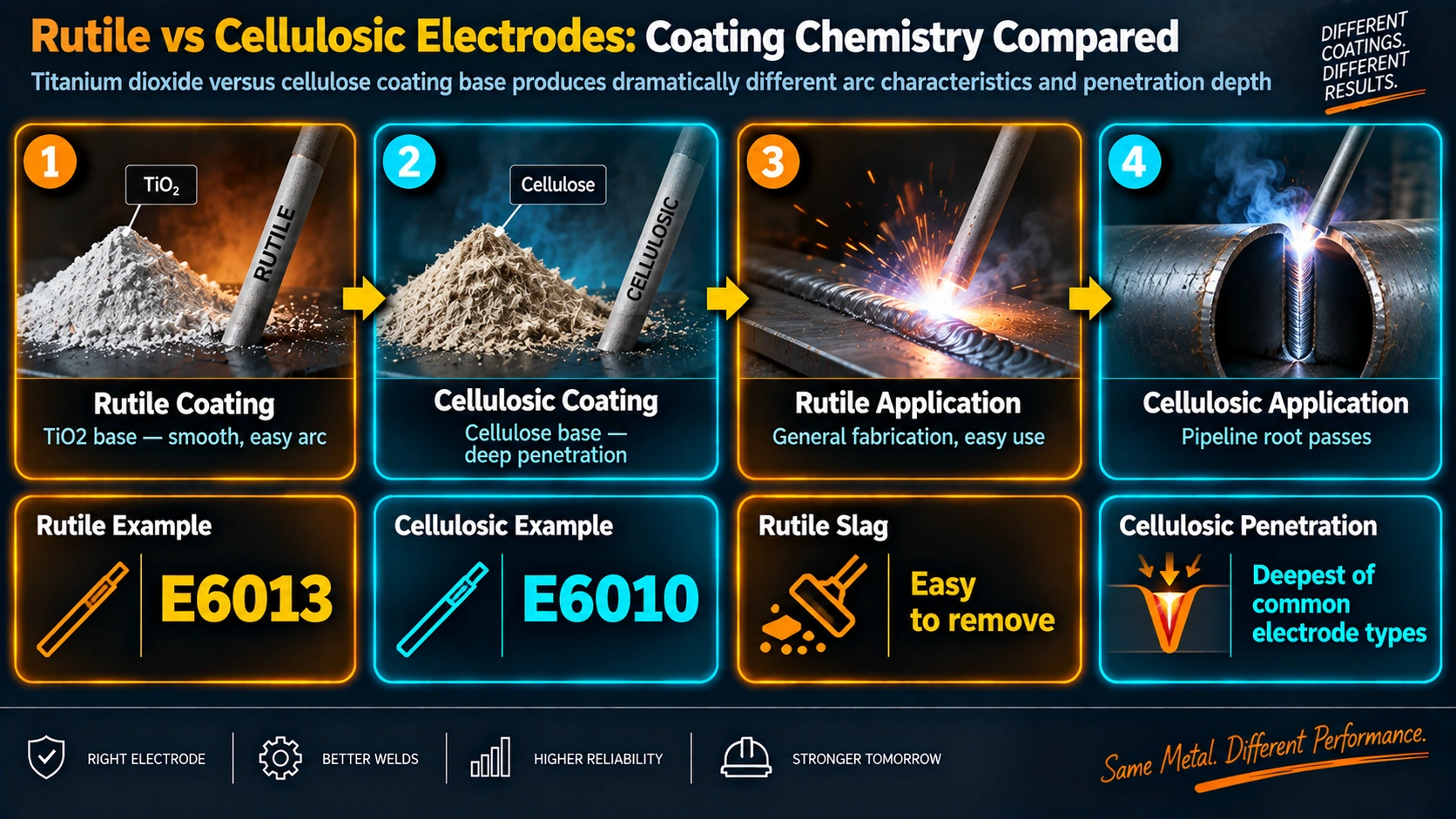

MMA Electrode Construction and Flux Function

All MMA electrodes share the same basic construction: a metal core wire surrounded by a compacted flux coating. The core wire is typically a low-carbon riming steel (0.10–0.18% C), and the diameter ranges from 2.5 mm to 6 mm for common production work. The coating is applied by extrusion and accounts for 20–40% of the electrode’s total mass depending on type.

The flux coating performs four simultaneous functions during welding:

• Gas shielding: combustion of organics (cellulose) or decomposition of carbonates generates CO₂, CO, and/or H₂ to shield the arc and molten pool from atmospheric nitrogen and oxygen.
• Slag formation: oxidic compounds (TiO₂, SiO₂, CaO) melt to form a protective slag layer over the solidifying bead, controlling bead shape and cooling rate.
• Arc stabilisation: compounds containing potassium (K) or sodium (Na) lower the ionisation potential of the arc column, enabling AC operation or reducing spatter.
• Alloying and deoxidation: manganese and silicon additions from the coating deoxidise the weld pool and compensate for burn-off losses.

Rutile Electrodes (E6012 / E6013)

Rutile electrodes take their name from rutile, the naturally occurring mineral form of titanium dioxide (TiO₂). The high titania content — typically 35–50% of the coating by mass — gives these electrodes a distinctive set of handling and arc characteristics that make them the most widely used general-purpose SMAW electrodes worldwide. The full consumable nomenclature is explained in the dedicated guide.

Flux Chemistry and Arc Behaviour

TiO₂ is an excellent slag former. It produces a fluid, low-density slag that spreads readily over the bead and solidifies quickly — a property that gives rutile welds their characteristic self-releasing slag, smooth surface appearance, and easy inter-run cleaning. The CO₂-dominant shielding gas provides adequate protection against oxidation without introducing significant hydrogen. The arc is smooth and quiet with low spatter levels, making rutile electrodes forgiving to operate and suitable for relatively inexperienced welders.

E6012 vs E6013 — The Key Difference

Both E6012 and E6013 have the same minimum tensile and yield strength requirements per AWS A5.1, but they differ in two important ways. E6012 contains sodium compounds in the covering, which restricts its use to DCEP (direct current, electrode positive) only. E6013 replaces some of the sodium with potassium compounds, which have a lower ionisation energy and can sustain an AC arc — making E6013 compatible with both DCEP and AC power sources. This is why E6013 is the more commonly specified of the two for general shop use, where AC transformer welders are standard.

Mechanical Properties

Both E6012 and E6013 conform to the same strength band. The minimum yield strength is 330 MPa and minimum tensile strength is 430 MPa per AWS A5.1/A5.1M:2012. These are adequate for mild steel structural work but the weld metal toughness at sub-zero temperatures is generally not certified — rutile electrodes are not the correct choice where guaranteed Charpy impact values are specified.

Welding Positions

Rutile electrodes are suitable for flat (1G/PA), horizontal (2G/PC), vertical-up (3G/PF), and overhead (4G/PE) positions. They cannot be used for vertical-down welding: the low-viscosity, fast-flowing rutile slag runs ahead of the arc pool on a downward incline, creating slag inclusions at the fusion boundary. Iron-powder additions to the rutile coating (producing the E6014 and higher-deposition variants) are restricted to flat and horizontal positions only.

Cellulosic Electrodes (E6010 / E6011)

Cellulosic electrodes contain a high proportion of cellulosic material — wood pulp, sawdust, starch, and related organic compounds — that combusts in the arc to generate a hydrogen-rich shielding gas. This gas chemistry gives cellulosic electrodes a completely different performance envelope from rutile types: deep penetration, a vigorous digging arc, the ability to weld in the vertical-down position, but also a high diffusible hydrogen content that requires careful management.

Flux Chemistry and Arc Behaviour

On combustion, cellulose primarily generates hydrogen (H₂), carbon monoxide (CO), and carbon dioxide (CO₂). The hydrogen component produces a forceful, penetrating arc and a thin, easily removed slag. Diffusible hydrogen content in the weld metal and HAZ is typically 30–45 mL per 100 g of deposited metal — classified as high hydrogen under ISO 3690. This hydrogen-rich plasma also requires a higher open-circuit voltage to sustain the arc (approximately 70 V), which is why cellulosic electrodes cannot be used with standard low-OCV AC transformer welders.

E6010 vs E6011 — The Key Difference

Like the rutile pair, E6010 and E6011 differ in the stabilising compounds in their coatings. E6010 contains sodium and requires DCEP. E6011 contains potassium and can run on DCEP or AC, provided the AC machine has a sufficiently high open-circuit voltage (70 V or above). In practice, E6010 is the standard pipeline root electrode in regions where DC welding sets are used, while E6011 is specified where AC equipment is unavoidable.

The Vertical-Down Advantage

The defining operational advantage of cellulosic electrodes is the ability to weld vertical-down (3G-PG in ISO 6947, or “stovepipe” in pipeline parlance). The thin, gaseous slag produced by cellulosic combustion does not run ahead of the arc pool — instead the penetrating arc maintains control of the pool at high travel speeds in the downward direction. This is the basis of the standard pipeline welding technique: the pipe is positioned horizontal-fixed (5G), and each welder progresses vertically downward around the pipe circumference. The high travel speed and deep penetration minimise the total heat input and allow continuous production welding. For the full position classification system, see the welding positions guide.

Mechanical Properties

E6010 and E6011 match the same minimum strength band as the rutile types (330 MPa yield, 430 MPa tensile) per AWS A5.1. However, the penetrating arc and fast solidification of cellulosic root passes typically produce weld metal with acceptable toughness for structural pipeline grades, particularly when followed by a hot pass and fill passes with a different electrode type.

Basic (Low-Hydrogen) Electrodes — Context

Basic electrodes such as E7016 and E7018 use calcium fluoride (CaF₂) and calcium carbonate (CaCO₃) as the primary flux constituents. Decomposition of calcium carbonate generates CO₂ shielding, while fluoride acts as a flux and hydrogen scavenger. The diffusible hydrogen content, when electrodes are properly stored and dried, can be as low as <5 mL/100 g (H5 designation). Basic electrodes produce weld metal with the highest toughness of the three types, are suitable for all positions (vertical-up, not vertical-down for standard types), and are mandated by codes such as ASME Section IX and AWS D1.1 for structural steel connections in seismic zones and for pressure equipment. They are treated separately from the cellulosic/rutile comparison but are relevant whenever the question of hydrogen cracking or toughness arises.

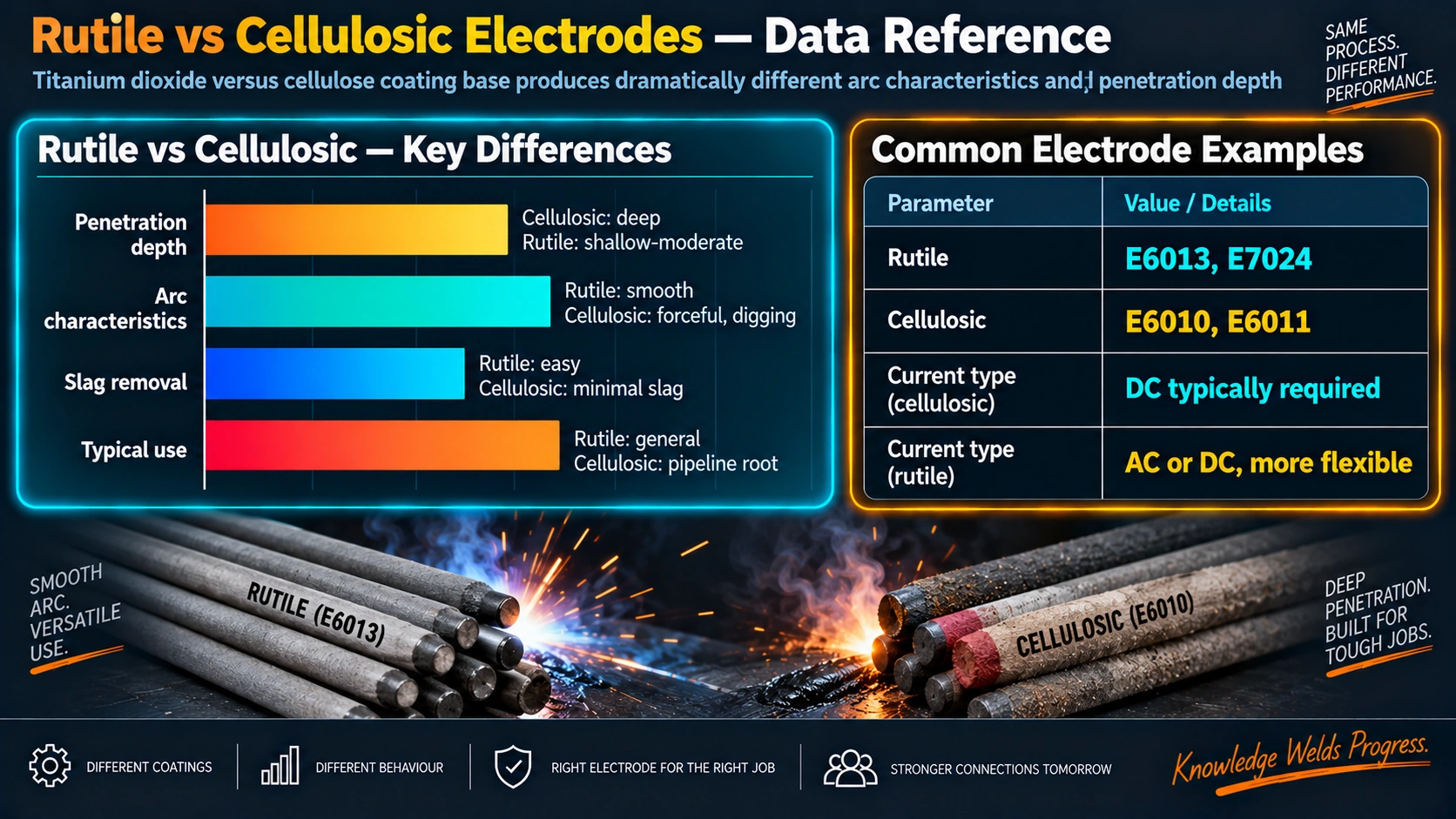

Full Characteristic Comparison

Understanding the AWS A5.1 Electrode Classification

The AWS electrode designation system encodes the key characteristics of a SMAW electrode directly in the classification number. Understanding the coding helps you interpret an unfamiliar electrode and cross-reference it to the correct flux type and position capability.

This coding is directly mirrored in AWS A5.5 for low-alloy steel electrodes (e.g., E7010-P1 for cellulosic pipeline electrode on API 5L pipe, or E8018-G for basic low-hydrogen electrode on higher-strength steels). See the welding consumable nomenclature guide for the complete classification system across all SMAW, GTAW, and GMAW consumable types.

Hydrogen-Induced Cold Cracking — Mechanism and Prevention

Hydrogen-induced cold cracking (HICC), also called hydrogen-assisted cracking (HAC) or delayed hydrogen cracking, is the most significant defect risk when using cellulosic electrodes, and remains a concern with rutile electrodes on thicker sections or higher-carbon steels. Understanding the mechanism is essential for writing effective welding procedure specifications (WPS) that genuinely prevent it.

The Three Necessary Conditions

HICC requires three conditions to be simultaneously present. Removing any one of them prevents cracking:

Carbon equivalent (CE) is the primary tool for assessing hardenability risk before welding. Use the CE calculator to assess your base metal and determine the minimum preheat temperature required. Higher CE values demand higher preheat temperatures and more stringent hydrogen control.

Specific Controls for Cellulosic Electrode Use

The following controls must be applied when cellulosic electrodes are specified. These are not optional guidance — they are engineering requirements for preventing HICC:

• Qualified welders only: Only welders with a current, verified qualification for cellulosic electrodes should carry out this work. The technique — particularly the short arc length and travel speed discipline required for vertical-down — is significantly harder to master than rutile welding and must be demonstrated through recent practical qualification.
• Preheat per procedure: Apply the specified preheat to the same standard as for basic electrodes. Do not reduce preheat on the assumption that a root pass is “only a thin deposit.” The root is the most restrained region of the joint and the most susceptible initiation site for HICC.
• Immediate hot pass: Apply the hot pass (first fill pass) using rutile or basic electrodes within the time limit specified in the welding procedure — typically within a maximum of 5–10 minutes on a pipeline. The hot pass thermally refines the cellulosic root, reduces the hydrogen content, and transforms the martensitic microstructure in the HAZ. Delay beyond the specified interpass time is a procedure violation.
• No single-pass fillet welds: A single-pass fillet weld made with a cellulosic electrode has the highest HICC susceptibility: maximum hydrogen input, no refinement from a subsequent pass, and maximum restraint at the toe. Single-pass cellulosic fillets must be avoided.
• Post-heating: Where the steel CE or joint thickness demands it, post-heat immediately after welding by maintaining the joint at 200–300°C for 30–60 minutes. This accelerates hydrogen diffusion out of the HAZ before it cools to the HICC temperature range (below approximately 150°C).

Storage, Handling, and Reconditioning

Correct electrode storage is often the unacknowledged cause of on-site porosity and hydrogen cracking problems. The storage and handling requirements for cellulosic and rutile electrodes differ significantly from basic (low-hydrogen) electrodes, and the rules must not be confused between types.
