Why PWHT is Generally Not Required
for Stainless Steel Welding
One of the most frequently asked questions in welding engineering interviews and site quality reviews is: “Why is PWHT not normally applied to stainless steel?” The answer is rooted deeply in metallurgy — FCC crystal structure, absence of hydrogen cracking risk, sensitisation danger, and grade-specific phase behaviour. This guide covers all of it, plus the critical exceptions where heat treatment IS required.
What Is PWHT and Why Is It Applied to Carbon Steels?
Post-Weld Heat Treatment (PWHT) is the controlled heating of a weld assembly to a specified temperature below the lower transformation temperature (Ac₁), holding it for a defined time, then cooling at a controlled rate. For carbon and low-alloy steels, PWHT achieves three primary objectives:
⚙️ Why PWHT Is Used on Carbon/Low-Alloy Steel
- Residual stress relief: Reduces welding-induced tensile residual stresses that could drive stress corrosion cracking or fatigue
- Hydrogen removal (baking): Diffuses trapped hydrogen out of the hard HAZ — preventing hydrogen-induced cold cracking (HICC)
- HAZ softening: Tempers the hard martensitic microstructure formed in the HAZ, restoring ductility and toughness
- Dimensional stability: Stabilises the weldment for precision applications
- ASME VIII UCS-56: Mandates PWHT for carbon steel beyond specified thickness (typically 38 mm for P-No.1)
🔵 Why These Drivers Don’t Apply to Austenitic SS
- No martensite → no hard HAZ: Austenitic SS has an FCC structure that does not transform to martensite on cooling
- No hydrogen cracking: FCC structure has high H₂ solubility and diffusivity — HICC is not a mechanism in austenitic SS
- No transformation hardening: Strength doesn’t increase dramatically during rapid cooling — no need to temper
- Sensitisation danger: Conventional PWHT temperatures (550–750°C) fall directly in the sensitisation range for SS
- ASME VIII P-No.8 (austenitic SS) — no mandatory PWHT thickness threshold
Stainless Steel Metallurgy — The Foundation of the PWHT Answer
Stainless steel derives its corrosion resistance from chromium content of at least 10.5% by weight, which forms a self-repairing, tightly adherent chromium oxide (Cr₂O₃) passive film on the surface. This film is only nanometres thick but is extraordinarily effective at preventing further oxidation and corrosion.
In addition to chromium, stainless steels contain nickel (Ni), molybdenum (Mo), nitrogen (N), manganese (Mn), and other elements in varying proportions depending on grade — each influencing phase stability, corrosion resistance, mechanical properties, and weldability.
Five Metallurgical Reasons PWHT Is Not Required for Austenitic Stainless Steel
FCC Crystal Structure — No Martensite Transformation
Austenitic stainless steel has a Face-Centred Cubic (FCC) crystal structure, stabilised by nickel, manganese, and nitrogen. Unlike carbon steels with Body-Centred Cubic (BCC) ferrite that transforms to hard Body-Centred Tetragonal (BCT) martensite on rapid cooling, the FCC austenite phase does not undergo a martensitic transformation during welding thermal cycles — regardless of cooling rate.
This is crucial: the entire purpose of PWHT in carbon and low-alloy steels is largely to temper the hard martensite that forms in the HAZ during rapid cooling from welding. Since no martensite forms in austenitic SS, the HAZ does not harden, and there is no hard, brittle microstructure requiring softening or tempering. The HAZ mechanical properties remain acceptable without any heat treatment.
Key test: If you measure Vickers hardness across a carefully made austenitic SS weld, the HAZ hardness will not be significantly different from the base metal — typically 150–220 HV10 throughout. Contrast this with a carbon steel HAZ where hardness can spike to 400+ HV10 without preheat or PWHT. No hardness spike = no PWHT needed to soften it.
No Hydrogen-Induced Cold Cracking (HICC) Risk
Hydrogen-Induced Cold Cracking (HICC), also known as Hydrogen Embrittlement Cracking or Delayed Cracking, requires three simultaneous conditions: hydrogen, a susceptible microstructure (hard martensite), and tensile stress. Remove any one of these, and HICC cannot occur.
In austenitic stainless steel, two of these three conditions are absent:
- No susceptible microstructure: No martensite forms — the FCC austenite is not susceptible to hydrogen-assisted cracking in the same way BCC/BCT structures are
- Higher hydrogen solubility and diffusivity: The FCC lattice accommodates more hydrogen atoms and allows them to diffuse more readily — hydrogen does not accumulate at grain boundaries and crack initiation sites at the same concentration levels that cause cracking in carbon steels
In carbon and low-alloy steels, one primary function of PWHT is “hydrogen baking” — holding at 200–350°C to allow dissolved hydrogen to diffuse out before it can cause cracking. Since austenitic SS is not susceptible to HICC, this function of PWHT is entirely unnecessary.

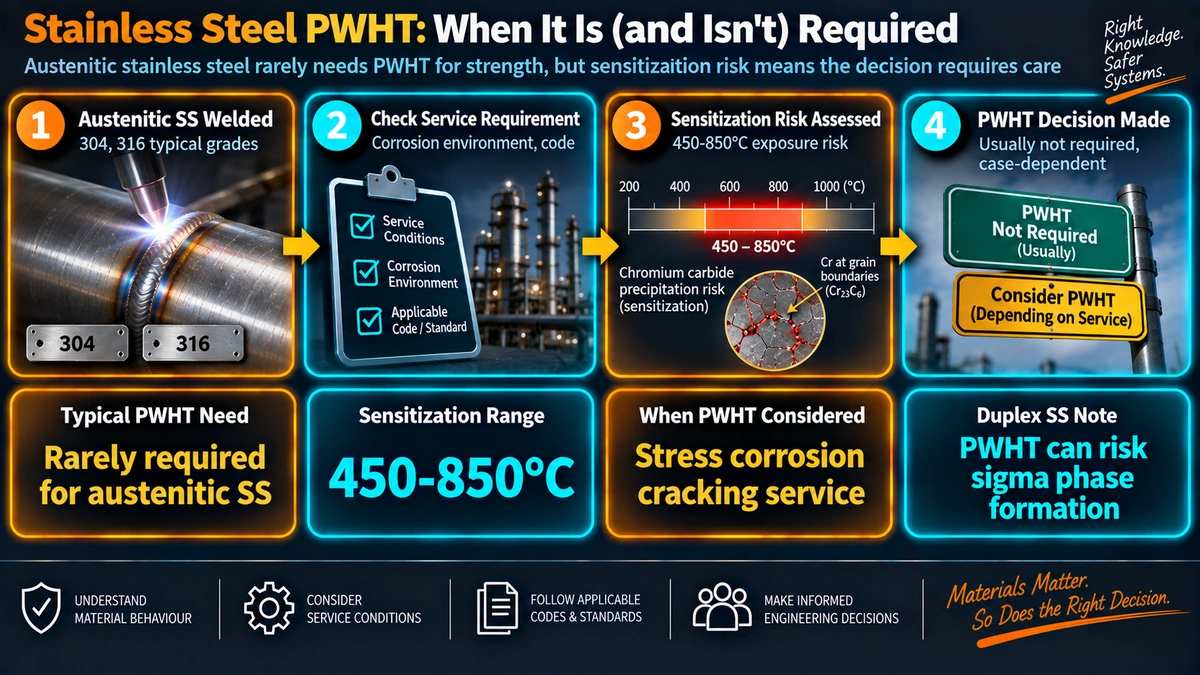

PWHT Would Cause Sensitisation — Damaging Corrosion Resistance
This is arguably the most important reason PWHT is actively avoided for austenitic stainless steel — not just unnecessary, but potentially harmful. Conventional PWHT for carbon steels is performed at temperatures of approximately 550–750°C. For austenitic stainless steel, this temperature range is precisely the sensitisation zone.
During exposure to 450–850°C, chromium carbides (Cr₂₃C₆) precipitate at austenite grain boundaries. This depletes chromium from the immediately adjacent zone to below the critical ~10.5% threshold — making those zones susceptible to intergranular corrosion (IGC). The material is then called “sensitised.” Learn more: Understanding Sensitisation in Stainless Steel.
Applying conventional PWHT to austenitic stainless steel would therefore deliberately sensitise the weld HAZ — destroying the very corrosion resistance for which stainless steel was specified. This is why conventional PWHT is not just unnecessary but contraindicated for most austenitic SS grades.
Passive Film Stability — Corrosion Resistance Preserved After Welding
The chromium oxide (Cr₂O₃) passive film on stainless steel is self-repairing — if scratched or disrupted, it reforms spontaneously in the presence of oxygen. After welding, the bulk passive film on the base metal surrounding the weld is intact and unaffected.
The welding process does create a heat-tinted oxide layer on the weld bead and adjacent HAZ surface — this tinting indicates chromium depletion at the surface (not the bulk), and it should be removed by pickling, passivation, or mechanical cleaning. However, this surface condition does not require PWHT — it is addressed by chemical or mechanical post-weld cleaning as specified in standards such as ASTM A380 and ASTM A967.
In contrast, applying PWHT would disrupt the bulk chromium distribution through sensitisation — a far more damaging and unrecoverable effect than surface heat tinting.
Post-weld surface treatment for SS: After welding stainless steel, pickling (acid treatment to remove oxides and restore passive film) and passivation (chemical treatment to optimise the passive layer) are the appropriate post-weld surface treatments — not PWHT. These restore and enhance corrosion resistance without any thermal risk. See Stainless Steel Weld Decay for heat tint and surface corrosion issues.
Mechanical Properties Retained Without PWHT
For carbon steels, welding degrades mechanical properties in the HAZ through grain coarsening, martensite formation, and residual stress build-up — PWHT is necessary to restore acceptable toughness, ductility, and strength. Austenitic stainless steel behaves quite differently:
- Strength: Weld metal and HAZ strength in austenitic SS typically meet the minimum specified values in the as-welded condition — no strength restoration treatment is needed
- Ductility and toughness: The austenitic microstructure is inherently ductile at all temperatures, including cryogenic. FCC metals do not exhibit a ductile-to-brittle transition temperature (DBTT) — there is no concern about HAZ embrittlement requiring PWHT to restore toughness
- Grain coarsening: Welding does cause grain coarsening in the high-temperature HAZ, but this is not as mechanically significant in austenitic SS as in carbon steels, and it does not require correction by PWHT
- Residual stresses: These exist after welding SS just as in carbon steels. However, the stress corrosion cracking (SCC) susceptibility of austenitic SS in chloride environments means that residual stresses can still be a concern — but PWHT is not the appropriate mitigation (it would sensitise). Stress corrosion cracking management is addressed through design (avoiding crevices, controlling chloride exposure, specifying corrosion-resistant grades)
Sensitisation — The Critical Barrier Against PWHT
Sensitisation deserves deeper examination because it is both the primary reason PWHT is avoided and the primary concern that drives the selection of stainless steel grades for elevated temperature service.
The Sensitisation Mechanism
Austenitic stainless steels contain carbon — typically 0.03–0.08% in standard grades, <0.03% in L-grades. Carbon has limited solubility in austenite at elevated temperatures. When cooled slowly through the 450–850°C sensitisation zone, carbon diffuses to grain boundaries and combines preferentially with chromium to form chromium carbide (Cr₂₃C₆) precipitates. Each precipitate depletes the surrounding austenite of chromium — creating chromium-depleted zones adjacent to grain boundaries where Cr content falls below the ~10.5% minimum required for passive film maintenance. These zones are then susceptible to corrosive attack — intergranular corrosion (IGC).
How SS Grades Manage the Sensitisation Risk
Three strategies are used to combat sensitisation in stainless steel — and none of them involves conventional PWHT:
| Strategy | Mechanism | Grade Examples | Application |
|---|---|---|---|
| Low-carbon grades (L-grades) | Carbon ≤ 0.03% — insufficient C to form sensitising carbide levels | SS304L, SS316L, SS321L | General corrosive service; welded fabrications; primary prevention method |
| Stabilised grades | Ti (in SS321) or Nb/Cb (in SS347) forms stable carbides preferentially, preventing Cr₂₃C₆ from forming | SS321 (Ti-stabilised), SS347 (Nb-stabilised) | High-temperature service (350–900°C); repeated thermal cycling; petrochemical furnaces |
| Solution annealing | Heat to 1050–1120°C to dissolve carbides back into solution, then water quench to freeze austenite | All austenitic grades | After sensitisation has occurred; restoration of corrosion resistance; not routine PWHT |

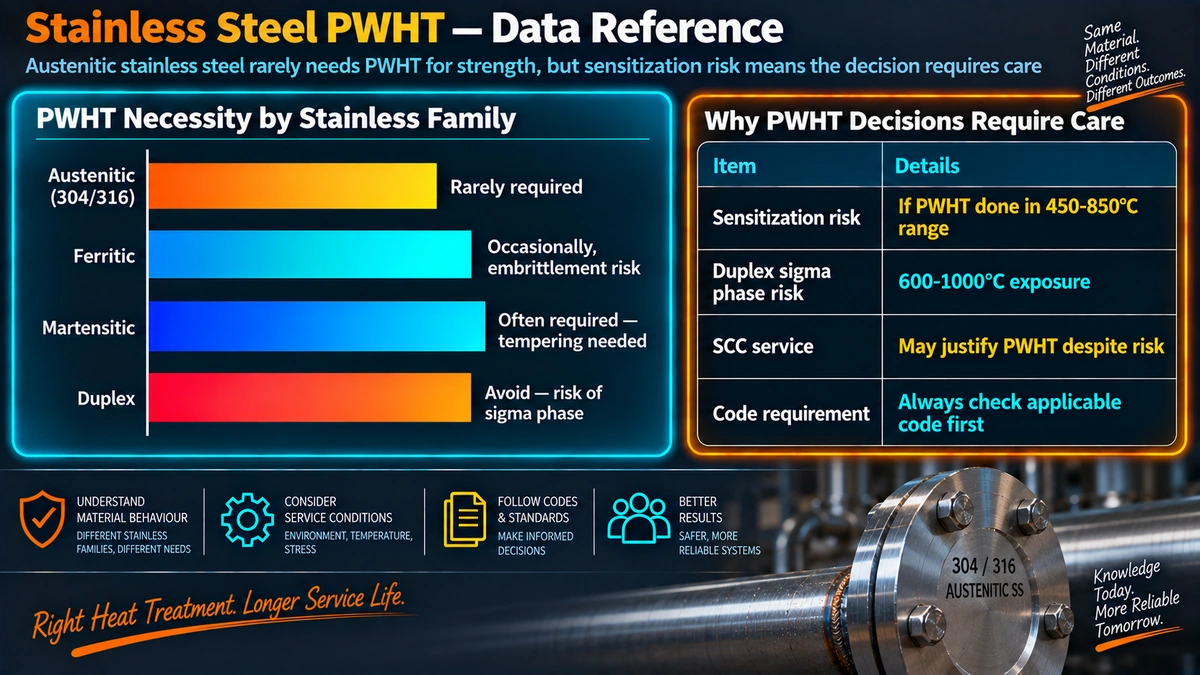

PWHT Requirements by Stainless Steel Grade Family
Stainless steel encompasses five distinct metallurgical families, each with different microstructures, weldability characteristics, and PWHT considerations. The “PWHT not required” rule applies primarily to austenitic grades — the other families have their own requirements:
SS 304, 304L, 316, 316L, 321, 347, 310
- FCC structure — no martensitic transformation
- No hydrogen cracking risk
- PWHT actively harmful — sensitises the HAZ
- L-grades (≤0.03% C) preferred for welded service
- Use E347 or ER347 filler for SS321 — see SS321 welding guide
SS 409, 430, 439, 444, 446
- BCC structure — does not form martensite but susceptible to grain coarsening
- Welding causes significant HAZ grain coarsening → loss of toughness
- Susceptible to 475°C embrittlement and sigma phase formation
- PWHT (760–820°C) may be applied to partially restore toughness
- Cannot fully restore grain-coarsened HAZ — keep heat input low during welding
- Not susceptible to sensitisation in the same way as austenitic SS
SS 410, 420, 431, CA6NM
- BCC/BCT structure — forms hard martensite on cooling
- High hardness HAZ: 400–500 HV without preheat/PWHT
- Susceptible to HICC — preheat AND PWHT required
- PWHT: typically 650–760°C to temper martensite
- CA6NM (13Cr-4Ni): PWHT typically 580–620°C (double temper)
- Similar PWHT drivers as low-alloy steel
SS 2205 (UNS S31803/S32205), 2507, LDX 2101
- Two-phase structure: 50% austenite + 50% ferrite (target)
- PWHT not applied — heat treatment disrupts phase balance
- Sigma phase forms 700–900°C → embrittlement
- Solution annealing (1020–1080°C + quench) to correct phase imbalance
- Strict interpass temperature control (<150°C) is critical
- See: Complete DSS welding guide
17-4 PH (SS630), 17-7 PH, 15-5 PH, PH 13-8 Mo
- Complex microstructures — semi-austenitic or martensitic + precipitates
- Derive strength from precipitation hardening heat treatment
- Specific heat treatment cycles (Condition A, H900, H1025, H1150) used after welding to develop properties
- PWHT in the context of precipitation hardening is required to develop design strength
- Welding must be done in a suitable condition (annealed) and heat treated afterwards
AL-6XN (UNS N08367), 904L, 254 SMO
- High Mo and Ni — excellent pitting and crevice corrosion resistance
- Similar FCC structure to standard austenitic SS
- PWHT not normally applied — same sensitisation risk
- Welding requires tight heat input control to avoid Mo-rich secondary phases
- Solution annealing may be used if sigma phase or secondary phase precipitation has occurred
PWHT Requirements — All Stainless Steel Grades at a Glance
| SS Grade Family | Structure | Martensite on Cooling? | H₂ Cracking Risk? | Sensitisation Risk from PWHT? | PWHT Required / Applied? | Typical Heat Treatment |
|---|---|---|---|---|---|---|
| Austenitic (304, 316, 321, 347) | FCC | No | No | Yes — high risk | No (contraindicated) | Solution anneal if sensitised; pickling post-weld |
| Austenitic L-grades (304L, 316L) | FCC | No | No | Lower (low C content) | No | Usually as-welded; pickling |
| Austenitic Stabilised (321-Ti, 347-Nb) | FCC | No | No | Reduced (stable carbides) | No | Stabilising anneal (optional, 870–900°C) |
| Ferritic (409, 430, 439, 444) | BCC | No | Low | 475°C embrittlement | Conditionally | 760–820°C stress relief for toughness |
| Martensitic (410, 420, CA6NM) | BCT | Yes | Yes | No (different mechanism) | Yes — mandatory | 650–760°C temper; preheat also required |
| Duplex (2205, 2507) | FCC+BCC | No | Low | Sigma phase 700–900°C | No (sigma phase risk) | Solution anneal 1020–1080°C + quench if needed |
| Precipitation Hardening (17-4PH, 15-5PH) | Mixed | Partial | Low–Moderate | Grade dependent | Yes — ageing treatment | Ageing: 480–620°C per Condition H designation |
| Super Austenitic (AL-6XN, 904L) | FCC | No | No | Yes | Generally No | Solution anneal if secondary phases form |
When Heat Treatment IS Applied to Austenitic Stainless Steel
While conventional PWHT is generally not applied, there are specific situations where heat treatment of some form is necessary for austenitic stainless steel weldments:
1. Solution Annealing — After Accidental Sensitisation
If a weld or weldment has been inadvertently exposed to sensitisation temperatures (e.g., multiple pass welding with excessive interpass temperature, repair welding on previously sensitised material), solution annealing can restore corrosion resistance:
- Heat to 1050–1120°C — above the carbide dissolution temperature — to re-dissolve all Cr₂₃C₆ precipitates back into solution
- Quench rapidly (water quench for thick sections, rapid air cool for thin sections) to freeze the austenite and prevent re-precipitation on cooling
- Result: Uniform chromium distribution restored throughout the microstructure — IGC susceptibility eliminated
- Not practical for large assembled structures due to distortion risk at high temperatures
2. Stabilising Anneal for High-Temperature Service (SS321 / SS347)
Stabilised grades SS321 (Ti-stabilised) and SS347 (Nb-stabilised) are used in services where temperatures cycle repeatedly through the sensitisation range. To maximise resistance to intergranular attack during service:
- Stabilising anneal at 870–900°C — promotes formation of TiC (SS321) or NbC (SS347) as the preferred carbide, consuming available carbon before it can form Cr₂₃C₆ during subsequent service exposure
- Not a conventional PWHT — it is performed at a lower temperature specifically to exploit the stabilisation chemistry
- Applicable to weldments that will experience repeated service exposure in the 450–850°C range
3. Stress Relief for Stress Corrosion Cracking (SCC) Prevention
Austenitic stainless steel is susceptible to chloride stress corrosion cracking (Cl-SCC) when tensile residual stresses are present in a chloride-containing environment. In such cases, residual stress relief may be specified:
- Challenge: Conventional PWHT temperatures (550–750°C) sensitise the material — so stress relief must be done at temperatures outside the sensitisation range
- Low-temperature stress relief (<400°C): Limited effectiveness; rarely specified for SS
- High-temperature solution anneal (1050°C +): Achieves stress relief but requires quench — only practical for components that can be fully heat treated and quenched
- Preferred alternative: Design to avoid residual stress issues — use L-grades, minimise restraint, control heat input, or select a more SCC-resistant grade (super duplex, super austenitic)
4. Client Specification or Code Requirement
In some applications — nuclear, pharmaceutical, specialty chemical — client specifications or project-specific codes may mandate post-weld heat treatment or passivation treatments beyond what the material standard requires:
- Always review the applicable code, engineering specification, and client data sheet before assuming PWHT is not required
- Some codes (e.g., certain nuclear codes, ASME Section III) have specific requirements that may differ from Section VIII
- For ASME Section VIII: P-No.8 austenitic SS does not have a mandatory PWHT thickness threshold in UCS-56 — but the engineer of record or client may still impose it contractually
Solution Annealing — The Correct Heat Treatment for Austenitic SS
Solution annealing is the only heat treatment that can restore full corrosion resistance to a sensitised austenitic stainless steel weldment. It is fundamentally different from PWHT — it operates at much higher temperatures for different metallurgical purposes:
| Parameter | Conventional PWHT (Carbon Steel) | Solution Annealing (Austenitic SS) |
|---|---|---|
| Temperature | 550–750°C | 1050–1120°C |
| Purpose | Temper martensite, relieve residual stress, bake out H₂ | Dissolve carbide precipitates, homogenise Cr distribution, restore corrosion resistance |
| Cooling rate | Controlled slow cool (furnace or air) | Rapid quench (water or fast air) — mandatory to prevent re-sensitisation |
| Effect on microstructure | Tempers martensite; reduces hardness | Restores single-phase austenite with uniform Cr distribution |
| Effect on residual stress | Significantly reduces | Partially reduces (then quench re-introduces some stress) |
| Risk if applied to SS | Sensitisation — destroys corrosion resistance | None if correctly executed; distortion risk at high temperature |
| ASME code reference | UCS-56 (Section VIII) mandated by thickness | Not mandatory PWHT — applied to restore properties when needed |
Critical: The quench after solution annealing is not optional. If an austenitic SS component is heated to 1050°C+ and then allowed to cool slowly through the sensitisation range (850–450°C), it will sensitise during the cooling phase — defeating the entire purpose of the treatment. The quench rate must be sufficient to pass through the sensitisation zone rapidly enough to prevent carbide precipitation. For thin sections, rapid air cooling may be sufficient; thick sections require water quenching.
ASME Code Treatment of Stainless Steel PWHT
ASME Section VIII Division 1 addresses PWHT requirements in UCS-56 (for carbon steels, P-No.1), UHA-32 (for high-alloy steels including austenitic SS, P-No.8), and associated tables. The key distinction:
📋 UCS-56 (Carbon & Low-Alloy Steel — P-No.1 to 6)
- Mandatory PWHT once thickness exceeds specified limits (e.g., 38 mm for P-No.1 carbon steel)
- Specific temperature, holding time, heating/cooling rate requirements
- Required for high-temperature service and cyclic loading above thickness thresholds
- Sour service (NACE MR0175) may impose PWHT regardless of thickness
📋 UHA-32 (High-Alloy Steel — P-No.8 Austenitic SS)
- No mandatory thickness-based PWHT threshold for P-No.8
- Heat treatment requirements are based on service conditions and designer’s specification
- Where heat treatment IS applied to P-No.8, solution annealing (1050°C+) followed by quench is the appropriate treatment
- Conventional PWHT temperatures are specifically warned against due to sensitisation risk
Key Takeaways — Why PWHT Is Not Required for Austenitic Stainless Steel
| Question | Answer |
|---|---|
| Main reason for PWHT exemption | FCC crystal structure — no martensitic transformation, no hydrogen cracking, no HAZ hardening |
| Why PWHT is actively harmful | Conventional PWHT temperatures (550–750°C) cause sensitisation — Cr₂₃C₆ precipitation depletes grain boundary Cr, enabling intergranular corrosion |
| What heat treatment CAN be applied | Solution annealing at 1050–1120°C + rapid quench — restores uniform Cr distribution and corrosion resistance |
| Grades where PWHT IS required | Martensitic SS (must temper martensite); PH grades (ageing treatment); Ferritic SS (conditionally for toughness) |
| Grades where PWHT is dangerous | Austenitic SS (sensitisation); Duplex SS (sigma phase formation at 700–900°C) |
| Prevention strategy for sensitisation | Use L-grades (≤0.03%C), stabilised grades (SS321/347), or solution anneal if sensitised |
| ASME code reference | UHA-32 (austenitic SS, P-No.8) — no mandatory PWHT threshold vs. UCS-56 (carbon steel — mandatory beyond thickness limits) |
