Role of Delta Ferrite in Stainless Steel Welding — Complete Technical Guide

Delta ferrite is one of the most important — and most misunderstood — microstructural parameters in austenitic stainless steel welding. Its presence in small, controlled quantities in the weld metal suppresses the most damaging failure mode in stainless steel welds: solidification hot cracking. Too little ferrite leads to cracking during fabrication. Too much causes brittleness and corrosion problems in service. Getting the ferrite number right is therefore a fundamental requirement for any welding procedure qualification involving austenitic stainless steels or stainless-to-carbon steel dissimilar welds.

This guide explains what delta ferrite is, how it forms during solidification, why it is beneficial in controlled amounts, what happens when it is excessive or absent, how to predict it using the Schaeffler and WRC-1992 diagrams, and how it is measured and specified in welding procedure documents and consumable certifications.

Stainless Steel — Composition and Microstructure

Stainless steel is an iron-based alloy with a minimum chromium content of approximately 10.5 wt.%, which is the threshold at which the passive chromium oxide layer (Cr₂O₃) forms spontaneously on the surface and provides corrosion resistance. In addition to chromium, most grades contain nickel, manganese, molybdenum, nitrogen, carbon, and silicon in varying proportions, each of which influences the microstructure and properties.

The microstructure of stainless steel at room temperature is governed primarily by the balance between ferrite-stabilising elements (chromium, molybdenum, silicon, niobium, titanium) and austenite-stabilising elements (nickel, manganese, nitrogen, carbon, copper). This balance determines which crystal phases are present and in what proportions:

What is Delta Ferrite?

Delta ferrite (written as delta-ferrite or delta-Fe) is the high-temperature BCC iron phase that forms as the first solid phase during the solidification of austenitic stainless steel weld metal when the alloy composition falls in the right region of the phase diagram. The “delta” designation distinguishes it from low-temperature alpha ferrite — both have the BCC crystal structure, but delta ferrite forms at temperatures above approximately 1390 degrees Celsius and has different thermodynamic characteristics.

In austenitic stainless steel welds, delta ferrite forms during solidification and does not fully transform back to austenite on cooling. A residual fraction of the original delta ferrite is retained in the weld metal at room temperature, trapped as islands, stringers, or a skeletal network within the austenite matrix. This retained ferrite — measured as the Ferrite Number (FN) — is the critical parameter that weld engineers control through filler metal selection and heat input management.

Why Delta Ferrite Prevents Solidification Hot Cracking

Solidification hot cracking — also called solidification cracking or hot tearing — is the primary failure mode that delta ferrite protects against. It occurs during the final stage of weld metal solidification, when a liquid film of low-melting-point material persists along grain boundaries just as the surrounding solid tries to contract. The tensile thermal stresses generated by cooling tear the liquid film apart before it solidifies, creating a crack along the weld centreline or along the heat-affected zone boundaries.

The key elements that promote hot cracking by forming low-melting-point liquid films are sulphur (S) and phosphorus (P). These elements are present in small quantities in virtually all commercial stainless steel base metals and filler metals, and they strongly segregate to grain boundaries during solidification.

Delta ferrite prevents this mechanism through two complementary actions:

1. Grain boundary disruption: When solidification occurs in the FA (ferrite primary) mode, the ferrite-austenite grain boundaries are more tortuous and irregular than the continuous austenite-to-austenite grain boundaries in a fully austenitic weld. This tortuous boundary structure is less susceptible to the formation and propagation of continuous liquid films, and it increases the total grain boundary area over which any liquid film must be distributed.
2. Sulphur and phosphorus trapping: Delta ferrite has a significantly higher solubility for sulphur and phosphorus than austenite. When ferrite is the primary solidifying phase, these impurity elements preferentially partition into the ferrite rather than being rejected to the final liquid at the grain boundaries. This reduces the concentration of low-melting-point compounds at boundaries and therefore reduces hot cracking susceptibility.

The Schaeffler Diagram — Predicting Ferrite from Composition

The Schaeffler diagram, first published by Anton Schaeffler in 1949, is the foundational tool for predicting the microstructure of stainless steel weld metal from its chemical composition. It plots two calculated composition parameters against each other:

• Chromium Equivalent (Cr-eq) — accounts for all ferrite-stabilising elements
• Nickel Equivalent (Ni-eq) — accounts for all austenite-stabilising elements

The WRC-1992 diagram (Welding Research Council, 1992) is the modern, more accurate version of the Schaeffler diagram. Its key improvements are the inclusion of nitrogen as an austenite stabiliser in the Ni-eq formula and the use of Ferrite Number (FN) isolines rather than volume percent ferrite. These changes make the WRC-1992 diagram significantly more accurate for predicting ferrite in modern low-carbon and nitrogen-containing grades such as 316LN and 304LN.

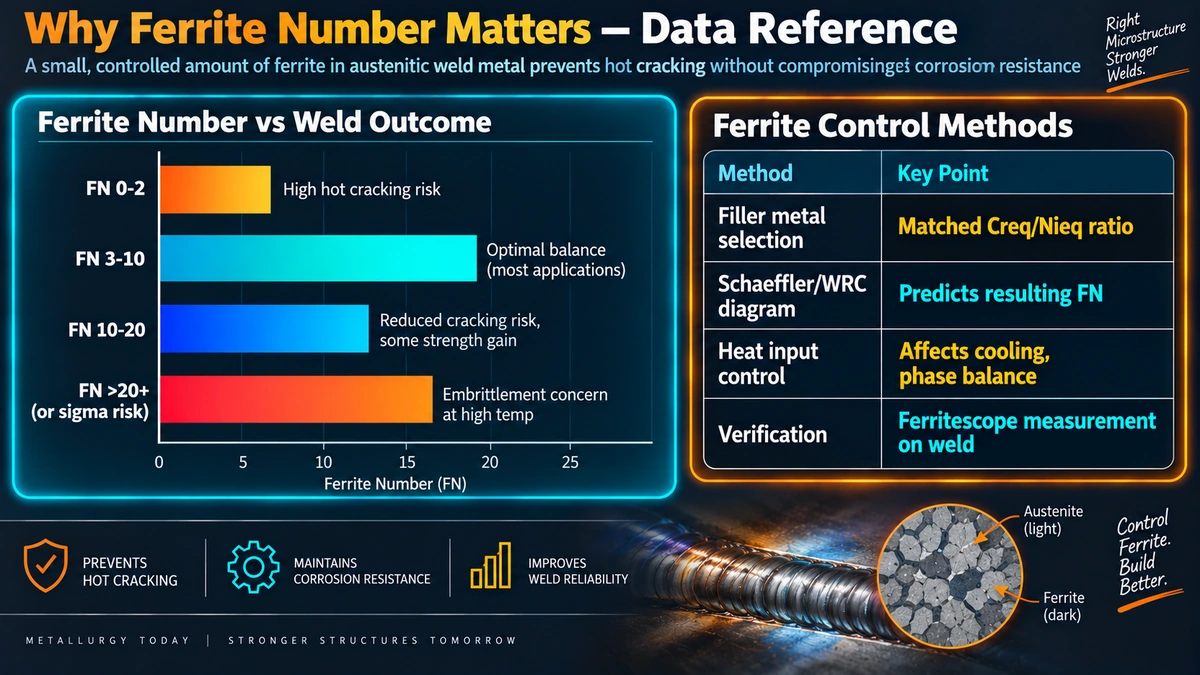

Ferrite Number — Acceptable Ranges and Effects

The Ferrite Number (FN) is a dimensionless index defined by the AWS A4.2 standard, measured with a calibrated magnetic instrument. It is not exactly equal to volume percent ferrite, but at ferrite levels below approximately 10 FN the correlation is approximately 1:1. Above 10 FN, the relationship between FN and volume percent ferrite diverges, and FN becomes progressively lower than the true volume percent.

Specific Roles of Delta Ferrite in Weld Quality

1. Hot Cracking and Solidification Cracking Prevention

As discussed above, this is the primary and most important role of delta ferrite. FA-mode solidification (ferrite primary, FN 3 to 10) provides the strongest protection against solidification hot cracking. The presence of delta ferrite disrupts the continuous columnar austenite grain structure that would otherwise provide a highway for liquid films to propagate along grain boundaries.

2. Prevention of Liquation Cracking in the HAZ

Delta ferrite also helps reduce the risk of liquation cracking in the partially melted zone adjacent to the weld. Liquation cracking occurs when low-melting-point phases (formed by segregation of sulphur, phosphorus, or other impurities during weld thermal cycles) form liquid films along grain boundaries in the HAZ and crack under tensile thermal stresses. The ferrite network in the weld metal acts as a getter for these impurities, drawing them away from grain boundaries during solidification and reducing the amount available to form damaging eutectic films.

3. Corrosion Resistance Considerations

The effect of delta ferrite on corrosion resistance is nuanced. In low quantities (3 to 8 FN), the impact on overall corrosion resistance is small and generally acceptable. The ferrite phase itself has somewhat lower corrosion resistance than austenite, particularly in reducing acid environments, because it is enriched in ferrite-forming elements (Cr, Mo) but depleted in austenite-forming elements (Ni, N) relative to the bulk composition. For weld metal used in aggressive corrosive service — particularly where pitting or crevice corrosion is a concern — the ferrite islands can act as preferential corrosion sites if their composition falls below the critical threshold for passivity.

4. Sigma Phase Formation at Elevated Temperature

At service temperatures between approximately 550 and 900 degrees Celsius, delta ferrite is unstable and can transform to sigma phase — an intermetallic compound of iron, chromium, and molybdenum with a body-centred tetragonal (BCT) structure. Sigma phase is extremely hard (around 68 HRC), has very low toughness, and depletes the surrounding matrix of chromium and molybdenum, reducing corrosion resistance in a similar manner to sensitisation. This is the reason for the upper limit on ferrite content: the more ferrite in the weld metal, the more sigma phase can potentially form during high-temperature service.

5. Cryogenic Toughness

For applications at sub-zero temperatures — including LNG service, cryogenic storage, and low-temperature process equipment — ferrite content must also be controlled within the lower acceptable range. The BCC crystal structure of ferrite has an inherent ductile-to-brittle transition temperature (DBTT), meaning that at very low temperatures the ferrite phase can become brittle even while the austenite matrix remains tough. High ferrite contents therefore reduce the cryogenic impact toughness of austenitic stainless steel welds. For LNG and cryogenic service, ferrite is often limited to a maximum of 5 FN by specification.

6. Magnetic Permeability

Austenitic stainless steel is chosen for certain applications partly because of its non-magnetic character — in medical devices, scientific instruments, electronic enclosures, and some offshore applications where magnetic permeability must be controlled. Delta ferrite, being BCC and therefore ferromagnetic, increases the magnetic permeability of the weld metal. In applications requiring truly non-magnetic welds, fully austenitic (FN = 0) filler metals such as 310S or high-manganese alloys must be used, accepting the associated hot cracking risk and managing it through rigorous base metal cleanliness.

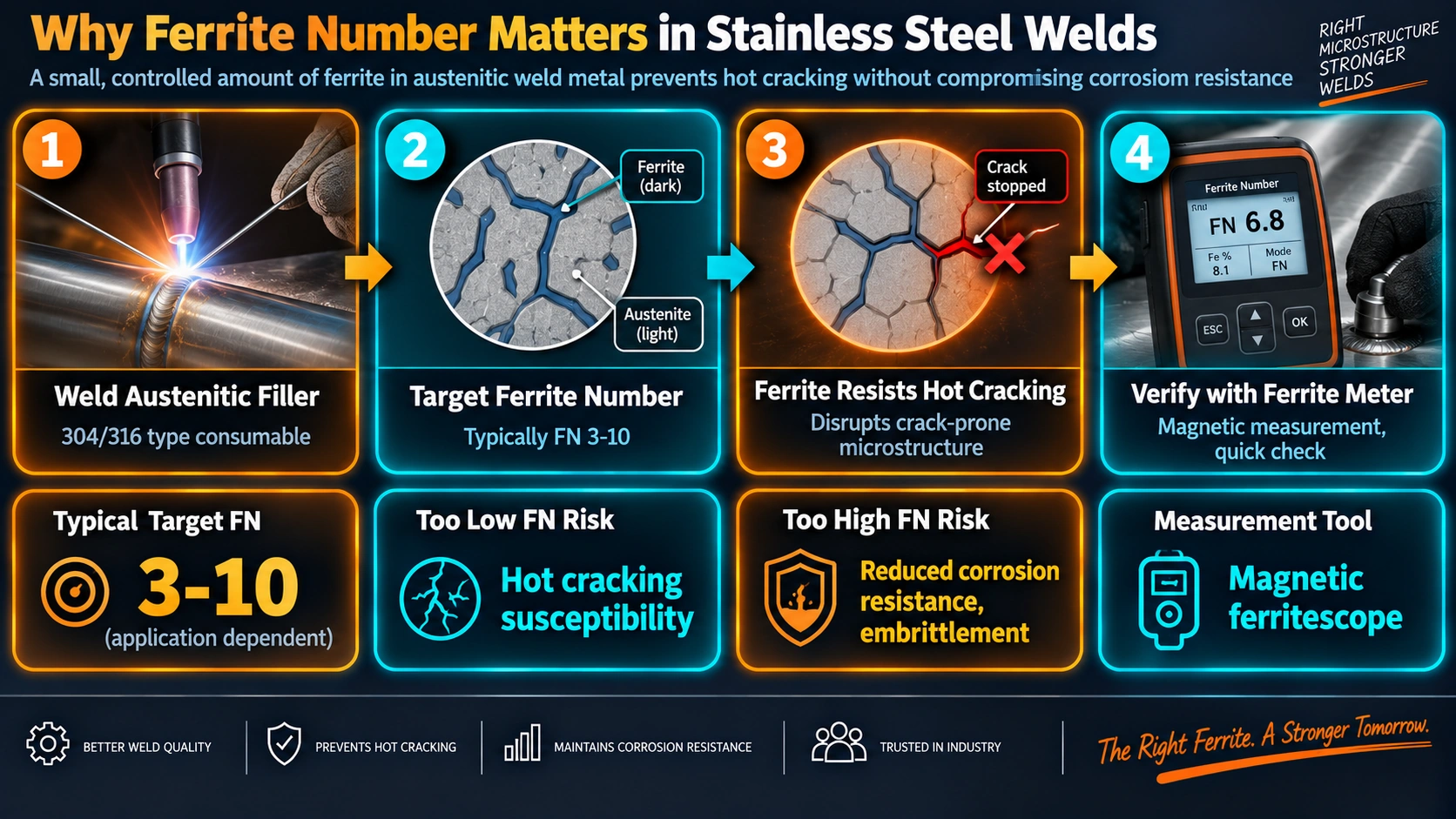

How to Control Ferrite Number in Stainless Steel Welds

Controlling the ferrite number in production welds requires attention at every stage from filler metal selection through to welding procedure qualification and quality control inspection. The main levers available to the welding engineer are:

Filler Metal Selection

The single most powerful means of controlling weld metal ferrite content is selection of the correct filler metal composition. Filler metals for austenitic stainless steel welding are typically formulated to produce weld metal in the FA solidification mode with a target ferrite number of 4 to 8 FN when used under standard conditions. Common examples:

Dilution Control

When welding dissimilar materials — most commonly austenitic stainless steel to carbon steel, or applying corrosion-resistant overlay on carbon steel substrates — the dilution from the carbon steel base metal significantly shifts the weld metal composition towards the martensite region of the Schaeffler diagram. The carbon and nickel from the steel dilute the austenite-stabilisers in the filler, pushing the effective Ni-eq down and potentially the Cr-eq up. Over-alloyed filler metals (such as ER309L, 309Mo, or nickel-base alloys) are used in these applications to ensure that even after dilution the weld metal remains in the austenitic or austenite-ferrite zone.

Heat Input Management

Heat input affects the cooling rate of the weld metal and therefore the temperature range over which the ferrite-to-austenite transformation occurs. Higher heat input (lower cooling rate) allows more time for the ferrite to transform back to austenite during cooling, resulting in lower residual ferrite content. Lower heat input (higher cooling rate) retains more ferrite. This effect is generally secondary to filler metal composition, but it becomes important when operating near the boundaries of the acceptable ferrite range.

Interpass Temperature

Similar to heat input, a high interpass temperature (>150 degrees Celsius) reduces the cooling rate of each successive weld pass and can reduce the as-deposited ferrite content compared with a lower interpass temperature. For most austenitic stainless steel applications, the interpass temperature limit is specified at 150 to 175 degrees Celsius maximum, partly to control sensitisation risk and partly to maintain consistent weld metal ferrite content from pass to pass.

Measuring Ferrite Number — Methods and Standards

Ferrite Number is measured in production by calibrated magnetic instruments. The two principal instrument types are:

• Feritscope (Fischer Instruments): Uses a pulsed electromagnetic field and measures the DC permeability of the material. Readings are highly sensitive to lift-off (instrument-to-surface distance), surface roughness, and proximity to edges. Must be calibrated with AWS A4.2-certified reference standards before and after use.
• Magne-Gauge (Severn Engineering): Measures the force required to pull a permanent magnet away from the surface. Less susceptible to surface condition effects than the Feritscope but requires more operator technique.

Both instruments must be calibrated to the AWS A4.2 standard (“Standard Procedures for Calibrating Magnetic Instruments to Measure the Delta Ferrite Content of Austenitic and Duplex Austenitic-Ferritic Stainless Steel Weld Metal”). This standard establishes the calibration reference standards (certified weld pads) that define the FN scale and ensure traceability and consistency between instruments and laboratories worldwide.

Ferrite Number Requirements in Key Industry Codes

Practical Summary — Delta Ferrite at a Glance

Frequently Asked Questions
