By WeldFabWorldPublished: March 16, 2026 | Updated: March 23, 2026GMAW / MIGProcess ParametersCalculator
MIG welding — formally known as Gas Metal Arc Welding (GMAW) — is the most widely deployed arc welding process in global fabrication. From automotive body panels to structural steel frameworks, offshore pipeline spools to pressure vessel nozzles, GMAW is selected for its high deposition rate, adaptability to automation, and comparatively short training curve. Yet setting a MIG machine correctly remains one of the most consequential — and misunderstood — steps in the entire welding process.
Set voltage too low and the arc sputters; too high and the bead flattens with undercut at the toes. Wire feed speed drives amperage on a MIG machine, and selecting the wrong rate for the wire diameter causes wire stubbing, burn-back, or a cold, unfused bead. This guide explains the engineering behind every MIG parameter — voltage, wire feed speed, amperage, heat input, shielding gas selection, and transfer mode — and provides a fully functional calculator to generate your starting values in seconds.
Whether you are setting up a production cell for the first time, preparing a Welding Procedure Specification (WPS), or troubleshooting a defect on the shop floor, the formulas, tables, and worked examples in this guide give you a rigorous, standards-referenced foundation for every GMAW setup decision you make.
Starting values only. Always trial weld on scrap material of the same thickness and position before production welding. Fine-tune voltage ±2 V and WFS ±10% to achieve a smooth, consistent arc. Machine calibration, liner condition, and contact-tip wear all affect the result.
MIG Welding Transfer Modes — Arc Physics
Understanding which transfer mode is active at your set parameters is fundamental to producing sound welds. The four GMAW transfer modes differ in droplet size, frequency, spatter level, positional capability, and minimum shielding gas argon content. Selecting the wrong mode for your thickness or position is the most common cause of excessive spatter, cold lap, and porosity in production GMAW.
Fig. 1 — GMAW metal transfer modes plotted against voltage and current ranges. The spray transition current for 1.2 mm ER70S-6 wire with C25 gas is approximately 220–230 A.
Transfer Mode
Voltage Range
Current Range
Positions
Spatter
Min. Argon %
Short Circuit
14–22 V
50–175 A
All (1G–4G)
Low
0% (CO&sub2; OK)
Globular
22–28 V
150–250 A
Flat only
High
0%
Spray
26–35 V
200–500 A
Flat + HZ
Very Low
>85% Ar
Pulsed Spray
25–35 V (peak)
50–400 A
All positions
Minimal
>75% Ar
Caution: Spray transfer requires the arc current to exceed the transition current — approximately 220–230 A for 1.2 mm ER70S-6 wire with C25 gas. Below this threshold, the process reverts to globular transfer regardless of voltage setting, producing high spatter and an erratic arc. Always confirm you are in the correct transfer mode before production welding.
The Engineering Formulas Behind MIG Parameter Calculation
Formula 1: Voltage — The Lesnewich Equation
The most widely cited empirical formula for GMAW starting voltage is the Lesnewich equation, derived from extensive laboratory data collected by A. Lesnewich and published in the Welding Journal in 1958. It remains the industry standard starting point for carbon steel solid wire welding:
Formula:V = (0.04 × I) + 16 — solid wire, carbon steel, short circuit or spray, Ar/CO&sub2; gasWhere: V = Voltage (volts)
I = Welding current (amperes)Example (200 A): V = (0.04 × 200) + 16 = 8.0 + 16 V = 24.0 V Fine-tune range: 23–25 V (listen for smooth, consistent arc crackle)Note: For stainless steel, apply +1 to +1.5 V correction (higher ionisation potential).
For aluminium, use a manufacturer’s chart — Lesnewich was derived for steel only.
Formula 2: Wire Feed Speed from Amperage
In GMAW, wire feed speed (WFS) is the primary setting that determines amperage — not the other way around. The relationship is governed by the burn-off rate equation, which accounts for wire cross-section, material density, and an empirical burn-off constant (C) derived from the wire composition:
Metric Form: WFS (m/min) = I ÷ (d² × C) where d = wire diameter (mm), C = empirical burn-off constant C ≈ 160 for carbon steel C ≈ 145 for stainless steel C ≈ 55 for aluminiumExample: 1.2 mm ER70S-6 wire at 240 A: WFS = 240 ÷ (1.2² × 160) = 240 ÷ 230.4 WFS = 1.042 m/s = 10.4 m/min This is in the normal spray transfer range for 1.2 mm wire. ✓
Self-Regulating Arc Behaviour: MIG machines operate on a constant voltage (CV) characteristic. When WFS increases (more wire entering the arc), the machine automatically draws more current to burn off the extra wire — maintaining a near-constant voltage. This is why WFS is the primary amperage control in GMAW, distinct from TIG or SMAW where current is set directly.
Formula 3: Amperage from Plate Thickness
When setting up for the first time without established parameters, a practical rule of thumb for carbon steel in the flat position gives a starting amperage from material thickness:
Rule of Thumb: I (A) ≈ Thickness (mm) × 35 to 40 Valid for: mild steel, single pass, flat/horizontal position, full penetration butt or fillet Use multiplier 35 for thinner material / higher travel speed
Use multiplier 40 for heavier sections / lower travel speedExample (10 mm plate): I = 10 × 38 = 380 A (theoretical) Practical adjustment: for 10 mm fillet in flat, 230–260 A is typical (multipass may be used)
The rule gives a starting framework, not a rigid prescription.
Practical Tip: The rule of thumb tends to overestimate current for thicker sections where multipass welding is used. For a 20 mm butt weld, you would not run a single pass at 800 A. Instead, use 280–320 A with multiple passes. The calculator above handles this automatically by applying practical caps based on wire diameter capacity.
Formula 4: Heat Input
Heat input (HI) is a mandatory recorded variable on any Welding Procedure Specification (WPS) governed by ASME Section IX, AWS D1.1, or EN ISO 15614. It quantifies the energy delivered per unit length of weld and directly influences the heat-affected zone (HAZ) width, grain growth, residual stresses, and post-weld mechanical properties.
Formula: HI (kJ/mm) = (V × I × 60) / (TS × 1000) where TS = travel speed in mm/min Note: Some codes apply a thermal efficiency factor (k) — e.g. k = 0.8 for GMAW in EN 1011
HI_eff = k × HIExample: V = 25 V, I = 240 A, TS = 350 mm/min: HI = (25 × 240 × 60) / (350 × 1000)
= 360,000 / 350,000 HI = 1.03 kJ/mm Typical structural GMAW range: 0.5–2.5 kJ/mm depending on material and WPS.
Formula 5: Deposition Rate
Deposition rate (DR) — the mass of weld metal deposited per hour of arc-on time — is critical for welding cost estimation, wire procurement, and production scheduling. It is calculated from the wire cross-section, feed speed, and material density:
Formula: DR (kg/hr) = WFS (mm/min) × A_wire (mm²) × ρ (g/cm³) × 60 / 10&sup6; A_wire = π(d/2)² ρ = 7.85 g/cm³ (steel) | 7.95 (SS) | 2.70 (Al)Example (1.2 mm at 10.4 m/min): A_wire = π × 0.6² = 1.131 mm²
DR = 10,400 × 1.131 × 7.85 × 60 / 10&sup6; DR = 5.54 kg/hr (arc-on time) Actual deposition accounts for arc duty cycle. At 60% duty, effective DR = 3.3 kg/hr.
Wire Stick-Out, CTWD & Current Geometry
The contact-tip-to-work distance (CTWD), often called stick-out, is a deceptively influential variable in GMAW. Most operators focus on voltage and WFS dials and ignore CTWD — yet a change of just 5 mm in stick-out can shift welding current by 15–20 A at the same WFS setting, due to resistive (I²R) preheating of the wire extension.
Fig. 2 — MIG gun geometry showing the relationship between contact tip position, stick-out (wire extension), arc length, and total CTWD. Longer stick-out increases I²R resistive heating of the wire, reducing arc current at the same WFS setting.
CTWD Effect on Parameters: Increasing stick-out from 15 mm to 25 mm at the same WFS can reduce arc current by 15–25 A, due to greater resistive heating of the wire. The wire arrives at the arc partially pre-melted, requiring less arc energy. This effect is more pronounced with smaller wire diameters. For WPS-qualified welding, specify CTWD range (e.g. 15 ± 3 mm) and control it with a jig or fixture.
Wire Diameter Selection Guide
The correct wire diameter is determined by base metal thickness, joint configuration, transfer mode, and machine output capability. Over-sizing the wire for thin material causes burn-through; under-sizing on heavy sections reduces deposition rate and increases welding time and cost. The table below provides a practical guide based on industry standards and fabrication practice.
Wire Dia.
Thickness Range
Amperage Range
Typical Applications
Transfer Mode(s)
0.6 mm
0.5 – 2.0 mm
30–80 A
Automotive body panels, thin sheet metal
SC only
0.8 mm
1.0 – 4.0 mm
60–140 A
Light fabrication, general purpose
SC
0.9 mm
2.0 – 8.0 mm
100–200 A
General fabrication, structural, shipbuilding
SCSpray
1.0 mm
3.0 – 12 mm
120–240 A
Medium fabrication, structural
SCSpray
1.2 mm
4.0 – 25+ mm
150–350 A
Heavy fabrication, pressure vessels, shipbuilding
SCSpray
1.6 mm
10 mm+
250–500 A
Heavy structural, heavy plate, alternative to SAW
Spray
Shielding Gas Selection for GMAW
The shielding gas is not merely a protective blanket — it directly determines arc stability, transfer mode behaviour, bead profile, penetration pattern, spatter level, and alloy recovery in the weld deposit. Selecting the wrong gas mixture is one of the most expensive and least obvious setup errors in GMAW production. The table below covers the principal gas systems used in industrial GMAW.
Gas Mix
Composition
Best For
Transfer Mode
Notes
C25
75% Ar / 25% CO&sub2;
Mild steel (standard)
SC + Spray
Industry standard; best balance of spatter, penetration, and cost
C15
85% Ar / 15% CO&sub2;
Mild steel, thin plate
SC
Lower spatter vs C25; softer arc; slightly less penetration
Cheapest option; more spatter; deepest penetration; no spray possible
98% Ar / 2% O&sub2;
Ar + O&sub2;
Stainless steel
Spray
Prevents carbon contamination of SS; stabilises spray arc
Tri-mix
Ar / He / CO&sub2;
Stainless steel (thick)
Spray + Pulsed
He increases heat input; better fusion on heavy SS sections
100% Argon
Ar
Aluminium
Spray (AC/pulsed)
Essential for Al — CO&sub2; severely oxidises aluminium
75% Ar / 25% He
Ar + He
Aluminium (thick)
Spray
He provides additional heat input for better fusion on thick Al
Gas Flow Rate: For most indoor GMAW, 12–18 LPM is adequate. Increase to 18–22 LPM for larger nozzle diameters (>16 mm bore), draught-prone areas, or when using helium-containing mixtures (helium is lighter than air and disperses faster). For outdoor welding or wind speeds above 2 m/s, use a wind deflector and increase flow to 20–25 LPM, or switch to FCAW (flux-cored).

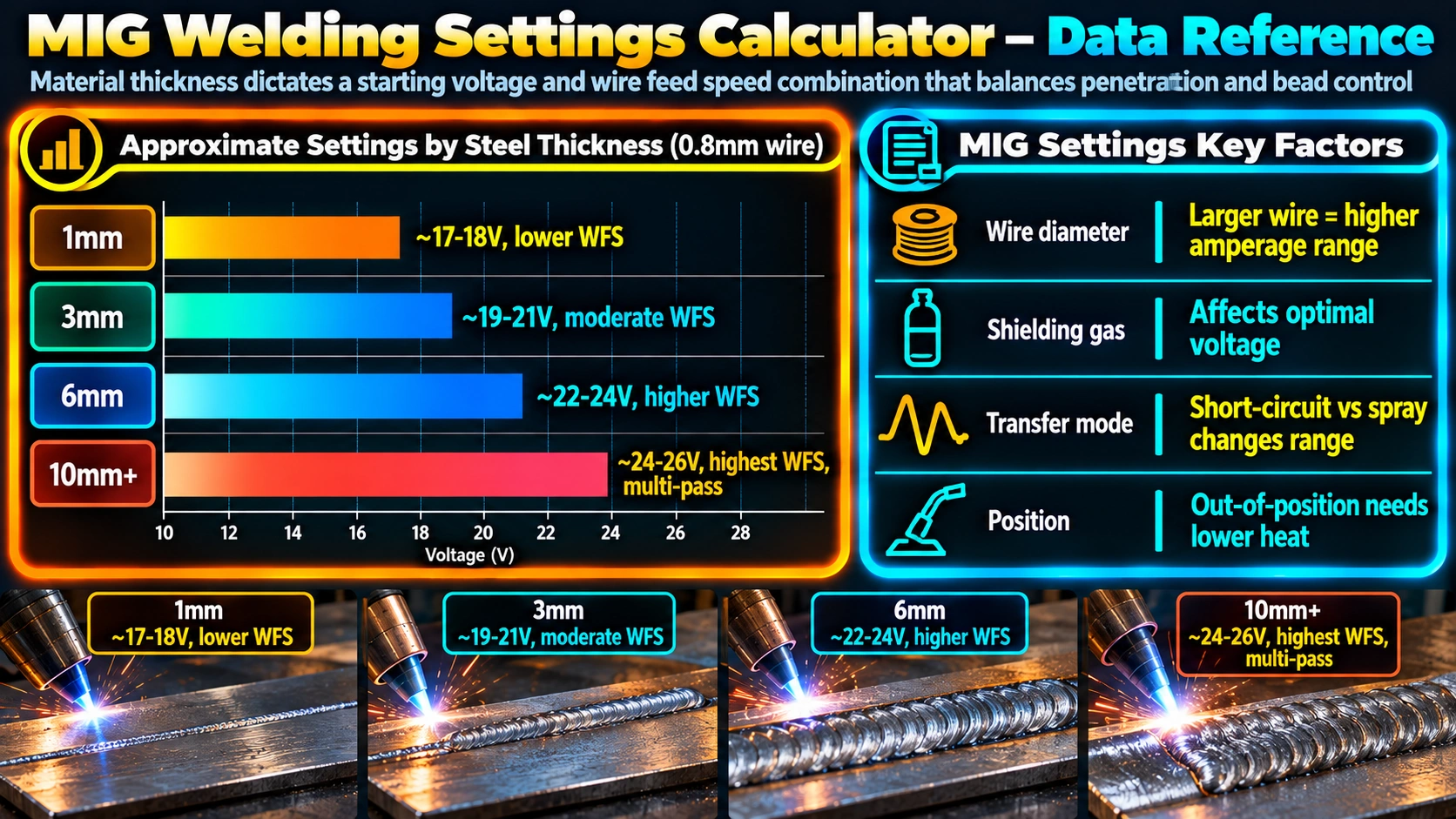

Quick-Reference Settings — Mild Steel ER70S-6, C25 Gas
The following table presents industry-proven starting parameters for mild steel welding using ER70S-6 wire and C25 (75% Ar/25% CO&sub2;) shielding gas. All values assume flat or horizontal position. Apply a 10–15% current reduction for vertical and overhead positions. Always verify on scrap before production welding.
Thickness
Wire Dia.
Amps
Volts
WFS (m/min)
Gas (LPM)
Mode
1.5 mm
0.6 mm
55–70
17–18
3.5–5
10–12
SC
2.0 mm
0.8 mm
70–95
18–19
4–6
11–13
SC
3.0 mm
0.8 mm
100–130
19–21
5–7
12–14
SC
5.0 mm
1.0 mm
150–185
22–23
6–8
13–15
SC
6.0 mm
1.2 mm
180–220
23–25
6–8
14–16
SC
10 mm
1.2 mm
230–270
25–27
8–10
15–17
Spray
16 mm
1.2 mm
270–320
27–29
9–12
16–18
Spray
20 mm+
1.6 mm
320–400
29–33
8–12
17–20
Spray

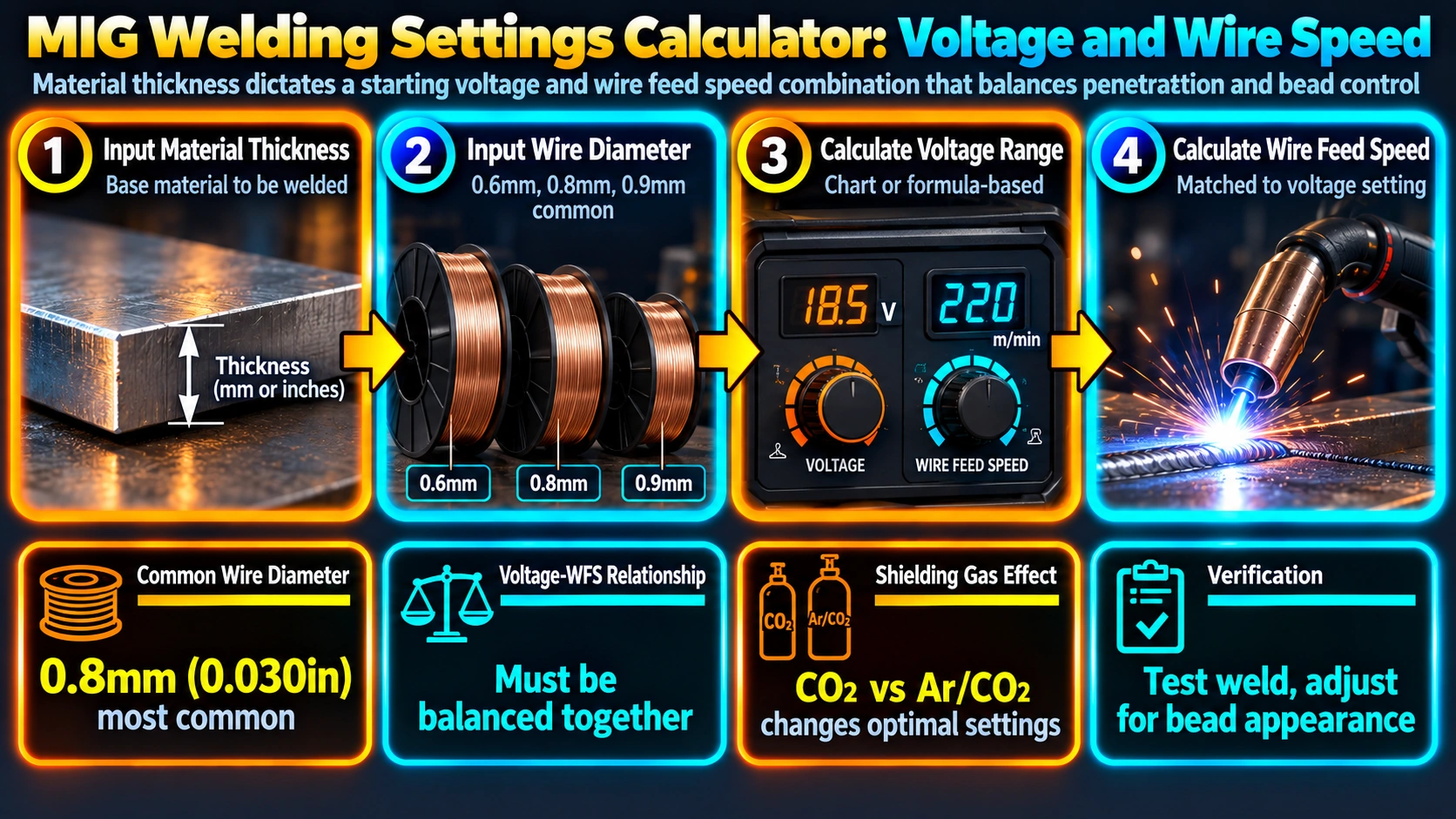

Step-by-Step MIG Setup Procedure
Follow this sequence every time you set up a GMAW job — whether you are reading parameters from a WPS, using the calculator above, or setting from scratch. Consistent setup discipline is the single greatest factor in consistent weld quality.
Measure base metal thickness — use a calibrated vernier caliper or micrometer, not visual estimation. Thickness drives every other parameter.
Select wire diameter — from the guide above. When in doubt, 0.9 mm or 1.2 mm covers most general fabrication work.
Select and confirm shielding gas — match to base metal and desired transfer mode. Check cylinder pressure and hose connections before each shift.
Set wire feed speed (amperage) — start from the rule: thickness (mm) × 35–38 = target amperage, then look up the corresponding WFS for your wire diameter from the calculator or table.
Set voltage (Lesnewich) — V = (0.04 × I) + 16, or use the calculator above. Start at the calculated value.
Set gas flow rate — typically 12–18 LPM for indoor welding. Verify with a flowmeter at the gun, not just at the regulator.
Set stick-out (CTWD) — 10–15 mm for short circuit; 15–25 mm for spray transfer. Maintain consistency throughout the joint.
Run a test bead on scrap of the same material, thickness, and position. Listen to the arc sound — a smooth, uniform crackle is correct. Adjust voltage ±1–2 V and WFS ±10% until the arc stabilises.
Cut and inspect the test bead — cross-section macro, grind, etch with 10% Nital (for steel). Verify fusion, penetration, and absence of cold lap or porosity.
Record and lock in parameters on the WPS or traveller. Do not allow operators to deviate without engineering authorisation.
Fully Worked Example — 10 mm Mild Steel T-Joint
The following example walks through every formula for a practical production scenario, showing all intermediate steps as they would appear in a WPS preparation calculation sheet.
Scenario: Weld a 10 mm thick mild steel T-joint (fillet weld) in the flat position (1F) using 1.2 mm ER70S-6 wire and C25 (75% Ar/25% CO&sub2;) shielding gas. Calculate all GMAW parameters and heat input.
Step 1 — Target Amperage I = 10 mm × 38 = 380 A (theoretical) Practical cap for 1.2 mm wire flat fillet: 220–260 A (single pass).
Select I = 240 A as working target.Step 2 — Voltage (Lesnewich) V = (0.04 × 240) + 16 = 9.6 + 16 V = 25.6 V → Set machine at 25–26 VStep 3 — Wire Feed Speed WFS = 240 ÷ (1.2² × 160) = 240 ÷ 230.4 WFS = 1.042 m/s = 10.4 m/min Confirm: 10.4 m/min with 1.2 mm wire is in spray transfer range (above transition ~8 m/min). ✓Step 4 — Deposition Rate A_wire = π × 0.6² = 1.131 mm²
DR = 10,400 × 1.131 × 7.85 × 60 / 1,000,000 DR = 5.54 kg/hr (arc-on time)Step 5 — Heat Input (TS = 350 mm/min assumed) HI = (25.6 × 240 × 60) / (350 × 1000)
= 368,640 / 350,000 HI = 1.053 kJ/mm Within typical structural GMAW range (0.5–2.5 kJ/mm). Check against WPS limits.Step 6 — Gas C25 (75% Ar / 25% CO&sub2;) at 15–17 LPM. Spray transfer mode confirmed. Summary: 240 A · 25.6 V · WFS 10.4 m/min · 15–17 LPM C25 · HI 1.05 kJ/mm
Most GMAW defects trace back to an incorrect combination of voltage, WFS, travel speed, or gas coverage. The table below identifies the most common symptoms and their parameter-based solutions. Always check consumable condition (contact tip, liner, nozzle) before attributing defects to parameter settings alone.
Symptom
Likely Cause
Parameter Fix
Excessive spatter
Voltage too low; wrong gas; or globular mode
Increase voltage +1–2 V; check gas argon content; check you are above spray transition current
Porosity (gas holes)
Gas coverage inadequate; contaminated base metal
Increase gas flow; inspect hose joints; clean base metal; reduce drafts
Cold lap / poor fusion
Voltage or WFS too low; travel speed too high
Increase voltage +1–2 V; increase WFS +10%; reduce travel speed
Reduce voltage -1–2 V; increase travel speed slightly
Narrow, ropy bead
Voltage too low; arc too short
Increase voltage +1–2 V
Erratic arc / irregular bead
Worn contact tip; dirty liner; poor earth
Replace contact tip; clean or replace liner; check and tighten earth clamp
Frequently Asked Questions — MIG Welding Settings
What voltage should I use for MIG welding 6 mm mild steel?
For 6 mm mild steel with 1.2 mm ER70S-6 wire in the flat position using C25 shielding gas, a starting voltage of 23–25 V with approximately 200–220 A is typical. Apply the Lesnewich formula: V = (0.04 × 210) + 16 = 24.4 V. Use the MIG settings calculator above for your specific conditions, and always trial weld on scrap of the same material and position before committing to production.
Can I use spray transfer in all welding positions?
No. Spray transfer produces a high-energy, high-fluidity weld pool that cannot be controlled in the overhead (4G/4F) or vertical (3G/3F) positions. It is restricted to flat (1G/1F) and horizontal (2F) positions. For out-of-position welding on thicker material where high deposition is needed, use pulsed spray GMAW or switch to FCAW (flux-cored arc welding) which is better suited to positional work on heavier sections.
What is the Lesnewich formula for MIG voltage?
The Lesnewich formula, published by A. Lesnewich in the Welding Journal in 1958, provides an empirical starting voltage for solid steel wire GMAW: V = (0.04 × I) + 16, where V is voltage in volts and I is welding current in amperes. For example, at 200 A the starting voltage would be (0.04 × 200) + 16 = 24 V. This formula applies to short circuit and spray transfer modes on carbon steel with argon-CO&sub2; shielding gas mixtures. It is not valid for aluminium or for high-CO&sub2; process variants.
How does stick-out (CTWD) affect MIG welding current?
Longer contact-tip-to-work distance (CTWD) increases the electrical resistance of the wire extension, generating additional resistive (I²R) heating in the wire before it reaches the arc. At the same wire feed speed setting, longer stick-out produces less welding current at the arc and slightly lower penetration. For consistent WPS-compliant welding, specify CTWD range (typically 15 ± 3 mm for general fabrication) and control it consistently. A change from 15 mm to 25 mm CTWD can reduce arc current by 15–25 A at the same WFS setting.
Which shielding gas gives the least spatter for MIG welding mild steel?
Higher argon content reduces spatter in GMAW. C25 (75% Ar/25% CO&sub2;) is the industry standard, offering a balance of low spatter, good penetration, and reasonable cost. Moving to C15 (85% Ar/15% CO&sub2;), C10 (90% Ar/10% CO&sub2;), or C5 (95% Ar/5% CO&sub2;) progressively reduces spatter and softens the arc but increases consumable cost and slightly reduces penetration. Pure CO&sub2; gives the most spatter but deepest penetration and is the cheapest option. For cosmetically critical welds or automated lines where spatter creates rework cost, C10 or C5 often provides the best economic balance.
What is the spray transition current for 1.2 mm MIG wire?
For 1.2 mm ER70S-6 wire with C25 shielding gas, the spray transition current is approximately 220–230 A. Above this threshold the metal transfer shifts from globular (noisy, large droplets, high spatter) to true spray transfer (smooth, fine droplets, low spatter, stable arc). The transition current decreases with higher argon content — for 95% Ar/5% CO&sub2; it may be as low as 195–205 A for the same wire. Always confirm you are above the transition current before relying on spray transfer characteristics in your weld procedure.
How do I calculate heat input for a MIG weld?
Heat input (HI) in kJ/mm = (Voltage × Current × 60) / (Travel Speed in mm/min × 1000). For example, at 25 V, 240 A, and 350 mm/min travel speed: HI = (25 × 240 × 60) / (350,000) = 1.03 kJ/mm. ASME Section IX and AWS D1.1 WPS documents require heat input to be recorded and controlled. Some European codes (EN 1011) apply a thermal efficiency factor k = 0.8 for GMAW, giving an effective heat input of 0.82 kJ/mm in this example. Always verify your calculated HI falls within the qualified range on your ASME Section IX-qualified WPS.
What causes porosity in MIG welds and how do I fix it?
Porosity in GMAW is almost always caused by insufficient or contaminated shielding gas coverage. Check gas flow rate (minimum 12 LPM for indoor welding), inspect hoses and connections for leaks, verify the gun nozzle is not blocked with spatter, and ensure the base metal is clean and free of oil, moisture, mill scale, and paint. Excessive voltage (very long arc) and wind currents that displace the shielding gas column are other common causes. Increase gas flow to 18–20 LPM if welding near draughts. For austenitic stainless steel, also check that the gas argon content is correct — CO&sub2; above 3% can cause chromium oxide inclusions that appear similar to porosity on radiography.
