Welding Positions

This article is about Welding Position involved in fabrication of Pressure Vessel, Piping and Pipelines.

Different welding standard specifies different welding position for welder. Welding position is specified as per the position of work piece before and during welding. Position of welding is specified in ASME section IX and EN ISO 6947. Welding position is essential variable for welders so understanding of same is so much important for a welding instructor. We will discuss and elaborate different welding position as per these standard mentioned above and also include application where different welding position are used.

Welding Position as per ASME Section IX

Angle of Inclination and Rotation of Face: It is very important to understand the below figure in order to find out actual welding position.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding
Table-1 Position of Weld w.r.t angle of inclination and groove face rotation
1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding
Figure-1: Pictorial view of welding position w.r.t angle of inclination & Groove face rotation

Welding codes define production welding positions very specifically. Visualize two plates lying flat on a table. That plate can be rotated in two planes: one in which you grab the plate at one end of the weld and lift it up and down (the inclination axis), and the other in which you grab an edge parallel to the weld axis and lift it up and down (face rotation axis)

 The inclination angles are ranging from 0 degrees (flat) to 90 degrees (vertical). For the rotation of the weld ASME Section IX code that “0 degrees” means the weld is facing downward, such as for overhead welding; this is the reference point. Every other position is measured, going clockwise, through 90 degrees (horizontal), through 180 (with the weld facing up, for flat-position welding), through 270 degrees (horizontal again), down to 360/0 degrees, with the weld again facing downward.

For Flat position, the weld face rotation can be anywhere from the plate rotated 150 degree from the flat plane and continue up to 120 degrees. And angle of inclination can vary 15 degrees, up or down from the horizontal plane.

For Horizontal position, the weld face rotation can be anywhere from the plate rotated 80 degrees from the flat plane and continue up to 150 degrees, and again from 210 degree to 280 degree. It can vary 15 degrees, up or down from the horizontal plane.

For Vertical position, the weld face rotation can be anywhere form 80 degree to 280 degree with angle of inclination between 15 degree to 80 degree. And between angle of inclination of 80 degree to 90 degree anywhere rotate the face between 0 to 360 degree, it will comes under vertical position only.

For Overhead position, the weld face rotation can be anywhere from the plate rotated 0 degrees from the flat plane and continue up to 80 degrees, and again from 280 degree to 360 degree. Angle of inclination in between 0 to 80 degree.

This explanation sometimes becomes difficult to understand to everyone so we have make easy explanation for each welding position with pictographic representation so everybody can understand easily.

WELDING POSITION

The welding position refers to the position of the welder or welding operator towards the work piece to be welded. With change of welding position, parameters of welding also to be changed to achieve required weld quality, because of gravity, the welding position affects the flow of molten weld pool.

Equivalent nomenclature of Welding Position as per EN ISO 6947 and ASME Section IX

As per EN ISO 6947As per ASME Section IX
PA1G/1F
PB2F
PC2G
PD4F
PE4G
PF3G Uphill
PG3G Downhill
PH5G Uphill
PJ5G Downhill
H-L0456G Uphill
J-L0456G Downhill

Welding Position- Plate

The four basic welding positions for plate are:

Flat Position (1G or 1F)

Horizontal Position (2G or 2F)

Vertical Position (3G or 3F)

Overhead Position (4G or 4F)

* ”G” stands for Groove type joint

* ”F” stands for Fillet type joint.

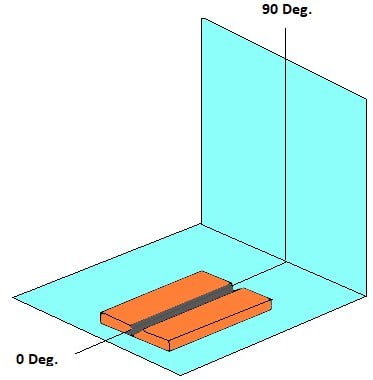

Flat Position 1G/PA: Plate in a horizontal plane with the weld metal deposited from above. Flat welding position is faster and easier as compared to other welding positions. The welder conducts welding from the top of the plate and welder position does not change. Welding in flat position can be a low or high heat input position because the welder has more flexibility about the travel speed. Refer fig. 1 & fig.2, it clearly shows that flat position having tolerance range of 0 ± 15 Deg. angle of inclination. But rotation of face is also important in order to determine the actual welding position, for flat position rotation of face is 180 deg. ± 20 deg.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding
Fig.1 1G Position
1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding
Fig.2 1G Position

Horizontal Position 2G/PC: Plate in a vertical plane with the axis of the weld horizontal. It required larger groove angle as compare to other welding position because molten pool flow fast towards down side of groove the wall. Horizontal position is relatively low heat input position because welding cannot weave as faster travel speed required in this position to prevent the weld pool to sag on down side groove wall.

Angle of Inclination: 0 ± 15 Deg.

Rotation of Face: 80 to 150 Deg. and 210 to 280 Deg.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding
Fig.3 2G Position
1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding
Fig.4 2G Position

Vertical Position 3G/PF: Plate in a vertical plane with the axis of the weld vertical. In this position force of gravity pushes the molten metal downward and so it has tendency to pile up and formed lumps. Having slower travel speed because there is need to weave to get a satisfactory bead profile and highest heat input as compared to other positions. The chances of distortion are more & higher diameter of electrodes is not recommended in this position because of lower travel speed and difficult to control of weld pool. There are two progressions in Vertical position, i.e. Uphill and Downhill. When welding uphill, you are “fighting” against gravity, so your speed is slow. When welding downhill, gravity pulls the weld pool down, so it results in great speed.

Angle of Inclination: 15 to 90 Deg.

Rotation of Face: 80 to 280 Deg.  (For angle of inclination: 15 to 80 Deg.)

  0 to 360 Deg.    (For angle of inclination: 80 to 90 Deg.)

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding
Fig. 5 3G Position

Overhead Position 4G/PE: Plate in a horizontal plane with the weld metal deposited facing towards the ground. Normally, it is complex and hard position. Overhead position gives lower heat input because low current and higher travel speed required in this position to prevent the molten pool to flow down due to gravity.

It is important to keep a very short arc when welding overhead. This position is also a dangerous because the chances that the sparks fall on the welder. The first thing to do before an overhead weld is to make sure welder body and head are fully covered.

Angle of Inclination: 0 to 80 Deg.

Rotation of Face: 0 to 80 Deg. and 280 to 360 Deg.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding
Fig. 6 4G Position

See below good example where we are missed out regarding actual welding position. Here we are taking a example of pressure vessel cone long seam welding.

  1. If welder is depositing a weld on long seam from outside of the cone, then it will comes under 3G (Vertical Position
  2. If welder is depositing  a weld on from inside of the cone of then, it will comes under 4G (Overhead Position)
1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding
Fig.7 Pressure Vessel Cone Welding

Welding Position- Pipe

Flat Position 1G/PA: Pipe with its axis horizontal and rolled during welding so that the weld metal is deposited from above.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding

Horizontal Position 2G/PC: Pipe with its axis vertical and the axis of the weld in a horizontal plane. Pipe shall not be rotated during welding.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding

Multiple Position 5G/PH: Pipe with its axis horizontal and with the welding groove in a vertical plane.Welding shall be done without rotating the pipe.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding

Recommends steps to weld in 5G position:

Step-1   Start from the bottom. At the 6 o’clock position weld up to the 3 o’clock position.

Step-2  Again start from the bottom and then weld up to the 9 o’clock position.

Step-3  Go back to the 3 o’clock position and weld up to the top (12 o’clock position).

Step-4  Go back to the 9 o’clock position and weld to the top ((12 o’clock position) and overlap your bead.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding
5G Position

Multiple Position 6G/H-L045: Pipe with its axis inclined at 45 deg. to horizontal. Welding shall be done without rotating the pipe. This is very challenging position for a welder, who uses all his skills and a variety of body positions to accomplish the most difficult weld. Welder who pass the test in 6G position, he can able to weld all position.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding

Multiple Position 6GR with Restriction Ring: A 6GR test is a variant of the 6G test. The conditions are all the same as the 6G test, with one additional factor. The letter “R” in 6GR stands for restricted and means the test weld is performed with a ring made from steel plate placed an inch under the weld site. This extra degree of difficulty tests the ability of a welder to make a joint where impediments, such as brackets, attach the pipe to another structure or wall. This position are mainly applied for T,Y,K connections (Refer AWS D1.1)

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding
6GR Welding Position

Fillet Weld Position-Plate

Flat Position 1F: Plates so placed that the weld is deposited with its axis horizontal and its throat vertical.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding

Horizontal Position 2F : Plates so placed that the weld is deposited with its axis horizontal on the upper side of the horizontal surface and against the vertical surface.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding

Vertical Position 3F: Plates so placed that the weld is deposited with its axis vertical. A vertical weld is when the weld’s axis is vertical or over a 45° incline. This is regularly used in structural welding and takes more skill than horizontal welding because you’re fighting more against gravity.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding

Overhead Position 4F: Plates so placed that the weld is deposited with its axis horizontal on the underside of the horizontal surface and against the vertical surface.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding

Fillet Weld Position-Pipe:

Flat Position 1F: Pipe with its axis inclined at 45 deg to horizontal and rotated during welding so that the weld metal is deposited from above and at the point of deposition the axis of the weld is horizontal and the throat vertical.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding

Horizontal Positions 2F and 2FR:

(I) Position 2F: Pipe with its axis vertical so that the weld is deposited on the upper side of the horizontal surface and against the vertical surface. The axis of the weld will be horizontal and the pipe is not to be rotated during welding.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding

(II) Position 2FR: Pipe with its axis horizontal and the axis of the deposited weld in the vertical plane. The pipe is rotated during welding.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding

Overhead Position 4F: Pipe with its axis vertical so that the weld is deposited on the underside of the horizontal surface and against the vertical surface. The axis of the weld will be horizontal and the pipe is not to be rotated during welding.

1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in welding

Multiple Position 5F: Pipe with its axis horizontal and the axis of the deposited weld in the vertical plane. The pipe is not to be rotated during welding.

welding p1G, 2fr welding position.how to weld vertical position, 2G, 3G, 4G, 6G, Flat Welding Postion, h-l045, h-l045 welding position, hl 045 welding position, Horizental Welding Position, iso welding positions chart, j-l045 welding position, types of welding positions, Uphill welding, Vertical welding position, Welding Position as per Section IX, Welding Positions, What is 1g 2g 3g 4g 5g 6g Welding?, what is 6g positiom in weldingostions 5f

Application of Welding Position:

1) 1G, 2G, 3G and 4G plate position are mainly applicable in the fabrication of tank, pressure vessel and reactor.

2) 1G, 2G, 5G and 6G pipe positions are applicable in the fabrication and installation of piping and pipelines for oil and gas industries, Chemical plants.

3) 6GR is applicable mainly in the fabrication and installation of offshore structure and other structure that have the TKY configuration.
