Carbon Steel and Its Types: Low, Medium, High and Ultra-High

Carbon steel is the backbone of the global fabrication industry. Defined as an iron-carbon alloy containing between 0.05% and 2.1% carbon by weight, carbon steel accounts for roughly 90% of all steel produced worldwide. Understanding how carbon content shapes a steel’s mechanical behaviour — its strength, ductility, hardness, and weldability — is one of the most fundamental skills any engineer, inspector, or fabricator must develop.

Pure iron on its own is soft and relatively weak. It is the deliberate addition of carbon, and often secondary alloying elements such as manganese, silicon, and chromium, that transforms iron into a material capable of handling enormous structural and mechanical demands. As carbon content rises, the steel gains hardness and tensile strength through heat-treating mechanisms, but it simultaneously loses ductility and becomes progressively more difficult to weld. This trade-off defines the four main categories of carbon steel: low (mild), medium, high, and ultra-high.

This guide covers each category in depth — chemical compositions, common plate grades, mechanical properties, heat treatment behaviour, weldability considerations, and the real-world applications engineers encounter in construction, pressure vessels, pipelines, automotive, and tooling industries.

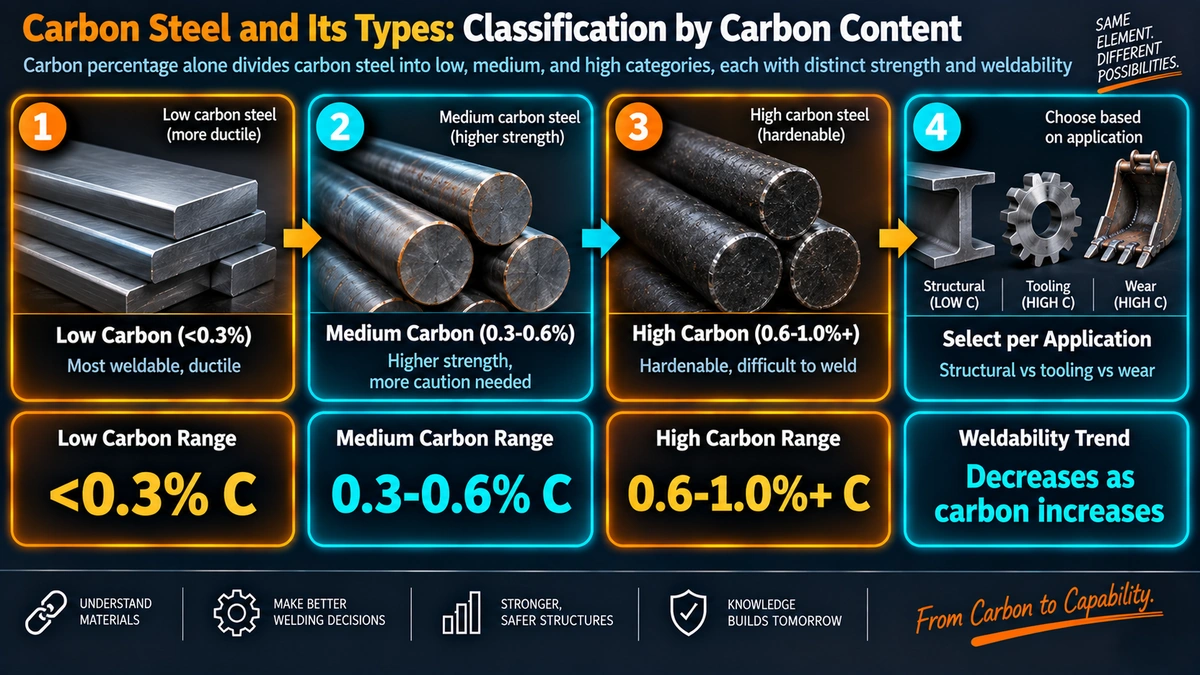

How Carbon Steel Is Classified

The primary classification of carbon steel is by carbon content. Each band represents a different balance between strength, formability, and weldability. The table below summarises all four categories and their characteristic properties at a glance.

Key Mechanical Properties Explained

Before examining each steel type, it is worth understanding what the quoted mechanical properties actually measure and how they relate to design decisions.

Yield Strength and Tensile Strength

Yield strength is the stress at which a material permanently deforms — once crossed, the component will not spring back to its original shape. Tensile strength (UTS) is the maximum stress the material can sustain before fracture. In structural and pressure vessel design, yield strength governs the allowable stress used in design calculations. ASME Section VIII Division 1 uses either one-quarter UTS or two-thirds yield strength, whichever is lower, as its allowable stress baseline.

Ductility and Elongation

Ductility measures how much a material can be deformed before fracture. It is expressed as percentage elongation in a tensile test. High ductility is critical in structures that must absorb energy during impact or overload events — a ductile material will deform visibly before failing, giving warning to operators. Low carbon steel typically achieves 25–40% elongation, whereas high carbon steel may be as low as 5–10%.

Hardness

Hardness is measured on the Rockwell or Brinell scales and indicates resistance to surface wear and penetration. High hardness is desirable in cutting tools but is a warning sign in weld heat-affected zones (HAZ), where hardness above approximately 350 HV (Vickers) suggests susceptibility to hydrogen-induced cracking. For guidance on controlling HAZ hardness, the mechanical testing guide provides detailed context.

Low Carbon Steel (Mild Steel)

Low carbon steel, universally known as mild steel, contains between 0.05% and 0.25% carbon by weight. It is the most widely produced steel type globally, accounting for the majority of structural and general engineering applications. Its low carbon content gives it the best combination of formability, weldability, and moderate strength for everyday fabrication work.

Because the carbon content is insufficient to form a hardened martensitic microstructure on cooling, mild steel can be welded with minimal preheat requirements in most ambient conditions, making it the first choice for structural fabrication, shipbuilding, and pipeline construction. For carbon equivalent assessment and preheat calculation, the Carbon Equivalent (CE) calculator is a useful tool.

HSLA Steel — High Strength Without High Carbon

When applications require higher strength than plain mild steel can provide, engineers specify High Strength Low Alloy (HSLA) steel. HSLA grades achieve elevated yield strength not by raising carbon, but by adding small quantities of microalloying elements — vanadium (V), niobium (Nb), titanium (Ti), and copper (Cu) — which refine the grain structure and cause precipitation hardening. ASTM A572 Grade 50 is a widely used HSLA grade offering a 50 ksi minimum yield strength while retaining excellent weldability.

Chemical Composition — Common Low Carbon Plate Grades

Mechanical Properties — Common Low Carbon Plate Grades

Common Applications of Low Carbon Steel

Low carbon steel is the dominant material across structural and general fabrication work. In construction, it forms reinforcement bars, structural beams, columns, and decking. In pressure equipment, thin-walled storage tanks and non-critical nozzles often use mild steel plate. In the oil and gas sector, structural jackets, clamps, and support frameworks use A36 or equivalent grades. The automotive industry uses it for body panels, chassis frames, and door skins — where formability is paramount. For weight-critical applications such as bridges and crane booms, HSLA grades like A572 Grade 50 and A572 Grade 65 are specified to reduce material thickness while meeting strength targets.

Medium Carbon Steel

Medium carbon steel spans a carbon range of 0.26–0.60%. This range delivers a natural balance between strength and ductility that neither low nor high carbon steel can match. The higher carbon content enables the steel to respond well to heat treatment, making it the preferred choice for components where both strength and toughness are required, such as pressure vessels, large gears, axles, and heavy machinery.

Quenching and Tempering (Q&T)

The mechanical properties of medium carbon steel can be substantially improved through quenching and tempering. This two-stage heat treatment is described step by step below.

Chemical Composition — Common Medium Carbon Plate Grades

Mechanical Properties — Common Medium Carbon Plate Grades

Common Applications of Medium Carbon Steel

The versatility of medium carbon steel makes it ubiquitous across heavy industry. Pressure vessel shells, heads, and nozzles in refineries and petrochemical plants routinely use ASTM A516 Grade 70. Gears, crankshafts, connecting rods, and axles use quenched-and-tempered 1045 or equivalent grades. Railway track and wheel components, elevator and hoist drums, mining equipment, and agricultural machinery all rely on medium carbon steel for its combination of strength and toughness that cannot be achieved with mild steel alone.

High Carbon Steel

High carbon steel occupies the range of 0.61–1.25% carbon. At these concentrations, the steel achieves significantly higher hardness and wear resistance than either low or medium carbon grades, but ductility and toughness are considerably reduced. High carbon steel is sensitive to cracking during and after welding, and welding procedures require careful engineering — generally including preheat temperatures of 200°C or above, low-hydrogen electrodes, controlled interpass temperature, and post-weld heat treatment (PWHT).

The elevated carbide content means that properly heat-treated high carbon steel can hold a sharp cutting edge under sustained use — a property exploited extensively in tooling, blades, and springs. For perspective on how these microstructural features relate to metallurgical defects, our fractography guide explains how cracks propagate differently in hard, low-toughness materials.

Common Applications of High Carbon Steel

High carbon steel finds its primary applications where hardness and edge retention take precedence over weldability. Industrial cutting tools including lathe tools, milling cutters, drill bits, and punches are routinely manufactured from high carbon grades. Knives, chisels, files, and hand tools benefit from the same properties. High-tension springs, piano wire, and wire ropes use high carbon steel because the material can sustain high cyclic stresses in the elastic range once correctly heat-treated. Rail steel is also in this category, offering wear resistance on wheel-contact surfaces while retaining sufficient toughness to resist brittle fracture in service.

Ultra-High Carbon Steel

Ultra-high carbon steel, sometimes written UHC steel, contains between 1.25% and 2.1% carbon by weight. At this upper bound, the iron-carbon system approaches the eutectic composition (6.69% carbon = pure cementite), and cementite networks begin to form continuously at austenite grain boundaries during slow cooling. This continuous network of hard, brittle iron carbide (Fe3C) drastically reduces fracture toughness, making ultra-high carbon steel extremely brittle in its unannealed state.

Ultra-high carbon steel is impractical to weld by any conventional arc process and is rarely used in fabricated structures. Its niche is specialist tooling and historical blade steels such as Damascus / Wootz steel, which was produced by forge-welding multiple high-carbon layers in pre-industrial times to achieve a combination of toughness and hardness unobtainable from a single grade. Modern applications include metal-forming dies, ultra-hard bearing components, and specialist cutting tools where carbide-tool steels or high-speed steels may be too expensive.

Side-by-Side Comparison: All Four Carbon Steel Types

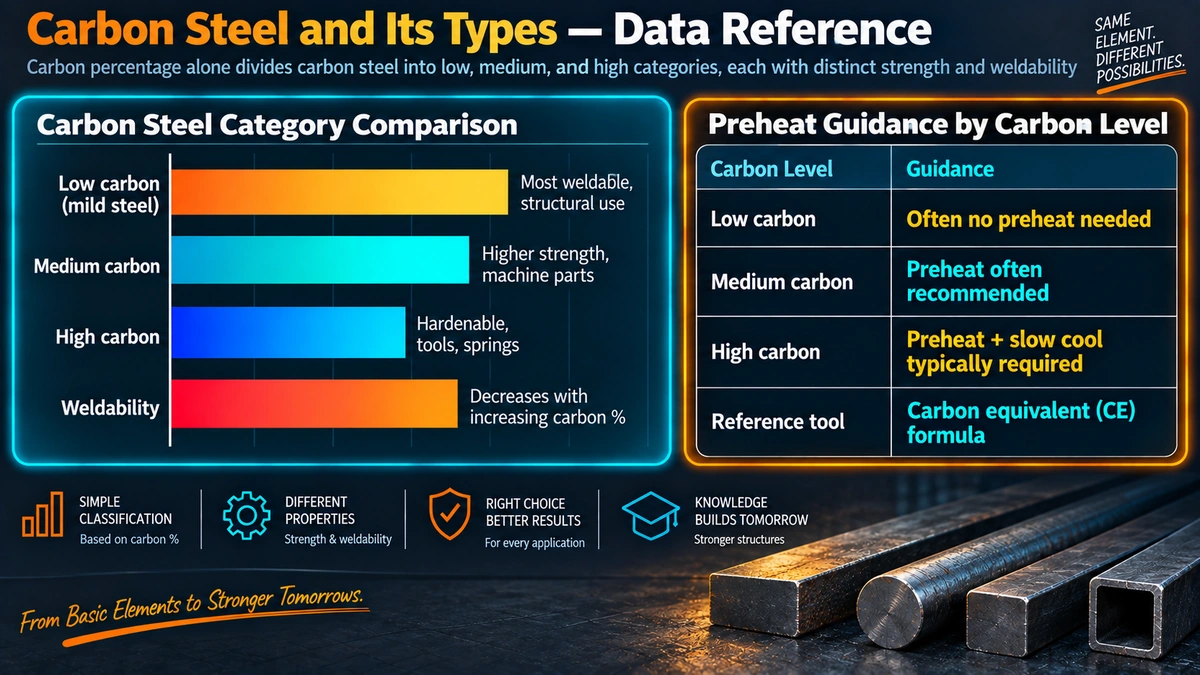

Carbon Steel Weldability and the Carbon Equivalent

Weldability is perhaps the most practically important property when selecting a carbon steel grade for a fabrication project. As carbon content rises, the risk of hydrogen-induced cold cracking (HICC) in the heat-affected zone (HAZ) increases. The internationally recognised metric for predicting this risk is the Carbon Equivalent (CE), calculated from the chemical composition.

The International Institute of Welding (IIW) formula is the most widely used:

For a full worked example and an interactive calculator, visit our Carbon Equivalent (CE) calculator page, which covers both the IIW formula and the Pcm (Ito-Bessyo) formula used for low-carbon, high-strength steels. The choice of welding process also affects preheat requirements — Submerged Arc Welding (SAW) with its high heat input and low hydrogen potential can allow lower preheats compared to SMAW in some cases.

Heat Treatment of Carbon Steels

The response of carbon steel to heat treatment is one of its most exploitable characteristics. Different heat treatment cycles deliver dramatically different property profiles from the same base chemistry. Our comprehensive heat treatment guide for fabricators covers all cycles in detail; the table below summarises the main cycles applied to carbon steels.

How to Choose the Right Carbon Steel for Your Application

Selection of the appropriate carbon steel type requires balancing several competing factors. The decision framework below walks through the key questions an engineer should answer before specifying a grade.

Carbon Steel Applications Across Industries

Carbon steel is found in virtually every industrial sector. The following overview maps steel types to their primary roles across key industries.

Corrosion Behaviour of Carbon Steel

One significant limitation of carbon steel compared to stainless steel or duplex grades is its susceptibility to oxidation and corrosion in wet or aggressive environments. Carbon steel forms iron oxide (rust) rapidly in the presence of moisture and oxygen. Without surface protection — through paint, galvanising, hot-dip coating, or cathodic protection — carbon steel will degrade in service.

In structural applications, corrosion allowances are incorporated into the design wall thickness. In pressure vessel design per ASME Section VIII, a corrosion allowance of 1.5–3 mm is typical for carbon steel in non-aggressive service, and up to 6 mm for moderately corrosive environments. For environments causing severe corrosion — such as chloride-containing services, H2S atmospheres, or strong acids — carbon steel may be unsuitable and higher-alloy materials must be specified. A comprehensive overview is available in our corrosion types and prevention guide.
