Austenite and Ferrite Stabilizing Elements in Stainless Steel

Austenite and ferrite stabilizing elements are the fundamental alloying tools that determine which microstructural phase a stainless steel or its weld metal will form. Every element added to an iron-based alloy either expands the austenite phase field (an austenite stabilizer) or restricts it in favour of ferrite (a ferrite stabilizer). Understanding these opposing forces — and how to quantify them using the Chromium Equivalent (Cr-eq) and Nickel Equivalent (Ni-eq) formulas — is essential knowledge for any welding engineer, metallurgist, or inspector working with stainless steels.

The balance between austenite-forming and ferrite-forming elements directly controls whether a weld deposit will be fully austenitic (hot cracking risk), duplex (austenite + ferrite, desirable for most applications), fully ferritic, or even partially martensitic. It also governs delta ferrite content in austenitic stainless steel welds, the susceptibility to weld decay through sensitization, and the long-term stability of the weld microstructure in high-temperature service.

This guide covers every major stabilizing element, the constitution diagrams used to predict phase balance (Schaeffler, DeLong, and WRC-1992), a Cr-eq / Ni-eq calculator for your own compositions, and the practical engineering rules that follow from this knowledge. The topic is also critical in the context of P91 and P92 welding, where Ni and Mn content must be strictly restricted to preserve the ferritic-martensitic microstructure required for creep resistance.

Austenite and Ferrite: The Two Primary Phases

Iron exists in several allotropic forms depending on temperature and composition. At room temperature and under most conditions, pure iron forms a body-centred cubic (BCC) crystal structure known as alpha iron or ferrite. Above 912°C, pure iron transforms to a face-centred cubic (FCC) structure known as gamma iron or austenite. Above approximately 1394°C, it reverts to a BCC structure called delta ferrite before melting at 1538°C.

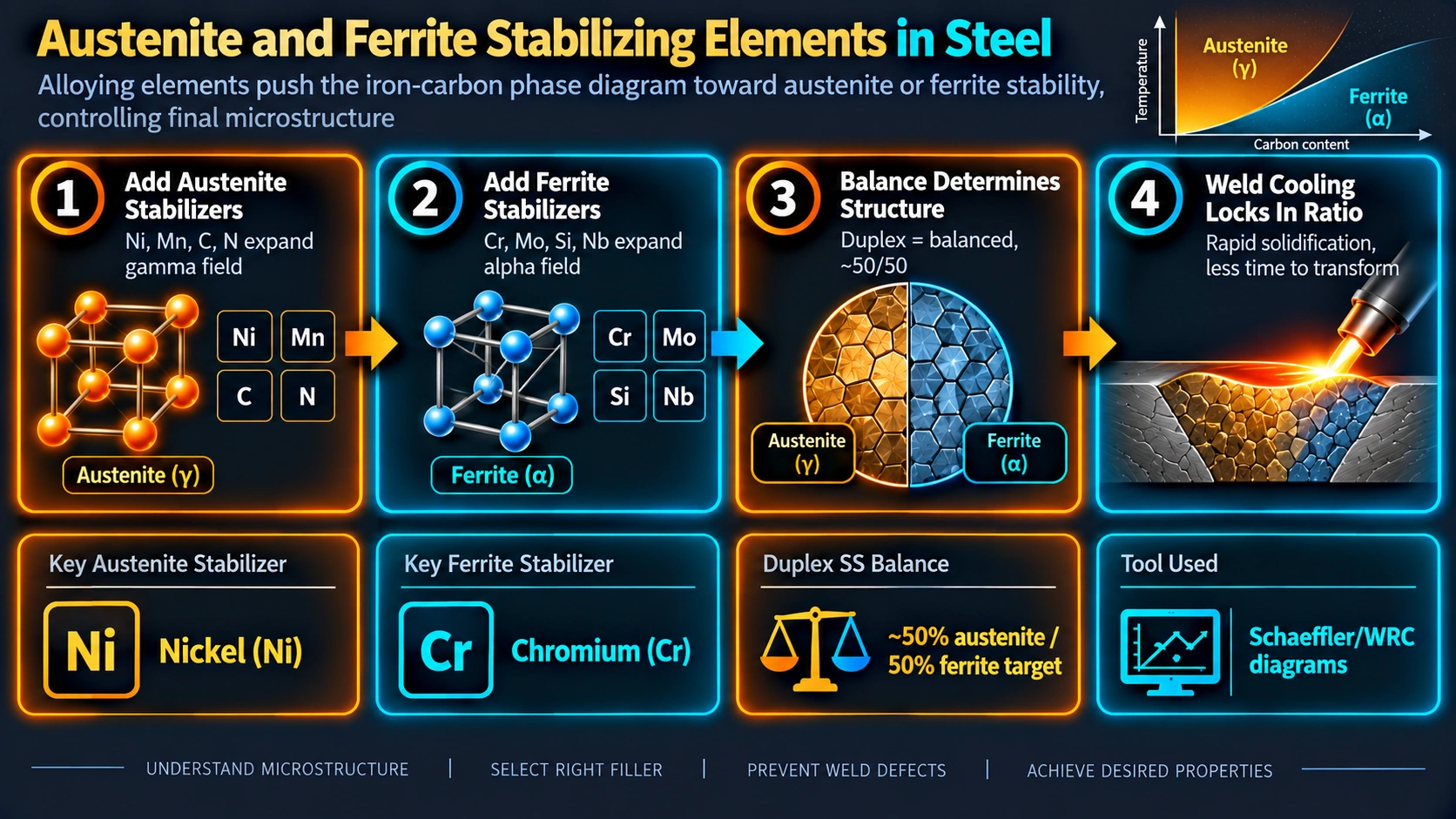

In stainless steels, the addition of alloying elements shifts the boundaries of these phase fields. Elements that stabilize the FCC austenite phase allow it to persist at lower temperatures — even down to room temperature — producing austenitic stainless steels. Elements that stabilize the BCC ferrite phase restrict the austenite region, producing ferritic stainless steels. The controlled interaction between these two groups of elements, along with the precise alloy composition, determines whether a stainless steel is austenitic, ferritic, duplex, martensitic, or a combination.

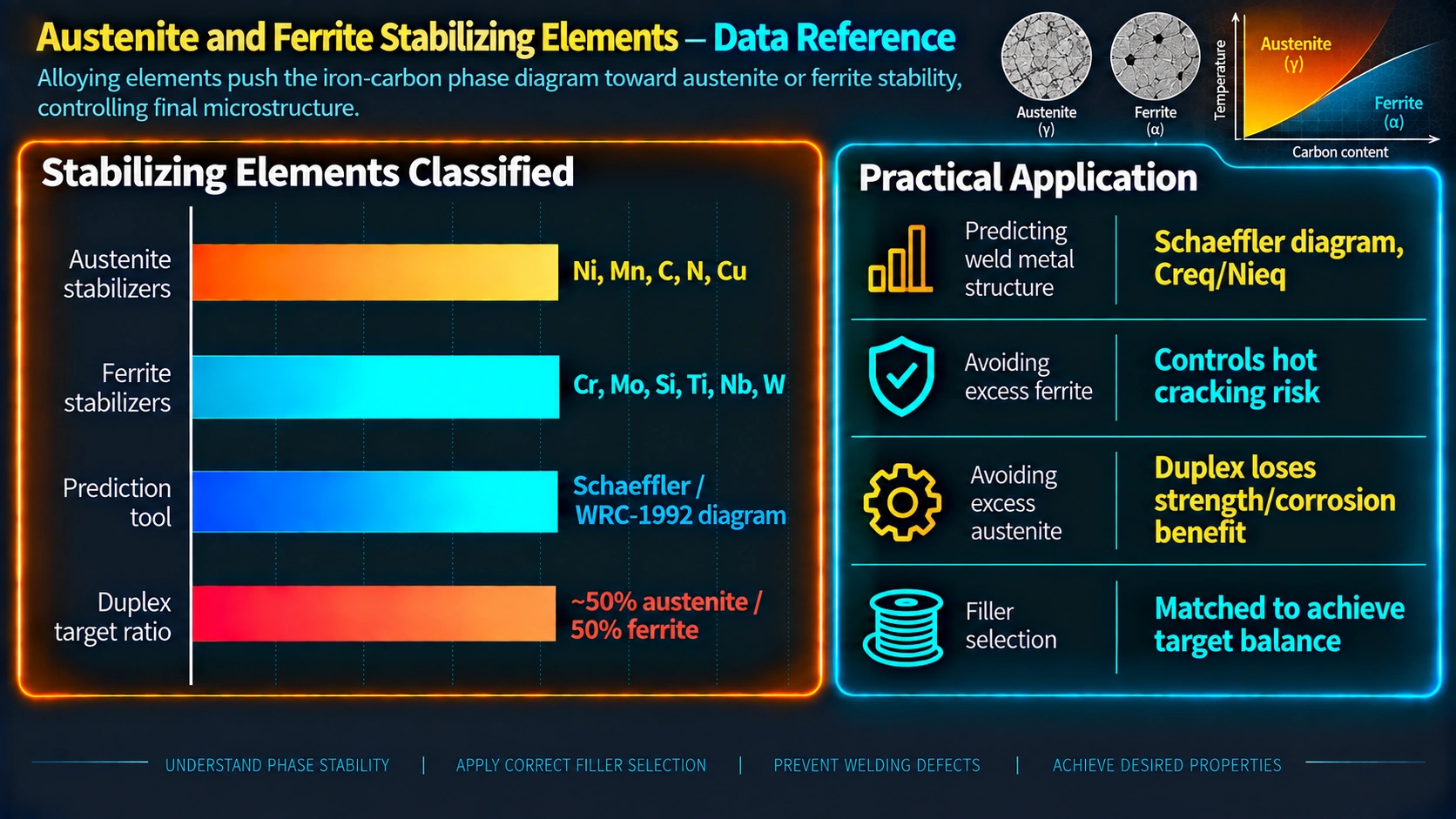

Austenite Stabilizing Elements

Austenite stabilizing elements expand the gamma (austenite) phase field in the Fe-Cr-Ni phase diagram, promoting the formation and retention of the FCC austenite structure. These elements collectively make up the Nickel Equivalent (Ni-eq) in constitution diagram calculations.

Nickel (Ni) — Primary Austenite Stabilizer

Nickel is the defining austenite stabilizer in stainless steels. It expands the gamma loop in the iron-carbon equilibrium diagram and suppresses the formation of ferrite at all temperatures. Standard austenitic grades such as Types 304 and 316 contain 8 to 10.5% nickel; richer grades such as Type 310 contain 19 to 22% nickel. Nickel also improves corrosion resistance in non-oxidizing acids, enhances cryogenic toughness, and reduces the tendency for the martensite transformation. In all Ni-eq formulas, nickel carries a coefficient of 1.0 — it is the reference element against which all other austenite stabilizers are measured.

In P91 and P92 high-temperature alloys, the combined Ni + Mn content is restricted to 1.2% maximum. Both elements are austenite stabilizers: if present in excess, they suppress martensite formation and cause retained austenite or additional delta ferrite, both of which degrade creep strength at operating temperatures.

Carbon (C) — Powerful Interstitial Austenite Stabilizer

Carbon is an interstitial element — it occupies spaces between iron atoms in the crystal lattice rather than substituting for them — and it is an exceptionally powerful austenite stabilizer. In the Schaeffler Ni-eq formula, carbon carries a coefficient of 30, meaning 0.1% carbon contributes as much to austenite stabilization as 3% nickel. However, carbon is a double-edged addition in stainless steels: while it stabilizes austenite, it also forms chromium carbide (M₂₃C₆) at grain boundaries during heating in the sensitization range (425 to 850°C), causing intergranular corrosion (weld decay). This is why L-grade stainless steels (304L, 316L) limit carbon to 0.03% maximum.

Nitrogen (N) — Very Strong Austenite Stabilizer

Nitrogen is an interstitial austenite stabilizer with an exceptionally high coefficient — in the WRC-1992 Ni-eq formula, nitrogen carries a coefficient of 20 (1% N equates to 20% Ni in austenite-stabilizing power). Nitrogen is added deliberately to duplex stainless steels (typically 0.1 to 0.3%) and to some austenitic grades (such as 316N, 304N) where it provides two additional benefits: it directly improves pitting corrosion resistance (nitrogen is a positive contributor to PREN — Pitting Resistance Equivalent Number), and it strengthens the matrix through solid solution hardening. The DeLong diagram was the first to account for nitrogen in the Ni-eq; the Schaeffler diagram does not include nitrogen, which is one of its principal limitations.

Manganese (Mn)

Manganese is often listed as an austenite stabilizer, and it does suppress the low-temperature martensite transformation. However, its role is more nuanced than the simple coefficient in older formulas suggests. The Schaeffler diagram assigns Mn a coefficient of 0.5 in Ni-eq, and the DeLong diagram follows similarly. The WRC-1992 diagram recognises that manganese does not significantly promote austenite formation at high temperatures (where the phase balance in the weld pool is established during solidification), and accordingly drops Mn from the Ni-eq formula. The WRC-1992 treatment is considered more accurate for weld metal applications. Manganese is also important as a flux and deoxidizer in welding consumables, and its content is controlled in filler metals for both metallurgical and process performance reasons.

Copper (Cu)

Copper is an austenite stabilizer with a relatively low coefficient (0.25 in the WRC-1992 Ni-eq). It is added to some stainless grades for corrosion resistance in sulfuric acid environments. The WRC-1992 diagram was specifically developed to improve accuracy for copper-bearing stainless steels, where the Schaeffler and DeLong diagrams give erroneous phase balance predictions.

Ferrite Stabilizing Elements

Ferrite stabilizing elements restrict the austenite phase field, promoting the BCC ferrite structure. They are collectively quantified by the Chromium Equivalent (Cr-eq). A higher Cr-eq shifts the composition towards the ferrite region on the constitution diagram.

Chromium (Cr) — Primary Ferrite Stabilizer and Corrosion Protector

Chromium is both the primary ferrite stabilizer and the element responsible for the corrosion resistance that defines stainless steel. Chromium restricts the austenite phase field, favouring the ferrite structure. All standard Cr-eq formulas assign chromium a coefficient of 1.0. At levels above approximately 13 to 14% in binary Fe-Cr alloys with low carbon, the material remains ferritic at all solid-state temperatures. In austenitic grades, the ferrite-stabilizing effect of chromium is counterbalanced by nickel and other austenite stabilizers.

Molybdenum (Mo)

Molybdenum is a significant ferrite stabilizer (coefficient 1.0 in Schaeffler Cr-eq) and also a major contributor to pitting corrosion resistance, appearing with a coefficient of 3.3 in the PREN formula. It is added to Type 316 (2 to 3% Mo), super duplex grades (3 to 4% Mo), and high-alloy stainless grades for enhanced resistance to chloride pitting and crevice corrosion. In P22, P91, and P92 alloys, molybdenum contributes to high-temperature creep strength and solid solution hardening, and its ferrite-stabilizing effect must be accounted for in microstructure predictions.

Silicon (Si)

Silicon is a ferrite stabilizer with a coefficient of 1.5 in the Schaeffler Cr-eq formula — 50% stronger than chromium on an equal weight basis. Silicon is added to most steels as a deoxidizer and contributes to fluidity of the weld pool and flux. It also improves resistance to high-temperature oxidation. Its ferrite-stabilizing effect is not always immediately obvious in standard grades (where Si is typically only 0.3 to 0.8%), but it becomes significant in compositions close to phase boundaries, and it must be included in Cr-eq calculations for accurate phase balance prediction.

Niobium (Nb) — Ferrite Stabilizer and Carbide Former

Niobium (columbium) carries a coefficient of 0.5 in the Schaeffler Cr-eq formula but is simplified to 0.7 in the WRC-1992 formula. Beyond its ferrite-stabilizing role, niobium is a carbide-former used in stabilized stainless steels (Type 347) to preferentially form NbC and prevent chromium carbide (M₂₃C₆) precipitation at grain boundaries, thus eliminating sensitization and weld decay. The E347 filler metal is the preferred stabilized electrode for welding austenitic stainless steels where sensitization must be avoided.

Titanium (Ti)

Titanium is a strong ferrite stabilizer and a strong carbide former. It is used in Type 321 stainless steel as a stabilizer, similar to niobium in Type 347. Titanium has a very strong affinity for carbon and oxygen; in the weld pool, it can be partially oxidised and lost to the slag, making its stabilizing effect less reliable in weld metal than niobium. This is why E347 (niobium-stabilized) is generally preferred over E321 (titanium-stabilized) for welding applications. Titanium also appears with a coefficient of approximately 2.0 in the Schaeffler Cr-eq, reflecting its potent ferrite-stabilizing power.

Tungsten (W) and Aluminium (Al)

Tungsten (coefficient approximately 0.5 in Cr-eq) is added to super-alloys and some high-temperature stainless grades for additional creep strength. It is a ferrite stabilizer and contributes to PREN in the PREW formula (PREW = Cr + 3.3(Mo + 0.5W) + 16N). Aluminium is a strong ferrite stabilizer (coefficient 1.0–2.0 depending on the source) used in specialized ferritic grades and heat-resistant alloys. Its primary role in most structural alloys is as a deoxidizer rather than a microstructure controller.

The Schaeffler, DeLong, and WRC-1992 Constitution Diagrams

Constitution diagrams allow a welding engineer to plot a weld metal composition — expressed as Cr-eq (x-axis) and Ni-eq (y-axis) — and read off the predicted phase balance at room temperature. This is the primary tool for filler metal selection and weld procedure qualification for stainless steels.

Schaeffler Diagram (1949)

Developed by Anton Schaeffler in 1949, the original constitution diagram plots zones of austenite (A), ferrite (F), martensite (M), and overlap zones (A+F, A+M, A+F+M) as a function of Cr-eq and Ni-eq. The diagram also contains iso-ferrite lines (typically at 0%, 5%, 10%, and higher ferrite percentages) that allow estimation of the ferrite volume fraction for duplex compositions.

The Schaeffler diagram is still widely used because of its broad composition range — it covers dissimilar metal joints and overlaying applications where the compositions span large regions of the diagram. Its principal limitations are: it does not include nitrogen in Ni-eq (which underestimates austenite stabilization in nitrogen-bearing grades), and it treats manganese as having a moderate austenite-stabilizing effect at high temperatures, which has since been shown to be incorrect.

DeLong Diagram (1973)

The DeLong diagram improved on Schaeffler by adding nitrogen to the Ni-eq formula (Ni-eq = Ni + 30C + 30N + 0.5Mn) and expressing the phase balance in Ferrite Number (FN) rather than volume percent ferrite. Ferrite Number is a dimensionless quantity measured using a calibrated magnetic instrument (such as a Ferritescope) and is defined by the AWS A4.2 standard. The DeLong diagram is more accurate than Schaeffler for nitrogen-bearing austenitic grades, but it still incorrectly treats manganese, and it is less accurate for copper-bearing compositions.

WRC-1992 Diagram (Most Accurate)

The WRC-1992 diagram, published by the Welding Research Council, is the current state of the art for predicting Ferrite Number in austenitic and duplex stainless steel weld metals. Its key improvements over earlier diagrams are: nitrogen is included in Ni-eq with an accurate coefficient (20 rather than 30), manganese is removed from Ni-eq (correctly reflecting its limited effect on high-temperature austenite stability), copper is added to Ni-eq (0.25 coefficient), and the Cr-eq formula is simplified to Cr + Mo + 0.7Nb. The diagram has been validated against over 200 independent weld metal compositions. It is also the basis for FN prediction in ASME BPVC Section IX and AWS standards for stainless steel welding.

Practical Consequences of Phase Balance in Welding

Hot Cracking and Delta Ferrite

The most important practical consequence of the Cr-eq / Ni-eq balance in austenitic stainless steel welding is the risk of solidification hot cracking. Fully austenitic weld metal solidifies as primary austenite, which rejects sulphur and phosphorus to the remaining liquid during solidification. These low-melting-point impurities form liquid films between the growing austenite dendrites and, as the weld cools and contracts, can cause hot (solidification) cracks along the dendrite boundaries.

When the composition is adjusted to produce a Cr-eq / Ni-eq ratio above approximately 1.5 — corresponding to primary ferrite solidification — the weld metal first solidifies as delta ferrite, which has a higher solubility for sulphur and phosphorus. These elements are retained in solid solution rather than forming liquid films, and the hot cracking tendency is dramatically reduced. As the weld cools further, the delta ferrite partially transforms to austenite, leaving a residual ferrite content of 3 to 10 FN — the target range for most austenitic stainless steel weld procedures. See the dedicated guide on delta ferrite in stainless steel welding for full detail.

Corrosion Resistance and Sensitization

The phase balance also affects sensitization and weld decay susceptibility. Weld metal with some delta ferrite is actually somewhat less susceptible to sensitization than fully austenitic weld metal, because chromium diffuses faster in the BCC ferrite phase than in the FCC austenite phase — the depleted zone adjacent to carbides can recover more quickly. However, duplex stainless steels with very high ferrite can be susceptible to intergranular corrosion in the ferrite phase by a different mechanism, and the overall corrosion performance depends on many factors beyond simple phase balance.

Phase Balance in Duplex Stainless Steels

In duplex stainless steels (such as 2205 and 2507), the target phase balance is approximately 40 to 60% ferrite / 40 to 60% austenite in the base metal after solution annealing. In weld metal, the ferrite content immediately after welding is typically higher (50 to 70% ferrite in 2205) because the rapid cooling of the weld prevents complete ferrite-to-austenite transformation. The PREN of the duplex weld metal and the target ferrite content must both be verified by procedure qualification. Excessive heat input causes grain coarsening and retained ferrite; insufficient heat input or interpass temperature may not allow sufficient austenite re-formation.

Grade-by-Grade Phase Balance Summary

Why Ni + Mn is Restricted in P91 and P92 Materials

The restriction of combined Ni + Mn content to a maximum of 1.2% in P91 and P92 high-temperature alloys is a direct consequence of phase balance control. P91 (9Cr-1Mo-V-Nb) and P92 (9Cr-2W-Mo-V-Nb) are ferritic-martensitic steels designed for creep service in power plant applications at temperatures up to approximately 600 to 620°C. Their outstanding creep strength is derived from a fully tempered martensitic microstructure containing stable, finely dispersed M₂₃C₆ and MX (V/Nb carbonitride) precipitates.

Both nickel and manganese are austenite stabilizers. Excess nickel lowers the martensite start temperature (Ms), causing retained austenite to persist in the weld metal after cooling from the PWHT temperature. Retained austenite has poor creep resistance at elevated temperatures and can transform during service, causing dimensional instability. Excess manganese also suppresses the Ms and promotes retained austenite. Additionally, both elements promote the formation of delta ferrite at high temperatures during welding — delta ferrite is very coarse, soft, and has negligible creep strength. Standard ASTM A335 / A213 requirements for P91/P92 base metal, and ASME/AWS specifications for matching filler metals, therefore impose the 1.2% combined Ni + Mn limit to prevent these harmful microstructural effects.

Recommended Technical References

These books provide in-depth coverage of stainless steel metallurgy, phase diagrams, and welding engineering — essential reading for engineers and inspectors working with stainless and high-alloy materials.

Disclosure: WeldFabWorld participates in the Amazon Associates programme (StoreID: neha0fe8-21). If you purchase through these links, we may earn a small commission at no extra cost to you. This helps support free technical content on this site.

Quick Reference: All Stabilizing Elements at a Glance
