PREN Formula, Calculator & Its Role in Stainless Steel Selection

Choosing the wrong grade of stainless steel for a corrosive environment does not show up immediately — it shows up six months or three years into service as a pitted, leaking pipe section that shuts down production. The Pitting Resistance Equivalent Number (PREN) is the standard compositional metric used by engineers worldwide to compare the relative resistance of stainless steel grades to localised pitting attack, particularly in chloride-containing environments. This guide covers what PREN is, how to calculate it, what the numbers mean for grade selection, and where PREN alone is not enough to guarantee material performance.

What is Pitting Corrosion?

Pitting corrosion is a localised form of electrochemical attack in which small cavities — pits — form on the metal surface and penetrate inward, while the surrounding metal remains largely unaffected. It is one of the most dangerous corrosion forms because the pits are often small enough to be difficult to detect visually but can rapidly penetrate through a vessel or pipe wall, causing sudden leakage or structural failure with little warning.

Stainless steels rely on a thin, self-repairing passive film of chromium oxide (Cr₂O₃) for their corrosion resistance. When this film breaks down locally — typically at inclusions, grain boundaries, surface discontinuities, or weld heat-affected zones — the exposed metal can dissolve rapidly if the local environment is aggressive enough. The primary aggressive agents that trigger this passive film breakdown are chloride ions (Cl^–), but bromides, fluorides, hypochlorites, iodides, and sulphides can produce the same effect at lower concentrations.

Environments That Promote Pitting Corrosion

Pitting corrosion is primarily driven by chloride ions, but the risk is amplified by several environmental and geometric factors:

• Marine and offshore environments: Seawater contains approximately 19,000 ppm chloride, making it one of the most aggressive pitting environments for stainless steel. Even aerosol deposition in coastal zones can trigger pitting on external surfaces.
• Oil and gas — produced water: Formation water extracted with hydrocarbons frequently contains high chloride concentrations combined with hydrogen sulphide (H₂S), creating a severe combined attack environment.
• Chemical processing: Hydrochloric acid, chlorinated solvents, bleach (hypochlorite), and many other process chemicals pose aggressive pitting risks. Even at low concentrations, temperature amplifies the effect dramatically.
• Water treatment and desalination: Chlorinated potable water, brine streams in reverse osmosis systems, and cooling water with added biocides all contribute to pitting risk.
• Elevated temperature: Pitting corrosion is strongly temperature-dependent. A grade that resists pitting at ambient temperature may fail rapidly at 50 or 60 degrees Celsius in the same chloride concentration.

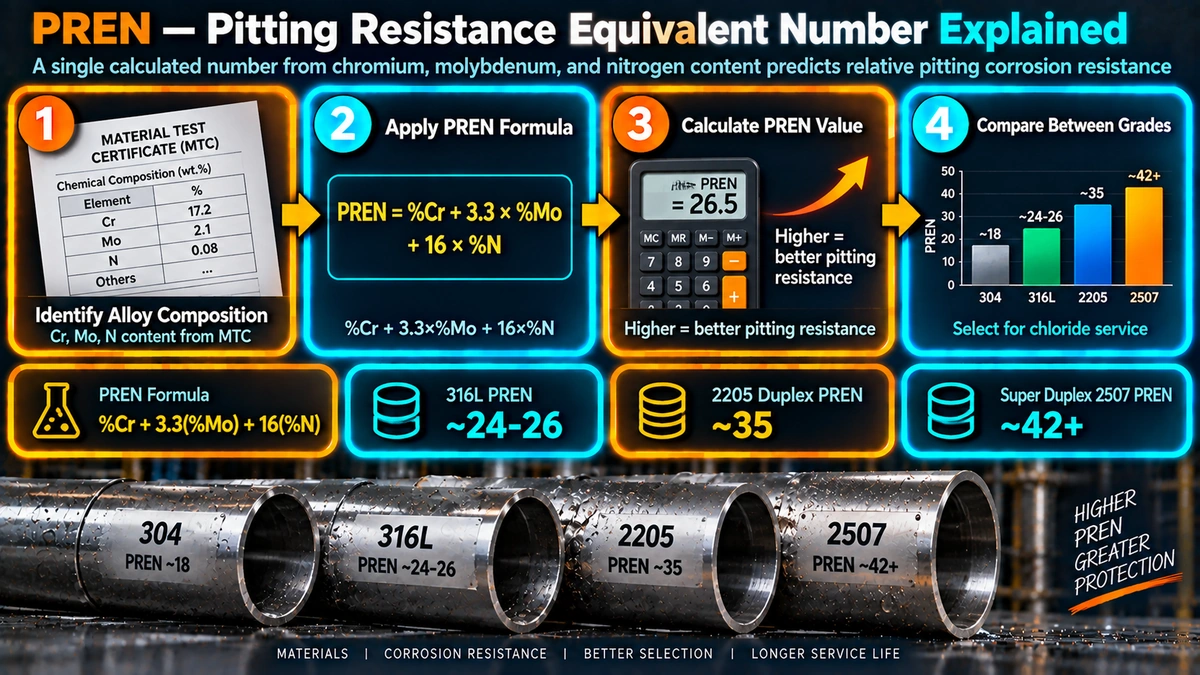

The PREN Formula — Elements and Their Roles

The Pitting Resistance Equivalent Number is a calculated index that weights the composition of an alloy based on the relative contribution of each element to pitting resistance. It was developed to provide a single, comparable number that allows engineers to rank stainless steel grades for pitting resistance without performing expensive and time-consuming corrosion tests on every possible material combination.

Role of Each Element in the PREN Formula

PREN Values by Stainless Steel Grade — Comparison Chart

The following chart and table compare typical PREN values across the main families of stainless steel used in engineering applications. Note that PREN values can vary between heats of the same grade because the relevant elements (Cr, Mo, N) are all specified as ranges in the material standards. The values below represent typical mid-range compositions.

PREN Thresholds — Industry Guidelines and Code Requirements

Industry standards and project specifications use PREN thresholds as minimum qualification criteria for material selection. The following values are widely applied across the offshore, oil and gas, and chemical processing industries:

Limitations of PREN — What It Cannot Tell You

PREN is a powerful screening tool, but it has important limitations that engineers must understand to avoid over-reliance on a single number:

• Temperature dependence: PREN does not account for operating temperature. The Critical Pitting Temperature (CPT) — determined by corrosion testing per ASTM G48 — is the temperature below which a given alloy resists pitting in a defined test medium. A grade with PREN 35 that resists pitting at 20 degrees Celsius may fail rapidly at 60 degrees Celsius in the same chloride concentration.
• No distinction between pitting and crevice corrosion: Pitting occurs on open surfaces; crevice corrosion occurs in restricted geometries (under gaskets, at flange faces, inside crevices formed by fouling). Crevice corrosion is generally more severe than pitting, and a grade that resists pitting may still suffer crevice attack. ASTM G48 Method A and B test both mechanisms separately.
• Heat-affected zone degradation: Welding changes the local chemistry and microstructure of the HAZ. Sensitisation, sigma phase formation, and delta ferrite or secondary austenite changes in duplex steels can locally reduce PREN in the HAZ even though the bulk composition — and therefore the nominal PREN — is unchanged. See our article on stainless steel weld decay for more detail.
• Same PREN, different behaviour: Two alloys with the same calculated PREN may have different actual pitting resistance because the formula is a simplification. For example, a grade achieving PREN 35 primarily from high Cr with low Mo may perform differently from one achieving the same PREN through a combination of lower Cr with higher Mo and N.
• Surface condition: Surface finish has a dramatic effect on actual pitting performance. A mechanically polished surface (Ra below 0.5 micron) is significantly more resistant to pitting than a milled or as-welded surface at the same PREN, because surface scratches and weld undercut create nucleation sites for pits.

Frequently Asked Questions — PREN

Related Articles and Resources
