Conditions for Exemption from Impact Testing as per ASME Section VIII Division 1 (2025 Edition)

ASME BPVC Section VIII Division 1 • 2025 Edition • UCS-65 through UCS-68

Conditions for Exemption from Impact Testing

A complete, code-accurate reference to every exemption pathway under ASME Section VIII Division 1 — from UG-20(f) general exemptions and UCS-66 impact test exemption curves to MDMT reduction credits, PWHT allowances, and special service and material exemptions. Know exactly when impact testing can be waived — and when it cannot.

UG-20(f)
UCS-66
Figure UCS-66.1
UCS-68
MDMT
2025 Edition

Table of Contents

  1. Overview — Why Exemptions Exist
  2. Exemption 1: UG-20(f) — General Exemption (Warm MDMT Vessels)
  3. Exemption 2: UCS-66 Impact Test Exemption Curves (Curves A, B, C, D)
  4. How to Determine Governing Thickness — UCS-66(a)
  5. Material Curve Assignments — Which Material Goes to Which Curve?
  6. Exemption 3: Figure UCS-66.1 — MDMT Reduction Without Impact Testing
  7. Exemption 4: UCS-68.2 — PWHT Credit (30°F / 17°C Reduction)
  8. Exemption 5: Special Material & Service Exemptions
  9. Exemption 6: Bolting and Nuts — Dedicated Exemption Temperatures
  10. Exemption 7: Very Low Temperature (<−55°F/−48°C) — UCS-66(b)(3)
  11. Exemption 8: UCS-66(g) — Thin Pipe & Tube of P-No. 1 Materials
  12. Exemption 9: UCS-66(h) — Metal Backing Strips
  13. Master Decision Flowchart — Exemption or Testing Required?
  14. Complete Exemption Summary Table
  15. Common Mistakes and Code Interpretation Pitfalls

1. Overview — Why Exemptions Exist

Impact testing under UG-84 of ASME BPVC Section VIII Division 1 is not universally mandatory. The code recognises that many carbon and low alloy steel pressure vessels — operating in moderate temperature ranges, at lower stress ratios, or from inherently tougher heat-treated materials — pose no meaningful brittle fracture risk at their intended service conditions. Imposing Charpy V-notch testing on every vessel regardless of these factors would be both technically unjustified and commercially burdensome.

Accordingly, ASME Section VIII Division 1 (2025 Edition) provides a structured hierarchy of exemption pathways — each grounded in the engineering logic that material toughness at the Minimum Design Metal Temperature (MDMT) is either inherently assured, or can be demonstrated without physical testing. These exemptions are primarily contained in:

§

UG-20(f)

General exemption for warm-MDMT vessels with compliant materials

📈

UCS-66

Exemption curves (A, B, C, D) — thickness vs. temperature

📉

Figure UCS-66.1

MDMT reduction credit based on stress ratio (operating at lower than design stress)

🔥

UCS-68.2

PWHT exemption credit — 30°F (17°C) reduction for voluntary PWHT

🔩

Special Exemptions

Bolting, thin P-No.1 pipe/tube, backing strips, and high-yield materials

Important Scope Note: The exemptions discussed in this article apply specifically to carbon and low alloy steel vessels governed by Part UCS of ASME Section VIII Division 1. High alloy steels (Part UHA) and heat-treated steels (Part UHT) have their own requirements under UHA-51 and UHT-6 respectively, and those materials are NOT covered by the UCS-66 exemption curves.

For a thorough understanding of what happens when impact testing IS required — the procedures, specimen dimensions, test temperatures, and acceptance criteria — refer to our detailed guide on UG-84 Charpy Impact Test Requirements as per ASME Section VIII Division 1 (2025 Edition).

2. Exemption 1 — UG-20(f): The General Exemption

The first — and most straightforward — exemption is found in UG-20(f), which establishes the general rule that impact testing per UG-84 is NOT mandatory for pressure vessels meeting a specific set of concurrent conditions. This is the starting point of any impact test exemption evaluation.

UG-20(f) — Code Language (ASME BPVC VIII-1, 2025 Edition):

“Impact testing per UG-84 is not mandatory for pressure vessels in which the minimum design metal temperature (MDMT) is warmer than −20°F (−29°C) and where either of the following conditions apply: the material satisfies the requirements of the applicable curve of Figure UCS-66 (Figure UCS-66M) at the governing thickness, OR the material is listed in one of the following… [applicable material specifications and conditions].”

Conditions for UG-20(f) Exemption — All Must Be Met:

#ConditionCode Reference
1The MDMT is warmer than −20°F (−29°C)UG-20(f)
2The material and governing thickness combination plots on or above the applicable curve in Figure UCS-66 / UCS-66MUCS-66(a)
3The vessel is not in lethal service [per UW-2(a)]UW-2(a)
4The completed vessel is not subject to PWHT required solely because of impact test considerationsUG-20(f)
5The governing thickness does not exceed 1 in. (25 mm) for certain Part UCS materials subject to radiography waivers per UW-50UW-50(b)

Critical Point: The −20°F (−29°C) threshold in UG-20(f) is an absolute floor. No matter what other exemptions or reductions apply, if the MDMT is colder than −20°F (−29°C) AND the material is not a Curve C or Curve D material meeting the specific conditions of UCS-66(a)(1)(-5), impact testing is generally required. The UG-20(f) route is specifically for vessels whose MDMT stays warmer than this threshold.

3. Exemption 2 — UCS-66 Impact Test Exemption Curves

Figure UCS-66 (Figure UCS-66M in SI units) is the central tool for establishing impact test exemptions for carbon and low alloy steel vessels. It consists of four curves — A, B, C, and D — each representing a family of materials with progressively increasing inherent toughness. The curves plot Minimum Design Metal Temperature (MDMT) on the vertical axis against Governing Thickness on the horizontal axis. Understanding the ductile-to-brittle transition temperature (DBTT) that underlies this framework is explained in our Charpy Impact Test — Principle, Procedure & Results guide.

The governing rule from UCS-66(a) is: If a combination of minimum design metal temperature and governing thickness falls on or above the applicable curve assigned to the subject material, impact testing is NOT required by the rules of this Division. If the combination falls BELOW the curve, impact testing IS required.

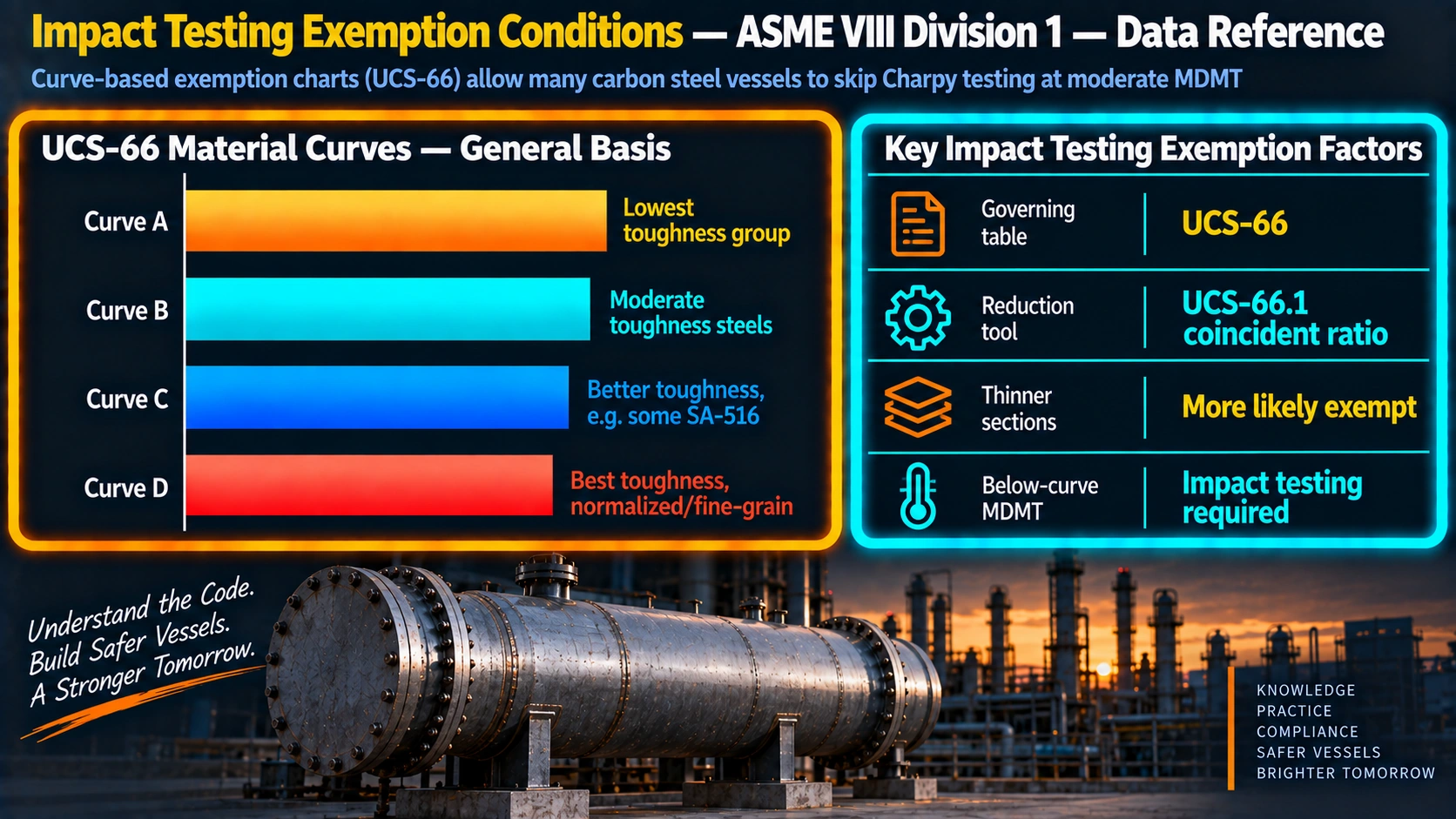

The Four Exemption Curves — Key Characteristics

Curve A

LEAST TOUGH — MOST RESTRICTIVE

Applies to most as-rolled carbon steel plates, structural shapes, and bars NOT listed in Curves B, C, or D. Materials in this group have the least inherent low-temperature toughness. Example: SA-36 plate, SA-283 Grades C&D, SA-216 WCB/WCC in as-cast (non-heat-treated) condition.

Curve B

MODERATE TOUGHNESS

Applies to materials with improved toughness through fine grain practice or heat treatment. Includes SA-285 A&B, SA-299, SA-414 Grade A, SA-515 Grade 60, SA-516 Grades 65&70 (if NOT normalized), all pipe/fittings/forgings/tubing not listed in C or D, and Curve A materials if produced to fine grain practice + normalized/Q&T.

Curve C

GOOD TOUGHNESS

Materials with good inherent low-temperature toughness. Includes SA-182 F21/F22 (normalized & tempered), SA-302 C&D, SA-387 Grades 21&22 (N&T or Q&T), SA-516 Grades 55&60 (not normalized), SA-533 Types B&C Cl.1, SA-662 Grade A, and Curve B materials if further refined with fine grain + N&T or Q&T.

Curve D

BEST TOUGHNESS — LEAST RESTRICTIVE

Materials with the best inherent low-temperature toughness, largely because of normalizing, Q&T, or specific composition control. Includes SA-203, SA-516 (normalized or Q&T), SA-537 Classes 1/2/3, SA-662 (normalized), SA-724 A&B, SA-738 Grade A, SA-299 (normalized). These materials permit the coldest MDMT without impact testing at any given thickness.

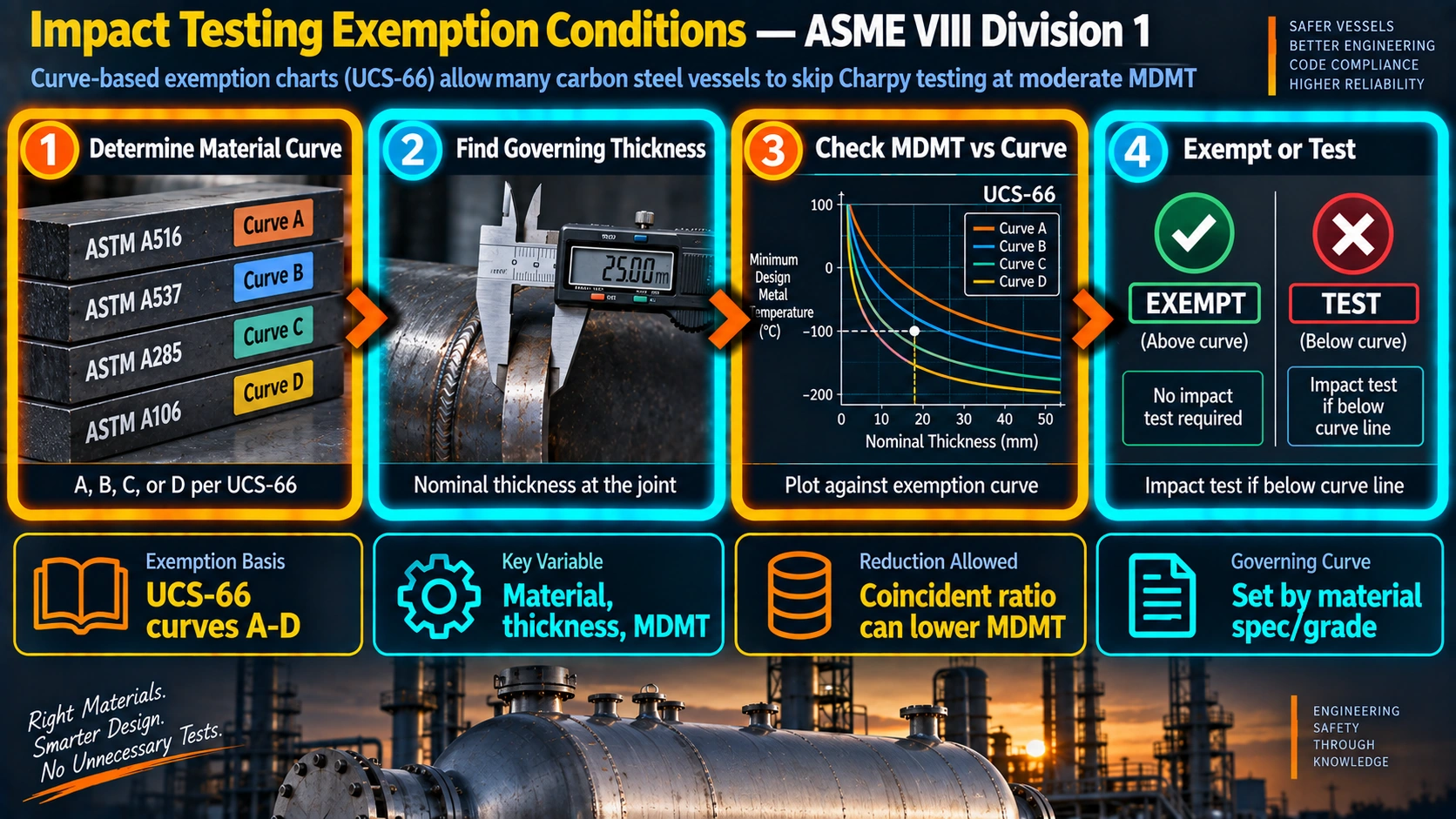

Reading Figure UCS-66 — Step-by-Step Procedure

The procedure for using Figure UCS-66 to determine whether impact testing is required is summarised in the Figure UCS-66.2 decision diagram, which provides the following structured approach:

1

Establish Nominal Thickness (tn) and Required Thickness (tr)

Determine the nominal (un-corroded) thickness of each welded part, non-welded part, and attachment under consideration. Also establish the required thickness in the corroded condition for all applicable loadings per UG-22 (including internal pressure, dead load, wind, seismic, etc.) based on the applicable joint efficiency E. A detailed walkthrough of how these values feed into UG-84 impact test temperature decisions is available in our complete UG-84 guide.

2

Determine the Applicable Curve from Figure UCS-66

Assign the material to Curve A, B, C, or D based on the material specification, grade, and heat treatment condition. See the complete material assignments in Section 5 of this article. From Table UCS-66 or Figure UCS-66, read off the minimum exemption temperature for the nominal governing thickness.

3

Determine the Stress Ratio (Figure UCS-66.2, Step 3)

Calculate the coincident ratio: Ratio = (tr × E*) / (tn − c), where c is the corrosion allowance and E* is the joint efficiency (minimum value 0.80). This ratio represents the fraction of the design capacity actually being used. A vessel operating well below its design stress has a lower ratio — and can claim additional MDMT reduction credit.

4

Apply MDMT Reduction from Figure UCS-66.1

Using the ratio from Step 3, enter the ordinate of Figure UCS-66.1 and read the corresponding MDMT reduction in °F (or °C). This reduction is subtracted from the Step 2 curve temperature to give the adjusted MDMT for that component. A ratio of 1.0 gives zero reduction; a ratio of 0.5 gives approximately 50°F reduction.

5

Determine the Lowest Allowable MDMT

After Step 4, each welded component has an adjusted MDMT. Repeat for all governing thicknesses. Take the warmest adjusted MDMT value across all components as the lowest allowable MDMT for that zone of the vessel. This is the value that will be stamped on the nameplate per UG-116.

Result — Exemption Confirmed or Testing Required

If the required MDMT (Step 5 result) is warmer than or equal to the design MDMT, impact testing is NOT required. If the required MDMT is colder than the design MDMT, impact testing IS required — unless another exemption pathway (UCS-68 PWHT credit, bolting exemptions, etc.) closes the gap.

4. How to Determine Governing Thickness — UCS-66(a)(1)

The governing thickness is the single most critical input to Figure UCS-66. Getting it wrong — either overstating or understating it — directly leads to incorrect exemption conclusions. UCS-66(a)(1) provides exhaustive definitions for every common vessel configuration.

Governing Thickness Definitions per UCS-66(a)(1) — 2025 Edition
Component / Joint TypeGoverning Thickness (tg) DefinitionCode Sub-para.
Butt joints (except flat heads, tubesheets, flat components with primary bending)Nominal thickness of the thickest welded part at the joint [see Figure UCS-66.3, sketch (a)](-1)
Corner joints, fillet joints, lap joints & welded attachmentsThinner of the two parts joined at that joint(-2)
Flat heads, tubesheets, and flat components with primary bending stressLarger of: (a) the thinner of the two parts joined at the joint, OR (b) the flat component thickness divided by 4(-3)
Welded assemblies of more than two components (e.g. nozzle-to-shell with reinforcing pad)Determine governing thickness and permissible MDMT of each individual welded joint separately. Use the warmest MDMT as the permissible MDMT for the assembly.(-4)
Any welded joint where governing thickness > 4 in. (100 mm) AND MDMT < 120°F (50°C)Impact tested material is mandatory — no exemption available regardless of curve(-5)
CastingsLargest nominal thickness of the casting(-b)
Non-welded flat parts (bolted flanges, flat heads, tubesheets)Flat component thickness divided by 4(-c)
Non-welded dished heads [Figure 1-6, sketch (c)]Greater of: (a) flat flange thickness ÷ 4, OR (b) minimum thickness of the dished portion. If > 6 in. (150 mm) AND MDMT < 120°F (50°C) → impact tested material mandatory.(-d) & (-e)

Practical Note on Pipe Nominal Thickness: For pipe where a mill undertolerance is allowed by the material specification, the thickness after mill undertolerance has been deducted shall be taken as the non-corroded nominal thickness tn for the purposes of MDMT determination. Similarly, for formed heads, the minimum specified thickness after forming shall be used as tn. This is explicitly stated in Figure UCS-66.2, Note (1).

5. Material Curve Assignments — Which Material Goes Where?

The curve assignment for each material in Figure UCS-66 is determined by the Notes to that Figure. Understanding how materials are grouped — including the significance of P-Numbers and Group Numbers in distinguishing P-No. 1 from P-No. 3 through P-No. 5 steels — is essential for correct curve assignment. The following tables consolidate the key material assignments from the 2025 Edition. Always verify against the current edition of the code for the complete listing.

Key Material Curve Assignments — Figure UCS-66 / UCS-66M (2025 Edition)
CurveSelected Material Specifications & Conditions
CURVE A
As-rolled, most restrictive
All carbon and low alloy steel plates, structural shapes, and bars NOT listed in Curves B, C, or D •
SA-216 Grades WCB and WCC (not heat treated) •
SA-217 Grade WC6 (not heat treated) •
A/SA-105 forged flanges supplied in the as-forged condition •
SA/IS 2062 Grades E250A, E250BR, E250B0, E250C (normalized rolling condition)
CURVE B
Fine grain / N&T / Q&T
A/SA-105 flanges: fine grain practice + normalized or N&T or Q&T after forging •
SA-216 WCA (N&T or Q&T) •
SA-216 WCB/WCC up to 2 in. (50 mm), fine grain + water-Q&T •
SA-217 WC9 (N&T) •
SA-285 Grades A & B • SA-299 • SA-414 Grade A • SA-515 Grade 60 •
SA-516 Grades 65 & 70 (if NOT normalized) •
SA-612 (not normalized) • SA-662 Grade B (not normalized) •
SA/EN 10028-2 Grades P235GH, P265GH, P295GH, P355GH (as-rolled) •
SA/AS 1548 Grades PT430NR and PT460NR •
SA/GB 713 Grade Q345R (if not normalized) •
All Curve A materials + fine grain practice + N or N&T or Q&T, not in Curves C or D •
All pipe, fittings, forgings, and tubing not listed for Curves C and D
CURVE C
Better toughness
SA-182 Grades F21 and F22 (normalized and tempered) •
SA-302 Grades C and D •
SA-336 F21 and F22 (N&T or Q&T) •
SA-387 Grades 21 and 22 (N&T or Q&T) •
SA-516 Grades 55 and 60 (NOT normalized) •
SA-533 Types B and C Class 1 •
SA-662 Grade A •
SA/EN 10028-2 Grade 10CrMo9-10 (N&T) •
All Curve B(a) and B(c) materials + fine grain + N&T or Q&T, not in Curve D
CURVE D
Best toughness, least restrictive
SA-203 (all grades) •
SA-299 (if normalized) •
SA-508 Grade 1 •
SA-516 (if normalized or Q&T) •
SA-524 Classes 1 and 2 •
SA-537 Classes 1, 2, and 3 •
SA-612 (if normalized) •
SA-662 (if normalized) •
SA-738 Grade A •
SA-738 Grade A with Cb and V added (not colder than −20°F/−29°C) •
SA-738 Grade B (not colder than −20°F/−29°C) •
SA/AS 1548 Grades PT430N and PT460N •
SA/EN 10028-2 Grades P235GH, P265GH, P295GH, P355GH (if normalized) •
SA/EN 10028-3 Grade P275NH •
SA/GB 713 Grade Q345R (if normalized)

Critical Rule — Castings:

Per Figure UCS-66, General Note (f): Castings NOT listed in Notes (1) and (2) — which assign Curve A and B respectively — shall be impact tested per UG-84. This means most casting grades default to mandatory impact testing unless specifically assigned to Curve A or Curve B in the code notes. Verify every casting specification explicitly against the figure notes.

Heat Treatment Equivalency — General Note (e)(1):

Cooling rates faster than those obtained by cooling in air, followed by tempering, as permitted by the material specification, are considered equivalent to normalizing or normalizing and tempering heat treatments for the purpose of curve assignments. This is significant for Q&T materials. Also note that normalized rolling condition is NOT equivalent to normalizing per General Note (e)(3).

6. Exemption 3 — Figure UCS-66.1: MDMT Reduction Without Impact Testing

Figure UCS-66.1 provides one of the most powerful — and frequently misunderstood — exemption tools in the code. It allows the minimum design metal temperature established from Figure UCS-66 to be reduced further without impact testing, by recognising that a vessel operating at less than its maximum design stress is inherently safer against brittle fracture at lower temperatures.

The physical logic is straightforward: brittle fracture is a stress-driven phenomenon. A vessel whose wall is significantly thicker than required for the applied loading carries a lower stress intensity at any given pressure — and therefore the material can be used at temperatures colder than those implied by the Figure UCS-66 curve without increased fracture risk.

The Coincident Ratio — How It Works

Figure UCS-66.2 Ratio Calculation — Step 3
ParameterDefinition
Ratio = (tr × E*) / (tn − c)Primary formula for pressure-loaded components
trRequired thickness in the corroded condition for ALL applicable loadings, based on joint efficiency E
tnNominal (un-corroded) thickness of the component
cCorrosion allowance
E*Joint efficiency as defined in Figure UCS-66.2 Note (3) — equal to E, but not less than 0.80. For castings, use quality factor or joint efficiency, whichever governs design.
Alternative RatioS* × E* / (allowable stress from Table UCS-23 × E), where S* is the applied general primary membrane tensile stress. Used when Section VIII, Division 2 stress analysis has been performed.

MDMT Reduction Values from Figure UCS-66.1

The following reference values are extracted from Figure UCS-66.1. For reductions up to and including 40°F (22°C), the code also permits a simplified formula: Reduction in MDMT = (1 − Ratio) × 100°F [or 56°C].

Coincident Ratio (trE*) / (tn−c)Approx. MDMT Reduction, °FApprox. MDMT Reduction, °C
1.0000
0.90~10~6
0.80~20~11
0.70~30~17
0.60~40~22
0.50~50~28
0.40~60~33
≤ 0.35Special rules apply — see UCS-66(b)(3)See UCS-66(b)(3)
Values are approximate. For precise values, read directly from Figure UCS-66.1 or Figure UCS-66.1M. Simplified formula valid only for reductions up to 40°F (22°C): Reduction = (1 − Ratio) × 100°F (56°C).

Key Limitation — UCS-66(b)(1) & (b)(2):

The absolute floor for the UCS-66.1 MDMT reduction approach is −55°F (−48°C) for standard applications. For MDMTs colder than −55°F (−48°C), impact testing is required for all materials — UNLESS the coincident ratio is 0.35 or less, in which case UCS-66(b)(3) provides a further special pathway down to −155°F (−105°C). This is a narrow, specific provision and should not be confused with the general curve exemption.

7. Exemption 4 — UCS-68.2: PWHT Credit (30°F / 17°C Reduction)

UCS-68.2 provides an additional exemption credit when Post Weld Heat Treatment (PWHT) is voluntarily applied. When this PWHT route is used and impact testing is eventually required, note that supplementary essential variables per ASME Section IX QW-250 become mandatory for WPS qualification to a pressure-retaining weld where it is not otherwise required by the Division. PWHT reduces residual stresses in welds and thereby improves resistance to brittle fracture, warranting a further reduction in the impact test exemption temperature.

UCS-68.2(a) — The PWHT Reduction Rule:

If PWHT is applied to a pressure-retaining weld when it is not otherwise required by the Division, the impact testing exemption temperature from Figure UCS-66 (Figure UCS-66M) for P-No. 1 materials may be reduced by 30°F (17°C).

Important Conditions and Limitations:

  • The 30°F (17°C) reduction applies to P-No. 1 materials only.
  • PWHT must be applied when it is NOT otherwise mandated by the code — it is the voluntary application of PWHT specifically for toughness credit.
  • Per UCS-68.2(b), the resulting impact testing exemption temperature from this provision may be colder than −55°F (−48°C) when the PWHT exemption in UCS-68.1(c) is also applicable — meaning PWHT credit can extend the window of exemption below the usual −55°F floor.
  • This credit can be combined with the Figure UCS-66.1 stress ratio reduction, allowing engineers to achieve very cold MDMTs without impact testing through a combination of: (a) material curve assignment, (b) stress ratio credit, and (c) PWHT credit.
  • The MDMT adjustment determined using Figure UCS-66.1 may also be used for impact tested welding procedures or production welds per UCS-66(i)(5).
  • The MDMT for any component shall not be colder than −155°F (−105°C) regardless of all applied credits — per UCS-66(i)(6).

Weld Joint Requirements for UCS-68.1 Service: When the specified MDMT is colder than −55°F (−48°C) AND the coincident ratio is 0.35 or greater, additional requirements apply under UCS-68.1. These include: weld joints must comply with UW-2(b); PWHT per UW-40 is mandatory (unless exempted by UCS-68.1(c)); all Category A and B joints must be 100% radiographed; and specific weld joint type restrictions apply per UCS-68.1(a), (b), and (c). These requirements are separate from — and in addition to — the basic exemption curve evaluation.

8. Exemption 5 — Special Material & Service Exemptions

Beyond the primary curve and stress-ratio based exemptions, ASME Section VIII Division 1 (2025 Edition) provides several targeted exemptions for specific material types, product forms, or vessel service conditions. These are found throughout UCS-66 and are critical for engineers dealing with specialised applications.

8.1 High-Yield-Strength Materials — UCS-66(f)

Materials (other than bolting materials) with a specified minimum yield strength greater than 65 ksi (450 MPa) shall be impact tested. However, two special conditions provide exemptions:

UCS-66(f)(1) — Ratio ≤ 0.35

When the coincident ratio defined in Figure UCS-66.1 is 0.35 or less, the corresponding MDMT shall not be colder than −155°F (−104°C). Impact testing is not required in this scenario.

UCS-66(f)(2) — Ratio > 0.35

When the ratio is greater than 0.35, the corresponding minimum design metal temperatures apply as defined in UCS-66(f)(2). The material may be used at temperatures colder than the design MDMT as long as conditions are met.

8.2 Exempted Material Specifications — UCS-66(g) [Thin Pipe & Tube, P-No. 1]

For tubes or pipe of P-No. 1 materials, the following exemptions from impact testing are also permitted as a function of Specified Minimum Yield Strength (SMYS), for metal temperatures of −155°F (−105°C) and warmer:

UCS-66(g) — Thin Pipe & Tube Exemption Thicknesses by SMYS
SMYS Range, ksi (MPa)Maximum Exempt Thickness, in. (mm)
20 to 35 ksi (140 to 240 MPa)0.237 in. (6.0 mm)
36 to 45 ksi (250 to 310 MPa)0.125 in. (3.2 mm)
46 ksi (320 MPa) and higher0.10 in. (2.5 mm)

Additionally, when the base metal is exempt from impact testing by this provision (or by Curve C or Curve D at −20°F/−29°C), the coldest MDMT assigned for welded components that do not meet UCS-67 requirements is −20°F (−29°C) per UCS-66(j).

8.3 Material Specification-Tested Materials — UCS-66 & UG-84.5(e)

Materials produced and impact tested in accordance with the material specification requirements listed in Figure UG-84.5-1, General Note (c) are considered to inherently satisfy the impact testing requirements of this Division. These materials include:

SA-320 • SA-333 • SA-334 • SA-350 • SA-352 • SA-420 • SA-437 • SA-540 (except materials produced under Table 2, Note 4) • SA-765 • Impact-tested SA/AS1548 (L impact designations)

These materials do NOT have to satisfy the energy values of Figure UG-84.5-1 as these specifications already impose qualification testing through their own requirements. See UCS-66(g) and UG-84.5(e).

8.4 Thin Plate Material Marking Exemption — UCS-66(e)

The material manufacturer’s identification marking required by the material specification shall not be stamped on plate material less than 1/4 in. (6 mm) in thickness unless the following requirements are met:

  • Materials limited to P-No. 1, Group Nos. 1 and 2
  • Minimum nominal plate thickness 3/16 in. (5 mm), or minimum nominal pipe wall thickness 0.154 in. (3.91 mm)
  • Minimum design metal temperature no colder than −20°F (−29°C)

9. Exemption 6 — Bolting and Nuts: Dedicated Exemption Temperatures

Bolting and nut materials are not evaluated against Figure UCS-66 in the same way as vessel shells and heads. Instead, Figure UCS-66, General Note (c), provides dedicated impact test exemption temperatures for each bolting specification and grade combination. These temperatures represent the lowest MDMT at which bolting of that specification can be used without impact testing.

Bolting Impact Test Exemption Temperatures — Figure UCS-66 General Note (c), 2025 Edition
Spec. No.GradeDiameter, in. (mm)Impact Test Exemption Temp., °F (°C)
SA-193B5Up to 4 in. (100 mm), incl.−20°F (−29°C)
SA-193B7Up to 2½ in. (64 mm), incl.−55°F (−48°C)
SA-193B7 (larger)Over 2½ to 7 in. (64–175 mm), incl.−40°F (−40°C)
SA-193B7MUp to 2½ in. (64 mm), incl.−55°F (−48°C)
SA-193B16Up to 2½ in. (64 mm), incl.−55°F (−48°C)
SA-193B16 (larger)Over 2½ to 7 in. (64–175 mm), incl.−20°F (−29°C)
SA-307BAll−20°F (−29°C)
SA-320L7, L7A, L7MUp to 2½ in. (64 mm), incl.See Figure UG-84.5-1, General Note (c)
SA-3251½ to 1½ in. (13–38 mm)−20°F (−29°C)
SA-354BCUp to 4 in. (100 mm), incl.0°F (−18°C)
SA-354BDUp to 4 in. (100 mm), incl.+20°F (−7°C)
SA-449Up to 3 in. (75 mm), incl.−20°F (−29°C)

Nut Exemption Temperatures

Spec. No.GradeImpact Test Exemption Temperature, °F (°C)
SA-1942, 2H, 2HM, 3, 4, 7, 7M, and 16−55°F (−48°C)
SA-540B21 / B22 / B23 / B24 / B24V−55°F (−48°C)

10. Exemption 7 — UCS-66(b)(3): Very Low Temperature Exemption (Below −55°F / −48°C)

For services where the MDMT is colder than −55°F (−48°C) but no colder than −155°F (−105°C), a special low-ratio exemption exists under UCS-66(b)(3). This is a narrow, specific provision available only when the vessel is operating at a very low fraction of its design capacity.

UCS-66(b)(3) — Exemption Conditions:

  • MDMT is colder than −55°F (−48°C) AND
  • MDMT is no colder than −155°F (−105°C) AND
  • The coincident ratio defined in Figure UCS-66.1 is 0.35 or less

When all three conditions are simultaneously met, impact testing is NOT required.

A ratio of 0.35 or less means the vessel is operating at 35% or less of its maximum design stress capacity. This physical condition — extreme under-stress relative to design — provides sufficient assurance that the driving force for brittle fracture propagation is low enough that the inherent toughness of the un-impact-tested material is adequate. This provision is commonly applicable to hydrostatic testing conditions, batch process vessels with low operating pressures, or vessels with substantial corrosion allowances relative to their minimum required thickness.

11. Exemption 8 — UCS-66(g): Specification-Impact-Tested Materials

Materials that are produced and impact tested in accordance with the material specification requirements listed in Figure UG-84.5-1, General Note (c), are exempt from having to satisfy the energy values of that figure. These materials — SA-320, SA-333, SA-334, SA-350, SA-352, SA-420, SA-437, SA-540 (with noted exceptions), and SA-765 — are exempted at the minimum design metal temperatures that are no more than 5°F (3°C) colder than the test temperature required by the specification.

Practical Application: When you specify SA-333 Grade 6 pipe for a low-temperature application, the pipe already comes with impact testing performed in accordance with the SA-333 specification at temperatures dictated by that spec. This inherent testing satisfies the impact testing requirement of Section VIII Division 1 — you do not need to perform additional Charpy testing to comply with UG-84, as long as the vessel MDMT is no colder than 5°F (3°C) below the specification test temperature. When PQR qualification with impact testing IS required, see our guide on How to Prepare a WPS and PQR for documentation requirements.

12. Exemption 9 — UCS-66(h): Metal Backing Strips

UCS-66(h) provides a specific exemption from impact testing for metal backing strips that remain in place. No impact testing is required for backing strips made of materials assigned to Curve A of Figure UCS-66 in thicknesses not exceeding 1/4 in. (6 mm) when the minimum design metal temperature is −20°F (−29°C) or warmer.

This exemption reflects the non-load-bearing nature of backing strips in most weld joint designs — they are primarily used as weld backing and do not carry significant structural tensile stress from pressure loading. Their contribution to the brittle fracture risk of the vessel is therefore minimal at these thickness and temperature levels.

13. Master Decision Flowchart — Exemption or Impact Testing Required?

The following step-by-step decision process consolidates all of the exemption pathways into a single logical sequence for evaluating any carbon or low alloy steel pressure vessel component under ASME Section VIII Division 1, 2025 Edition.

STEP 1  •  Is the material listed in Table UCS-23 (Part UCS)?

No → Apply the rules of the applicable Part (UHA, UHT, UNF, etc.). UCS-66 does not apply.  •  Yes → Proceed to Step 2.

STEP 2  •  Is the vessel in lethal service [UW-2(a)]?

Yes → Special construction requirements apply (UW-2). Impact testing cannot be waived by UG-20(f). Evaluate UCS-66 directly.  •  No → Proceed to Step 3.

STEP 3  •  Is MDMT warmer than −20°F (−29°C)?

Yes AND material/thickness plots on or above its Figure UCS-66 curve → UG-20(f) applies — impact testing NOT required.  •  No → Proceed to Step 4.

STEP 4  •  Assign material to Curve A, B, C, or D (Figure UCS-66 Notes)

Read the exemption temperature for the governing thickness from Figure UCS-66 or Table UCS-66. If the required MDMT is warmer than this temperature → Proceed to Step 5 to check ratio credit. If already within exemption → NO impact testing required. If not → continue.

STEP 5  •  Calculate Stress Ratio [Figure UCS-66.2, Step 3] and apply Figure UCS-66.1

Ratio = (tr × E*) / (tn − c). Enter Figure UCS-66.1 with this ratio to find the allowable MDMT reduction. Subtract reduction from Step 4 curve temperature. If the adjusted MDMT ≤ required MDMT → NO impact testing required. If still not exempt → Proceed to Step 6.

STEP 6  •  Is voluntary PWHT feasible? Apply UCS-68.2 credit

For P-No. 1 materials: if voluntary PWHT is applied, reduce the exemption temperature by an additional 30°F (17°C). If this closes the gap → NO impact testing required. If still not exempt → Proceed to Step 7.

STEP 7  •  Check special exemptions (UCS-66(b)(3), UCS-66(g), UCS-66(h), bolting table)

For MDMT colder than −55°F (−48°C) with coincident ratio ≤ 0.35 → UCS-66(b)(3) exemption may apply. For specification-impact-tested materials (SA-333, SA-334, etc.) → UCS-66(g) applies. For thin P-No.1 pipe/tube → check UCS-66(g) thickness limits. For backing strips → check UCS-66(h). For bolting/nuts → check dedicated exemption temperature table.

STEP 8  •  No exemption available — Impact Testing Required per UG-84

All exemption pathways have been exhausted. Charpy V-notch impact testing per UG-84 is mandatory for this component. Alternatively, select a material assigned to a better (colder) curve, increase the governing thickness design to reduce the stress ratio, or apply PWHT. You may also raise the MDMT marked on the nameplate — but verify the actual service requirement first.

14. Complete Exemption Summary Table

All Impact Test Exemption Pathways — ASME Section VIII Division 1 (2025 Edition)
ExemptionCode Ref.Key Condition(s)Applies ToLimitation
UG-20(f) General ExemptionUG-20(f)MDMT warmer than −20°F (−29°C) AND material/thickness on or above its Figure UCS-66 curveAll Part UCS materials in non-lethal service−20°F (−29°C) absolute floor; not for lethal service
UCS-66 Exemption Curves (A/B/C/D)UCS-66(a)Material/governing-thickness combination plots on or above the assigned curve in Figure UCS-66All Part UCS welded and non-welded componentsGoverning thickness > 4 in. (100 mm) AND MDMT < 120°F (50°C) → impact tested material mandatory
Figure UCS-66.1 Stress Ratio ReductionUCS-66(b); Fig. UCS-66.1Coincident ratio (trE*) / (tn−c) < 1.0 provides proportional MDMT reductionAll pressure-loaded Part UCS componentsAdjusted MDMT generally not colder than −55°F (−48°C); absolute limit −155°F (−105°C)
UCS-68.2 Voluntary PWHT CreditUCS-68.2(a)PWHT applied when not otherwise required → 30°F (17°C) additional reduction in exemption temperatureP-No. 1 materials onlyMay go below −55°F (−48°C) only when UCS-68.1(c) also applies
UCS-66(b)(3) Ultra-Low Ratio ExemptionUCS-66(b)(3)MDMT colder than −55°F but warmer than −155°F (−105°C) AND coincident ratio ≤ 0.35All Part UCS materials meeting the ratio conditionAbsolute minimum MDMT −155°F (−105°C)
Spec-Tested Materials ExemptionUCS-66(g); UG-84.5(e)Material specification mandates impact testing at or below the required temperature (SA-333, SA-334, SA-350, SA-352, etc.)SA-320, SA-333, SA-334, SA-350, SA-352, SA-420, SA-437, SA-540*, SA-765MDMT no more than 5°F (3°C) colder than specification test temp.
Thin P-No.1 Pipe & Tube ExemptionUCS-66(g)P-No. 1 pipe/tube within specified SMYS-based thickness limits for temps ≥ −155°F (−105°C)P-No. 1 pipe and tube onlyThickness limits: 0.237 in. (SMYS 20–35 ksi) / 0.125 in. (36–45 ksi) / 0.10 in. (≥46 ksi)
Metal Backing Strip ExemptionUCS-66(h)Curve A material, thickness ≤ 1/4 in. (6 mm), MDMT ≥ −20°F (−29°C)Backing strips remaining in placeCurve A materials only; MDMT not colder than −20°F (−29°C)
Bolting & Nut ExemptionFig. UCS-66, Note (c)MDMT warmer than exemption temperature listed for each spec/grade/diameter combinationBolting (SA-193, SA-307, SA-320, SA-325, SA-354, SA-449, SA-540) and Nuts (SA-194, SA-540)Specific to listed diameters; some grades require impact testing regardless

15. Common Mistakes and Code Interpretation Pitfalls

❌ Mistake 1: Using heat-treated material on Curve A

A material that starts as Curve A but is subsequently normalized or quenched and tempered must be re-evaluated for Curve B or higher. Heat treatment history determines the curve — not just the base specification. SA-516 Grade 70 is Curve B (not normalized) but jumps to Curve D when normalized.

❌ Mistake 2: Normalized rolling ≠ Normalizing

Figure UCS-66, General Note (e)(3) explicitly states: normalized rolling condition is NOT considered equivalent to normalizing. Fine grain practice — which IS considered equivalent — is defined in SA-20 and relates to the material grouping and specification requirements that determine curve assignment. This is a common error. SA/IS 2062 in normalized rolling condition stays on Curve A. It only moves to Curve D if it is properly normalized after rolling.

❌ Mistake 3: Forgetting to evaluate each component separately

UCS-66(a) requires shells, heads, nozzles, reinforcing pads, flanges, stiffening rings, tubesheets, flat covers, backing strips, and welded attachments to each be treated as separate components with their own governing thickness and curve evaluation. A vessel where the shell is exempt may still require impact testing for its nozzle forgings or flanges.

❌ Mistake 4: Applying governing thickness incorrectly for flat components

For non-welded flat components (flanges, tubesheets, flat heads), the governing thickness is the flat component thickness divided by 4 — NOT the full thickness. Applying the full thickness would greatly overstate the governing thickness, making the vessel appear to require impact testing when it does not.

❌ Mistake 5: Ignoring the 4 in. (100 mm) absolute limit

When the governing thickness at any welded joint exceeds 4 in. (100 mm) and the MDMT is colder than 120°F (50°C), impact tested material is mandatory — per UCS-66(a)(1)(-5). No exemption curve, no stress ratio credit, no PWHT credit can override this absolute requirement.

❌ Mistake 6: Confusing exemption temperature with test temperature

The exemption temperature from Figure UCS-66 is the temperature below which impact testing IS required — not the temperature at which the test must be conducted. If impact testing becomes necessary, the test temperature is governed by UG-84.4 relative to the MDMT, not by the Figure UCS-66 curve temperature.

📚 Further Reading on WeldFabWorld

UG-84 Charpy Impact Test Requirements — Complete Guide

Specimen dimensions, test temperature vs. MDMT, acceptance criteria, retesting, and weld qualification — all per ASME VIII Div 1 (2025).

Supplementary Essential Variables — ASME Section IX

When impact testing is required, supplementary essential variables become mandatory for WPS qualification. Understand which variables apply for each process.

Charpy Impact Test — Principle, Procedure & Results

The physics of the CVN test, ductile-to-brittle transition temperature, and how energy absorption maps to material toughness.

P-Number, Group No, F-Number and A-Number

Understanding P-Numbers and Group Numbers is essential for applying UCS-66 curve assignments and understanding exemption rules for P-No. 1 materials.

How to Prepare a WPS and PQR

When exemptions fail and impact testing is mandatory, the WPS and PQR must document impact test conditions. Complete step-by-step preparation guide.

🎯 ASME Section VIII Division 1 Quiz

Test your understanding of UCS-66 exemption curves, governing thickness, impact test requirements, and more. Free on WeldFabWorld.

References

  • ASME BPVC Section VIII Division 1 — 2025 Edition, Paragraph UG-20(f)
  • ASME BPVC Section VIII Division 1 — 2025 Edition, UCS-65 through UCS-68 (Low Temperature Operation)
  • ASME BPVC Section VIII Division 1 — 2025 Edition, Figure UCS-66, Figure UCS-66M, and Table UCS-66
  • ASME BPVC Section VIII Division 1 — 2025 Edition, Figure UCS-66.1, Figure UCS-66.1M
  • ASME BPVC Section VIII Division 1 — 2025 Edition, Figure UCS-66.2 (Decision Diagram)
  • ASME BPVC Section VIII Division 1 — 2025 Edition, Figure UCS-66.3 (Governing Thickness Examples)
  • ASME BPVC Section VIII Division 1 — 2025 Edition, Paragraph UG-84 (Charpy Impact Tests)
  • ASME BPVC Section VIII Division 1 — 2025 Edition, Paragraph UW-2 (Lethal Service)
  • ASME BPVC Section VIII Division 1 — 2025 Edition, UCS-66(g), (h), (j) (Special Exemptions)
  • WeldFabWorld: UG-84 Charpy Impact Test Requirements — Complete Guide

This article is prepared for educational and reference purposes based on the ASME BPVC Section VIII Division 1 (2025 Edition). All code citations are direct references to the 2025 Edition. Always verify against the current edition of the code and consult qualified engineering professionals for design and compliance decisions. Code requirements are subject to change with each new edition.

Leave a Comment
