In the field of pressure vessels, piping, and welding fabrication, few terms carry as much gravity as “lethal service.” This designation is not just a matter of regulatory compliance; it involves the very safety of human life. Any failure in such applications can result in catastrophic consequences—loss of containment, exposure to highly toxic substances, and potentially large-scale fatalities.
For engineers, fabricators, and inspectors working under codes like ASME Section VIII (Pressure Vessels), ASME B31.3 (Process Piping), and Section IX (Welding Qualifications), understanding what constitutes lethal service—and the special requirements it brings—is absolutely critical.
This article explains what engineers must know about lethal service applications: the definition, applicable codes, design and fabrication requirements, material considerations, welding qualifications, and inspection practices.
What is “Lethal Service”?
The ASME Boiler and Pressure Vessel Code defines lethal substances as poisonous gases or liquids of such a nature that even a very small amount of leakage into the atmosphere can cause serious health risks or fatalities when inhaled or absorbed.
Typical examples include:
- Toxic Gases: Phosgene, hydrogen cyanide, chlorine, arsine, methyl isocyanate, hydrogen sulfide.
- Toxic Liquids (Vapors): Carbon disulfide, benzyl chloride, certain pesticides or organometallic compounds.
In simple terms: A pressure vessel or piping system carrying such fluids is classified under lethal service.
This classification triggers special design, fabrication, inspection, and testing rules under the ASME codes to minimize any chance of leakage.
Relevant Codes and Standards
Several engineering standards address lethal service:
- ASME Section VIII, Division 1 (Pressure Vessels):
- UG-99, UG-100 → Hydrostatic/Pneumatic testing rules.
- UG-116 → Mandatory stamping with “L” for lethal service vessels.
- UW-2 → Additional requirements for welded joints in lethal service.

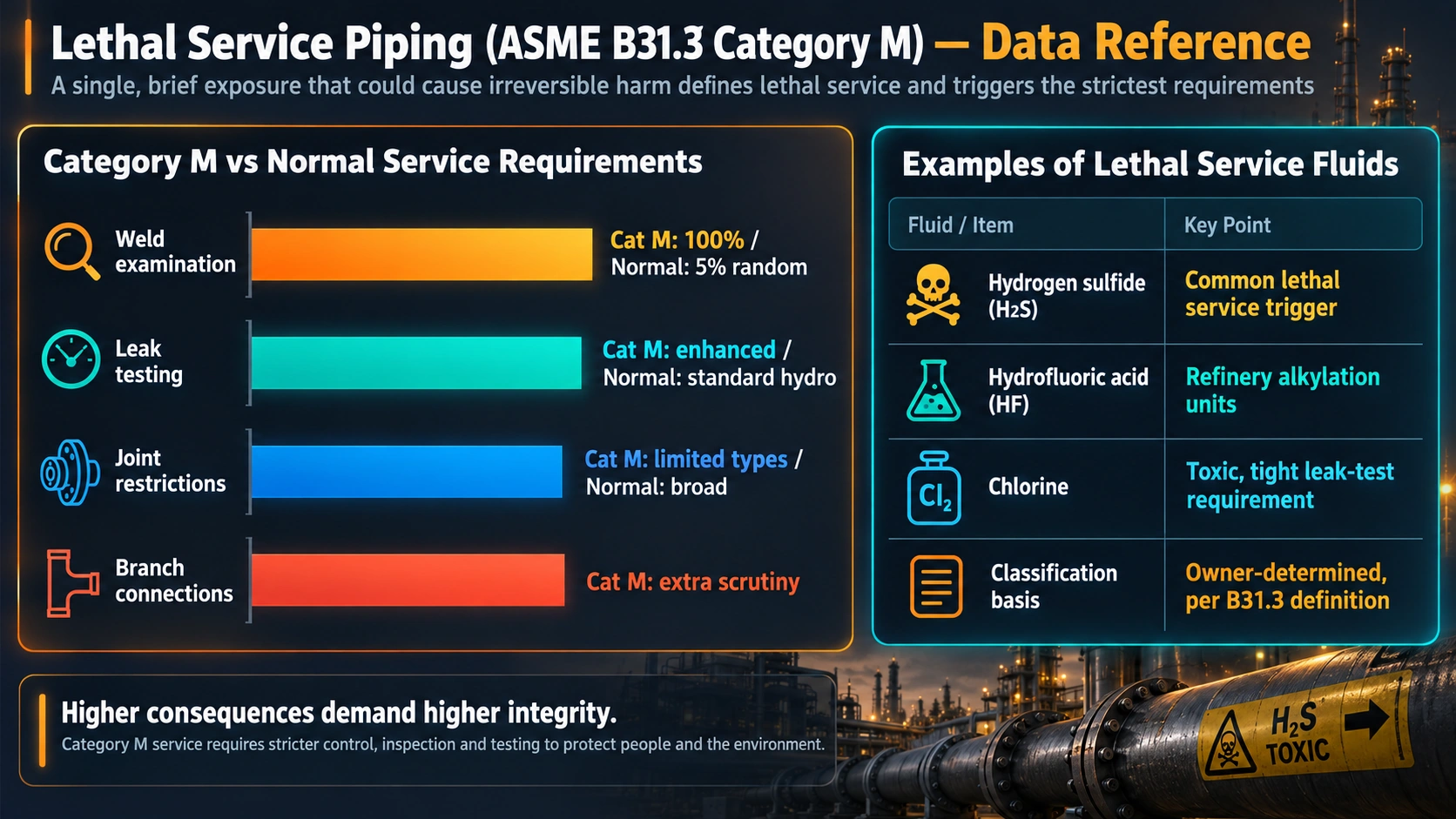

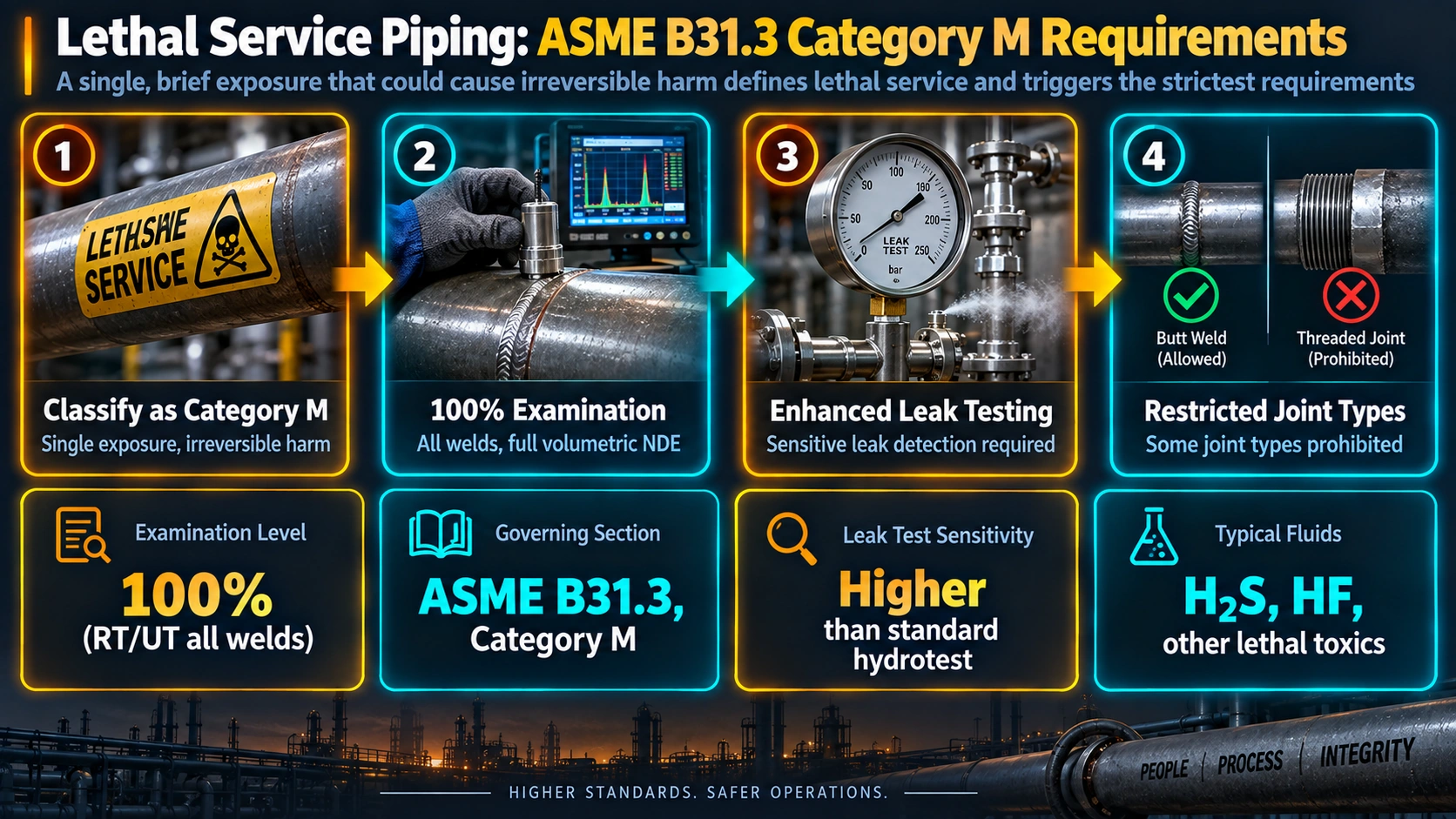

- ASME B31.3 (Process Piping):
- Chapter VII → Rules for Category M Fluid Service (toxic/lethal fluids).
- ASME Section IX (Welding Qualifications):
- Ensures welder/WPS qualifications meet additional requirements where full penetration, impact toughness, or PWHT (Post Weld Heat Treatment) are mandatory.
- API 510, API 570, and API 653:
- Cover inspection and repair guidelines for lethal service vessels, piping, and tanks.
Design Considerations for Lethal Service
Designing equipment for lethal service requires a zero-leakage mindset. Key aspects include:
- Welded Joints Preference:
- Per UW-2, butt welds with full penetration are required for pressure parts.
- No partial penetration or fillet welds are permitted in lethal service.
- No Gasketed/Threaded Joints in Primary Containment:
- Minimize mechanical joints that risk leakage.
- Use welded connections wherever possible.
- Stress Analysis & Design Margin:
- Higher design margins to account for fatigue, corrosion, and creep.
- Impact Testing:
- Ensures toughness at low temperatures to prevent brittle fracture.
Fabrication Requirements
The fabrication stage for lethal service equipment is strictly controlled:
- Qualified Welding Procedures: Only WPS/PQR qualified to ASME Section IX are permitted.
- Full Radiography (RT/UT): All butt welds in lethal service must undergo 100% volumetric examination.
- Surface NDE: MT/PT on nozzle welds, attachments, and repair areas.
- Post Weld Heat Treatment (PWHT): Required in many cases to relieve stresses and improve toughness.
Material Selection
Choosing the right material is critical. Considerations include:
- Corrosion Resistance: Materials must resist the toxic medium (e.g., stainless steel for chlorine service).
- Fracture Toughness: Low-temperature or brittle materials are unacceptable.
- Weldability: Materials must accommodate stringent welding requirements.
Engineers often refer to NACE MR0175/ISO 15156 for sour service and API RP 941 for high-temperature hydrogen attack resistance.
Welding Considerations
In lethal service applications, the weld is as critical as the base metal.
- Only Full Penetration Welds: Ensures no internal crevices or defects.
- No Tack Repairs without Approval: Even minor repairs need documented procedures.
- Welder Qualification: Must be strictly controlled, with test coupons often subjected to RT/UT.
- Filler Metals: Must match corrosion and mechanical property requirements.
Inspection and Testing
To ensure reliability, inspection requirements are more stringent than normal service.
- Non-Destructive Testing (NDT):
- 100% RT or UT for butt welds.
- MT/PT for surface crack detection.
- Hydrostatic Testing:
- Preferred over pneumatic testing due to safety risks.
- Test fluid should not create additional hazards if leakage occurs.
- Stamping and Certification:
- Vessels stamped with “L” indicating lethal service.
- Certified by an Authorized Inspector (AI) under ASME.
Challenges and Risks in Lethal Service
- No Room for Error: Even a pinhole leak can be fatal.
- High Cost of Compliance: 100% RT/UT, PWHT, and special alloys increase fabrication costs.
- Maintenance Complexity: Regular inspection is mandatory, often under shutdowns.
- Legal Liability: Non-compliance may result in penalties, loss of license, or even criminal charges in case of accidents.
Best Practices for Engineers
- Understand Code Requirements Thoroughly.
- Always classify fluids correctly—consult process engineers and HAZOP studies.
- Mandate 100% volumetric NDE for all lethal service welds.
- Avoid threaded/gasketed connections where possible.
- Train welders and inspectors specifically for lethal service projects.
- Document everything—traceability of materials, WPS, welder qualifications, NDT results.
- Never compromise on safety for cost-saving measures.
Conclusion
Lethal service applications demand the highest standards of engineering discipline, fabrication integrity, and inspection rigor. For engineers, awareness is not enough—strict adherence to ASME code requirements and best practices is non-negotiable.
In the world of welding and fabrication, most mistakes can be corrected. But in lethal service applications, mistakes can cost lives. That is why engineers must treat these projects with the utmost seriousness, ensuring safety, compliance, and reliability at every stage.
