Welding Consumable Selection — A Complete Guide for Engineers and QA/QC Professionals

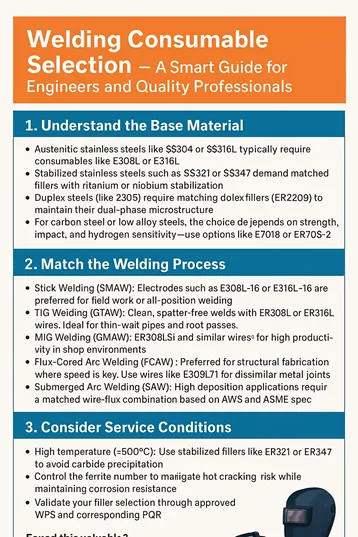

Welding consumable selection is one of the most consequential engineering decisions in any fabrication project. An incorrect filler metal does not merely affect weld appearance — it can introduce hydrogen-induced cold cracking, sensitisation, hot cracking, inadequate toughness, or premature corrosion failure. For pressure vessels, piping systems, offshore structures, and power plant components, getting the consumable right is fundamental to achieving weld integrity and code compliance across the service life of the equipment.
This guide provides a structured, step-by-step framework that engineers, welding inspectors, and QA/QC professionals can use on real projects. It covers base metal matching, welding process compatibility, service condition requirements, ferrite control, hydrogen management, low-temperature and high-temperature service, and the code framework of ASME Section II Part C and the AWS A5.x series. Practical tips on storage, batch verification, and brand selection round out the discussion.
Whether you are qualifying a new WPS/PQR with correct F-Numbers and A-Numbers for the first time, or reviewing a fabrication sub-contractor’s consumable register, this guide gives you the technical foundation to make — and defend — the right choice.
1. Understand the Base Material
The single most important input to any consumable selection decision is the base material specification. You need to know the exact ASTM or ASME material grade, the nominal chemical composition, the relevant mechanical properties, and the material group (P-Number) under ASME Section IX P-Number and F-Number groupings. Matching the weld deposit to the base metal in terms of strength, alloy content, and microstructural response to thermal cycles is the starting point for everything that follows.
Austenitic Stainless Steels (SS 304, SS 316L, SS 321, SS 347)
Austenitic grades are the most common stainless steels in process plant fabrication. The key selection considerations are corrosion resistance, susceptibility to sensitisation, and hot cracking resistance:
- SS 304 / 304L: Use
E308L-16(SMAW) orER308L(GTAW/GMAW). The L grade (max 0.03% C) prevents carbide precipitation at grain boundaries during welding. - SS 316 / 316L: Use
E316L-16orER316L. The molybdenum content (2–3%) provides superior resistance to pitting and crevice corrosion, especially in chloride environments. See also the stainless steel weld decay guide on sensitisation mechanisms. - SS 321: Stabilised with titanium. Use
ER321for high-temperature service above 425°C where carbide precipitation risk persists in service. - SS 347: Stabilised with niobium (columbium). Use
ER347which matches the Nb stabilisation and avoids knife-line attack.
Duplex Stainless Steels (2205, 2507)
Duplex grades require consumables that ensure the weld deposit achieves the target ferrite:austenite balance of approximately 50:50 after cooling. For 2205 (UNS S31803), use ER2209 (GTAW) and E2209-16/17 (SMAW). For super-duplex 2507, use ER2594. These consumables are slightly over-alloyed in nickel relative to the base metal to compensate for the higher cooling rate experienced in the weld. A comprehensive overview is available in the duplex stainless steel welding guide.
Carbon and Low-Alloy Steels
For structural and pressure-vessel carbon steels (SA-516-70, SA-105, SA-106-B), the consumable must match or exceed the minimum specified tensile strength. Common choices include E7018 (SMAW, AWS A5.1) and ER70S-6 (GMAW, AWS A5.18). For higher-strength low-alloy steels, move to E8018-B2 or E9018-B3 for Cr-Mo grades. Check the carbon equivalent (CE) calculator before finalising your preheat and consumable choices — high CE steels demand low-hydrogen electrodes and rigorous preheat.
Creep-Resistant Steels (P91, P22, P11)
These materials demand a disciplined approach. P91 (9Cr-1Mo-V-Nb, ASME P5B) is the most demanding: the weld metal must reproduce the B9 chemistry exactly to achieve the required creep strength at 550–600°C operating temperatures. Use only ER90S-B9 (GTAW), E9015-B9 or E9018-B9 (SMAW), or matched wire-flux for SAW. The P91 welding requirements guide covers preheat, interpass, and PWHT requirements in full detail.
| Base Material | SMAW Electrode | GTAW Wire | AWS Spec | Key Consideration |
|---|---|---|---|---|
| SS 304 / 304L | E308L-16 | ER308L | SFA-5.4 / SFA-5.9 | Sensitisation control |
| SS 316 / 316L | E316L-16 | ER316L | SFA-5.4 / SFA-5.9 | Chloride resistance |
| SS 321 | E347-16 | ER321 | SFA-5.4 / SFA-5.9 | Ti stabilised |
| Duplex 2205 | E2209-16 | ER2209 | SFA-5.4 / SFA-5.9 | FN 30–65 target |
| SA-516-70 (CS) | E7018 | ER70S-6 | SFA-5.1 / SFA-5.18 | Match tensile strength |
| P91 (9Cr-1Mo-VNb) | E9015-B9 | ER90S-B9 | SFA-5.5 / SFA-5.28 | Mn+Ni < 1.5% |
| P22 (2.25Cr-1Mo) | E9018-B3 | ER90S-B3 | SFA-5.5 / SFA-5.28 | PWHT mandatory |
| Nickel Alloy 625 | ENiCrMo-3 | ERNiCrMo-3 | SFA-5.11 / SFA-5.14 | Dissimilar buffer |
Table 1. Common base material / consumable pairings with governing AWS/ASME SFA specifications.
2. Match the Welding Process
The welding process dictates the physical form of the consumable, the shielding mechanism, and the deposition rate. Each process has inherent strengths that make it better suited to particular joint configurations, material thicknesses, positional requirements, and quality levels.
SMAW — Shielded Metal Arc Welding (Stick)
SMAW is the most versatile field welding process. Covered electrodes provide their own flux shielding, making them suitable for outdoor work, restricted access, and all-position welding. The trade-off is lower deposition rate and a requirement for diligent slag removal. Refer to the detailed SMAW welding process guide for parameter setting guidance.
Key electrode types by flux coating: E7018 (low-hydrogen, iron powder) for carbon steels; E308L-16 (lime-titania) for stainless steels; E6010 / E6011 (cellulosic) for pipeline root passes in the downhill (5G/6G) position.
GTAW — Gas Tungsten Arc Welding (TIG)
GTAW delivers the cleanest, most precisely controlled welds. It is preferred for root passes in pressure piping, thin-wall fabrication, and all critical joints in power generation and pharmaceutical plant. Solid bare wire rods (ER308L, ER316L, ER70S-2) are consumed without flux. The GTAW process guide and TIG settings calculator help optimise parameters for specific material-thickness combinations.
GMAW — Gas Metal Arc Welding (MIG)
GMAW offers high productivity for medium-to-heavy fabrication. Solid wires (ER308LSi for stainless, ER70S-6 for carbon steel) produce low spatter and a clean bead profile. Mixed shielding gases (Ar/CO2 or Ar/He) are selected to match the transfer mode. See the GMAW process guide and the MIG settings calculator.
FCAW — Flux-Cored Arc Welding
FCAW combines the productivity of wire feeding with flux-assisted protection, making it well-suited to structural fabrication and heavy groove welds. Gas-shielded (FCAW-G) wires like E308LT1-1 provide smooth flat/horizontal weld profiles. Self-shielded (FCAW-S) variants enable outdoor work without external shielding gas. For dissimilar joints between carbon steel and stainless, E309LT1 is commonly specified.
SAW — Submerged Arc Welding
SAW is the process of choice for high-deposition groove welding on thick plate (pressure vessels, wind tower cans, pipe mill seams). The consumable is a wire-flux combination — for example, F7A2-EM12K for carbon steel or F9P2-EB3-B3 for 2.25Cr-1Mo. Both wire and flux must be purchased and qualified together as a system. The SAW process guide covers flux basicity, wire diameter, and polarity selection in detail.
| Process | Consumable Form | Best For | Deposition Rate | Positional? |
|---|---|---|---|---|
| SMAW | Covered electrode | Field, all-position, repair | Low–Medium | All positions |
| GTAW | Bare wire rod | Root pass, thin section, critical joints | Low | All positions |
| GMAW | Solid wire spool | Production fabrication, plate | Medium–High | All positions |
| FCAW-G | Flux-cored wire | Structural, heavy groove | High | All positions |
| SAW | Wire + flux | Thick plate, longitudinal seams | Very High | 1G / 2G only |
Table 2. Process selection guide showing consumable form, primary application, and positional capability.
3. Consider Service Conditions
Once you have identified the base material and process, map the service environment to confirm that the selected consumable can perform throughout the operating life. Service conditions often impose requirements beyond simple composition matching.
High-Temperature Service (above 425°C)
At elevated temperatures, carbon can migrate from the weld metal into carbides at grain boundaries (sensitisation), or conversely, carbides in the HAZ can dissolve and reprecipitate during service cycling. For austenitic stainless steels operating continuously above 425°C, stabilised consumables (ER321, ER347) are required. For Cr-Mo steels above 500°C, the dominant mechanism is creep, and only correctly heat-treated B9 or B3 weld metal will provide the required rupture strength.
Cryogenic Service (below -46°C)
At sub-zero temperatures the primary concern is brittle fracture. Austenitic stainless steels remain tough to cryogenic temperatures, but weld deposits must be kept at low ferrite content (FN 3–6) to preserve toughness — delta ferrite transforms to brittle sigma phase even at modest elevated temperatures during fabrication. For carbon and low-alloy steels in cryogenic service, 9% nickel steel consumables (ENiCrFe-2, ENiMo-8) are commonly specified.
Chloride / Marine Environments
Pitting and crevice corrosion in chloride environments require molybdenum-bearing consumables. ER316L with 2–3% Mo is the minimum for general marine or offshore service. For highly concentrated chloride environments or at elevated temperature, super-austenitic or nickel-alloy consumables may be needed. The PREN calculator lets you quantify pitting resistance of the weld deposit relative to the base material.
Sour Service — H2S Environments
Sour service requirements under NACE MR0175 / ISO 15156 impose strict limits on weld metal hardness (maximum 22 HRC / 248 HV10) and require the use of low-hydrogen consumables with controlled chemistry. PWHT is mandatory in most cases to temper the HAZ martensite and reduce residual hydrogen. The sour service guide covers the full requirements including hydrogen trapping mechanisms and SSCC mechanisms.
Food, Pharmaceutical, and Ultra-Clean Service
Hygienic fabrication demands ultra-clean weld surfaces with no contamination. ER316L with low sulphur content (below 0.015%) gives the cleanest bead surface after autogenous or TIG welding. Consumables certified to 3-A Dairy standards or EHEDG guidelines may be specified for bioprocess equipment.
4. Prevent Corrosion and Cracking
Consumable selection is as much about preventing failure modes as it is about meeting tensile strength requirements. The two dominant failure modes linked to incorrect consumable choice are corrosion attack (sensitisation, pitting, crevice, or intergranular) and weld cracking (hot cracking, hydrogen-induced cold cracking, or stress corrosion cracking).
L-Grade Consumables and Sensitisation
In austenitic stainless steels, the weld thermal cycle heats the HAZ to the sensitisation range (450–850°C) where chromium carbides precipitate at grain boundaries, depleting the adjacent metal in chromium and creating pathways for intergranular corrosion. The most effective mitigation is to use L-grade consumables (max 0.03% C) which simply do not have enough carbon to form significant carbide populations. Stabilised grades (321, 347) add titanium or niobium respectively as preferential carbide formers, locking up carbon before it can combine with chromium.
Ferrite Number (FN) in Austenitic Weld Metal
All austenitic stainless steel weld deposits contain a small percentage of delta ferrite that is retained on solidification. This ferrite is beneficial — it acts as a sink for segregated impurities (sulphur, phosphorus) that would otherwise form low-melting-point films along solidification boundaries, leading to hot cracking. The industry standard target is FN 3 to 10 as measured by ferritescope or predicted by the WRC-1992 diagram. Above FN 10, ferrite can transform to embrittling sigma phase above 550°C. Below FN 3, hot cracking risk increases substantially, especially in restrained joints.
Cr_eq = %Cr + %Mo + 0.7 × %Nb
Ni_eq = %Ni + 35 × %C + 20 × %N + 0.25 × %Cu
// Plot Cr_eq / Ni_eq on the WRC-1992 diagram to read off predicted FN
// Target zone: FN 3–10 for standard corrosion service
Target: 3 ≤ FN ≤ 10
Hydrogen Control in Carbon and Low-Alloy Steels
Hydrogen introduced through the consumable is the root cause of underbead cracking (hydrogen-induced cracking, HIC) in hardenable steels. The mechanism: hydrogen absorbed during welding diffuses to the high-stress HAZ, and if the martensite there is susceptible and residual stresses are high, cracking occurs 24–72 hours after welding. Prevention requires: low-hydrogen electrodes (designated H4 or H8, meaning diffusible hydrogen below 4 or 8 ml/100g), adequate preheat, controlled interpass temperature, and (for critical joints) immediate PWHT. Always confirm preheat using the carbon equivalent — the CE calculator automates this.
Hot Cracking in Stainless and Nickel Alloys
Hot cracking (solidification cracking or liquation cracking) occurs in fully austenitic weld deposits with low ferrite, high-nickel alloys, and in single-pass welds with deep, narrow bead profiles. Mitigation strategies include selecting consumables that produce target FN in the deposit, controlling weld bead width-to-depth ratio (minimum 1:1), reducing sulphur and phosphorus in the consumable, and using pulsed GTAW to refine the solidification structure.
5. Align with Codes, Specifications, and WPS
Technical metallurgical knowledge only translates into an acceptable weld when the consumable is properly qualified within the code framework governing the work. This means understanding three intersecting layers: the classification standard, the construction code, and the project specification.
ASME Section II Part C and AWS A5.x Series
ASME Section II Part C contains the SFA specifications — essentially adopted AWS A5 series filler metal standards — that classify all consumables used in ASME-code construction. Each SFA covers chemical composition, mechanical properties, test methods, packaging, and marking requirements. Key SFA specifications for common materials include:
| SFA Specification | AWS Equivalent | Coverage |
|---|---|---|
| SFA-5.1 | AWS A5.1 | Carbon steel covered electrodes (SMAW) |
| SFA-5.4 | AWS A5.4 | Stainless steel covered electrodes (SMAW) |
| SFA-5.5 | AWS A5.5 | Low-alloy steel covered electrodes (SMAW) |
| SFA-5.9 | AWS A5.9 | Stainless steel bare wire / rod (GTAW/GMAW/SAW) |
| SFA-5.18 | AWS A5.18 | Carbon steel solid wire (GTAW/GMAW) |
| SFA-5.28 | AWS A5.28 | Low-alloy steel solid wire (GTAW/GMAW) |
| SFA-5.11 | AWS A5.11 | Nickel alloy covered electrodes (SMAW) |
| SFA-5.14 | AWS A5.14 | Nickel alloy solid wire (GTAW/GMAW) |
| SFA-5.17 | AWS A5.17 | Carbon steel wire + flux for SAW |
| SFA-5.23 | AWS A5.23 | Low-alloy steel wire + flux for SAW |
Table 3. ASME Section II Part C SFA specifications and their AWS equivalents for common consumable types.
Project and Owner Specifications
For major oil, gas, and petrochemical projects, owner engineering specifications (Shell DEP, Saudi Aramco SAES, ADNOC specifications, ExxonMobil GP) routinely impose requirements that are more stringent than ASME or AWS minimums. These typically include restricted lists of approved consumable manufacturers, supplementary chemical limits (e.g., controlled Mn in P91 weld metal), mandatory CVN impact testing at low temperature, and mandatory batch testing at the fabrication shop. Always obtain and review the applicable project specification before purchasing or approving consumables.
WPS and PQR Validation
No consumable selection is complete without confirming that the chosen filler metal is within the essential variable ranges of the applicable qualified WPS/PQR. Key check items: the F-Number, A-Number (for ASME Section IX), the SFA specification, the minimum tensile strength of the deposited weld metal, and (for impact-tested procedures) the applicable Charpy temperature and energy requirements.
6. Practical Tips for Engineers and QA/QC
Electrode Baking and Holding
Low-hydrogen electrodes (all E-XX18, E316L-16, E309L-16 types) are hygroscopic — they absorb moisture from humid air through the coating within hours of opening the hermetic packaging. The absorbed moisture dissociates in the arc and introduces hydrogen into the weld pool. Proper practice:
- Bake at 300–350°C for 1–2 hours prior to use (unless manufacturer certifies a pre-bake)
- Transfer to a holding oven at 120–150°C for continuous use during production
- Limit exposure time outside the oven to a maximum of 4 hours at ambient humidity, or 2 hours in high-humidity environments
- Electrodes that have been re-exposed may be re-baked a maximum of twice before being discarded
Comprehensive guidance is available at the electrode baking and conditioning guide.
Brand Selection and Approved Manufacturers
Not all consumables marketed to the same AWS classification are equal in terms of consistency, trace element control, or manufacturing quality. Established manufacturers — ESAB, Lincoln Electric, Bohler Welding (voestalpine), Kobelco, Ador Welding — invest in tightly controlled raw materials, continuous in-process chemistry verification, and third-party certification bodies. For critical-service applications, insist on consumables from the project-approved manufacturers list, and verify that the specific product holds the required certifications (TUV, Lloyd’s Register, DNV, BIS) for the service environment.
Material Test Certificate (MTC) Verification
Every batch of consumables entering the fabrication shop should be accompanied by a Material Test Certificate (EN 10204 3.1 or 3.2 as required) showing heat/lot number, chemical composition of the deposit or wire, and mechanical test results. Verify that the certificate values comply with the applicable SFA classification limits and any supplementary project requirements. Spot-check certificates against batch markings on the packaging before issuing consumables to welders.
Job Accessibility and Electrode Size
Joint geometry, root gap, and access restriction often dictate the practical electrode diameter and process choice, regardless of what may be metallurgically optimal. Root passes in small-bore pipe (DN25–DN50) are typically GTAW-only due to restricted torch access. Tight groove angles limit electrode manoeuvring in SMAW. Welder qualification for the specific position, process, and consumable diameter must be confirmed before production welding begins — see the welding positions guide for positional qualification requirements.
7. Reading Consumable Classifications
Understanding the consumable nomenclature is essential for interpreting purchase documents, WPS, and MTCs. The AWS classification system encodes process, strength class, coating type, and alloy content into a compact alphanumeric designation. A quick reference to the most important decoders:
| Designator | Meaning | Example |
|---|---|---|
| E | Covered electrode (SMAW) | E7018 |
| ER | Electrode or Rod (GTAW/GMAW) | ER316L |
| E (FCAW) | Electrode, tubular wire | E308LT1-1 |
| F | Flux (SAW wire-flux system) | F9A2-EM12K |
| 7018 | 70 ksi min tensile, all-position, LH iron powder | E7018 |
| 308L | 18Cr-8Ni, low carbon (0.03% max) | ER308L |
| -16 / -17 | AC + DC+ / DC+ flux type (rutile/lime-titania) | E316L-17 |
| H4 / H8 | Diffusible hydrogen supplement ≤4 or ≤8 ml/100g | E7018 H4 |
| B9 | 9Cr-1Mo-V-Nb low-alloy series | ER90S-B9 |
Table 4. AWS classification designator reference for common consumable types.
8. Estimating Consumable Quantities
Beyond selection, engineers and procurement teams need to estimate the volume of consumable required for a given welding scope. For groove welds, the filler volume is a function of the joint cross-sectional area, weld length, metal density, and process deposition efficiency. The site offers purpose-built calculators for this: the V-groove consumable calculator and the fillet weld consumable calculator both handle common joint geometries with step-by-step breakdowns of the calculation.
Cross-section Area (A) = 0.5 × gap × depth + bead reinforcement area [mm²]
Volume per metre = A × 1000 [mm³/m]
Weld Metal Mass = Volume × density / 1,000,000 [kg/m]
// Typical densities: CS ≈ 7.85 g/cm³, SS ≈ 7.95 g/cm³, Ni alloy ≈ 8.4 g/cm³
Electrode purchased = Weld Metal Mass / (deposition efficiency × stub loss factor)
// SMAW typical efficiency: 60–65% | GTAW: 95% | GMAW: 85–90%
Always add 15–20% contingency for wastage and WPS qualification runs.
