Flux-Cored Arc Welding (FCAW): Complete Technical Guide
Flux-Cored Arc Welding (FCAW) is a high-productivity semi-automatic arc welding process widely used in structural fabrication, shipbuilding, pressure vessel construction, and heavy industry. This guide covers the complete FCAW technical reference: how the process works, the metallurgical role of flux, FCAW-S versus FCAW-G sub-process selection, AWS A5.20/A5.36 electrode classification and decoding, shielding gas selection, WPS essential variables per ASME Section IX, deposition rate calculations, common defects and prevention, and preheat requirements per AWS D1.1 — written for welding engineers, inspectors, and AWS/CSWIP certification candidates.
Key Takeaways
- FCAW uses a continuously fed tubular electrode filled with flux; it exists in two distinct sub-processes — FCAW-S (self-shielded, no external gas) and FCAW-G (gas-shielded, requires CO₂ or Ar/CO₂ mix).
- Flux inside the electrode performs four simultaneous functions: generates shielding gas, adds alloying elements to the weld metal, forms protective slag over the bead, and stabilises the welding arc.
- AWS A5.20 governs carbon-steel FCAW electrodes; AWS A5.29 covers low-alloy; AWS A5.22 covers stainless. The ‘H’ designator (H4, H8, H16) controls maximum diffusible hydrogen content — critical for hydrogen-induced cracking prevention.
- FCAW deposition rates of 4–14 kg/hr substantially exceed SMAW (1–5 kg/hr), making it the preferred process for high-volume structural and pressure vessel fabrication.
- Per AWS D1.1:2020, preheat requirements for FCAW depend on base metal group, thickness, and electrode hydrogen designation — H4-classified wires can reduce preheat requirements relative to H16 wires.
- FCAW-G produces welds with lower porosity, better impact toughness, and less spatter than FCAW-S, but cannot be used outdoors due to wind sensitivity of the external shielding gas.
- Under ASME Section IX, FCAW is assigned F-Number F-6 (flux-cored electrodes), and key essential variables for WPS qualification include P-number, F-number, A-number, and changes in shielding gas composition.
Flux-Cored Arc Welding (FCAW) is a continuous-feed arc welding process that uses a tubular metal electrode with a flux-filled core, a constant-voltage (CV) or constant-current (CC) power source, and a wire feeder to produce a coalescent weld. The flux generates shielding gas and slag to protect the molten weld pool from atmospheric contamination, eliminating the need for a solid bare electrode. FCAW is governed at the electrode level by AWS A5.20 (carbon steel), A5.29 (low-alloy), and A5.22 (stainless), and at the procedure level by ASME Section IX, AWS D1.1, and AWS D1.6 depending on the application code.
How FCAW Works: Process Mechanics
Flux-Cored Arc Welding operates on the same fundamental principle as GMAW (MIG welding) — a continuously fed wire electrode and a CV power source — but replaces the solid wire with a tubular electrode containing flux. This distinction fundamentally changes the metallurgical behaviour of the arc, the weld pool chemistry, and the applicable welding positions and outdoor use cases.
The arc is struck between the flux-cored wire and the base metal. As the wire melts, the flux at the core is exposed to the arc heat and undergoes decomposition, releasing shielding gases (CO₂, CO, and others depending on flux chemistry) and forming a molten slag that floats to the surface of the weld pool and solidifies to form a protective crust over the cooling weld bead.
Equipment and Components
A complete FCAW-G installation requires the following components, each of which must be correctly matched to the wire diameter and application:
- Constant Voltage (CV) Power Source: Most FCAW applications use a CV power source, which maintains a relatively constant output voltage regardless of arc length variations. The wire feeder speed determines the amperage. Some applications, particularly robotic FCAW, also use pulsed CV modes. Typical output range: 200–600 A, 20–38 V.
- Wire Feeder: A 4-roll drive wire feeder is recommended for flux-cored electrodes because the tubular wire is more susceptible to deformation from drive rolls than solid GMAW wire. Knurled or V-grooved rolls (not U-grooved as for solid wire) should be used to avoid crushing the tubular electrode and disturbing the flux fill. Feed speed typically ranges 3–18 m/min.
- Welding Gun (FCAW Torch): The FCAW gun must be rated for the required amperage and duty cycle. For FCAW-G, the gun incorporates a gas nozzle and diffuser for shielding gas delivery around the weld zone. Standard contact tip bores are 0.9 mm, 1.2 mm, 1.4 mm, 1.6 mm, and 2.0 mm. Contact tip-to-work distance (CTWD) is critical: for most FCAW electrodes, the recommended CTWD is 19–38 mm, significantly longer than the 10–19 mm used for GMAW solid wire.
- Shielding Gas System (FCAW-G only): Includes cylinder, pressure regulator, flow meter, and gas hose. Flow rates typically range from 15–25 L/min. CO₂ cylinders require a pre-heater on the regulator to prevent freezing at high flow rates.
- Work Lead (Ground Clamp): Must be rated for the full welding current. Poor grounding is a common cause of arc instability and porosity in FCAW. The work clamp should be positioned as close to the weld joint as practical.
- Wire Spool/Drum: FCAW wire is supplied on spools (typically 15 kg) or in bulk drums (200–450 kg for automated applications). Proper storage conditions are critical — see the section on moisture contamination and porosity prevention.
Most FCAW electrodes require DCEP (Direct Current, Electrode Positive / reverse polarity). However, certain FCAW-S electrodes — particularly T-10 and some T-3 wires — require DCEN (Electrode Negative) for correct arc behaviour and mechanical properties. Always verify polarity requirements from the wire manufacturer’s data sheet before welding. Using incorrect polarity will degrade mechanical properties and penetration profile.
The Flux-Core Wire: Construction and Function
The flux-cored electrode is manufactured by feeding a flat steel strip through a series of forming rolls that shape it into a U-channel. Granulated flux is metered into the channel. Subsequent sets of rolls close and draw the tube to the final diameter, compacting the flux tightly inside. The result is a tubular wire in which the outer steel sheath serves as electrical conductor, filler metal addition, and protective barrier for the hygroscopic flux inside.
Wire diameters commercially available include 0.9 mm, 1.2 mm, 1.4 mm, 1.6 mm, 2.0 mm, and 2.4 mm. For structural and pressure vessel fabrication, 1.2 mm and 1.6 mm are most common. Larger diameters (2.0–2.4 mm) are used in submerged arc-like high-deposition automated applications.
Metallurgical Role of Flux in FCAW
The flux compound packed inside the tubular electrode is the most technically significant differentiator between FCAW and GMAW. According to AWS A5.20, the flux formulation determines the electrode’s classification, usability characteristics, positional capability, and mechanical properties. The flux serves four distinct metallurgical functions:
- Shielding Gas Generation: Flux compounds such as calcium carbonate (CaCO₃) decompose in the arc zone to release CO₂, which displaces atmospheric N₂ and O₂ from the weld pool. For FCAW-S, this flux-generated gas is the sole source of protection. For FCAW-G, it supplements the external shielding gas. Insufficient shielding — from moisture-contaminated flux, excessive CTWD, or wind — manifests as porosity in the completed weld.
- Alloying and Deoxidation: Manganese, silicon, nickel, chromium, molybdenum, and other alloying additions are incorporated into the flux to adjust weld metal composition and mechanical properties. Deoxidisers (primarily Mn and Si) prevent FeO formation in the weld pool, which would otherwise cause porosity and reduce toughness. This is why FCAW weld metal chemistry is controlled by both the steel sheath composition and the flux formulation — not by sheath composition alone as in solid GMAW wire.
- Slag Formation: Slag formers in the flux — titanium dioxide (rutile), calcium fluoride, iron oxide — melt and float to the surface of the weld pool, forming a protective viscous layer over the solidifying weld metal. This slag covering performs the same function as the coating on SMAW electrodes: it slows cooling rate, supports the bead shape in out-of-position welding, and prevents atmospheric contamination during solidification. Slag must be completely removed between passes, as retained slag inclusions are a disqualifying weld defect per most fabrication codes.
- Arc Stabilisation: Potassium and sodium compounds in the flux ionise easily, providing a stable plasma path for the arc. This results in smooth, low-spatter metal transfer characteristic of properly matched FCAW wire and parameters, particularly evident in T-1 (rutile-type) electrodes.
Flux-cored electrodes are susceptible to moisture pickup if improperly stored. Moisture in the flux decomposes in the arc to produce atomic hydrogen (H), which diffuses into the weld metal and heat-affected zone, causing hydrogen-assisted cold cracking (HACC) — also known as underbead cracking or delayed cracking. AWS A5.20 specifies maximum diffusible hydrogen limits (H4, H8, H16 in ml per 100g deposited weld metal). Store opened wire spools in a sealed cabinet or re-package in the manufacturer’s original sealed bag. Rewinding procedures are specified in AWS A5.20 Annex C.

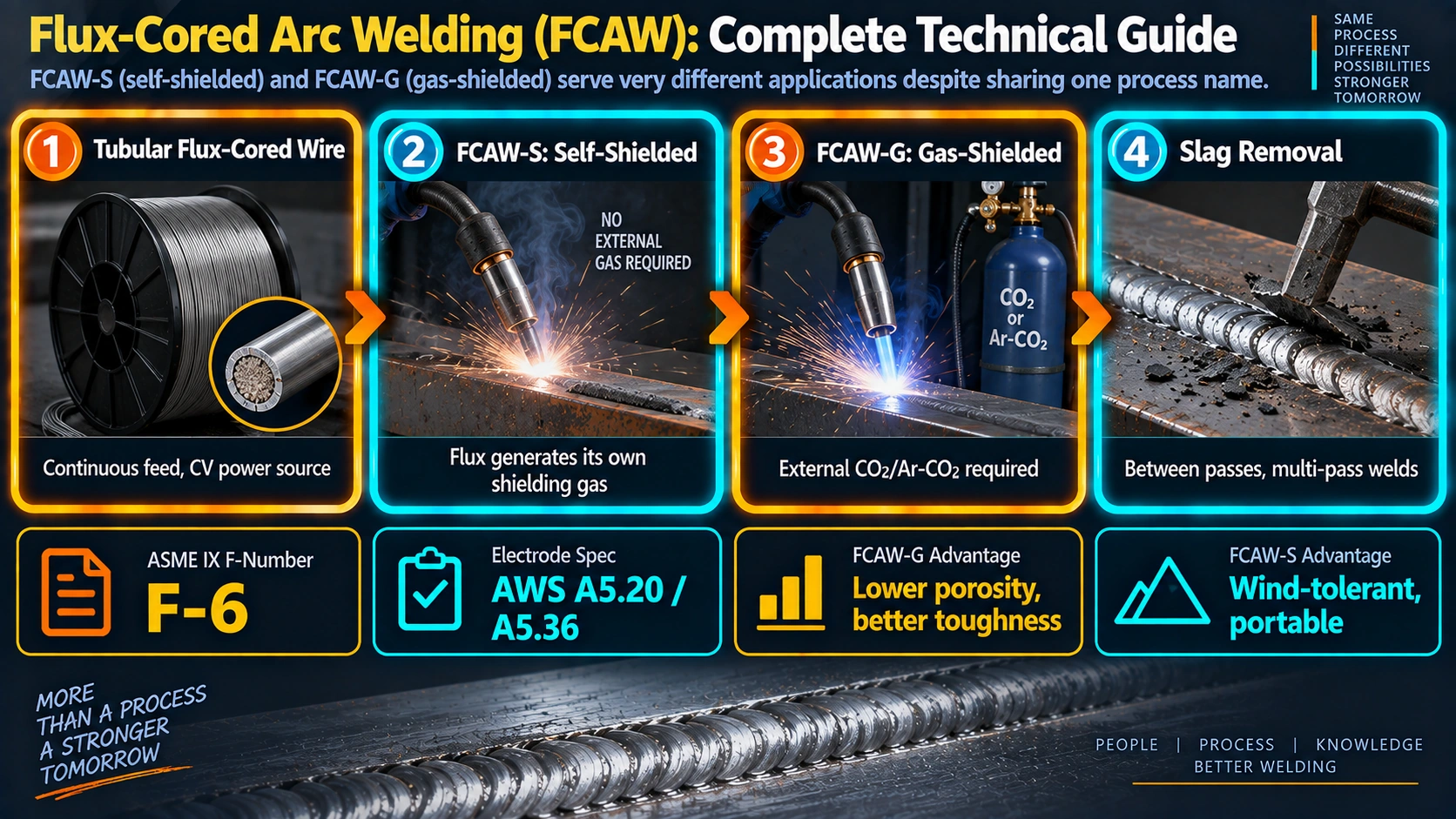

FCAW-S vs FCAW-G: Sub-Process Comparison
Flux-Cored Arc Welding is divided into two fundamentally different sub-processes based on shielding method. The selection between FCAW-S and FCAW-G is one of the most consequential process decisions in welding procedure qualification, as they differ in weld quality, portability, mechanical property capability, and applicable code restrictions.

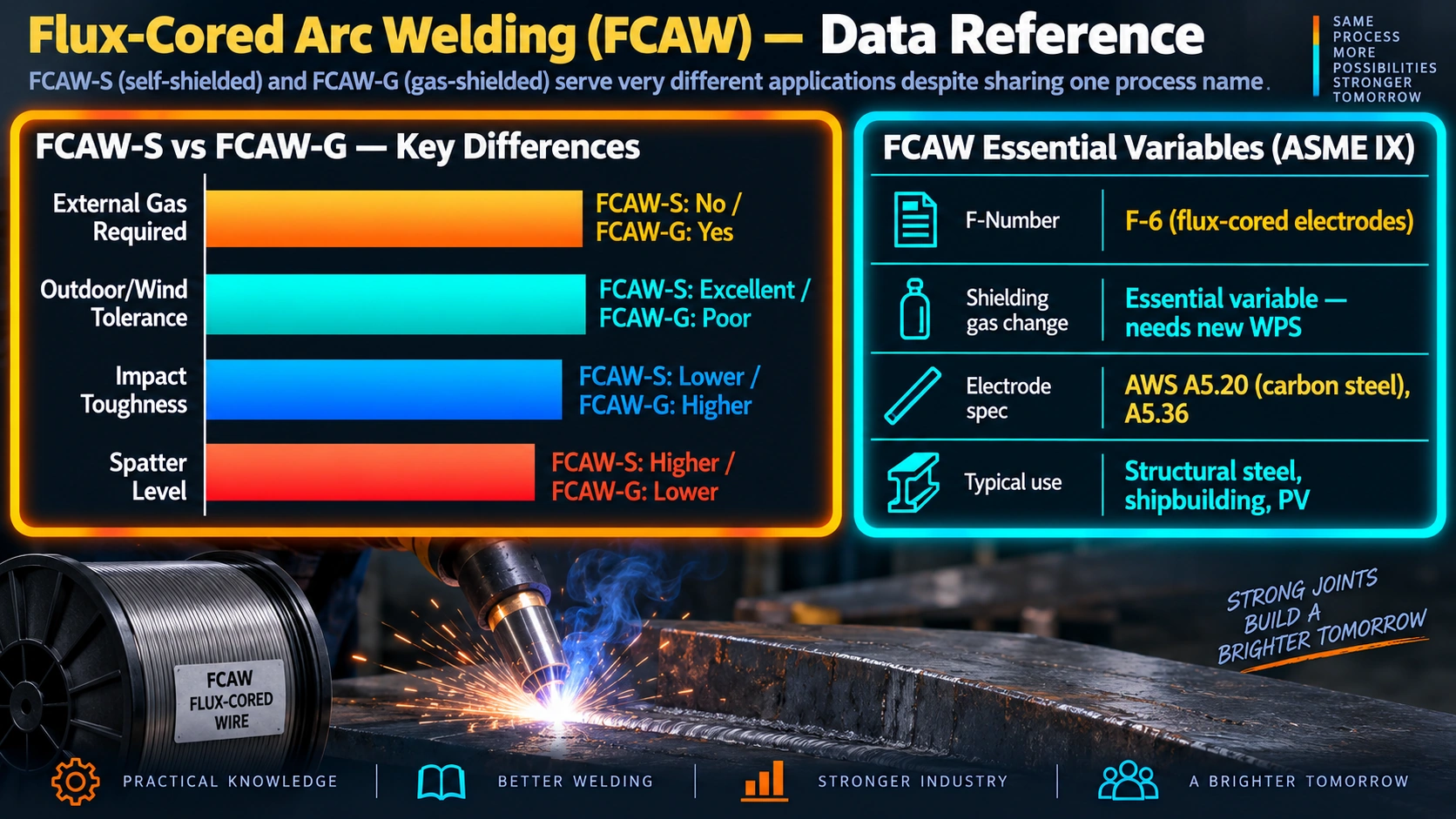

| Parameter | FCAW-S (Self-Shielded) | FCAW-G (Gas-Shielded) |
|---|---|---|
| External shielding gas required | ✗ No | ✓ Yes |
| Outdoor / field welding suitability | ✓ Excellent | ✗ Poor — gas blown away by wind |
| Weld quality (CVN toughness at –20°C) | ~ Moderate | ✓ High |
| Spatter level | Higher | Lower |
| Penetration profile | Shallow/medium | Medium/deep |
| Positional welding capability | All positions (T-7, T-8, T-11) | All positions (T-1, T-5) |
| Deposition efficiency | 75–85% | 80–90% |
| Slag type | Heavy, fast-freezing | Lighter, easier removal |
| Equipment portability | ✓ High — no gas cylinder | ✗ Lower — requires gas supply |
| Diffusible hydrogen (achievable) | H8–H16 typical | H4–H8 achievable |
| Suitability for ASME Section IX / pressure vessels | ~ Limited — requires careful qualification | ✓ Preferred |
| Typical applications | Construction, bridge repair, pipeline maintenance, structural field welds | Fabrication shop, shipbuilding, pressure vessels, offshore structures |
The table above illustrates that FCAW-G is generally superior in weld quality and diffusible hydrogen levels, while FCAW-S offers the critical advantage of portability and outdoor wind resistance.
AWS D1.1:2020 Clause 5.3 specifically addresses filler metal requirements for structural steel welding. FCAW-S electrodes classified to AWS A5.20 are permitted for prequalified WPSs only when the specific electrode classification appears on the approved list in Table 3.1. Not all FCAW-S classifications qualify for prequalified status — verify the electrode is listed before assuming prequalified compliance.
AWS Electrode Classification: A5.20 and A5.36
Correctly interpreting AWS electrode classifications is a core competency tested in CWI, CSWIP 3.1, and AWS Certified Welding Inspector examinations. Misreading a classification can result in incorrect polarity, wrong shielding gas, or non-compliant hydrogen levels.
AWS A5.20 Classification System (Carbon Steel FCAW)
The AWS A5.20 standard classifies flux-cored electrodes for carbon steel welding. A complete classification example: E71T-1C-H8
7 = Minimum tensile strength of deposited weld metal × 10,000 psi
= 70,000 psi minimum (approx. 480 MPa)
1 = Welding position: 1 = all positions; 2 = flat & horizontal only
T = Tubular (flux-cored) electrode
1 = Flux type / usability designator (see T-number table below)
C = Shielding gas: C = 100% CO₂; M = 75-80% Ar/CO₂ mix
(no letter = self-shielded; no external gas required)
H8 = Diffusible hydrogen: maximum 8 ml H₂ per 100g deposited weld metal
H4 = max 4 ml/100g; H8 = max 8 ml/100g; H16 = max 16 ml/100g
T-Number (Flux Type / Usability Designator) Table
| T-Number | Flux Type | Shielding | Polarity | Position | Typical Use |
|---|---|---|---|---|---|
| T-1 | Rutile (titania) | CO₂ or Ar/CO₂ (G) | DCEP | All (suffix 1) / F,H (suffix 2) | General fabrication, excellent bead appearance |
| T-2 | Rutile | CO₂ (G) | DCEP | Flat/horizontal only | Single-pass, high-speed fillet welds |
| T-3 | Self-shielded | None (S) | DCEN | Flat/horizontal | Light structural, sheet metal |
| T-4 | Self-shielded | None (S) | DCEP | Flat/horizontal | High deposition, heavy plate |
| T-5 | Basic/fluoride | CO₂ or Ar/CO₂ (G) | DCEP | Flat/horizontal | High toughness, low hydrogen, high-strength steels |
| T-6 | Self-shielded | None (S) | DCEP | All | Structural field welding |
| T-7 | Self-shielded | None (S) | DCEN | All | Structural, good Charpy toughness |
| T-8 | Self-shielded | None (S) | DCEN | All | Low hydrogen, good toughness, H8 classification |
| T-9 | Rutile | CO₂ or Ar/CO₂ (G) | DCEP | All | Improved toughness vs T-1 |
| T-10 | Self-shielded | None (S) | DCEN | Flat/horizontal | Very high deposition, single pass |
| T-11 | Self-shielded | None (S) | DCEN | All | General purpose SS, light structural |
| T-12 | Rutile | CO₂ or Ar/CO₂ (G) | DCEP | All | Higher toughness than T-9, lower Mn |
T-1 and T-9 are the most common FCAW-G classifications for structural fabrication; T-5 is selected when low-hydrogen and high toughness requirements are critical (e.g., quenched and tempered steels, ASME pressure vessels).
AWS A5.36: The New Unified Classification System
AWS A5.36 (introduced in 2012, updated 2016) provides an alternate, more comprehensive classification system for carbon and low-alloy FCAW electrodes. While A5.20 remains widely used, A5.36 allows manufacturers to publish the complete weld metal mechanical property data for multiple gas and polarity combinations in a single classification. Engineers specifying to EN ISO 17632 (the European equivalent) should be aware that the classification format differs from AWS but covers equivalent electrode types.
For CWI Part B (Code Book) and CSWIP 3.1 examinations, you will be asked to interpret electrode classifications from both AWS A5.20 and A5.36. Remember: the position digit appears before the ‘T’, the shielding gas designator (if applicable) appears after the T-number, and the H-designator (if present) always comes last. Self-shielded electrodes have no gas designator letter.
Shielding Gas Selection for FCAW-G
Shielding gas selection for FCAW-G directly impacts arc stability, spatter level, bead profile, penetration depth, and weld metal mechanical properties. Unlike GMAW, where solid wire chemistry is fixed, FCAW electrodes are formulated to work with a specific gas or gas family — using the wrong shielding gas can produce a weld that fails to meet the A5.20 classification minimum mechanical properties.
| Shielding Gas | AWS Designator | Arc Stability | Spatter | Penetration | Cost | Typical Application |
|---|---|---|---|---|---|---|
| 75% Ar / 25% CO₂ (C25) | M | Excellent | Low | Medium | Higher | General fab, code-quality welds, Charpy tested |
| 100% CO₂ | C | Good | Higher | Deep | Lower | High-deposition fillet welds, cost-sensitive work |
| 80% Ar / 20% CO₂ (C20) | M | Excellent | Low | Medium | Higher | Code welds requiring improved toughness at low temp |
| 100% Argon | — | Poor for carbon steel | High | Shallow | High | Not recommended for carbon steel FCAW |
For most structural and pressure vessel FCAW-G applications, 75% Ar / 25% CO₂ is the preferred choice, offering the best balance of arc stability, low spatter, and code-compliant Charpy impact properties.
Recommended gas flow rates for FCAW-G: 15–20 L/min for indoor applications with no drafts; 20–25 L/min in lightly drafty conditions. Exceeding 25 L/min creates turbulence that entrains atmospheric air into the shielding gas stream, causing porosity — the opposite of the intended effect. For CO₂ cylinders, install a pre-heater regulator to prevent regulator freezing at high flow rates.
Welding Parameters and WPS Essential Variables
Current, Voltage, and Contact Tip-to-Work Distance (CTWD)
FCAW is characterised by a distinctly longer CTWD (also called electrode extension or stickout) compared to GMAW with solid wire. This extended CTWD causes resistive preheating of the electrode, which reduces the arc energy required to melt the wire and increases the effective deposition rate at a given current level.
Increasing CTWD beyond the recommended range reduces arc energy (voltage drops across the longer electrode resistance), weakens penetration, and increases the risk of flux-generated shielding gas being insufficient. Reducing CTWD below the minimum range causes excessive arc energy, contact tip burnback, and increased spatter.
Deposition Rate and Efficiency Calculations
Deposition rate and deposition efficiency are key WPS performance metrics and are frequently required in welding procedure qualification documentation for ASME Section IX applications.
α = Constant dependent on electrode diameter and composition
I = Welding current (A)
β = Constant for resistance preheating coefficient
L = CTWD / electrode extension (m)
Simplified practical formula:
WMR (kg/hr) ≈ (Wire feed speed m/min × Cross-section area mm² × Density g/cm³) × 0.06
FCAW-G (T-1, T-9 type) : 85–90%
FCAW-S (T-7, T-8 type) : 78–85%
SMAW (low-hydrogen E7018): 60–70%
GMAW solid wire (ER70S-6): 93–97%
Note: FCAW deposition efficiency is lower than GMAW solid wire due to slag and spatter losses.
Worked Example 1 — Deposition Rate Calculation
Given: 1.6 mm E71T-1C-H8 FCAW-G wire. Wire feed speed = 8.5 m/min. Density of mild steel ≈ 7.85 g/cm³. Cross-sectional area of 1.6 mm diameter tubular wire ≈ 1.60 mm² (approximate, accounting for hollow core).
- Wire volume per minute = 8500 mm/min × 1.60 mm² = 13,600 mm³/min
- Wire mass per minute = 13,600 mm³/min × 7.85 × 10⁻³ g/mm³ = 106.8 g/min
- Wire mass per hour = 106.8 × 60 = 6,406 g/hr ≈ 6.4 kg/hr (wire consumption rate)
- Applying deposition efficiency of 87%: Deposition rate = 6.4 × 0.87 ≈ 5.6 kg/hr
Note: Actual values should always be verified using manufacturer wire consumption charts and measured on production test runs.
Travel Speed and Heat Input
Heat input is an essential variable in many WPS qualifications, particularly for base metals with HAZ toughness or hardness requirements. According to ASME Section IX QW-409.1, a change in heat input outside the qualified range requires requalification of the WPS.
U = Arc voltage (V)
I = Welding current (A)
v = Travel speed (mm/min)
60 = conversion factor (seconds per minute)
1000 = conversion factor (joules to kilojoules)
Worked Example 2 — Heat Input Calculation
Given: FCAW-G pass on 20 mm carbon steel plate. Voltage = 28 V, Current = 230 A, Travel speed = 280 mm/min.
- HI = (28 × 230 × 60) / (280 × 1000)
- HI = 386,400 / 280,000
- HI = 1.38 kJ/mm
Typical FCAW heat input for structural work: 1.0–2.5 kJ/mm. For PWHT-sensitive applications (e.g., P91 steel), heat input limits are more restrictive and specified in the WPS.
ASME Section IX Essential Variables for FCAW
Under ASME Section IX, the following changes to a qualified WPS for FCAW require requalification by testing a new Procedure Qualification Record (PQR):
- P-Number change (QW-403.1): Change in base metal P-number requires requalification. Carbon steel (P-1) FCAW qualifications do not automatically qualify for P-3 (alloy steel) or P-8 (austenitic stainless steel).
- F-Number change (QW-404.4): FCAW electrodes are classified as F-6 per ASME Section IX. Changing from FCAW (F-6) to SMAW (F-4 for E7018) requires requalification.
- A-Number change (QW-404.5): Change in weld metal chemistry classification (A-number) requires requalification for ferrous base metals.
- Change from FCAW-S to FCAW-G (or vice versa) requires requalification, as this changes the shielding method — an essential variable per QW-408.1.
- Change in shielding gas type or composition (QW-408.2): Changing from 75% Ar/CO₂ to 100% CO₂ requires requalification.
- Position change (QW-461): A WPS qualified in the 1G (flat) position is not automatically qualified for 3G (vertical) or 4G (overhead) positions.
Preheat and Interpass Temperature Requirements for FCAW
Preheat is applied to slow the cooling rate of the weld and heat-affected zone (HAZ), reducing the risk of hydrogen-assisted cold cracking (HACC), martensite formation, and excessive hardness. For FCAW on carbon and low-alloy steels, preheat requirements are specified in AWS D1.1 Table 4.5 (structural steel) and ASME Section IX with reference to the base metal P-number and thickness.
| AWS D1.1 Steel Category | Example Grades | Thickness ≤ 19 mm | 19 mm < t ≤ 38 mm | 38 mm < t ≤ 65 mm | t > 65 mm |
|---|---|---|---|---|---|
| Group I | A36, A53 Gr B | None req’d | None req’d | 66°C (150°F) | 110°C (225°F) |
| Group II | A572 Gr 50, A588 | None req’d | 66°C (150°F) | 110°C (225°F) | 150°C (300°F) |
| Group III | A514, A709 Gr 100 | 10°C (50°F) | 10°C (50°F) | 10°C (50°F) | 10°C (50°F) |
| Group IV | A514 (t > 65 mm) | 10°C (50°F) | 10°C (50°F) | 10°C (50°F) | 10°C (50°F) |
Preheat values from AWS D1.1:2020 Table 4.5, applicable to FCAW with H8 electrode classification. Using H4-classified electrodes may allow reduced preheat per AWS D1.1 Annex I provisions. Always verify with the specific applicable edition of the code.
The minimum preheat specified for a joint also serves as the minimum interpass temperature — the temperature must not drop below the preheat level at any time during multi-pass welding. Maximum interpass temperature is typically 260°C (500°F) for carbon steel but should be specified in the WPS, particularly for steels with HAZ toughness requirements. Infrared thermometers or contact thermocouples should be used; crayon-type Tempilstik indicators are acceptable for minimum preheat verification but less accurate for maximum interpass control.
For understanding how carbon equivalent affects preheat calculation and the underlying metallurgical basis for HACC in the HAZ, refer to our detailed guide on Hydrogen-Assisted Cold Cracking (HACC): Causes, Mechanism, and Prevention, which covers CE calculation methods per IIW and Pcm formulas and their relationship to minimum preheat requirements.
Common FCAW Defects and Prevention
FCAW is a highly productive process, but its unique characteristics — the flux core, longer CTWD, higher deposition rates, and slag formation — introduce specific defect mechanisms that differ from GMAW or SMAW. Understanding the root cause of each defect type enables targeted prevention rather than reactive repair.
Porosity in FCAW: Causes and Prevention in Detail
Porosity is the most common FCAW defect and the most sensitive indicator that the shielding system is compromised. In FCAW-G, porosity typically results from one of three mechanisms: (1) inadequate gas coverage due to excessive CTWD, high wind, insufficient flow rate, or gun nozzle blockage; (2) moisture-contaminated wire generating excess hydrogen and water vapour in the arc zone; or (3) surface contamination on the base metal (mill scale, rust, paint, oils) that introduces gas-forming elements into the weld pool.
Porosity acceptance criteria vary by code. Per AWS D1.1:2020 Clause 8.8, maximum porosity for statically loaded structures is limited by both frequency and individual pore size, with more stringent limits for cyclically loaded connections. Per ASME Section VIII Div. 1, Appendix 4 acceptance standards for radiographic examination establish maximum cluster porosity dimensions relative to weld thickness. Always verify using the specific code revision applicable to the fabrication project.
Industrial Applications of FCAW
FCAW’s combination of high deposition rate, all-position capability, good weld quality, and relative ease of use makes it one of the most versatile arc welding processes for medium-to-heavy thickness materials across a wide range of industries.
Structural Steel Fabrication (AWS D1.1)
FCAW is the dominant process in structural steel fabrication shops, particularly for fillet welds on connections, complete joint penetration (CJP) groove welds in moment frames, and floor-beam-to-girder connections. The ability to run high-deposition T-1 and T-9 FCAW-G wires in all positions — including vertical-up and overhead — makes it far more productive than SMAW for multi-pass groove welds on thick sections.
AWS D1.1 permits prequalified WPSs for specific FCAW electrode classifications listed in Table 3.1. Electrodes not listed require a tested WPS with a PQR. Seismic applications (AWS D1.8 Seismic Supplement) impose additional restrictions on electrode toughness and diffusible hydrogen — typically H8 or lower is required for demand-critical welds.
Pressure Vessel and Piping Fabrication (ASME Section VIII, B31.1, B31.3)
For ASME pressure vessel and piping applications, FCAW-G is widely used for P-1 (carbon steel) and P-3 (low-alloy steel) base metals. The process must be qualified under ASME Section IX with a PQR, and the electrode’s F-number (F-6) and A-number must match the WPS. Post-Weld Heat Treatment (PWHT) requirements per ASME Section VIII Div. 1 UCS-56 apply based on base metal P-number, thickness, and nominal composition — not on the welding process itself. For piping systems per ASME B31.3, the same WPS/PQR requirements apply.
Shipbuilding and Offshore Structures
Shipyards and offshore structure fabricators are among the largest users of FCAW worldwide. Classification society rules (Lloyd’s Register, DNV GL, ABS, Bureau Veritas) qualify FCAW consumables and procedures independently. For impact-tested applications at low service temperatures (–20°C to –60°C), T-5 basic-type or T-9 rutile-type FCAW-G electrodes with verified Charpy V-notch toughness are specified. FCAW-S is used for difficult-access field repairs and outfitting welding where portability is critical.
Heavy Equipment Manufacturing and Maintenance
Earthmoving equipment, mining machinery, and crane structures frequently use FCAW-G for fabricating wear-resistant and high-strength steel components. Hard-facing flux-cored wires are a specialised category used to deposit wear-resistant alloy overlays on excavator buckets, crusher liners, and conveyor components — this is distinct from structural FCAW and uses entirely different electrode classifications (typically self-shielded metal-cored or open-arc hardfacing wires).
Advantages and Limitations of FCAW
Technical Advantages
- High deposition rate: 4–14 kg/hr, outperforming SMAW by a factor of 3–5× on a kg/hr basis and reducing fabrication cost per metre of weld.
- All-position capability: T-1, T-5, T-6, T-7, T-8, and T-9 electrodes are rated for all welding positions (1F–4F fillet, 1G–4G groove), making FCAW applicable to complex joint geometries without process change.
- Deep penetration: The flux chemistry and higher current density of FCAW provide superior root penetration compared to SMAW, reducing the risk of incomplete root fusion in thicker joints.
- Semi-automatic operation: Continuous wire feed eliminates electrode changes and the stop-start cycle of SMAW, improving arc-on time from a typical SMAW arc-on time of 20–30% to FCAW arc-on time of 50–70% in production conditions.
- Tolerance to mill scale and contamination: FCAW electrodes, particularly rutile T-1 types, have greater tolerance to mill scale on the base metal surface than solid GMAW wire, reducing pre-cleaning requirements for structural work.
- Good weld mechanical properties: With proper qualification, FCAW weld metal can achieve tensile strengths up to 690 MPa (100 ksi) and Charpy CVN toughness values meeting low-temperature service requirements.
Limitations and Constraints
- Slag removal requirement: Unlike GMAW, every FCAW pass produces slag that must be completely removed before subsequent passes. Incomplete slag removal causes slag inclusions — a disqualifying defect in most codes. Slag removal adds post-weld cleaning time that partially offsets the deposition rate advantage.
- Higher fume generation: FCAW generates significantly more fume than GMAW, and certain flux formulations produce fluoride-containing fumes with stringent occupational exposure limits. Adequate local exhaust ventilation (LEV) is mandatory per OSHA 1910.1000 and 1926.353 for indoor FCAW.
- FCAW-G wind sensitivity: External shielding gas is dispersed by wind above approximately 4–8 km/hr, making FCAW-G unsuitable for outdoor work without windshielding. This is a hard physical limitation, not a skill issue.
- Wire cost: FCAW wire costs 2–3× more per kilogram than equivalent GMAW solid wire for the same yield strength class, offset by higher deposition efficiency and reduced labour cost per metre of weld.
- Not suitable for thin materials: FCAW’s higher heat input and minimum practical wire diameters (0.9 mm) limit its usefulness on sheet metal below approximately 3 mm thickness. GMAW or GTAW is preferred for thin-gauge work.
- Smoke and fume hazard: The high smoke generation of FCAW-S (particularly T-3 and T-10 types) creates significant occupational health challenges and requires robust ventilation design.
FCAW vs SMAW vs GMAW: Process Comparison
| Parameter | FCAW-G | FCAW-S | SMAW (E7018) | GMAW (ER70S-6) |
|---|---|---|---|---|
| Deposition rate | 4–14 kg/hr | 3–10 kg/hr | 1–5 kg/hr | 3–10 kg/hr |
| Deposition efficiency | 85–90% | 78–85% | 60–70% | 93–97% |
| Outdoor / field use | ✗ No | ✓ Yes | ✓ Yes | ✗ No |
| Min. diffusible hydrogen | H4 | H8 | H4 (E7018-H4) | Not classified |
| All-position capability | ✓ Yes (T-1) | ✓ Yes (T-7, T-8) | ✓ Yes | ~ Short-circuit only (vertical) |
| Equipment cost | Medium–high | Medium | Low | Medium |
| Slag removal required | ~ Yes | ~ Yes | ~ Yes | ✓ No |
| Thin sheet capability | ✗ Limited (<3mm) | ✗ Limited | ~ Fair | ✓ Excellent |
| Fume generation | Medium | High | Medium | Low |
| Governing electrode standard | AWS A5.20/A5.36 | AWS A5.20/A5.36 | AWS A5.1/A5.5 | AWS A5.18 |
FCAW-G delivers the best balance of productivity and weld quality for shop fabrication. SMAW remains indispensable for field repairs and root passes in piping. GMAW offers the highest deposition efficiency for clean, thin-material applications.
For a detailed comparison of SMAW process characteristics, electrode storage requirements, and AWS A5.1/A5.5 classification, see our comprehensive SMAW Welding Process Guide. For GTAW/TIG welding process parameters, tungsten electrode selection, and ASME Section IX qualification, refer to our GTAW Process Guide.
Frequently Asked Questions
What is Flux-Cored Arc Welding (FCAW) and how does it differ from MIG welding?
Flux-Cored Arc Welding (FCAW) uses a tubular wire electrode filled with flux rather than the solid wire used in GMAW (MIG). The flux inside the FCAW electrode generates shielding gas, forms a protective slag layer, adds alloying elements to the weld metal, and stabilises the arc — functions that GMAW relies on external shielding gas to perform only partially. FCAW delivers higher deposition rates, better penetration on thick materials, and better tolerance to base metal contamination than solid-wire GMAW, but requires slag removal between passes and generates more fume. Per AWS classification, FCAW electrodes fall under A5.20 (carbon steel) while GMAW solid wire falls under A5.18.
What is the difference between FCAW-S and FCAW-G?
FCAW-S (self-shielded) generates all shielding from the flux core alone — no external gas cylinder is required — making it ideal for outdoor and field welding where portability and wind resistance are essential. FCAW-G (gas-shielded) uses external CO₂ or Ar/CO₂ shielding gas in addition to the flux, producing lower spatter, better impact toughness, lower diffusible hydrogen (achievable H4), and higher-quality welds. FCAW-G cannot be used outdoors due to wind dispersing the shielding gas. For ASME pressure vessel and structural code applications, FCAW-G is generally preferred; FCAW-S is selected for field and outdoor structural work.
How do you read an AWS A5.20 FCAW electrode classification like E71T-1C-H8?
Reading E71T-1C-H8: E = electrode; 7 = 70,000 psi (480 MPa) minimum tensile strength; 1 = all-position capable; T = tubular (flux-cored); 1 = T-1 flux type (rutile, DCEP); C = 100% CO₂ shielding gas required (M = 75-80% Ar/CO₂; no letter = self-shielded); H8 = maximum 8 ml diffusible hydrogen per 100g deposited weld metal. The H-designator is critical: H4 is the lowest hydrogen class available in FCAW-G and is required for many high-strength steel applications to prevent hydrogen-assisted cold cracking.
What shielding gas is best for FCAW-G — CO₂ or Ar/CO₂ mix?
For most structural and pressure vessel FCAW-G applications, 75% Ar / 25% CO₂ (C25) is preferred because it delivers excellent arc stability, lower spatter, improved bead appearance, and better Charpy CVN toughness in the weld metal compared to pure CO₂. Pure CO₂ (100%) provides deeper penetration at lower gas cost and is acceptable for single-pass fillet welds and less demanding structural work, but increases spatter by 15–30% and can reduce toughness. Always verify that the shielding gas type matches the electrode’s AWS designation: ‘M’ suffix = Ar/CO₂ mix; ‘C’ suffix = 100% CO₂. Using the wrong gas can result in mechanical properties that do not meet the classified minimums.
What is the deposition rate of FCAW compared to SMAW?
FCAW-G typically achieves deposition rates of 4–14 kg/hr, which is 3–5 times higher than SMAW (1–5 kg/hr) for equivalent joint sizes. This advantage stems from FCAW’s continuous wire feed (no electrode changes), longer arc-on time per hour (50–70% vs 20–30% for SMAW), and higher current density capability with DCEP polarity. Deposition efficiency for FCAW-G is approximately 85–90%, compared to 60–70% for SMAW low-hydrogen electrodes. The combined effect of higher deposition rate and better efficiency makes FCAW significantly more cost-effective for repetitive production welds in structural and pressure vessel fabrication.
What preheat is required for FCAW on A36 carbon steel per AWS D1.1?
Per AWS D1.1:2020 Table 4.5, A36 falls under Group I steels. With FCAW H8-classified electrodes, no preheat is required for thicknesses up to 38 mm. For thicknesses between 38–65 mm, a minimum preheat of 66°C (150°F) is required; above 65 mm, 110°C (225°F) is required. Using an H4-classified FCAW electrode may allow reduced preheat per the provisions in AWS D1.1 Annex I. Regardless of code minimums, when ambient temperature is below 0°C (32°F), all base metals must be preheated to a minimum of 20°C (70°F). The specified preheat temperature also serves as the minimum interpass temperature throughout multi-pass welding.
Can FCAW be used for stainless steel welding?
Yes. AWS A5.22 classifies flux-cored electrodes specifically for stainless steel welding. Common classifications include E308LT1-1 (for 304L stainless), E316LT1-1 (for 316L), and E309LT1-1 (for dissimilar welds between carbon steel and austenitic stainless). The T1-1 suffix indicates gas-shielded (FCAW-G) with 100% CO₂ or Ar/CO₂. For duplex stainless steel (e.g., 2205, UNS S32205), dedicated duplex FCAW electrodes are available and the WPS must include ferrite content verification per ASME or the applicable construction code. FCAW-S is generally not used for stainless steel due to potential nitrogen pickup from the arc atmosphere degrading corrosion resistance.
What are the ASME Section IX essential variables for an FCAW WPS?
For FCAW under ASME Section IX, essential variables requiring requalification include: change in P-number (QW-403.1), change in F-number from F-6 (QW-404.4), change in A-number (QW-404.5), change between FCAW-G and FCAW-S (QW-408.1 — shielding method change), change in shielding gas type or composition (QW-408.2), addition or removal of backing (QW-402.1), and change in position beyond qualified range (QW-461). The WPS must reference a qualified PQR with test results for tensile, bend, and (if applicable) Charpy impact testing. For code applications involving low-temperature service, supplement testing per QW-170 may be required for Charpy impact values.
Recommended Reference Books
This page contains affiliate links. If you purchase through these links, WeldFabWorld may earn a small commission at no extra cost to you.
