Offshore Platform Emergency Shutdown and Cold-Stack Restart: Welding, Weld Integrity, and Inspection Procedures During the Strait of Hormuz Closure (2026)

The Strait of Hormuz closure that followed the February 28, 2026 US–Israeli strikes on Iran — and Iran’s retaliatory blockade of the world’s most critical oil shipping chokepoint — has forced the emergency shutdown and cold-stacking of offshore platforms across the Persian Gulf on a scale not seen since the Iran–Iraq Tanker War of the 1980s. For welding engineers, integrity inspectors, and platform QA/QC managers, a cold-stacked platform is not a safely parked asset: it is a structure under active attack from the most aggressive marine corrosion environment in the world, one where every week of inadequate preservation compounds the inspection and repair workload that will be required before safe restart. This article provides the technical framework for managing weld integrity through every phase of the cold-stack and restart cycle.

The Arabian Gulf presents a uniquely hostile environment for offshore steel. Surface water temperatures reach 35 degrees Celsius in summer, salinity runs at 42–45 parts per thousand (compared to the global ocean average of 35 ppt), and sulphate-reducing bacteria populations in the anaerobic zones of stagnant piping create an active microbiologically influenced corrosion (MIC) threat in any system where water is allowed to stand. When a platform is cold-stacked and process fluids are displaced by seawater or condensate, these factors combine to produce internal weld seam corrosion rates that can consume a significant fraction of the original corrosion allowance within a single extended shutdown period. External structural weld corrosion in the splash and tidal zones accelerates sharply the moment cathodic protection current falls below the protection potential.

This guide covers the entire cold-stack and restart lifecycle from an integrity and welding engineering perspective: the distinct phases of an emergency shutdown sequence and what each means for weld condition, the specific corrosion mechanisms that target weld seams and heat-affected zones during idle periods, the preservation actions that slow or prevent that corrosion, the NDE inspection programme required before restart, the management of welder certification continuity under ASME Section IX QW-322 during extended demobilisations, PWHT record verification requirements, and a structured pre-restart inspection and commissioning checklist that can be adapted to any Gulf platform configuration.

200+ Ships stranded in Persian Gulf as of March 2026 (Hormuz blockade)
20% Global crude oil supply transiting Hormuz — now effectively halted
45 ppt Arabian Gulf salinity — among highest of any major sea globally
3 mm/yr Worst-case internal weld seam corrosion rate in stagnant oxygenated water
6 months ASME Section IX QW-322 welder certification continuity window

The 2026 Hormuz Closure: What It Means for Gulf Platform Operations

When Iran’s Revolutionary Guard Corps announced the effective closure of the Strait of Hormuz in early March 2026 — enforced through a combination of anti-ship missile batteries, mine-laying operations, and fast-attack craft — the immediate operational consequence for offshore platform operators in the Persian Gulf was unambiguous: no tankers in, no tankers out. For producing platforms, this meant that even where production could physically continue, there was nowhere for the crude to go. Storage tanks and floating production storage and offloading (FPSO) units reached capacity within days in many cases. Production shutdown became inevitable.

The Iranian retaliatory strikes on Gulf state energy infrastructure — hitting facilities in all six GCC countries — added a direct physical threat to platforms in the northern Gulf, within range of Iranian missile and drone systems. Several platform operators activated their emergency shutdown systems (ESD) remotely before personnel evacuation was complete, triggering an automatic sequence of process isolation, depressurisation, and utilities isolation that left platforms in a partially known state of preservation. Others performed controlled shutdowns over 12–48 hours as evacuation was coordinated. The result, across the Gulf oilfield portfolio, is a heterogeneous population of shut-down platforms in varying states of preservation — from fully controlled and properly preserved, to emergency-stopped with residual hydrocarbons in systems and no preservation actions completed.

The Five Phases of a Cold-Stack and Restart Cycle

Understanding the cold-stack and restart cycle as a sequence of distinct engineering phases — each with its own integrity management priorities — is the foundation of a structured response. The temptation in a crisis is to treat shutdown as a binary state: either running or stopped. In reality, the degradation of weld integrity during an idle period is a continuous, time-dependent process that must be actively managed at each phase.

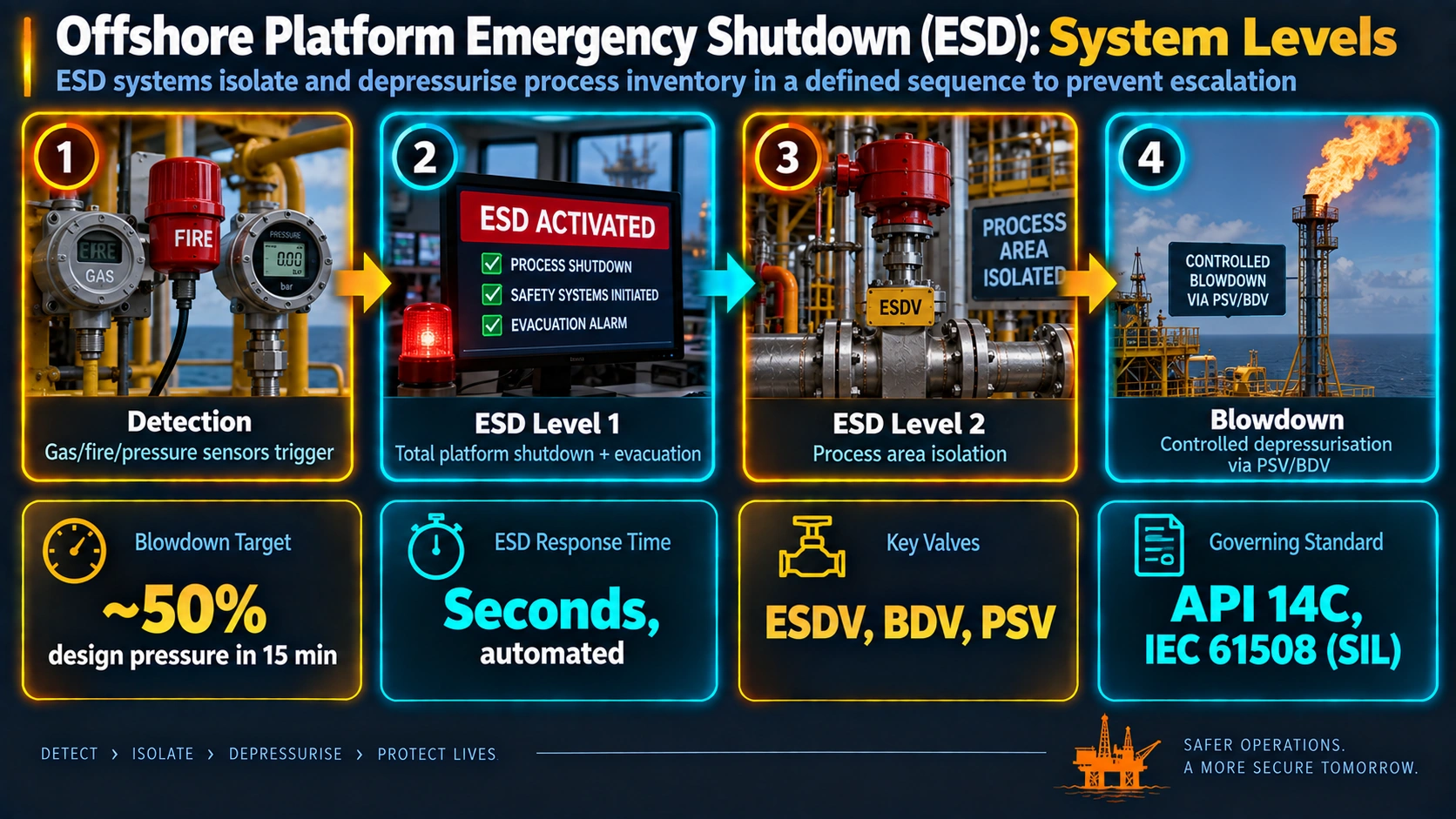

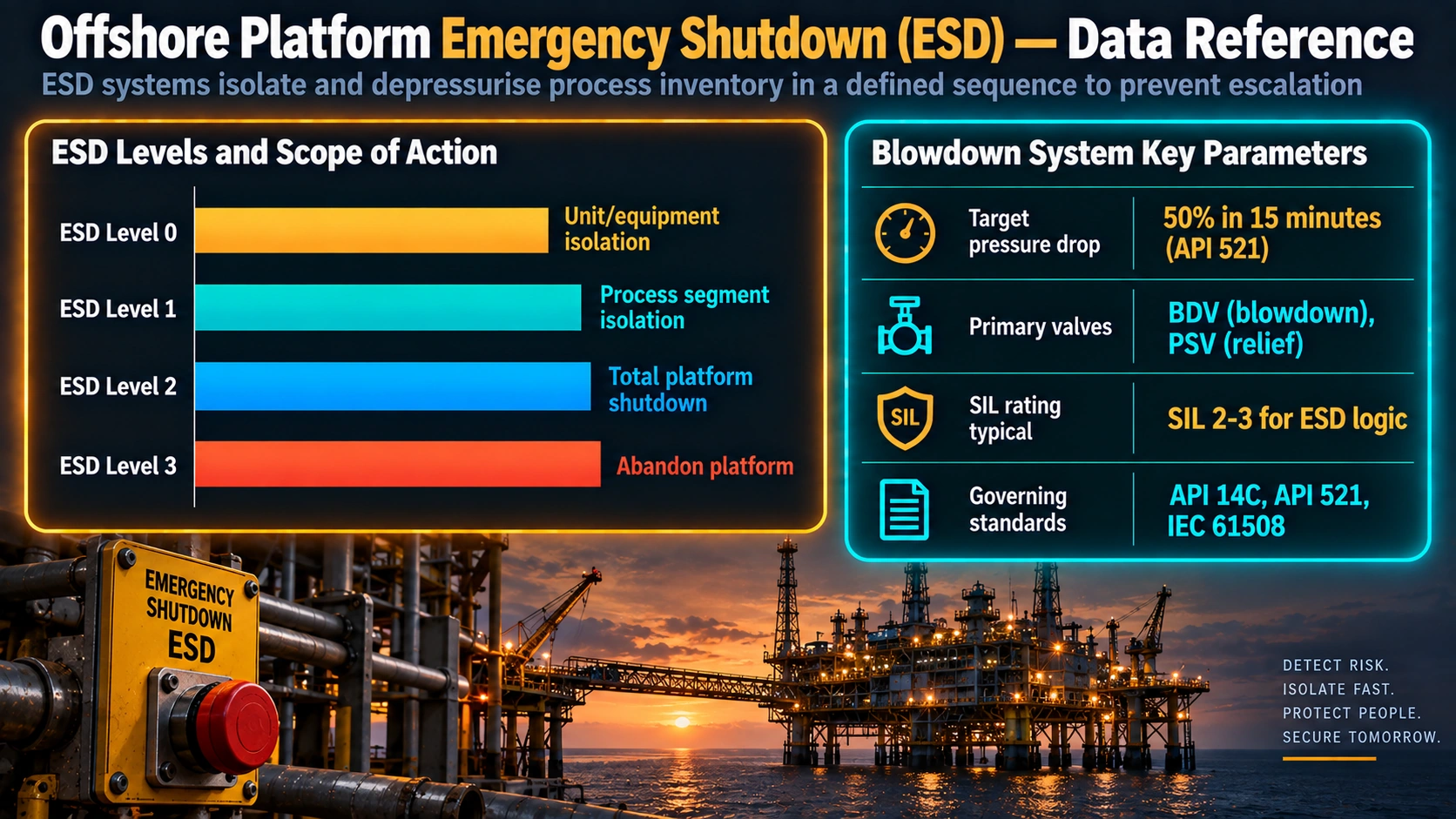

Phase 1 — Emergency Shutdown (Day 0 to Day 3)
ESD activation or controlled shutdown of all process systems. Depressurisation, purging, and initial isolation of pressure-boundary piping. This phase determines the initial internal atmosphere of all piping — whether it holds inert gas, residual hydrocarbons, seawater, or air — which directly determines the corrosion mode that will prevail during the idle period. The most common failure in emergency shutdowns is leaving carbon steel piping filled with stagnant water or condensate without nitrogen blanketing.
Phase 2 — Preservation (Day 3 to Week 4)
Active preservation programme: nitrogen blanketing of all depressurised piping and vessels, inhibitor injection into preserved fluid circuits, cathodic protection system verification and output adjustment, coating inspection of structural welds in the splash zone, and installation of desiccant or dry-air purge on instrument systems. This phase is the most critical for weld integrity — every day without adequate preservation is a day of accelerating internal and external weld corrosion.
Phase 3 — Condition Monitoring (Week 4 to Month 6)
Ongoing monitoring of cathodic protection output, corrosion coupon retrieval and analysis, periodic visual inspection of accessible structural welds, and nitrogen blanket pressure checks on sealed systems. If the shutdown extends beyond 3 months, the first formal weld inspection programme (guided wave UT screening of process piping, structural weld visual and MT in tidal/splash zone) should be initiated.
Phase 4 — Pre-Restart Inspection and Repair (Month 4 to Month 7)
Full pre-restart NDE inspection programme: PAUT/TOFD of all Priority 1 pressure piping weld joints, internal visual inspection of accessible piping, hardness survey of weld HAZ in any areas of known or suspected corrosion attack, PWHT record verification, pressure testing of any systems with confirmed integrity questions, and repair welding where required. Welder certification status must be verified and requalification tests conducted for any welder whose 6-month continuity has lapsed.
Phase 5 — Controlled Restart (Month 6 onward)
Phased re-introduction of process fluid, step-pressure testing at each stage, ASME B31.3 pressure test documentation where required, recommissioning of cathodic protection and corrosion inhibitor systems, and establishment of an enhanced post-restart inspection programme covering increased monitoring frequency for the first 6 months of resumed operations. All repair WPS records, welder qualification records, and PWHT charts must be filed in the platform’s permanent inspection record.

Corrosion Mechanisms Targeting Weld Seams and HAZ During Idle Periods

Weld seams and their associated heat-affected zones are not simply sections of pipe that happen to have been joined by welding. They are metallurgically distinct regions that differ from the parent material in microstructure, residual stress state, and in many cases composition (at the weld metal). These differences make them selectively vulnerable to specific corrosion mechanisms that are particularly active during the idle conditions of a cold-stacked platform.

Internal Weld Seam Corrosion: Galvanic and Preferential Attack

In carbon steel process piping, the weld metal deposited by SMAW or GMAW processes typically has a slightly different electrochemical potential from the parent pipe material due to differences in microstructure and alloy content. Under flowing process fluid conditions, this difference is relatively inconsequential because the thin film of magnetite that forms at the pipe wall provides a degree of protection. When flow stops and the pipe fills with stagnant oxygenated water or condensate, the weld metal and HAZ regions become preferential sites for galvanic attack. Oxygen-concentration cells establish themselves at the weld surface, driving localised pitting that concentrates at weld toes and undercut regions where surface irregularities provide nucleation sites.

The corrosion rate in this mode depends critically on oxygen concentration in the stagnant water. At full dissolved oxygen saturation (approximately 8 mg/L at 25 degrees Celsius, dropping to around 6 mg/L at 35 degrees Celsius in the Arabian Gulf), internal carbon steel weld seam corrosion rates of 1–3 mm/year are typical. In a 6-month cold-stack without nitrogen blanketing, this represents 0.5–1.5 mm of wall loss concentrated at weld seams — a fraction of the original pipe schedule that is significant for the thin-walled pipe used in utility and instrument services.

Critical Point — Weld Seam Preferential Attack: In carbon steel piping containing stagnant water during an idle period, the weld seam and HAZ corrode preferentially to the parent pipe body. A pipe that shows an average 0.2 mm wall loss across its body may show 0.8 mm or more of localised loss at the weld seam. Thickness measurement surveys that do not specifically target weld locations will systematically underestimate the severity of corrosion at the most structurally critical locations. Always include weld seam measurements in any UT thickness survey of idle piping.

Microbiologically Influenced Corrosion (MIC) at Weld Seams

Sulphate-reducing bacteria (SRB) thrive in the anaerobic zones that develop at the bottom of stagnant water-filled piping — and they preferentially colonise weld seam surfaces where surface roughness and metallurgical heterogeneity provide ideal attachment sites. SRB-driven MIC produces hydrogen sulphide as a metabolic byproduct, which attacks carbon steel weld metal and HAZ aggressively. The resulting corrosion pits are characteristically rounded, often with a black iron sulphide deposit, and can penetrate through pipe walls far faster than oxygen-driven corrosion alone. MIC has been identified as the cause of several notable platform piping failures during previous Gulf shutdown events.

For sour service piping that was already operating in an H2S environment prior to shutdown, the risk of hydrogen embrittlement of hard HAZ regions (above 248 HV10 per NACE MR0175/ISO 15156) during the idle period is an additional concern. If H2S-containing fluid was trapped in the piping during an emergency shutdown, the wet H2S environment can initiate hydrogen-induced cracking (HIC) or sulphide stress cracking (SSC) at weld HAZ regions that were borderline compliant prior to shutdown.

External Structural Weld Corrosion: Splash Zone and Tidal Zone

The splash zone — the region of the platform jacket and conductor pipe that is intermittently wetted by wave action — is the most aggressive external corrosion zone for offshore structural steel welds. In normal operations, cathodic protection systems are maintained at a protection potential of −800 to −1050 mV (Ag/AgCl) across the submerged structure, and coating systems on the splash zone supplement protection above the waterline. During a cold-stack, if platform power is reduced to a skeleton level and the impressed current cathodic protection (ICCP) system is not maintained at full output, protection potential drops below the protective threshold within weeks. The resulting unprotected structural welds in the splash zone can experience corrosion rates of 0.3–0.5 mm/year — measurable within a single season.

The weld toes of structural joints in the splash zone are of particular concern because they combine the stress concentration effect (relevant if any wave-induced loading continues during the cold-stack) with the preferential corrosion attack discussed above. For fatigue-sensitive structural joints — particularly riser clamp welds, conductor guide welds, and deck support bracings — accelerated corrosion at the weld toe during the idle period reduces the remaining fatigue life that was previously calculated assuming the design corrosion rate.

Offshore Platform Cold-Stack: Corrosion Zones and Priority Weld Locations Sea level Seabed Topsides / Process Deck Zone A: Atmospheric Dry air; low corrosion rate Zone B: Internal piping Stagnant water / MIC risk Zone C: Splash Zone (most aggressive) Weld toe attack 0.3–0.5 mm/yr without CP; MT + VT inspection Zone D: Tidal Zone — CP maintenance critical CP potential must remain below −800 mV (Ag/AgCl) Zone E: Submerged — CP & anode effectiveness critical X-brace weld joints: inspect with ROV camera + ACFM Zone C priority welds Leg girth welds; riser clamp welds; conductor guides Zone E priority welds X-brace joints; mud-mat frame welds Priority weld joints Splash zone (Pr.1) Brace-to-leg (Pr.2) Submerged zone WeldFabWorld 2026 — Schematic, not to scale
Fig. 1 — Schematic of an offshore platform showing the five corrosion zones active during a cold-stack period and the priority weld locations in each. Zone C (splash zone) carries the highest corrosion risk for structural welds; Zone B (internal piping) carries the highest risk for process piping weld seams. CP = cathodic protection; ACFM = alternating current field measurement.

Weld Corrosion Preservation Protocols During Cold-Stack

Effective preservation during a cold-stack period is the most cost-effective investment an operator can make — every pound spent on nitrogen blanketing and inhibitor injection during the idle period saves multiple pounds in weld repair and pipe replacement costs at restart. The following preservation actions specifically address weld integrity risks.

Nitrogen Blanketing of Internal Piping and Vessels

Filling all depressurised carbon steel piping and vessels with dry nitrogen (dew point below −40 degrees Celsius) at a slight positive pressure (0.05–0.1 bar gauge) is the single most effective action to prevent internal weld seam corrosion during an idle period. Nitrogen displaces oxygen, eliminating the oxygen-concentration cells that drive galvanic attack at weld toes. It also inhibits SRB activity by removing the trace oxygen that even “anaerobic” organisms use in initial colonisation. A nitrogen blanketing system requires: a nitrogen supply (from a portable generator or facility nitrogen network), pressure gauges on all blanketed sections, bleed valves for air displacement during fill, and a weekly pressure check to identify any sections where the blanket has been lost.

Practical Tip — Nitrogen Blanket Management: Divide the piping system into independently blanketed sections with isolation valves at each section boundary. This allows you to identify and investigate specific sections that lose blanket pressure (indicating a valve leak or integrity problem) without having to purge and re-fill the entire system. Number each section on a P&ID mark-up and log the weekly pressure check against each section number. Any section showing a consistent pressure drop requires immediate investigation before it is classified as preserved.

Corrosion Inhibitor Injection into Preserved Fluid Circuits

Where piping must remain liquid-filled (e.g., firewater, utility water, or where nitrogen blanketing is impractical), injection of a compatible film-forming corrosion inhibitor at the correct concentration is the alternative preservation measure. Film-forming inhibitors — typically amine-based or imidazoline-based compounds — adsorb onto carbon steel weld surfaces and form a hydrophobic protective layer that substantially reduces corrosion rates. The key variables are: inhibitor concentration (confirm with the chemical supplier for the specific water chemistry and temperature), circulation interval (static systems require periodic re-circulation to maintain inhibitor film, typically monthly), and compatibility with any downstream process equipment.

Cathodic Protection System Maintenance

Impressed current cathodic protection (ICCP) systems must be maintained at their normal protective potential output throughout the cold-stack period — this is non-negotiable for structural weld integrity in the tidal and submerged zones. If power supply to the platform has been reduced to skeleton level, the ICCP system should be on the list of essential loads that are maintained regardless of other power savings. Sacrificial anode systems on jacket structures should be inspected at the first opportunity by remotely operated vehicle (ROV) to confirm that anode consumption has not reached the point where structural welds are no longer adequately protected. Anode replacement underwater by a diving contractor is a straightforward operation that can be performed during the cold-stack period without a full platform restart.

Coating Inspection and Repair in the Splash Zone

Structural weld toes in the splash zone — the highest-risk external corrosion location on any offshore structure — should receive a close-up visual inspection and thickness assessment within the first month of the cold-stack period. Any coating breakdown at weld toes must be repaired using a compatible marine coating system applied to the original surface preparation standard (typically Sa 2.5 blast-cleaned steel). For underwater work in the tidal zone, specialist underwater epoxy or coal-tar epoxy systems qualified for application in immersed conditions are available and should be applied by a qualified underwater painting contractor.

Pre-Restart NDE Inspection Programme: Methods, Priorities, and Acceptance Criteria

Before any cold-stacked platform is returned to pressure service, a structured NDE inspection programme must be completed and documented. The scope of this programme depends on the duration of the shutdown, the effectiveness of preservation during the idle period, and the operating history of the platform prior to shutdown (particularly any pre-existing corrosion or weld defects that were being monitored). The following framework establishes a minimum adequate inspection programme.

Guided Wave UT — Process Piping Rapid Screening

Guided wave ultrasonic testing (GWUT) using magnetostrictive or piezoelectric collar transducers is the most efficient tool for screening long piping runs for generalised corrosion and localised wall loss at weld seams. A single collar installation can screen 30–50 metres of pipe in each direction, flagging any location where the cross-sectional area loss exceeds approximately 5% of the nominal pipe wall area. All locations flagged by GWUT then receive targeted PAUT or contact UT thickness measurement for accurate sizing. In a pre-restart inspection, GWUT should be applied to all carbon steel process and utility piping runs of 50 metres or longer, and to all risers and conductor pipes.

PAUT of Priority Pressure Piping Weld Joints

All pressure-boundary weld joints classified as Priority 1 (safety-critical systems, sour service, high-pressure, and high-temperature service) must receive full PAUT inspection before restart. Priority 1 classification in a platform restart context covers: all process piping above 150 psig (10.3 bar) MAOP, all sour service piping systems, all piping connected to safety-critical equipment (ESD valves, relief valves, blow-down systems), and all piping in which internal visual inspection has revealed any discolouration, deposit, or surface condition suggesting active corrosion during the idle period.

Piping System Service Shutdown Idle Risk Priority Required NDE
Production header (HP) Crude / gas, sour High — HIC / SSC risk Priority 1 PAUT + TOFD all weld joints; hardness survey HAZ
Test separator inlet / outlet Multiphase, sour High — stagnant water / MIC Priority 1 PAUT + internal camera; UT thickness at all welds
Gas lift headers High-pressure gas Moderate — low water content Priority 2 GWUT screen; PAUT on flagged locations
Produced water system Water, H2S, O2 ingress Very High — oxygen + MIC Priority 1 PAUT all welds; internal camera; coupon analysis
Gas export riser Dry gas export Moderate — riser splash zone Priority 2 External VT + MT splash zone; PAUT riser welds
Firewater main Seawater High — stagnant seawater MIC Priority 1 GWUT + UT thickness; inhibitor coupon review
Chemical injection lines (SS) Stainless, chloride Low — stainless, low corrosion Priority 3 Visual + PT at welds; Cl- concentration check
Fuel gas system (CS) Dry gas, CS pipe Low if N2 blanketed Priority 3 GWUT; verify N2 blanket was maintained

Structural Weld Inspection: Splash Zone and Submerged

Structural weld inspection of the offshore jacket and topsides support structure is a separate programme from process piping inspection and must address different failure modes. For the splash zone, the primary method is close-up visual inspection combined with magnetic particle testing (MT) using the wet fluorescent method on all accessible weld toes in the zone from mean water line minus 2 metres to mean water line plus 4 metres. This zone requires rope access or jack-up barge access during the pre-restart phase.

For the submerged jacket structure, remotely operated vehicle (ROV) close-up video survey of all tubular joint welds is the standard baseline method, supplemented by alternating current field measurement (ACFM) on any joint showing coating breakdown or visual anomaly. ACFM is the preferred underwater crack detection method because it requires no surface preparation, can operate through marine growth and thin coatings, and provides a quantitative measure of crack depth without requiring physical contact with the inspection probe. Any indication detected by ACFM must be sized and recorded against the structural joint reference number for fitness-for-purpose assessment per DNV-RP-C203 or ISO 19902.

Pre-Restart NDE Programme — Decision Flowchart Step 1: Condition assessment Review preservation records; shutdown duration; event logs Step 2: Classify systems Pr.1/2/3 Sour, high-P, safety-critical = Priority 1 Step 3: GWUT screening All CS piping runs >50 m; flag anomalies (>5% CSA loss) Anomalies flagged? Yes Step 4a: PAUT + TOFD Detail inspect flagged weld locations No Step 4b: Pr.1 mandatory PAUT 100% weld joints in sour / HP systems regardless of GWUT Accept per code? Yes Restart clearance issued AI sign-off; update inspection register No Repair / replace; retest WPS / PQR / PWHT per ASME B31.3 WeldFabWorld 2026
Fig. 2 — Pre-restart NDE decision flowchart for cold-stacked offshore platforms. All sour service and high-pressure Priority 1 weld joints receive mandatory PAUT inspection regardless of GWUT results. The repair loop returns to PAUT re-inspection before restart clearance can be issued.

Managing Welder Certification Continuity During Extended Demobilisations

The ASME Section IX QW-322 six-month welder continuity rule — the requirement that a welder must have used a given welding process within the last six months to maintain their qualification in that process — creates a time-critical management challenge when the cold-stack period extends beyond six months. On a typical Gulf platform, a significant fraction of the welding workforce will have been demobilised as part of the emergency shutdown response, with no welding production activity on the platform during the idle period. When the decision is made to restart and the repair and re-commissioning welding programme begins, many of these welders will have lapsed qualifications.

What QW-322 Actually Requires

Under QW-322, a welder’s qualification in a given process (e.g., GTAW, SMAW) lapses if they have not used that process during any 6-month period. The key points are: the continuity clock runs from the last date of welding with that specific process, not from the date of the qualification test; continuity can be maintained through welding work at any employer, on any project, provided it used the same process; and where a welder has maintained continuity through work elsewhere during the shutdown, they must provide documented evidence (a letter from the employer confirming the dates and process used, or a welding log signed by a qualified inspector) to reinstate their qualification for the platform’s project records.

ASME Section IX Reference — QW-322.1(a): “A welder or welding operator shall be requalified when the specific process has not been used for a period of 6 months or more.” This applies per-process: a welder qualified in both SMAW and GTAW who has been welding SMAW during the shutdown but not GTAW retains their SMAW qualification but loses their GTAW qualification. The processes are tracked independently. Maintain a process-specific continuity log for each welder — not just a general “welding activity” record.

Requalification Strategy for Platform Restart

For a platform restart programme involving a significant welding workforce, the requalification strategy must be planned 4–6 weeks ahead of the first hot-work start date. The following steps apply.

1
Audit the welder workforce qualification register

Pull the current ASME Section IX qualification record for every welder who will be involved in the restart programme. Note the last recorded production welding date for each process and calculate which qualifications have lapsed or will lapse before the planned start of welding operations.

2
Collect continuity evidence from demobilised welders

Contact demobilised welders and request documentation of any welding work performed during the shutdown period. An employer letter, a copy of a welding log with inspection sign-off, or a completed welder’s work record form from another project all constitute acceptable continuity evidence. This must be reviewed and accepted by the platform’s QA/QC manager before reinstatement.

3
Schedule requalification tests for lapsed welders

For welders with confirmed lapsed qualifications, arrange a requalification test programme using the applicable platform WPS positions and materials. For sour service pressure piping work — the highest-consequence welding on a platform restart — consider testing all welders regardless of continuity status, as this creates a documented baseline of current skill level under the specific WPS conditions they will work to on restart.

4
Update the welder qualification register and project records

Issue updated welder qualification records (Form QW-484 or equivalent) for all requalified welders. Update the platform’s weld identification system to ensure that all welds performed during the restart programme are traceable to a welder with a confirmed, current qualification at the time the weld was made. This traceability is required by ASME B31.3 Para. 328.5 and is the foundation of the weld quality records that insurance underwriters and regulatory authorities will review before reinstating pressure service authorisation.

PWHT Re-Verification: What Is Required and What Is Not

One of the most common questions raised during platform restart planning after an extended shutdown is whether post-weld heat treatment (PWHT) needs to be repeated. The answer, clearly stated, is no — PWHT is not repeated as a matter of course during restart. PWHT is a metallurgical process that permanently modifies the residual stress state and microstructure of a weld and its HAZ. These changes persist indefinitely. The heat treatment does not “wear off” or “lapse” during a shutdown period.

What is required during a restart programme is verification that the original PWHT was performed correctly and that the records documenting this are complete and accessible. This is particularly important for platforms where control room or document storage areas may have been damaged during the emergency shutdown event, or where document management systems were not backed up off-site before the evacuation.

PWHT Record Verification Protocol

  • Locate and verify the original PWHT time-temperature charts for all weld joints that were PWHT-treated during fabrication or previous maintenance. These should be in the platform’s permanent weld inspection records (PQR file and weld map records).
  • For each PWHT record, confirm that the chart shows: the actual temperature recorded by each thermocouple (not just the controller set-point), the hold time at the required temperature, the heating and cooling rates, and the calibration certificate reference for the recording instrument.
  • Where PWHT records are missing or incomplete, a hardness survey across the weld metal and HAZ of the affected joint is the accepted alternative method of demonstrating that effective PWHT was performed. A PWHT-treated carbon steel or low-alloy steel weld will have HAZ hardness below 248 HV10 (for sour service) or below the threshold specified in the applicable design code. Hardness above this level may indicate either inadequate original PWHT or post-weld service hardening and must be investigated.
  • If any repair welding was performed on the platform during or since the last recorded PWHT, confirm that the repair welding records include a PWHT record for the repair joint if PWHT was code-required. Repairs that omitted PWHT where it was required are a significant code non-conformance that must be addressed before restart.
Note on P91 Piping: For P91 (Grade 91 Cr-Mo steel) piping on platforms with high-temperature gas lift or export systems, PWHT is not merely a code requirement — it is essential for achieving the required tempered martensitic microstructure that gives P91 its creep resistance. If P91 weld PWHT records cannot be confirmed as compliant (temperature held at 730–780 degrees Celsius for the required duration per the applicable code), the joint must be treated as suspect and subjected to hardness survey and carbon equivalent verification before return to high-temperature service.

Pre-Restart Welding and Weld Integrity Clearance Checklist

The following checklist is structured as a minimum pre-restart verification programme for the welding and weld integrity aspects of a cold-stacked offshore platform return to service. It is intended to be used by the platform QA/QC manager and integrity engineer jointly, with each item signed off by the responsible party before restart authorisation is granted.

A. Welder and Procedure Qualification Records

  • All active welders’ ASME Section IX qualification records reviewed; continuity confirmed or requalification completed for all lapsed processes
  • WPS register reviewed; all WPS documents current and unrevised since last PQR qualification
  • Sour service WPS hardness acceptance criteria (max. 248 HV10) verified against current NACE MR0175/ISO 15156 revision
  • Any new repair WPS prepared during shutdown has completed PQR and is reviewed by AI (Authorised Inspection Agency)

B. Material Traceability and PWHT Records

  • MTR (mill test report) files confirmed accessible and complete for all pressure-boundary pipe and fitting materials on the platform
  • Heat number / material identification verified on all piping received during the shutdown period before any welding performed
  • PWHT records verified for all weld joints where PWHT was required; missing records addressed by hardness survey
  • PMI (positive material identification) programme completed for any materials received during the shutdown where grade identity is in question

C. NDE Inspection Clearances

  • GWUT screening completed on all carbon steel process piping runs >50 m; report signed off by Level III NDE coordinator
  • PAUT inspection completed on all Priority 1 weld joints; no unacceptable indications remaining unresolved
  • Structural weld inspection (VT + WFMT) completed for splash zone and tidal zone welds; ROV survey completed for submerged jacket joints
  • Any weld indications that required repair have been re-inspected after repair; results documented
  • Hardness survey completed for all sour service weld HAZ regions; no readings above 248 HV10

D. Corrosion Preservation Verification

  • Nitrogen blanket pressure log reviewed for all blanketed sections; any sections showing blanket loss have been inspected and cleared
  • Corrosion coupon data from preserved fluid circuits reviewed; inhibitor effectiveness confirmed
  • Cathodic protection potential readings confirmed at or above −800 mV (Ag/AgCl) across all monitored reference electrode locations
  • Coating condition in splash zone inspected; any weld toe coating breakdown repaired to original specification

E. Pressure Testing and Regulatory Sign-Off

  • Hydrostatic or pneumatic pressure test completed for any systems where repair welding was performed during the shutdown; test records filed
  • AI (Authorised Inspection Agency) has reviewed and endorsed all NDE reports, repair records, and pressure test certificates
  • National regulatory authority notification and any required sign-off completed per jurisdiction requirements (Qatar Ministry of Energy, ADNOC GSP, Saudi Aramco SAEP, etc.)
  • Weld map and inspection records updated to reflect all inspection findings and repairs performed during the shutdown period; revision-controlled and filed in platform permanent record

Recommended Technical References for Platform Integrity Engineers

Offshore Pipeline Engineering (Bai & Bai)
Comprehensive coverage of offshore pipeline and riser design, materials, welding, inspection, and integrity management — the standard reference for engineers working on Gulf platform piping systems.
View on Amazon
Corrosion Engineering: Principles and Solved Problems
Covers galvanic corrosion, MIC, cathodic protection, and marine corrosion mechanisms — directly applicable to understanding and managing weld corrosion during offshore cold-stack periods.
View on Amazon
Process Piping: Complete Guide to ASME B31.3
The definitive reference for ASME B31.3 compliance — covers pressure testing, inspection, repair welding requirements, and material traceability rules that govern offshore platform piping restart.
View on Amazon
Welding Inspection Technology (AWS)
The AWS CWI body of knowledge reference — covers NDE method selection, weld acceptance criteria, procedure and welder qualification records, and inspection documentation for all structural and pressure welding.
View on Amazon

Disclosure: WeldFabWorld participates in the Amazon Associates programme (StoreID: neha0fe8-21). If you purchase through these links, we may earn a small commission at no extra cost to you. This helps support free technical content on this site.

Frequently Asked Questions

What is cold-stacking an offshore platform and why does it create weld integrity risks?
Cold-stacking is the controlled shutdown of an offshore platform to minimum safe condition, with all process systems depressurised, utilities isolated, and only essential preservation systems running. It creates weld integrity risks because the removal of process fluid flow removes the protective magnetite film that forms at the pipe wall during normal operations. Wet carbon steel piping that held flowing crude or gas now holds stagnant, potentially oxygenated water or condensate — dramatically accelerating internal corrosion at weld seams and HAZ regions, where electrochemical potential differences make welds the preferential corrosion site. External marine corrosion on structural welds also accelerates when cathodic protection systems are not maintained at full output.
How long can an offshore platform be cold-stacked before weld integrity becomes a significant concern?
Internal pipeline corrosion at carbon steel weld seams can reach measurable levels within 4–8 weeks of stagnant service with oxygenated water present. For platforms cold-stacked for more than 3 months, a full internal inspection programme including PAUT or guided wave UT of all carbon steel process piping is warranted before restart. Structural weld corrosion in the splash zone accelerates noticeably after 6 months of inadequate cathodic protection. ASME B31.3 Para. 841.3 requires that pressure piping out of service for more than 6 months be re-inspected before being returned to pressure service — making 6 months the regulatory trigger for a mandatory inspection programme regardless of the visual condition of the equipment.
Does PWHT need to be re-verified or redone after a long platform shutdown?
PWHT does not need to be physically repeated after a shutdown — the heat treatment is a permanent metallurgical change. However, the PWHT records must be verified to confirm the original treatment was performed to code requirements. Where PWHT records have been lost during the disruption, hardness testing across all weld HAZ regions in the affected area is the accepted alternative method. For any repair welding performed during the shutdown period, new PWHT is required for that repair joint if the applicable code (ASME Section VIII UCS-56 or B31.3 Table 331.1) mandates it for the wall thickness and material P-number involved.
What happens to sour service piping weld qualifications during an extended cold-stack shutdown?
WPS/PQR procedure qualifications do not expire during a shutdown. However, welder qualifications under ASME Section IX QW-322 lapse after 6 months without use of the specific process, regardless of the reason for the gap. Welders who have not maintained continuity through work elsewhere must be requalified by test before performing sour service pressure piping welds on restart. Additionally, if the shutdown extended beyond 6 months, a hardness survey of sour service weld HAZ regions is recommended to confirm that no service-induced hardening has occurred at weld toes during the stagnant H2S exposure period.
Which NDE techniques are most important during a pre-restart inspection of a cold-stacked offshore platform?
The priority NDE methods are: guided wave UT (GWUT) for rapid screening of long pipe runs for corrosion at weld seams; PAUT for detailed volumetric inspection of flagged locations and mandatory Priority 1 weld joints; WFMT (wet fluorescent MT) for surface-breaking crack detection on all accessible structural weld toes in the splash zone; ROV-based visual survey and ACFM for submerged jacket structural joints; and calibrated UT thickness measurement at weld seam locations in all process piping. Visual inspection and liquid penetrant alone are not adequate for a pre-restart programme — volumetric NDE at weld seams is mandatory for any piping that held stagnant water during the idle period.
Can welding work be performed on an offshore platform during a cold-stack period?
Yes — a cold-stack period can be used productively for planned maintenance welding, structural repair, and piping modifications that are difficult during normal operations. However, all hot work on a cold-stacked platform requires rigorous gas-freeing and hot-work permit procedures, since residual hydrocarbons may remain in piping and the general topsides atmosphere. All repair welding must be performed under an approved WPS qualified to ASME Section IX or equivalent, with full welder qualification documentation. The cold-stack period is an excellent opportunity to perform corrosion allowance verification, pipe schedule upgrades, and structural weld repairs that normally cannot be isolated from live process without significant production loss.
What is the minimum pre-restart pressure test requirement for cold-stacked offshore process piping?
ASME B31.3 Para. 345 governs pressure testing. For piping returned to service without modification, a pressure test is not mandatory unless required by owner standards or jurisdiction regulations. However, where internal inspection reveals corrosion, weld degradation, or integrity concerns, a hydrostatic test to 1.5 times MAOP is strongly recommended before restart. Where any repair welding or modifications have been made during the shutdown, a pressure test is required per ASME B31.3 in accordance with the scope and nature of the work. Gulf regulatory authorities (Qatar, Saudi, UAE, Kuwait) typically require AI endorsement of the pressure test results before reinstating pressure service authorisation after an emergency shutdown event.
How does the Gulf marine environment specifically accelerate weld corrosion during a platform cold-stack?
The Arabian Gulf has one of the most corrosive marine environments in the world for offshore steel — characterised by high water temperature (up to 35 degrees Celsius), extreme salinity (42–45 ppt versus the global 35 ppt average), high chloride ion concentration, and active sulphate-reducing bacteria populations driving MIC in anaerobic zones. These factors combine to produce external structural weld corrosion rates of 0.3–0.5 mm/year in the splash zone without cathodic protection, and internal weld seam corrosion rates of 1–3 mm/year in stagnant water-containing carbon steel piping. A 6-month cold-stack without full corrosion preservation in these conditions can consume a measurable fraction of a pipe’s original corrosion allowance at the weld seams specifically.
