Post-Blast Structural and Weld Integrity Assessment of LNG Facilities: API 579 Fitness-for-Service, Shock Loading Effects, and Inspection Protocols (2026)
The post-blast weld integrity assessment of LNG facilities has moved from a theoretical emergency-preparedness topic to an immediate operational necessity following the Iranian missile and drone strikes on Gulf energy infrastructure in March 2026. Qatar’s Ras Laffan LNG complex — the world’s largest LNG export facility — sustained direct hits, with QatarEnergy reporting output cuts of approximately 17% for a period that may extend up to five years. Saudi, Kuwaiti, Bahraini, and UAE energy infrastructure also sustained varying degrees of damage. For welding engineers, inspection specialists, and pressure equipment integrity professionals, the central question is now a practical one: how do you systematically assess whether blast-exposed LNG pressure equipment — cryogenic tanks, process piping, heat exchangers, and compressor systems — is fit to return to service, and what repair welding is required where it is not?
This article provides a structured technical framework for post-blast weld integrity assessment of LNG facilities, grounded in API 579-1/ASME FFS-1 (Fitness-for-Service) methodology, ASME Section V and Section IX requirements, and established NDE practice for cryogenic pressure equipment. It covers the physics of blast overpressure loading on welded joints, why visually undamaged equipment can still be unfit for service, the hierarchy of non-destructive examination methods for detecting blast-induced weld damage, fitness-for-service assessment levels appropriate to different damage scenarios, and the specific welding and inspection requirements for 9% nickel steel LNG storage tanks — the most demanding material in this class of work.
The guidance here applies equally to inspection engineers assessing equipment on behalf of operators, repair welding contractors mobilising to affected facilities, and QA/QC managers establishing assessment and documentation protocols under time pressure. A methodical, code-compliant approach to post-blast assessment is not merely a regulatory requirement — it is the difference between a safe, justified return to service and a catastrophic secondary failure that compounds an already severe situation.
The 2026 Gulf LNG Infrastructure Damage: What Happened and What It Means for Integrity Engineers
To understand the scale of the integrity assessment task now facing the industry, it is important to understand the physical events. Beginning on February 28, 2026, US–Israeli strikes targeted Iranian military and leadership facilities. Iran’s retaliatory response was unprecedented in its geographic scope: ballistic missiles and drones struck energy infrastructure across all six GCC member states — Saudi Arabia, the UAE, Qatar, Kuwait, Bahrain, and Oman — in a coordinated campaign specifically designed to inflict maximum economic damage through the energy sector.
The most consequential single strike hit Qatar’s Ras Laffan Industrial City, which hosts the world’s largest concentration of LNG liquefaction trains. QatarEnergy subsequently declared force majeure and reported the partial shutdown of its 77 million tonnes per annum (mtpa) facility. Saudi Arabia’s Abqaiq refinery complex — already the target of the 2019 drone attack — sustained additional damage to stabilisation and processing units. Kuwait Petroleum Corporation and the Bahrain Petroleum Company (BAPCO) also declared force majeure, confirming infrastructure hits at their respective processing facilities.
From an integrity engineering perspective, the damage scenarios range enormously across affected facilities: direct blast overpressure on storage tanks and process vessels, fire exposure of insulated piping and equipment, fragmentation impact on vessel shells and nozzles, foundation and anchor bolt failures affecting piping stress states, and instrument and control system failures that may have caused abnormal pressure or thermal transients during the event. Each damage mode requires a different assessment approach, and in most real-world blast events, multiple modes are present simultaneously.
Blast Overpressure Physics: How Shock Loading Damages Welds
Understanding what blast loading actually does to welded pressure equipment is essential for designing an appropriate inspection programme. The mechanisms are substantially different from the static and cyclic loads for which pressure equipment is normally designed and assessed.
The Overpressure Wave
A conventional explosive — or the equivalent energy release from a missile warhead or drone payload — generates a spherically expanding overpressure wave. This wave has a characteristic shape: an extremely rapid rise to peak overpressure (the shock front, arriving in microseconds), followed by a positive-phase duration of milliseconds, then a negative-phase underpressure, and finally a return to ambient conditions. The peak overpressure and the impulse (the area under the pressure-time curve) together determine the structural loading.
For large, stiff structures such as LNG storage tanks, the relevant parameter is the dynamic load factor (DLF) — the ratio of the maximum structural response to the equivalent static load. Because blast duration is typically shorter than the natural period of large vessels, the DLF for tanks and large-diameter vessels is often less than 2, meaning the peak structural stress is less than twice the equivalent static case. For smaller-diameter piping, however, the natural period is shorter and the DLF can approach 2 or exceed it for near-field blasts, meaning piping systems can be loaded significantly beyond their static design capacity during the positive phase.
Weld Toe Stress Concentration and Crack Initiation
The critical failure mode for welded joints under blast loading is fatigue crack initiation at the weld toe — the geometric discontinuity where the weld bead meets the parent metal surface. Even a single, high-amplitude blast load cycle can initiate a crack at a weld toe that would have survived millions of normal-pressure cycles. This happens because the stress concentration factor (SCF) at the weld toe — typically 1.5 to 3.0 depending on weld profile and geometry — multiplies the already elevated blast stress into the plastic regime locally, even when the nominal stress remains below yield.
The geometry of LNG process piping — which includes numerous nozzle-to-shell junctions, branch connections, and small-bore attachments — creates multiple stress concentration sites where weld toe cracking initiates preferentially. Full-penetration welds at nozzles and branch connections are particularly vulnerable because the weld toe runs around the full circumference and the stress intensification from the nozzle geometry adds to the weld toe SCF.
Fire Exposure Effects on Weld Properties
Where blast events are accompanied by fire — as was the case in several of the 2026 Gulf facility strikes — additional weld metallurgy concerns arise. Carbon steel and low-alloy steel weld metal and heat-affected zones exposed to temperatures above approximately 500 degrees Celsius undergo microstructural changes depending on the temperature reached and cooling rate. Rapid cooling after a short-duration intense fire (as in a fuel-air explosion) can cause localised hardening in the HAZ of carbon steel welds — the opposite of the softening that occurs during controlled post-weld heat treatment. This hardened zone is more susceptible to hydrogen-assisted cracking if the material is subsequently exposed to moisture or cathodic protection currents.

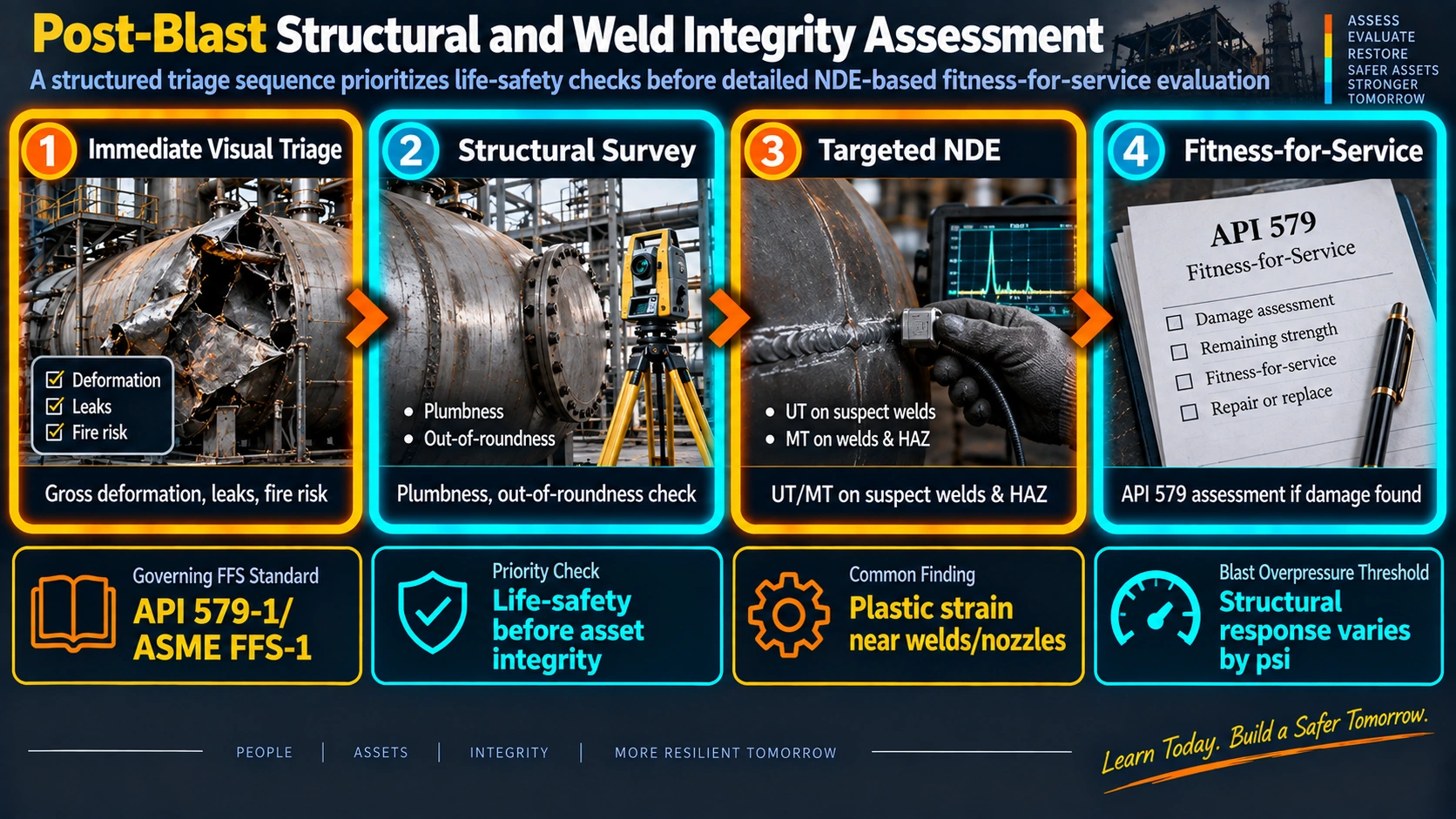

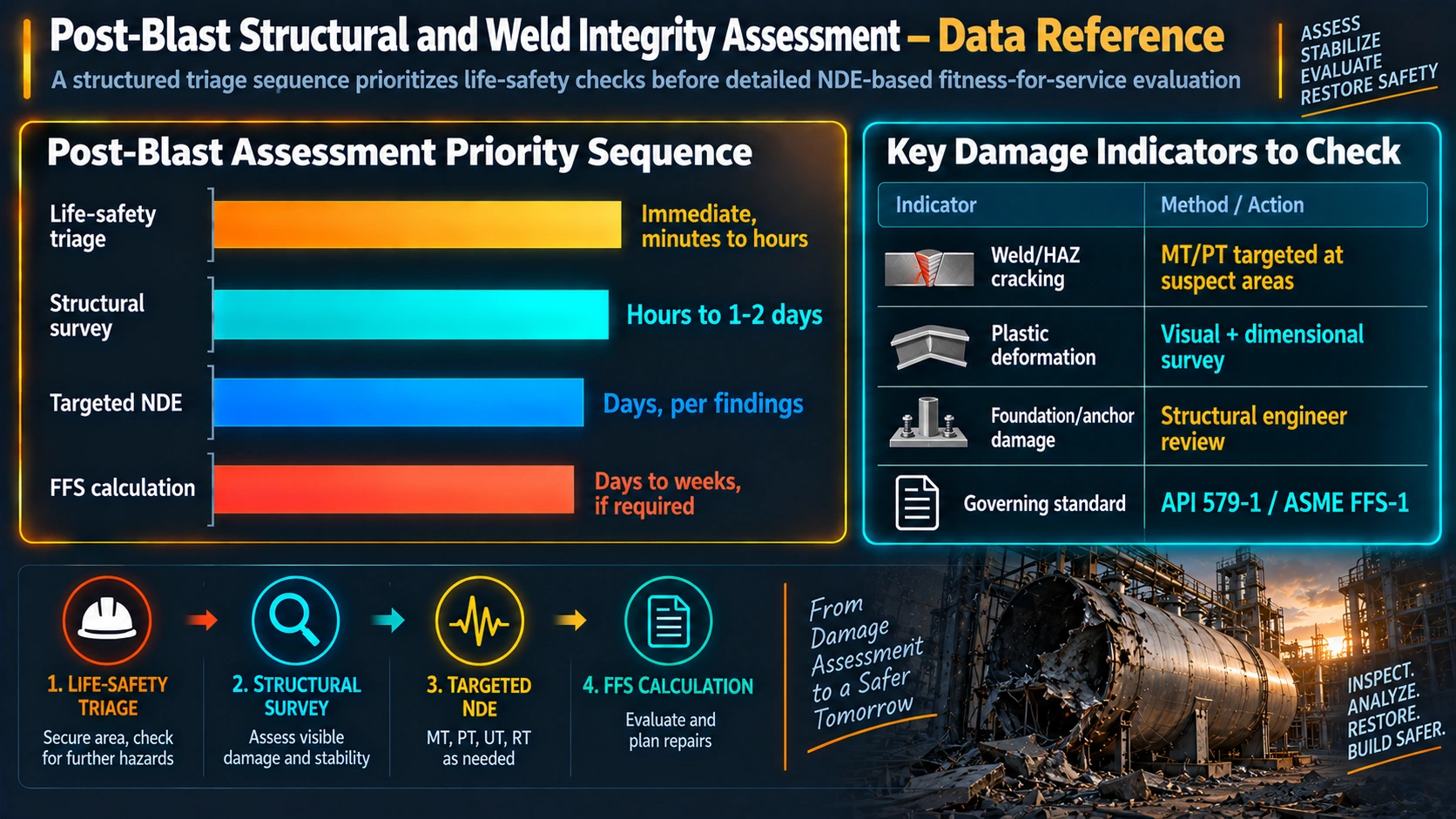

Immediate Post-Blast Response: The First 72 Hours
The actions taken in the first 72 hours after a blast event determine how successfully and safely the subsequent assessment and repair programme unfolds. A disorganised or rushed initial response — particularly one driven by commercial pressure to restore production as quickly as possible — creates conditions for missed damage, incomplete documentation, and unsafe return to service.
All pressurised systems within the blast zone must be depressurised to safe isolation pressure. Process, instrument air, and utility supplies must be positively isolated at battery limit valves. The exclusion zone radius should be established based on the size of the largest pressurised vessel present — typically a minimum of 200 metres for large LNG storage tanks.
Before any personnel enter the blast zone for visual assessment, continuous atmospheric monitoring for methane (lower explosive limit), H2S if sour service is present, and oxygen deficiency must be established. Use portable 4-gas detectors with data-logging. Set up a fresh-air refuge point upwind of the zone.
Before touching or moving any equipment, document everything photographically in a systematic grid pattern. Photograph every visible deformation, cracking, nozzle distortion, piping displacement, and support damage. For any vessel shell showing visible dents or buckles, measure and record the deformation using a straight-edge or curvature gauge against the original design radius — this data feeds directly into the API 579 Level 2 assessment.
Create a numbered register of every pressure vessel, heat exchanger, piping run, and rotating equipment item within the blast zone. Classify each item into one of three initial categories: Visibly undamaged (still requires volumetric NDE before clearance), Visibly deformed but potentially repairable, or Visibly destroyed (plan for replacement). The first category is the most dangerous if it leads to a false sense of security.
The assessment team must include: a pressure vessel engineer qualified in API 579 FFS methodology, Level II or Level III PAUT and TOFD operators qualified to SNT-TC-1A or PCN/CSWIP equivalent, a Level III NDE coordinator, and a welding engineer with experience in the materials present (particularly if 9% nickel cryogenic steels are involved). This team should operate to a written inspection plan before any NDE begins.
Material traceability — MTRs, P-number records, original fabrication inspection records, and as-built weld maps — must be located and secured. In the chaos of a blast event, document control rooms can be physically damaged. Back up all electronic records to an off-site cloud system immediately. Material identity (heat numbers) on pipe and vessels must be re-verified by direct inspection before any repair welding is performed.
API 579-1/ASME FFS-1: Fitness-for-Service Assessment Methodology for Blast-Damaged Equipment
API 579-1/ASME FFS-1 (Fitness-for-Service) is the primary international standard for assessing whether in-service pressure equipment containing damage or deterioration is fit to continue operating. For blast-damaged equipment, it provides the structured methodology for determining whether equipment can be returned to service as-is, returned to service with operating restrictions, repaired, or must be replaced. Understanding the three assessment levels and which applies to blast scenarios is fundamental.
Applicable API 579 Parts for Blast Damage Scenarios
| API 579 Part | Subject | Blast Damage Application | Assessment Level |
|---|---|---|---|
| Part 1 | FFS Assessment Procedures & Limitations | General scope, data requirements, documentation — applies to ALL blast assessments | All levels |
| Part 3 | Local Thin Areas | Shell wall thinning from fragmentation impact, corrosion erosion at blast-exposed surfaces | 1 & 2 |
| Part 5 | Local Bulges / Dents | Shell dents and buckles from blast overpressure — primary Part for deformed vessels | 2 & 3 |
| Part 6 | Weld Misalignment & Shape Imperfection | Nozzle rotation, weld-line offsets caused by blast displacement of supports | 1 & 2 |
| Part 9 | Crack-Like Flaws | Weld toe cracks confirmed by PAUT/TOFD — fracture mechanics assessment of crack-like indications | 3 only |
| Part 10 | Fire Damage | Equipment exposed to fire during or after blast event — temperature estimation, microstructure assessment, hardness survey | 2 & 3 |
| Part 11 | Fatigue Damage | Assessment of cumulative blast-initiated fatigue damage where equipment will return to pressure cycling service | 3 only |
NDE Methods for Blast-Induced Weld Damage Detection
The selection of appropriate NDE methods for blast-affected LNG equipment is not a matter of choosing whichever technique is most conveniently available on site. Each method has specific capabilities and limitations that determine whether it will detect the particular damage modes associated with blast loading. Using an inadequate technique — particularly relying on visual inspection or liquid penetrant alone — and issuing a clearance certificate on that basis is a serious professional and legal liability.
Phased-Array Ultrasonic Testing (PAUT) — Primary Method
PAUT is the most effective method for detecting the sub-surface weld toe cracks that are the primary blast damage concern in ferritic pressure steels. Using electronically steered and focused ultrasonic beams, PAUT inspects the weld toe fusion zone from both sides simultaneously and provides a full volumetric B-scan image of the weld cross-section. Indication sizing accuracy is typically within ±1 mm for depths above 3 mm using TOFD correlation, making it suitable for determining whether a detected crack falls within or outside API 579 Part 9 screening criteria.
For blast-assessed welds, PAUT inspection should use a scanning index point that places the beam centre directly on the weld toe region. A 45-degree and 60-degree compound focal law set is appropriate for most pressure vessel wall thicknesses. All scans should be recorded and stored as part of the FFS assessment package.
Time-of-Flight Diffraction (TOFD)
TOFD is used as the primary sizing tool for any crack-like indication detected by PAUT. Its through-wall depth sizing accuracy (typically ±0.5–1.0 mm) is significantly better than PAUT alone, and this accuracy is critical when determining whether a detected crack is within API 579 Part 9 acceptance criteria or requires repair. TOFD is also effective as a primary detection method for planar flaws near the weld centreline and upper-surface regions that may be missed by angle-beam PAUT scans.
Magnetic Particle Testing (MT) — Wet Fluorescent Method
MT using the wet fluorescent (WFMT) method with a minimum tangential field strength of 30 A/cm is required for all surface-breaking crack detection in ferritic weld metal and HAZ regions. WFMT is significantly more sensitive than dry powder or visible ink methods and will detect tight surface-breaking cracks that visible MT misses. All weld toes within the blast zone should receive 100% WFMT coverage. MT cannot be used on 9% nickel steel welds with austenitic filler metal — in that case, liquid penetrant testing (PT) or eddy current array (ECA) is substituted.
Hardness Survey — Blast Fire Combination Cases
Where fire exposure is confirmed or suspected, a systematic portable hardness survey (using a Leeb rebound or Brinell hydraulic instrument) must be conducted across all weld metal and HAZ regions within the fire envelope. Readings should be taken at maximum 200 mm intervals along each weld and at nozzle HAZ locations. Results are plotted on an as-built weld map and reviewed against the applicable hardness limit — typically 248 HV10 for sour service applications per NACE MR0175, or 350 HV10 as a general upper limit for non-sour carbon steel welds per BS EN ISO 15614-1.
| NDE Method | Detects | Cannot Detect | Applicable to 9% Ni? | Required for Blast Assessment? |
|---|---|---|---|---|
| Visual Testing (VT) | Surface deformation, gross cracking, visible damage | Sub-surface cracks, tight surface cracks | Yes | Yes — always first step |
| PAUT | Sub-surface planar flaws, weld toe cracks >1 mm depth | Surface-breaking cracks (use MT/PT for these) | With austenitic probes, yes | Yes — mandatory volumetric NDE |
| TOFD | Through-wall depth of planar flaws; upper-surface cracks | Near-surface <3 mm (dead zone); small porosity | Yes | Yes — for all sized indications |
| Wet Fluorescent MT | Surface and near-surface cracks in ferritic steel | Sub-surface flaws; austenitic or 9% Ni welds | No — non-magnetic | Yes — all ferritic weld toes |
| Liquid Penetrant (PT) | Open surface-breaking flaws | Tight cracks, sub-surface flaws | Yes | Yes — on 9% Ni / austenitic welds |
| Radiographic Testing (RT) | Volumetric flaws (porosity, slag), gross cracks | Tight planar cracks, weld toe cracks | Yes | Supplementary only — not primary for blast |
| Portable Hardness Testing | HAZ hardening from fire exposure | Flaws of any kind | Yes | Required if fire exposure suspected |
9% Nickel Steel LNG Storage Tanks: Special Assessment Considerations
Full-containment LNG storage tanks — the characteristic double-shell cryogenic structures present at major LNG export terminals including Ras Laffan — are constructed from 9% nickel steel (ASTM A553 Type I or Type II) for the inner tank, with an austenitic stainless steel or carbon steel outer shell. These materials behave very differently from standard carbon steel pressure equipment under both blast loading and weld repair conditions, and they require specific assessment protocols.
Why 9% Nickel Steel Is Different
9% nickel steel achieves its exceptional cryogenic toughness through a highly refined martensitic-austenitic microstructure produced by a double normalising and tempering treatment. This microstructure is extremely sensitive to thermal cycles — any welding or heating operation on 9% nickel steel changes the microstructure in the HAZ and can reduce its cryogenic toughness. This is why the welding of 9% nickel steel uses austenitic (nickel-alloy) consumables rather than matching filler metal: the austenitic filler metal maintains ductility at −196 degrees Celsius regardless of HAZ changes in the base metal, while the matching composition would be susceptible to HAZ embrittlement.
For blast assessment, this means: any assessment that concludes 9% nickel inner tank welds require repair must be very carefully scoped. In-situ repair welding of 9% nickel steel is technically demanding, requires strict preheat control (interpass temperature below 150 degrees Celsius, typically no preheat required for base metal), and necessitates full Charpy impact testing of the repair weld at −196 degrees Celsius before the repair is accepted. The alternative — replacement of a damaged tank shell section — is a major construction operation requiring fabrication yard support.
| Material | Filler Metal (SMAW) | Filler Metal (GTAW) | Preheat (Base Metal) | Interpass Temp. Max. | PWHT Required? | Impact Test Temp. |
|---|---|---|---|---|---|---|
| 9% Ni Steel (ASTM A553 Gr.I) | ENiCrMo-6 | ERNiCrMo-3 | None required | 150°C | No | −196°C, min. 27 J avg. |
| 5% Ni Steel (ASTM A645) | ENiMo-8 or ENiCrMo-6 | ERNiMo-8 | None required | 120°C | No | −170°C, min. 27 J avg. |
| 304L/316L SS (outer tank) | E308L-XX / E316L-XX | ER308L / ER316L | None required | 175°C | No (solutioned if local) | −196°C, per UG-84 |
| Carbon Steel (outer shell, A516 Gr.70) | E7018 or E8018-C3 | ER70S-6 | Per CE; typ. 50–100°C | 250°C | Per UCS-56 thickness rules | Per UG-84 / UCS-66 curve |
Repair Welding Procedures: Code Requirements and Practical Execution
Where the FFS assessment concludes that repair is required, a repair welding programme must be established before any welding begins. This is not simply a matter of grinding out the defect and rewelding — the code requirements for repair welding of pressure equipment in service are specific, and deviating from them invalidates the repair and potentially the FFS assessment that justified it.
WPS and PQR Requirements for Repair Welding
All repair welding of pressure-boundary components must be performed under a qualified Welding Procedure Specification (WPS) supported by a Procedure Qualification Record (PQR) per ASME Section IX. A repair WPS is not the same as the original construction WPS — it must specifically address the repair geometry, which typically involves welding into an excavated cavity (rather than a prepared joint), and may involve welding in a position or on a thickness range not covered by the original construction PQR. A new PQR must be prepared if the original does not cover the repair conditions.
Particular attention is required to the essential variables under ASME Section IX QW-250 that govern repair versus construction welds. If the repair involves welding into a base metal that has been fire-hardened (elevated hardness in the HAZ), the repair WPS must include PWHT where the applicable code (ASME Section VIII UCS-56, or ASME B31.3 Table 331.1) requires it for the wall thickness and material P-number involved.
Defect Removal and Excavation
Before any repair welding, the defective region must be completely removed by mechanical grinding, gouging, or machining. For weld toe cracks detected by PAUT, the excavation depth must extend at least 2 mm below the deepest indication tip size confirmed by TOFD, plus a 10% depth margin. After excavation, PT or MT must confirm that no residual crack indication remains before welding begins. Grinding back to bright metal and re-examining is the only reliable method — any remaining dark staining in a ground groove should be treated as a potential continuation of the crack until proven otherwise by high-sensitivity NDE.
PWHT of Repair Welds on Fire-Damaged Carbon Steel
Where carbon steel pressure equipment welds are located in a zone that sustained fire exposure and post-blast hardness testing has confirmed HAZ hardness above the applicable limit (typically 248 HV10 for sour service, 350 HV10 for non-sour), the repair programme must include local post-weld heat treatment (PWHT) per the requirements of ASME Section VIII UCS-56 or ASME B31.3 Table 331.1 as applicable. For in-situ PWHT of large vessels or piping that cannot be furnace-treated, electrical resistance or induction heating methods per ASME Section VIII Non-Mandatory Appendix QQ are acceptable, provided the heating band width, thermocouple placement, temperature uniformity, and heating/cooling rates all comply with code requirements. All PWHT time-temperature records must be calibrated chart recorder outputs — a manual log is not acceptable for code-compliance PWHT.
Documentation Package: What Regulators, Insurers, and Auditors Will Require
The commercial and regulatory consequences of returning blast-damaged LNG equipment to service without a complete, traceable documentation package are severe. National regulatory bodies in Qatar, Saudi Arabia, UAE, and Kuwait all require authorised inspection agency (AI) sign-off on pressure equipment before restart after a damage event. Insurance underwriters will require the full technical package before reinstating property damage and business interruption cover. The following documentation must be compiled for every item of pressure equipment assessed and cleared for return to service.
| Document | Content Requirement | Responsible Party | Status for Restart Clearance |
|---|---|---|---|
| Blast Event Record | Date, time, estimated overpressure at each equipment location, source data for estimates (distance, charge weight, witness statements) | Plant operations / EPC contractor | Mandatory |
| Photographic Survey Report | Systematic grid photography of all affected equipment; numbered, geolocated if possible; timestamped | Inspection contractor | Mandatory |
| Dimensional Deformation Record | Calibrated measurements of all shell dents, nozzle rotations, piping displacements; referenced to as-built drawings | Inspection contractor / structural engineer | Mandatory |
| NDE Reports (PAUT/TOFD/MT) | Full scan records for all Priority 1 and 2 weld joints; calibration records; operator qualifications; indication maps | Level III NDE coordinator | Mandatory |
| API 579 FFS Assessment Report | Signed by qualified pressure vessel engineer; covers all applicable Parts; states assessment level, result, and any operating restrictions | Pressure vessel / integrity engineer | Mandatory |
| Hardness Survey Report | Required where fire exposure confirmed; grid map of readings on weld map; instrument calibration records | Inspection contractor | Required if fire exposure |
| Repair WPS, PQR, Welder Certs | For all repair welds performed; WPS revision-controlled; PQR laboratory test results; welder ASME Section IX qualifications | Repair welding contractor / QA/QC | Required if repairs performed |
| PWHT Charts | Calibrated chart recorder output for every PWHT cycle; thermocouple placement map; heating equipment calibration | PWHT contractor | Required where PWHT performed |
| AI / Third-Party Inspector Sign-Off | Authorised Inspection Agency review and endorsement of FFS assessment and NDE results | AI (e.g., TUV, Bureau Veritas, Intertek) | Mandatory for pressure restart |
| Revised Risk Register / ITPM Update | Updated integrity, technical, and PM register reflecting blast event as inspection trigger; next due dates established | Asset integrity team | Required for ongoing operations |
Recommended Technical References for Post-Blast Integrity Assessment
These titles are the core references for engineers conducting API 579 fitness-for-service assessments, NDE of pressure equipment, and repair welding of cryogenic materials.
