Preheat Temperature Calculator — ASME P-Number and Carbon Equivalent Method
Preheat temperature is one of the most consequential variables in any welding procedure. Applied correctly, it eliminates hydrogen-induced cold cracking (HICC) — the leading cause of in-service weld failures on carbon and alloy steels. Applied incorrectly — too low, too narrow, or not maintained — it offers no protection while creating a false sense of compliance. This calculator delivers minimum preheat values via two parallel routes: the ASME P-Number method (using B31.3 Table 330.1.1 and B31.1 Table 131.4.1-1 mandatory code limits by material group and thickness) and the Carbon Equivalent (CE) method (using the IIW CE formula or the Pcm formula for low-carbon HSLA steels, per EN ISO 1011-2 and AWS D1.1 Annex B). Both routes also output interpass temperature limits, post-weld hydrogen bake-out guidance, and full step-by-step formula workings — so you understand not just what the number is, but why.
This guide covers the metallurgical basis for preheat, the correct formula to use for each steel type, the ASME P-Number table in full, measurement procedures per code, and every practical situation where the code minimum is insufficient. Whether you are writing a WPS under ASME Section IX, checking an in-progress weld in the field, or reviewing a PQR for a pressure vessel or piping system, the tools and reference tables here give you everything in one place.
Preheat Temperature Calculator
ASME P-Number (B31.3 / B31.1) · CE / IIW Method · Pcm Method — choose your input route
Enter steel chemistry from the MTC. The calculator computes CE (IIW), then applies EN ISO 1011-2 Method A (combined thickness method) for preheat. Best for C > 0.18%.
Pcm formula (Ito-Bessyo) — use for modern HSLA / fine-grain steels with C < 0.18%. Enter chemistry from MTC. Preheat from: T = 1440×Pcm − 392 °C.
Minimum code values only. Higher preheat may be required by the WPS, client specification, or actual restraint conditions. Always verify against the applicable construction code edition in effect and the qualified WPS/PQR. Temperature measuring instruments must be calibrated.
Why Preheat Matters — The Metallurgical Basis
Cold cracking in welds — also called hydrogen-induced cold cracking (HICC), hydrogen-assisted cracking (HAC), underbead cracking, or delayed cracking — is responsible for more in-service pressure equipment failures than any other single weld defect type. Unlike hot cracking, which forms during solidification while the weld is still near melting point, cold cracking typically initiates hours to days after welding has been completed and the joint has fully cooled. This delayed onset means it can pass visual inspection and even initial NDE, only to manifest as a leak or fracture under operating load.
Three conditions must simultaneously be present for HICC to occur, sometimes called the “cold cracking triangle”:
| Factor | What It Means | How Preheat Addresses It |
|---|---|---|
| Susceptible microstructure | Hard martensite in the HAZ (HAZ hardness > 350 HV is a common threshold) | Slower cooling rate reduces martensite fraction; more bainite and ferrite form instead |
| Diffusible hydrogen | Hydrogen picked up from moisture, flux, or atmosphere during welding (measured in mL/100g) | Elevated temperature accelerates hydrogen diffusion out of the weld metal and HAZ before the joint becomes brittle |
| Residual tensile stress | Thermal contraction stresses locked into the joint during cooling | Reduced thermal gradient during cooling lowers residual stress magnitude; preheat alone cannot eliminate this, but reduces its severity |
Remove any one of these three factors and cold cracking cannot occur. Preheat attacks the first two directly and reduces the third indirectly. This is why low-hydrogen consumables (E7018-H4, E9018-G-H4) and preheat are always specified together for high-CE steels — each reduces a different leg of the triangle.
ASME P-Number System — Material Classification for Preheat
The P-Number system is defined in ASME Section IX, Table QW/QB-422. It groups materials with similar composition, weldability, and mechanical properties to reduce the number of welding procedure qualifications needed. Critically for preheat purposes, each P-Number group has defined minimum preheat requirements in the construction codes (B31.3, B31.1, Section VIII) that are mandatory minimums, not recommendations. When a code says “minimum preheat 150 °C”, it means no weld may be made on that material at any lower temperature — not even tack welds.
The P-Number assignment also feeds directly into ASME Section IX QW-406, which classifies preheat as an essential variable for most processes. A decrease of more than 55 °C (100 °F) from the PQR-qualified preheat temperature requires requalification of the WPS. For more on qualification ranges and essential variables, see our P-Number, F-Number, and A-Number guide.
ASME B31.3 Table 330.1.1 — Preheat Requirements by P-Number
This is the governing preheat table for process piping fabricated under ASME B31.3. Thickness is the nominal wall thickness of the thicker component at the joint. When two materials with different preheat requirements are joined, the higher preheat applies.
| P-Number | Material (typical) | Thickness | Min. Preheat (°C) | Min. Preheat (°F) | Max. Interpass | Status |
|---|---|---|---|---|---|---|
| P-1 | Carbon steel: SA-106B, SA-516-70, SA-105, A36 | ≤ 25 mm (1″) | 10 | 50 | — | Recommended |
| P-1 | Carbon steel: SA-106B, SA-516-70, SA-105 | > 25 mm (1″) | 80 | 175 | — | Required |
| P-3 | C-0.5Mo, 1Cr-0.5Mo: SA-335 P1/P2, SA-182 F2 | All | 120 | 250 | 300 °C | Required |
| P-4 | 1.25Cr-0.5Mo, 2.25Cr-1Mo: SA-335 P11/P22, SA-182 F11/F22 | All | 150 | 300 | 300 °C | Required |
| P-5A | 5Cr-0.5Mo: SA-335 P5, SA-182 F5 | All | 200 | 400 | 300 °C | Mandatory — critical |
| P-5B | 9Cr-1Mo: SA-335 P9, SA-182 F9 | All | 200 | 400 | 300 °C | Mandatory — critical |
| P-15E | Grade 91 (9Cr-1Mo-V): SA-335 P91, SA-182 F91 | All | 200 | 400 | 300 °C | Mandatory — critical |
| P-6 | 13Cr Martensitic SS: SA-182 F6a, AISI 410 | All | 200 | 400 | — | Mandatory |
| P-7 | 17Cr Ferritic SS: SA-182 F429, AISI 430 | All | 50 | 125 | — | Required |
| P-8 | Austenitic SS: 304L, 316L, 321, 347 | All | None | — | 175 °C max | None required |
| P-10I | Duplex SS 2205, 2507 | All | None typically | — | 150 °C max | Interpass limit critical |
| P-31 to P-35 | Nickel alloys: Inconel 625, 718, Alloy 20 | All | None typically | — | 175 °C max | None required |
| P-41 to P-49 | Aluminium alloys: 5083, 6061, 5052 | All | None | — | — | None required |
Carbon Equivalent Formulas — IIW Method and Pcm Method

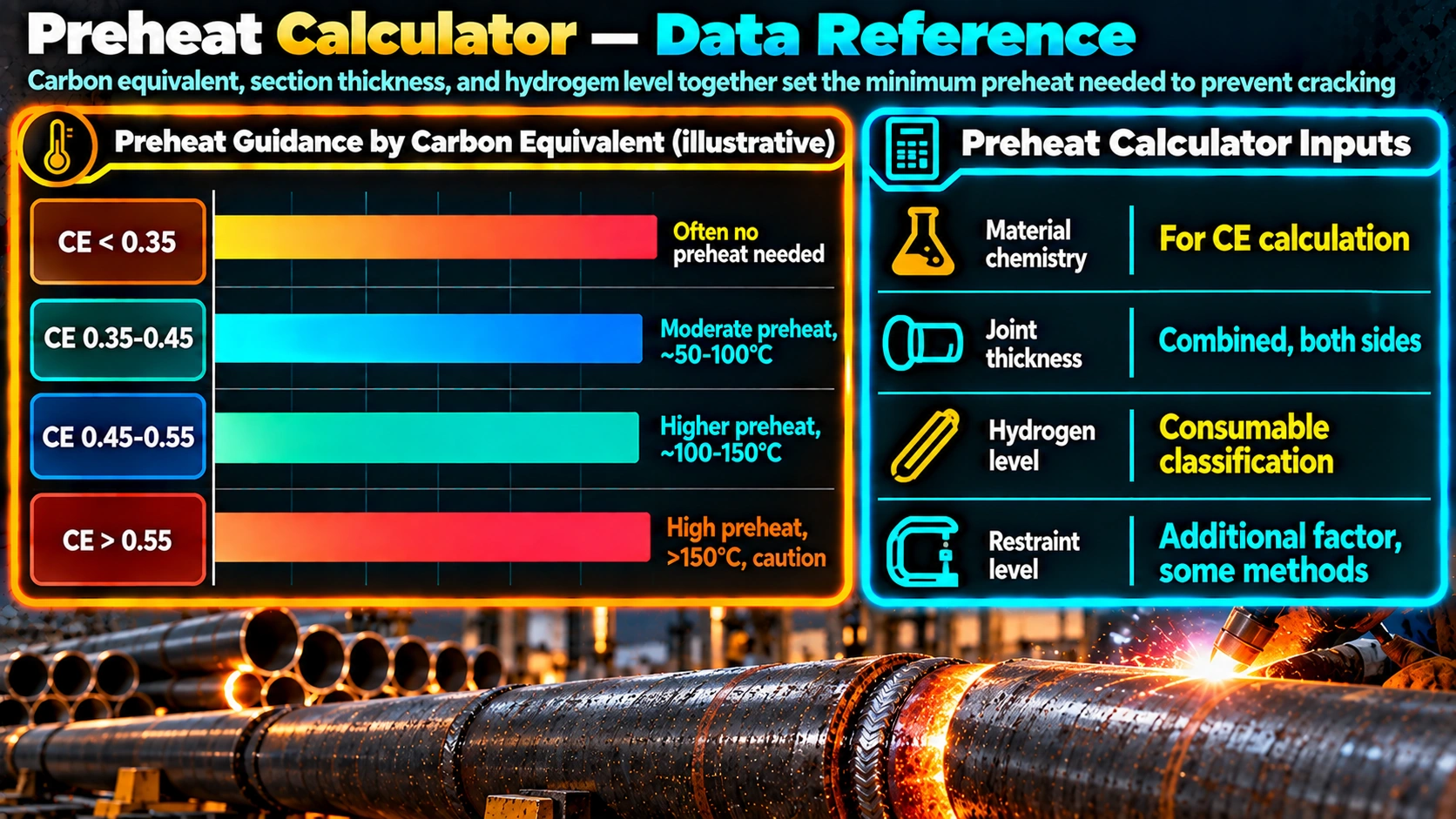

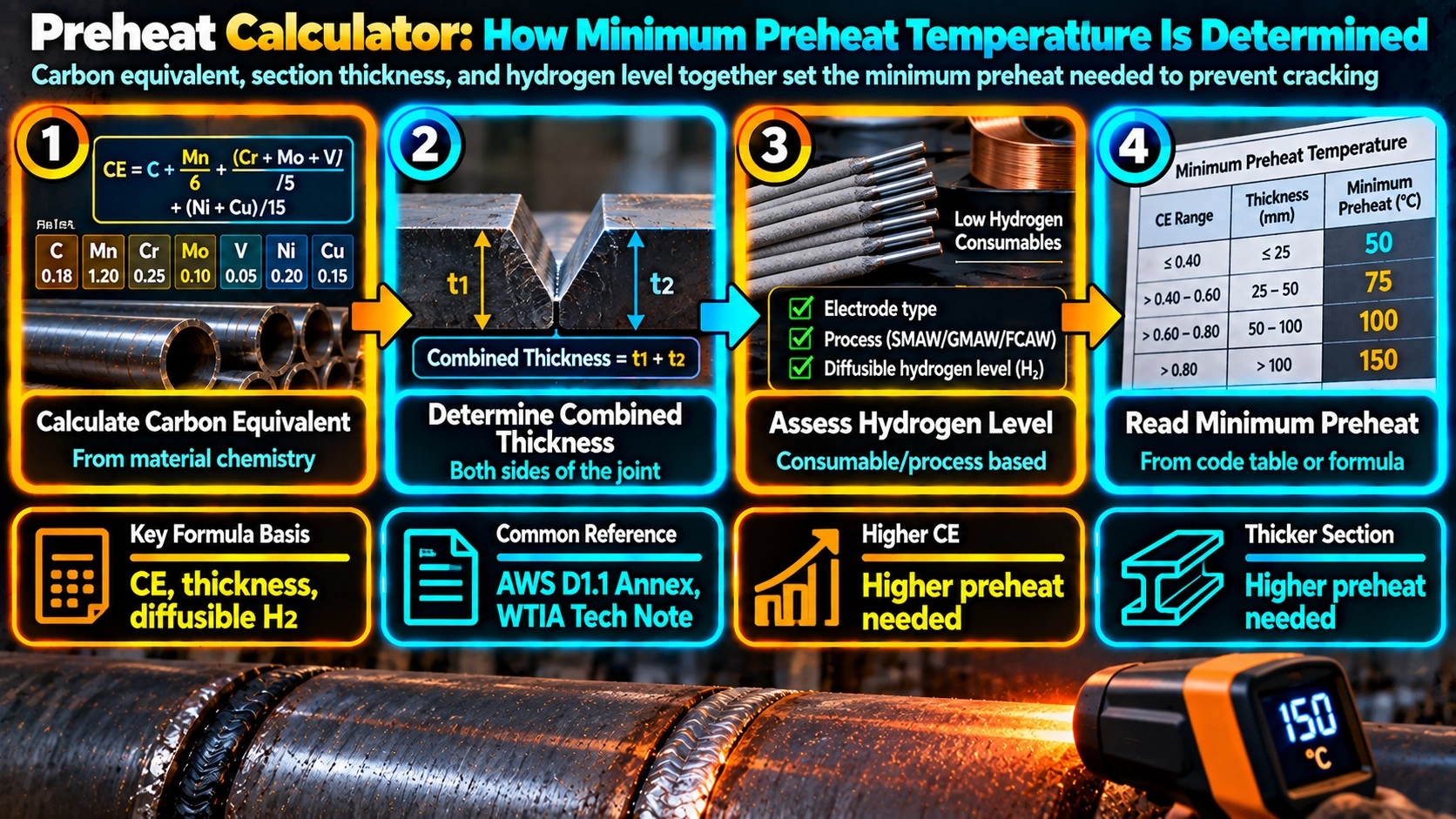

When you have the steel chemistry from the Mill Test Certificate (MTC), you can calculate a carbon equivalent value that quantifies hardenability more precisely than P-Number alone. There are two primary CE formulas in use, and using the wrong one for the steel type will give a misleading result. See our dedicated Carbon Equivalent Calculator and Guide for full details on both formulas and their code references.
IIW Carbon Equivalent — EN ISO 1011-2 Method A (C > 0.18%)
Pcm Formula — Ito-Bessyo Method (C < 0.18%, HSLA steels)
Hydrogen Scale and Its Effect on Preheat
The hydrogen content of the deposited weld metal is classified by the “H” designator on the consumable packaging — for example, E7018-H4 means a maximum of 4 mL of diffusible hydrogen per 100 g of deposited weld metal. The effect on required preheat is significant:
| Hydrogen Class | Max H2 (mL/100g) | Preheat Adjustment | Typical Consumables |
|---|---|---|---|
| H16 | 16 | Full code minimum preheat required | Cellulosic E6010/E6011, basic uncontrolled |
| H8 | 8 | Preheat may be reduced 25–30 °C vs H16 | E7018 (standard), ER70S-2 (TIG) |
| H4 | 4 | Preheat may be reduced 40–50 °C vs H16 | E7018-H4, ER308L, ER316L (TIG/MIG) |
| H2 | 2 | Preheat may be reduced 50–75 °C vs H16 | E7016-1H2, premium filler metals, orbital TIG |
Preheat Requirements by Material — Detailed Engineering Notes
P-1 Carbon Steel — SA-106 Gr. B, SA-516 Gr. 70
Carbon steel is the most widely used pressure piping material and has the most nuanced preheat rules. The code table sets a threshold at 25 mm (1 inch) wall thickness, but this does not tell the whole story. A high-carbon P-1 material (C = 0.28%, CE = 0.52) with 20 mm wall thickness technically requires no preheat per the code table — but the CE method would indicate preheat of 100–120 °C. Always use the CE method as a check alongside the P-Number table when the carbon content is above 0.22%.
For P-1 materials, SMAW with E7018-H4 is the most common choice for high-restraint joints or when ambient temperature is below 10 °C. The combination of low-hydrogen consumables and even moderate preheat (50–80 °C) provides reliable HICC prevention even on carbon-heavier heats. For routine work with normal chemistry (C < 0.22%, CE < 0.42), no preheat is needed with low-hydrogen electrodes in a heated workshop.
P-3 and P-4 — Chrome-Moly Steels
Chrome-moly steels from P-3 (1Cr-0.5Mo) through P-4 (2.25Cr-1Mo, SA-335 P22) require 120–150 °C preheat and exhibit a critical additional constraint: they must not be allowed to cool below the preheat temperature between passes or during any interruption to welding. If welding is interrupted, the joint must be either maintained at preheat temperature (using local electric resistance heating or gas torch) or immediately given a post-weld hydrogen bake-out at 250–300 °C before cooling to ambient. Failure to maintain preheat on P-4 materials produces classic underbead cracking in the coarse-grained HAZ, which is often not detected until the joint fails in service.
P-15E — Grade 91 (9Cr-1Mo-V)
Grade 91 is the most demanding common pressure piping material from a preheat and PWHT perspective. It requires 200 °C minimum preheat (all thicknesses), a maximum interpass temperature of 300 °C, and must proceed directly to PWHT at 730–775 °C without intermediate cooling. If the joint cools to room temperature before PWHT, the untempered martensite that has formed is extremely brittle — the weld will frequently crack during or immediately after cool-down to ambient. For a comprehensive P91 welding guide including preheat, interpass, PWHT, and metallurgical requirements, see our P91 welding guide.
P-8 Austenitic Stainless Steel — Interpass Temperature Critical
Austenitic stainless steels (304L, 316L, 321, 347) require no preheat — but they impose a maximum interpass temperature limit of 175 °C (some stricter specifications use 150 °C). Exceeding the interpass temperature risks sensitisation — carbide precipitation in the HAZ — which depletes chromium from grain boundaries and destroys corrosion resistance. The mechanism is the same as the weld decay that occurs in unstabilised grades exposed to the sensitisation temperature range of 425–850 °C. Use interpass temperature as strictly on stainless steel as you would preheat on alloy steel.
P-10I Duplex Stainless Steel — Heat Input Window
Duplex stainless steels require neither a minimum preheat nor a mandatory interpass temperature minimum, but they impose a heat input window: typically 0.5 to 2.5 kJ/mm, with interpass temperature limited to 150 °C maximum (100 °C in some client specifications). Outside this window, the austenite/ferrite balance — the defining feature of duplex metallurgy — is destroyed. Too little heat input produces excessive ferrite; too much produces secondary austenite phases (sigma phase, chi phase) that embrittle the weld. For the full technical background, see our duplex stainless steel welding guide.
Fully Worked Example — P-4 Material, 2.25Cr-1Mo Pipe
Problem: Butt weld on SA-335 P22 (2.25Cr-1Mo) pipe, 38 mm wall thickness, under ASME B31.3. SMAW process, E9018-B3 electrode (H4 designation). Ambient temperature 8 °C.
Preheat Measurement — Methods and Code Requirements
ASME B31.3 Para. 330.1.1(a) specifies that preheat temperature shall be checked using temperature indicating crayons (Tempilstiks), thermocouple pyrometers (contact or embedded), or other suitable calibrated means. Each method has specific application considerations:
| Method | Description | Accuracy | Best For | Limitations |
|---|---|---|---|---|
| Tempilstik / Temperature Crayon | Wax-based crayon with a calibrated melt point; mark melts when surface reaches rated temperature | ±1 % of rated temperature | Field preheat verification, quick check | Go/no-go only — cannot read over-temperature; some crayons affected by surface contamination |
| Contact Thermocouple Pyrometer | Calibrated thermocouple probe pressed against workpiece surface | ±1–2 °C when calibrated | All applications; can verify interpass; records data | Must be calibrated; probe pressure affects reading; damaged probes give false readings |
| Infrared Pyrometer (Non-contact) | Measures surface thermal radiation; reading depends on emissivity setting | ±2–5 °C (when emissivity correctly set) | Hot pipe in service, inaccessible surfaces | Emissivity must be set for metal surface (0.1–0.3 for bare steel); highly reflective surfaces give inaccurate readings |
| Thermocouple Welded to Surface | Type K or J thermocouple tack-welded or capacitor-discharge welded to workpiece surface | ±1 °C | PWHT, long-duration preheat monitoring, automated recording | Requires capacitor discharge welding for attachment without WPS qualification on P-4 and above |
Post-Weld Hydrogen Bake-Out and PWHT Quick Reference
Post-weld hydrogen bake-out (PWDH) is performed immediately after welding at 150–250 °C for 1–4 hours, before the joint cools to ambient, to accelerate hydrogen diffusion out of the weld metal and HAZ. It is specified on the WPS and is mandatory for P-4 and above materials when PWHT cannot be performed immediately. It is distinct from PWHT, which is performed at much higher temperatures to relieve residual stress and temper the HAZ microstructure.
| P-Number | PWHT Temp. (°C) | Min. Hold Time | Max Brinell (Post PWHT) | Bake-Out Required? |
|---|---|---|---|---|
| P-1 (t > 19 mm) | 593–635 | 1 hr/25mm, min 1 hr | — | Recommended if delay >48 hr |
| P-3 | 593–663 | 1 hr/25mm, min 1 hr | 225 HB | Yes — 200–250 °C, 1–2 hr |
| P-4 | 675–720 | 1 hr/25mm, min 1 hr | 241 HB | Yes — 250–300 °C, 2–4 hr |
| P-5A | 704–760 | 1 hr/25mm, min 2 hr | 241 HB | Yes — 300 °C, hold at preheat |
| P-5B | 732–788 | 1 hr/25mm, min 2 hr | 241 HB | Yes — proceed direct to PWHT |
| P-15E (Grade 91) | 730–775 | 1 hr/25mm, min 1 hr | 225 HB | Must not cool — direct to PWHT |
| P-6 (Mart. SS) | 650–760 | 1 hr/25mm, min 1 hr | — | Yes — 200 °C min, PWHT promptly |
