Pressure Vessel Shell Thickness Calculator — ASME Section VIII Div 1 UG-27

The pressure vessel shell thickness calculator on this page computes the minimum required shell thickness for cylindrical and spherical pressure vessels under internal pressure, using the formulas in ASME Section VIII Division 1 UG-27. Whether you are sizing a new vessel, checking a design drawing, or calculating the maximum allowable working pressure (MAWP) of an existing shell, this tool gives you the answer in seconds — along with a full step-by-step breakdown of every calculation.

Getting shell thickness right is one of the most fundamental tasks in pressure vessel engineering. An undersized shell risks catastrophic failure; an oversized shell wastes material and adds unnecessary weight. The ASME VIII Div 1 code provides a clear, well-established methodology that has been the industry standard in oil and gas, petrochemical, and power generation vessel fabrication for decades. This article explains the code formulas in plain language, covers all the input variables, provides a complete worked example, and gives the reference data you need to apply the calculation confidently on real projects.

The UG-27 Formula — Code Basis and Derivation

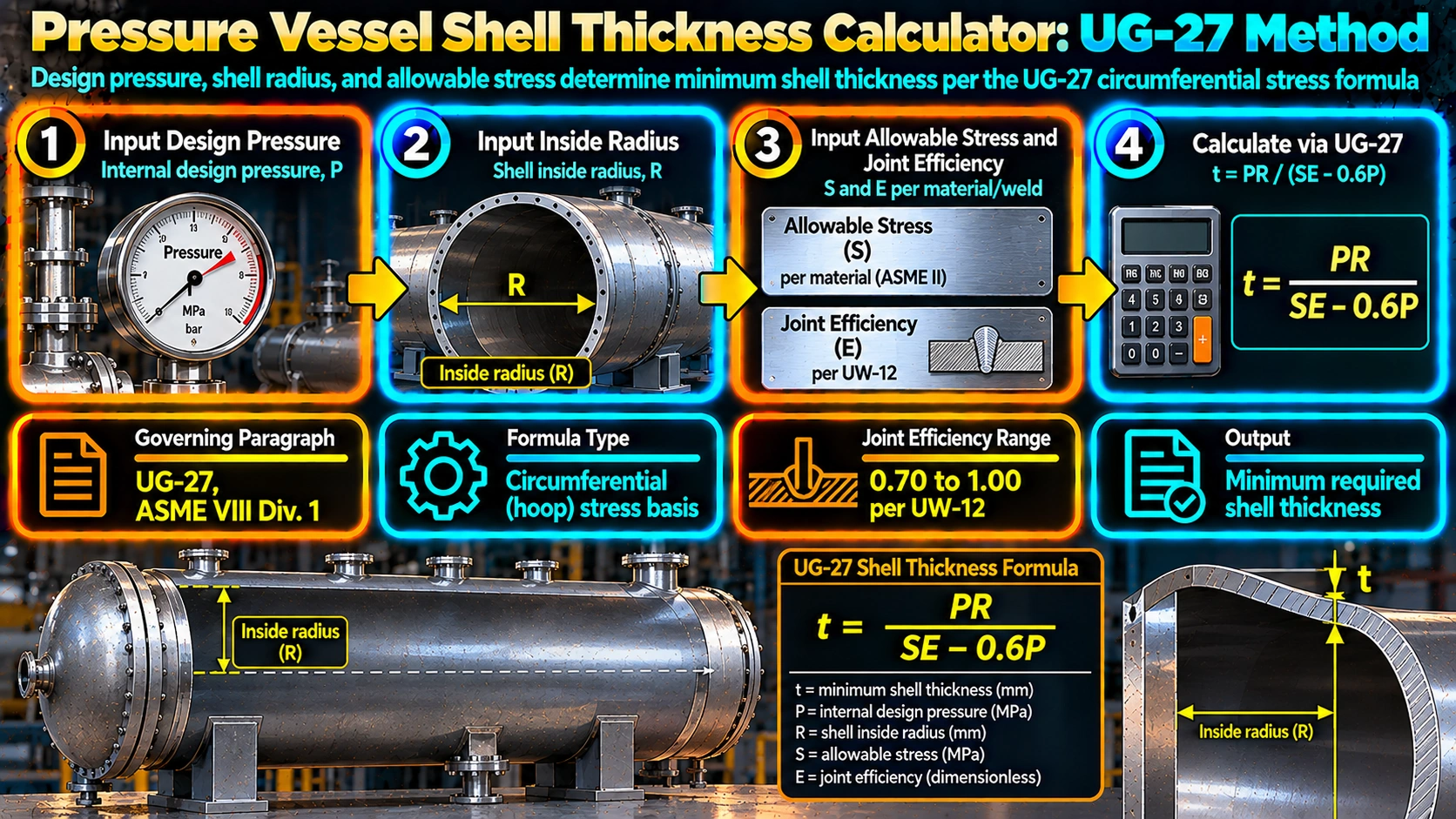

ASME Section VIII Division 1, paragraph UG-27, is the primary design rule for shells under internal pressure. It is derived from thin-walled pressure vessel theory — specifically the hoop (circumferential) stress equation — with two key modifications to account for wall curvature and to remain conservative within the code’s design approach.

UG-27(c)(1) — Cylindrical Shells, Internal Pressure

The minimum required thickness of a cylindrical shell is governed by the longitudinal seam, where hoop stress is highest:

UG-27(c)(2) — Cylindrical Shells, Outside Radius Basis

Vessels are often dimensioned by their outside diameter on drawings and isometrics. In this case the outside radius form is more convenient:

UG-27(d) — Spherical Shells

A sphere carries biaxial membrane stress equally in all directions. This stress state is more favourable than a cylinder, and accordingly the sphere requires roughly half the wall thickness for the same diameter and pressure:

Derivation from First Principles

The thin-walled hoop stress equation is: σ = P × r / t. Setting σ = S × E (allowable stress × joint efficiency) and solving for t gives: t = P × r / (S × E). The additional −0.6P correction term arises from a Lame exact thick-wall analysis that improves accuracy at the thin-to-thick-wall transition, per ASME’s derivation published in the code commentary. For the vast majority of process vessel designs, this correction is small but it is required by the code.

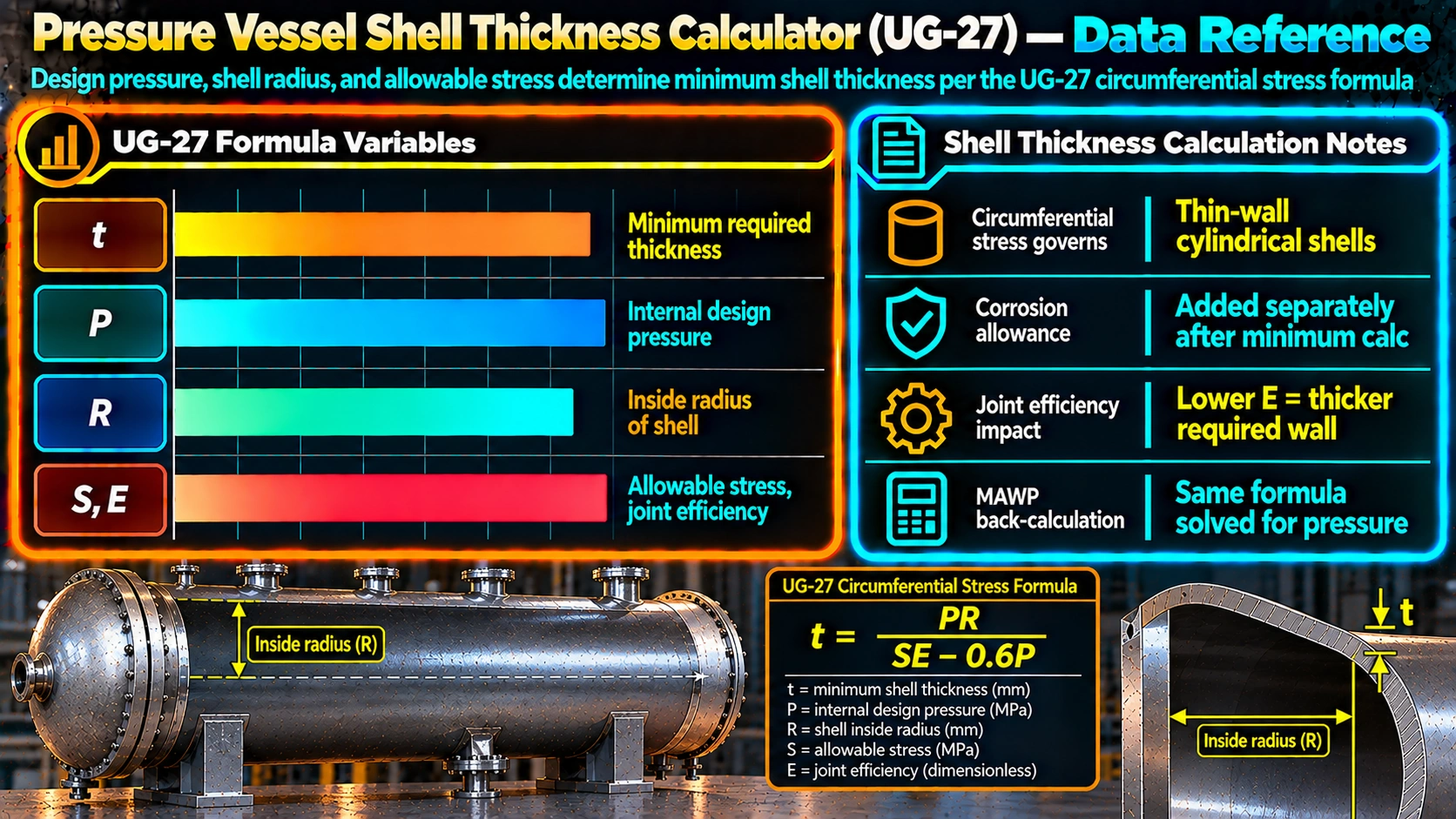

All Input Variables Explained

Design Pressure (P)

Design pressure is the pressure used for the mechanical design calculation. It must be at least equal to the maximum operating pressure (MOP) plus a margin — typically the greater of 10% of MOP or 170 kPa (25 psi) per common engineering practice. The design pressure is stamped on the vessel nameplate along with the maximum allowable working pressure (MAWP). In the UG-27 formula, pressure is always gauge pressure — not absolute.

Inside Radius (R) or Inside Diameter (ID)

The UG-27(c)(1) formula uses the inside radius R = ID/2. In practice, vessel shells are specified by nominal outside diameter (OD) and wall thickness, so the inside diameter must be derived: ID = OD − 2t. Because t is what you are solving for, this requires either iteration or use of the OD-based form of the formula per UG-27(c)(2). The calculator handles this automatically when you select “Outside Diameter” as the input type.

Maximum Allowable Stress (S)

The allowable stress is the governing value for the shell material at the design temperature, taken from ASME Section II Part D Table 1A (ferrous) or Table 1B (non-ferrous). It is the minimum of one-third of the specified minimum tensile strength (SMTS) or two-thirds of the specified minimum yield strength (SMYS) at temperature, whichever is lower — the code applies its own safety factors within the table values. You must use the stress at the design temperature, not room temperature, as many alloys lose significant strength at elevated temperature.

Joint Efficiency (E)

The joint efficiency E directly modifies the allowable stress used in the thickness calculation. It is defined in ASME VIII Div 1 Table UW-12 based on the weld joint category (A, B, C, D) and the extent of radiographic or ultrasonic examination. See the Joint Efficiency section below for the full table and guidance on selecting the correct value.

Corrosion Allowance (CA)

Corrosion allowance is added to the calculated minimum required thickness t to arrive at the nominal design thickness. It compensates for material loss over the vessel’s design service life. ASME VIII does not specify a mandatory CA value — it is determined by the owner or process licensor based on fluid corrosivity, inhibitor effectiveness, and target inspection interval. The CA must be explicitly stated on the vessel data sheet and design drawings.

Mill Tolerance

Plate material is supplied with a manufacturing thickness tolerance of −12.5% per ASME specifications unless otherwise agreed. This means a plate ordered at 20 mm nominal could be delivered at as thin as 17.5 mm. The purchased nominal thickness must therefore satisfy: t_nominal ≥ (t_required + CA) / (1 − mill tolerance). For 12.5% tolerance: t_nominal ≥ (t_req + CA) / 0.875, then rounded up to the next standard plate size.

Worked Example — Step by Step

The following worked example demonstrates the complete calculation sequence for a typical oil and gas process vessel.

The vessel shell is specified at 25 mm nominal plate thickness. Under this plate, the effective design margin is: MAWP = (138 × 1.0 × (25 − 3)) / (900 + 0.6 × (25 − 3)) = 3038 / 913.2 = 3.33 MPa — a comfortable margin above the 2.5 MPa design pressure.

Common Shell Materials and Allowable Stress

The following table lists the most commonly specified shell materials in oil and gas, petrochemical, and power generation pressure vessels, with their allowable stress at representative temperatures from ASME Section II Part D. These values are used in the calculator presets.

Joint Efficiency — ASME VIII Table UW-12

The joint efficiency factor E is one of the most important inputs in the UG-27 formula. It directly multiplies the allowable stress, meaning a poorly examined weld is treated as if the material were weaker. This is the ASME code’s mechanism for incentivising thorough examination of pressure-containing welds.

Corrosion Allowance Selection

Selecting an appropriate corrosion allowance requires knowledge of both the fluid chemistry and the expected inspection strategy for the vessel. The following guidance covers typical practice in process plant design.

For vessels operating in sour service, the corrosion mechanism may include stress corrosion cracking, hydrogen-induced cracking (HIC), and sulfide stress cracking (SSC) in addition to general corrosion. In these cases, material selection — particularly hardness control per NACE MR0175/ISO 15156 — is at least as important as the corrosion allowance value itself.

MAWP Back-Calculation

The Maximum Allowable Working Pressure is the maximum permissible pressure at which a vessel may be operated under the applicable code, considering the weakest element. For a shell, the MAWP is the pressure at which the shell reaches its code-allowable stress in the corroded condition (thickness minus corrosion allowance).

The MAWP calculated from the shell is compared with the MAWP of all other pressure-containing elements (nozzles, flanges, heads, bolting). The lowest value governs the stamped MAWP of the vessel. This back-calculation is also used during in-service inspection assessments under API 510 when a vessel has lost wall thickness through corrosion and the operator needs to establish whether it can continue in service at the original pressure or must be de-rated.

Practical Engineering Notes

Standard Plate Thickness Selection

After calculating the required nominal thickness, engineers select the next available standard plate size from the mill. Common metric plate thicknesses available in standard stock are: 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32, 36, 40, 45, 50 mm. For vessels ordered in imperial dimensions, standard increments are typically in 1/8-inch steps below 1 inch and 1/4-inch steps above. Always confirm plate thickness availability with the mill before finalising the design thickness on drawings, as non-standard sizes require special order and extended lead times.

Connection to the Carbon Equivalent

Shell plate thickness directly affects weldability. Thicker plates have a higher combined thickness at welds, which increases the carbon equivalent (CE) consideration for preheat. The carbon equivalent calculator on WeldFabWorld can help you determine whether preheat is required for your selected shell plate based on its carbon and alloy content and the combined thickness at the seam welds.

Nozzle Reinforcement

The shell thickness calculated by UG-27 is for the undisturbed shell only. Where nozzles penetrate the shell, the opening removes load-carrying material and must be reinforced per ASME VIII Div 1 UG-37 (area replacement method). The reinforcement calculation uses the same design pressure, allowable stress, and joint efficiency as the shell thickness calculation, and is sensitive to the shell thickness — a thicker shell provides more inherent reinforcement area and reduces the additional reinforcement required at nozzle connections.

Weld Joint Efficiency and Radiography Scope

For Class 1 (full RT) examination, all Category A and B seams (longitudinal and circumferential) must be 100% radiographed. For Class 2 (spot RT), a minimum of 10% of the total weld length must be examined per UW-52. The examination must be performed at the time of fabrication — it cannot be applied retrospectively to increase the E value. Vessels ordered with E = 1.0 must have RT scope confirmed in the purchase specification and verified by the Authorised Inspector (AI) at the fabrication stage. For detailed guidance on weld inspection, see the welding inspection checklist.
