Robotic Welding — Complete Guide: Systems, Types, AI Technology, Costs, and AWS Certification
Robotic welding is the use of programmed, mechanised tools — robots — that completely automate a welding process by both performing the weld and handling or manipulating the part with no human intervention during the weld cycle. Unlike basic mechanised welding where an operator still controls travel speed or torch position, a true robotic welding system receives a part, executes a complete welding program, and returns the finished assembly — all autonomously. It is the highest level of welding automation and the technology that has redefined manufacturing quality and throughput in the automotive, aerospace, shipbuilding, and heavy fabrication industries.
The global robotic welding market was valued at approximately USD 9.76 billion in 2024 and is projected to reach between USD 14 billion and USD 21 billion by 2032–2033, growing at a compound annual growth rate of 8–10% depending on the segment. The automotive sector alone accounts for 44% of total robotic welding demand, driven by electric vehicle battery assembly lines and body-in-white production. Asia-Pacific leads with approximately 29% of the global market, while North America is the fastest-growing region, supported by reshoring initiatives and smart factory investments.
What Is Robotic Welding — Definition and Core Principles
Robotic welding is a branch of industrial automation in which a programmable, multi-axis mechanical arm holds and manoeuvres a welding torch (or electrode) along a pre-programmed path, executing welds to a defined procedure. The system integrates a welding power source, wire feeder (for arc processes), shielding gas supply, fixtures, safety enclosures, and a controller — all coordinated by the robot program. Human welders remain involved in the cell for part loading, inspection, programming, and maintenance, but are removed from direct exposure to the arc, fumes, spatter, and UV radiation during the actual welding operation.
The definition distinguishes robotic welding from simpler forms of automation. A welding lathe that rotates a pipe under a fixed torch is mechanised welding — a human still controls the process. A robot that picks up a pipe from a conveyor, positions it, welds a circumferential seam using a qualified WPS, and places the assembly on an outfeed conveyor with no operator action is robotic welding. The distinction matters for quality systems, qualification under ASME Section IX, and for AWS CRAW certification requirements.
History of Robotic Welding — From GM’s First Line to AI-Guided Cobots
The conceptual roots of robotics trace back centuries, but industrial welding robots as we know them emerged from a specific convergence of automotive manufacturing demands and computing capability in the mid-twentieth century.
- 1961 — Unimate, the world’s first industrial robot (developed by George Devol and Joseph Engelberger), is installed at General Motors’ Ewing Township, New Jersey plant for die casting and spot welding operations. It was the first robot to perform a production weld.
- 1970 — General Motors creates the first robot-integrated body assembly line with 24 robots and an indexing conveyor system — establishing the template for modern automotive production.
- 1974 — Electric drive trains and early microprocessor control arrive, enabling more precise motion and repeatability in robot arms.
- 1980s — Robotic welding adoption accelerates sharply as the automotive industry adopts robots for spot welding at scale. By the mid-1980s, over 60% of car body spot welds in major Japanese and American plants are robot-produced.
- 1982–1986 — Key milestones: Cartesian interpolation, computer communication, joystick programming, vision guidance, and digital control loops are introduced, transforming robot usability.
- 1990s — Networking, digital torque control, full dynamic modelling, Windows interfaces, and fieldbus I/O arrive. Co-operating robots enable tandem welding of large structures.
- 2000s — GMAW robot arc welding begins to grow rapidly and commands approximately 20% of all industrial robot applications. As of 2005, over 120,000 robots operate in North American industry, with approximately 60,000 in welding applications.
- 2010s — Collaborative robots (cobots) emerge. Universal Robots ships the first commercial cobot in 2008. Welding cobots gain traction in high-mix, low-volume shops previously excluded from automation economics.
- 2020s — AI-driven seam tracking, machine learning parameter optimisation, digital twins, and Industry 4.0 integration define the current generation. EV battery assembly lines are the fastest-growing application segment. The global robot density reaches 162 per 10,000 manufacturing workers in 2023, more than double the density of seven years earlier.
Types of Robotic Welding Processes
Most production arc welding processes can be automated, but they differ significantly in application, capital cost, consumable requirements, and achievable quality. The process selection depends on base metal, production volume, joint geometry, and quality requirements. The table below shows the 2024 market share breakdown by welding type.
Robotic GMAW (MIG Welding)
The dominant robotic arc welding process. Solid wire, continuously fed electrode, CO2 or mixed shielding gas. No post-weld slag removal. Suitable for carbon steel, stainless steel, and aluminium. Most repair-free and cost-effective for high-volume production.
~80% of robotic arc welding applications. Arc welding segment: 36% of total robotic welding market.Robotic Spot Welding
The largest single robotic welding application by revenue. Resistance welding — no consumable electrode, no filler, no shielding gas. Essential for automotive body-in-white assembly. High speed: 30+ welds per minute. Six-axis revolute robot is the standard type.
41% market share (USD 3.2B in 2024). Dominant process in automotive body assembly.Robotic Laser Welding
Fastest-growing segment. High-energy-density beam produces narrow, deep fusion welds with minimal HAZ and distortion. Critical for EV battery sealing, aerospace structures, and thin-gauge stainless assemblies. Requires precise fixturing and part consistency.
15% market share (USD 1.2B). Growing at 12.5% CAGR — fastest segment. Demand rose 18% in 2024.Robotic GTAW (TIG Welding)
Used where highest weld quality is required: titanium, nickel alloys, thin stainless, precision pipe root passes. More complex to automate than GMAW due to separate filler rod feed mechanism and sensitivity to arc length variation. Orbital TIG for pipe welding.
Growing in aerospace and pharmaceutical piping. Often combined with vision seam tracking.Robotic FCAW
Flux-cored arc welding robot systems used in heavy fabrication, shipbuilding, and structural steel. Higher deposition rates than solid wire GMAW. Suitable for out-of-position welding. Post-weld slag removal required. Less common than GMAW in production environments.
Used in shipbuilding, offshore fabrication, heavy equipment manufacturing.Hybrid / Friction Stir Welding
Friction stir welding (FSW) robots used for aluminium aerospace frames and EV battery enclosures — solid-state process requiring no filler or shielding gas. Hybrid laser-arc welding (HLAW) robots combine laser precision with GMAW deposition for high-speed shipbuilding.
Niche but growing. Kawasaki’s hybrid laser-arc welding robot launched December 2024 for shipbuilding.Robot Types, Axes, and Key Components
Industrial welding robots are classified by their kinematic structure — the arrangement of joints and links that defines their motion envelope and workspace. The choice of robot type affects reach, repeatability, payload, and suitability for different weld joint orientations.
| Robot Type | Configuration | Axes | Primary Application | Payload Range |
|---|---|---|---|---|
| Articulated (Revolute) | 6 rotary joints — closest to a human arm | 6 | Arc welding, spot welding — most common type | 3–500 kg |
| SCARA | Selective Compliance Articulated Robot Arm | 4 | Assembly, spot welding, pick-and-place | 1–20 kg |
| Cartesian (Gantry) | X-Y-Z linear axes — robot travels over work area | 3–5 | Large structural welding, shipbuilding | 100–2,000 kg |
| Collaborative (Cobot) | Articulated — force-limited, no safety cage | 6 | High-mix low-volume arc welding, SMEs | 3–25 kg |
| Delta / Parallel | Parallel linkage — very fast motion | 3–6 | Laser welding, light assembly | 1–10 kg |
Key Components of a Robotic Welding Cell
| Component | Function | Critical Specification |
|---|---|---|
| Robot Arm (Manipulator) | Positions and moves the welding torch along the programmed path | Repeatability (typically ±0.05–0.10 mm), reach, payload capacity |
| Robot Controller | The robot’s “brain” — executes the motion program and coordinates all I/O | Cycle time, multi-robot coordination, fieldbus protocol (EtherNet/IP, PROFINET) |
| Welding Power Source | Supplies constant current or constant voltage for the arc process | Duty cycle (typically 100% for robotic applications), process type (CC/CV), arc monitoring output |
| Wire Feeder | Feeds consumable electrode wire into the arc at a set speed | Feeder accuracy, wire drum capacity (typically 15–300 kg bulk packs), push-pull capability for aluminium |
| Welding Torch | Delivers welding current to the electrode and delivers shielding gas to the arc zone | Current capacity, neck angle, contact tip type, water or gas cooling |
| Part Fixture / Positioner | Holds and positions the workpiece in the correct orientation for welding | Indexing accuracy, holding force, rotary/tilt capability, interfacing with robot controller |
| Torch Cleaner (Reamer) | Automatically removes spatter from torch nozzle and contact tip at programmed intervals | Cleaning frequency, anti-spatter spray, wire-cut capability |
| TCP Calibration Device | Verifies and re-establishes the tool centre point — the precise position of the electrode tip relative to the robot flange | Accuracy of TCP calibration directly affects weld positioning accuracy |
| Seam Tracking Sensor | Detects the joint position in real time and feeds corrections to the robot controller | Laser structured-light or through-arc sensing; update rate; compensation accuracy |
| Safety Systems | Light curtains, safety fences, interlocked gates, area scanners, emergency stops | Must comply with ISO 10218 (industrial robots) or ISO/TS 15066 (cobots) |

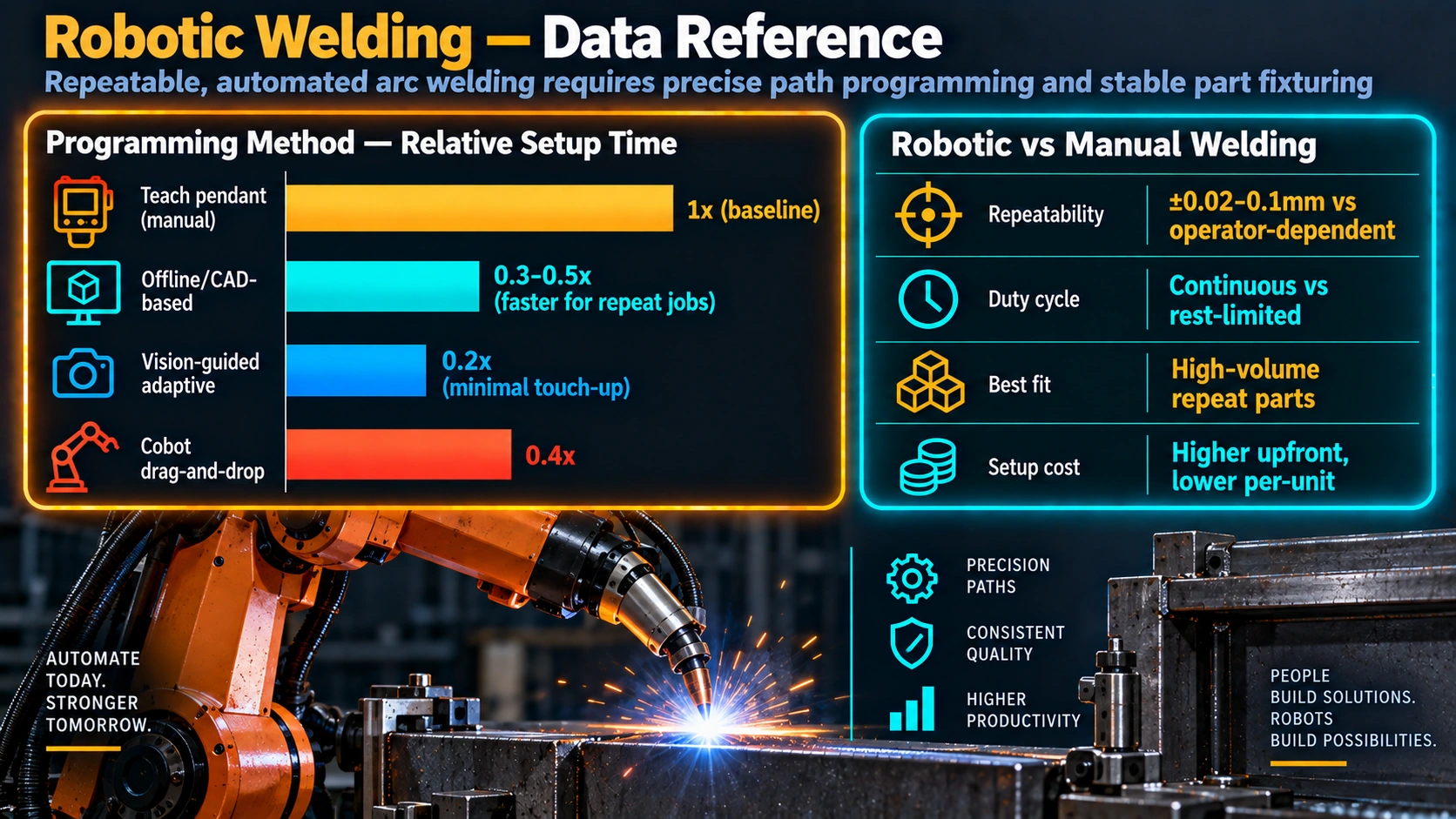

Industrial Robot vs Cobot vs Manual Welding — Comparison
The choice between a conventional industrial welding robot, a collaborative welding cobot, and skilled manual welding depends on production volume, mix, part complexity, and capital budget. There is no single correct answer — each approach serves a different manufacturing scenario.
Robotic Arc Welding — Technical Requirements
Robotic arc welding equipment is designed differently from manual arc welding equipment from the ground up. High duty cycle is the defining requirement: a robotic GMAW cell may operate at 85–95% duty cycle (arc-on time as a percentage of total shift time), compared to 20–40% for manual welding. Every component — from the power source to the contact tips — must be rated for continuous high-duty-cycle operation. Standard workshop consumables and power sources are not appropriate for robotic production cells.
Shielding Gas Selection for Robotic Arc Welding
Gas selection is more critical in robotic welding than in manual welding because the robot cannot adapt to arc instability the way a skilled welder can. The gas must deliver consistent arc behaviour, puddle fluidity, and spatter levels across the full weld length with zero operator intervention. Key factors affecting gas selection include base metal chemistry, welding position, thickness, metal transfer mode (spray, pulsed spray, short-circuit), and required gap-bridging tolerance.
| Gas Mix | Composition | Best Application | Transfer Mode | Notes |
|---|---|---|---|---|
| Ar/CO2 | >82% Ar, balance CO2 | Carbon steel — general production | Spray, pulsed spray | Stable arc, low spatter, good penetration |
| Ar/CO2 | 75% Ar, 25% CO2 (C25) | Carbon steel — short circuit, thin gauge | Short circuit | Most common for general steel fabrication |
| Ar/CO2/O2 | >90% Ar, rest CO2/O2 | Gap bridging, poor fit-up applications | Pulsed spray | Enhanced puddle fluidity — preferred where joint fit-up is variable |
| Ar/He/CO2 | >70% Ar, >25% He, balance CO2 | Nickel alloys, stainless steel | Spray, pulsed | Higher heat input from helium; better fusion on high-alloy materials |
| 100% Ar | Pure Argon | Aluminium (GMAW/TIG), titanium (TIG) | Spray, pulsed (Al); DC− (Ti) | No oxidising additions — mandatory for reactive metals |
| Ar/O2 | 98–99% Ar, 1–2% O2 | Stainless steel GMAW | Spray | Stabilises arc without excessive oxidation on SS |
Bulk gas supply via on-site liquid Argon or bulk CO2 systems is strongly recommended for robotic cells — cylinder gas is too expensive and requires frequent cylinder changes that interrupt production.
Torch Cleaning and Maintenance
Spatter accumulates inside the torch nozzle during arc welding. In manual welding, the welder periodically cleans the nozzle manually. In a robotic cell operating at high duty cycle, this must be automated. A torch cleaning station (reamer) is a standard component, programmed to clean the nozzle at defined intervals — typically every 20–50 weld cycles depending on the current level and gas mixture. Anti-spatter spray is applied automatically after cleaning. Contact tips and nozzles must be changed on a scheduled basis, not as-needed, to prevent unplanned downtime.
Robotic Spot Welding — Automotive Body Assembly
Resistance spot welding is the most common single application of industrial robots globally, and it remains the defining technology of automotive body-in-white (BIW) manufacturing. A typical passenger vehicle body requires 3,000 to 5,000 spot welds, all of which are produced robotically on modern assembly lines. The process requires no consumable electrodes, filler metal, or shielding gas — electrical resistance between the electrode tips and the metal sheets generates the fusion heat.
| Parameter | Typical Value | Purpose |
|---|---|---|
| Weld rate | 30+ welds/minute | Production throughput |
| Weld force | 2–8 kN typical | Electrode pressure — ensures contact and expulsion of surface oxides |
| Current | 8,000–20,000 A | Resistance heating to form nugget |
| Weld time | 8–30 cycles (133–500 ms at 60 Hz) | Controls nugget size |
| Electrode diameter | 4–8 mm face diameter | Sets weld nugget diameter |
| Tip dressing interval | Every 50–200 welds (auto-dresser) | Restores electrode face geometry — critical for consistent nugget size |
| Robot axes | 6-axis revolute (standard) | Access to complex BIW geometries |
AI, Seam Tracking, and Industry 4.0 in Robotic Welding
The current generation of robotic welding systems is defined by intelligence — the ability to sense, adapt, and learn rather than simply repeat a fixed program. This transformation is being driven by affordable laser sensors, real-time vision processing, machine learning algorithms, and cloud-connected arc monitoring. The result is that modern robotic welding systems can compensate for part variation, thermal distortion, and process drift autonomously, delivering weld quality previously achievable only in tightly controlled mass-production environments.
AI-Driven Seam Tracking
Traditional robotic welding requires extremely tight part-to-part dimensional consistency — if the joint drifts from its programmed position by more than 1–2 mm, the robot welds in the wrong place. Seam tracking solves this by continuously monitoring joint position and feeding corrections to the robot controller in real time.
Two primary methods are in production use today. Through-arc sensing monitors changes in welding current and voltage as the torch weaves across the joint — a change in gap width or joint position produces a detectable electrical signature. Laser structured-light sensing projects a laser plane across the joint ahead of the torch and uses a camera to detect the joint profile, feeding position corrections with higher speed and accuracy than arc sensing, at the cost of additional hardware. Systems such as Fronius TPS/i Robotics with integrated laser seam tracking can automatically adjust torch position, travel speed, and weave pattern during the weld, compensating for fit-up variation in real time across complex fabrication assemblies.
Machine learning extends this further: systems like Lincoln Electric’s HyperFill analyse arc stability and bead formation data to automatically adjust voltage, wire feed speed, and travel rate for higher deposition efficiency and consistent weld quality across changing conditions. The result, as reported by manufacturers, is a 30–50% reduction in rework rates in many cobot deployments.
Digital Twins and Offline Programming

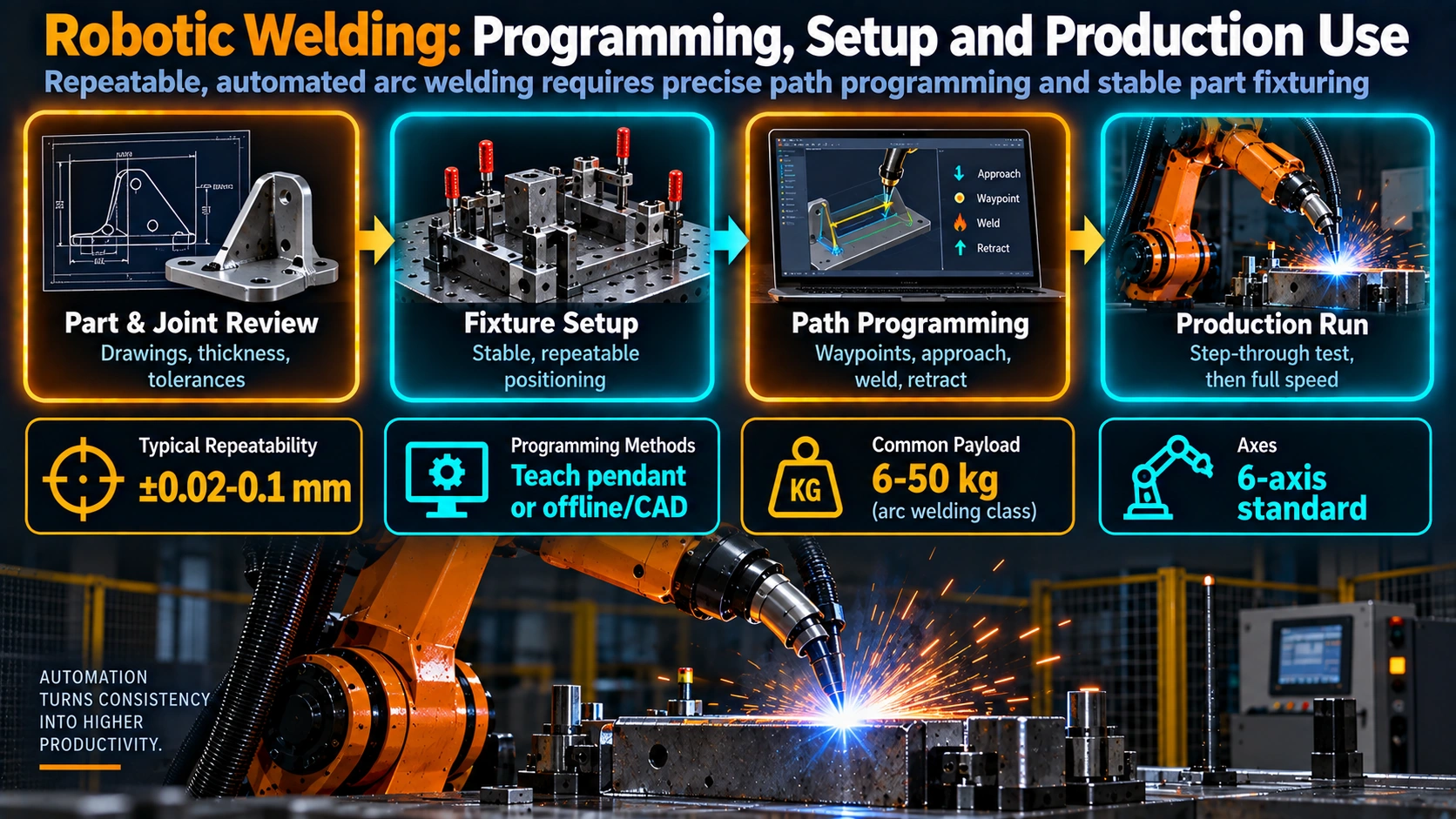

Offline programming (OLP) software allows robot programs to be created and tested in a virtual simulation environment without stopping production. A digital twin of the robotic cell — including the robot kinematics, tooling, fixtures, and workpiece — allows engineers to develop and validate new programs, verify reach and collision clearance, and generate cycle time estimates before physical deployment. This dramatically reduces the time and cost of product changeovers. Leading OLP platforms include ABB RobotStudio, KUKA.Sim, and Fanuc ROBOGUIDE.
Arc Data Monitoring and Weld Traceability
Modern robotic welding power sources log every weld: current, voltage, wire feed speed, arc duration, and calculated heat input for every weld cycle, every shift, every day. This data is stored and can be retrieved to verify compliance with a qualified WPS, investigate field failures, or trend-monitor process drift. For pressure vessel and pipeline fabrication under ASME codes, automated weld data logging provides a quality record that supports traceability from individual weld beads to the qualified procedure. This is one of the most compelling quality advantages of robotic welding over manual welding for code-stamped work.
Applications of Robotic Welding — Industry by Industry
Automotive and Electric Vehicles (44% of market)
Automotive manufacturing is the birthplace and largest continuing application of robotic welding. A single passenger car body-in-white contains 3,000–5,000 resistance spot welds and hundreds of metres of arc welds — all produced robotically on modern lines. Electric vehicles have intensified robotic welding requirements because EV battery enclosures, battery module tab welding, and lightweight aluminium structural frames all demand the precision, consistency, and heat input control that only robotic systems deliver reliably at scale. In 2023, the automotive sector recorded 135,461 robot installations worldwide — the highest of any industry. EV manufacturers require high-precision laser welding for battery cell enclosures, creating 25% higher robotic welding service demand in 2024 alone.
Aerospace and Defence
Aerospace demands the highest weld quality levels — every weld is potentially flight-critical and subject to full radiographic inspection. Robotic TIG welding is used for titanium structural components, nickel superalloy engine parts, and aluminium airframe sections. Robotic friction stir welding is used for aluminium panels in aircraft fuselages and spacecraft. The precision and repeatability of robotic systems provides the consistent heat input and travel speed that gives reproducible microstructure and mechanical properties, essential for aerospace material qualification.
Shipbuilding and Offshore
Large-structure welding presents unique robotic challenges: parts cannot be brought to the robot — the robot must go to the part. Gantry-mounted robots and mobile welding robots are used for flat panel fabrication, longitudinal seams on hull sections, and topside structural welding. FCAW and GMAW are the dominant processes. Kawasaki Heavy Industries launched a hybrid laser-arc welding robot specifically for shipbuilding applications in December 2024, offering higher strength and lower distortion in large metal structures.
Oil and Gas / Pressure Equipment
Orbital TIG welding systems are the standard for high-purity and corrosion-resistant pipe welding in pharmaceutical, food, and chemical processing. For larger pressure vessels, robotic GMAW with real-time heat input monitoring provides weld data that satisfies ASME Section IX WPS qualification traceability requirements. The ability to log actual heat input for every weld is a significant quality advantage for code-stamped pressure equipment where the WPS specifies heat input limits.
Structural Steel and Heavy Fabrication
Structural fabricators are one of the fastest-growing adopters of robotic welding. In August 2024, Gauge Capital announced a strategic growth investment in AGT Robotics, a provider of robotic welding solutions specifically for the structural steel and heavy metal fabrication industry. AI seam tracking is critical in this segment because structural steel parts often have poorer fit-up consistency than automotive stampings, and dimensional variation between parts is greater. Laser seam tracking allows robots to compensate for joint gap variation and misalignment that would cause a fixed-program robot to miss the joint entirely.
| Industry | Primary Process | Key Driver | Market Share 2024 |
|---|---|---|---|
| Automotive & EV | Spot welding, laser welding, GMAW | BIW production, EV battery assembly | 44.4% |
| Metals & Machinery | GMAW, FCAW, SAW | Heavy fabrication, farm equipment, mining | ~18% |
| Electrical & Electronics | Laser, resistance, micro-TIG | Battery tabs, PCB, precision components | ~14% |
| Aerospace & Defence | TIG, laser, friction stir | Flight-critical welds, lightweight structures | ~12% |
| Shipbuilding | FCAW, GMAW, hybrid laser-arc | Hull panel fabrication, structural welds | ~8% |
| Other | Various | Construction, infrastructure, rail | ~4% |
Advantages and Limitations of Robotic Welding
Advantages
- Consistent weld quality — identical every cycle, regardless of shift or operator
- 24/7 operation with minimal downtime (2% downtime vs human shift constraints)
- Higher arc-on time — 85–95% vs 20–40% for manual welding
- Faster travel speed and higher deposition rate than manual GMAW
- Reduced rework and scrap — 30–50% reduction in many deployments
- Complete removal of operators from arc, fumes, UV, and spatter exposure
- Precise heat input control — critical for P91, duplex SS, and other critical materials
- Weld data logging — full traceability per weld for code-stamped work
- Lower long-term labour cost per unit at sufficient volume
- Reduced over-welding (excessive filler metal) — precise wire feed and travel speed
- Programmable — same robot can weld different products with a program change
- Reduced training cost — cell operator requires less welding skill than a manual welder
Limitations
- High capital cost — cells from USD 60K to USD 250K+
- Poor dimensional consistency in parts defeats repeatability
- Programming complexity — specialist skills required for traditional robots
- Not economical for low-volume or highly custom work without quick-change tooling
- Cable and hose routing limits wrist movement in tight spaces
- Requires skilled maintenance technicians — not the same skill set as welders
- Technology evolution — systems become obsolete and require upgrades
- Limited connectivity/interoperability between different robot brands
- Cannot make the same instinctive quality judgements as a skilled welder
- Upfront tooling and fixturing investment often equals or exceeds robot cost
- Significant floor space required for safety enclosures and part staging
Robotic Welding ROI Calculator
Use this tool to estimate the payback period and annual savings from a robotic welding investment, based on your current manual welding cost structure.
Robotic Welding Return on Investment Estimator
Robotic Welding System Costs and Business Justification
| System Tier | Robot Cost | Complete Cell Cost | Typical Application |
|---|---|---|---|
| Entry Level | USD 20K–35K | USD 60K–75K | Single-process cobot cell, simple parts |
| Mid-Range | USD 35K–70K | USD 75K–150K | 6-axis arc welding cell, rotary positioner, basic seam tracking |
| High-End | USD 70K–150K | USD 150K–500K+ | Multi-robot cell, integrated vision, offline programming, dual-station |
| Enterprise | Custom | USD 500K–3M+ | Full automotive assembly line integration, 30+ robots, gantry systems |
Factors That Justify a Robotic Welding Investment
- Shortage of qualified welders: The most immediate driver in 2025. When welders cannot be hired, robots are not a cost-saving measure but an operational necessity. The U.S. alone faces a projected 360,000-welder shortage by 2027.
- Consistent part geometry and design stability: Robotic welding justification is strongest when the same part will be produced for at least 2–3 years. High part variety with frequent design changes erodes payback significantly.
- Quality requirements that exceed manual repeatability: When every weld must have documented heat input, consistent penetration, and traceable parameters, robots deliver compliance that manual welding cannot guarantee at scale.
- High-volume production: The break-even analysis depends on throughput. At low volumes (fewer than 1,000 units per year), robots rarely pay back within acceptable periods. At 5,000+ units per year, payback is typically 1–3 years.
- Hazardous environment removal: For welds on highly toxic materials (beryllium alloys, certain nickel compounds, chrome-containing filler metals) or in confined spaces, robotic welding removes worker exposure entirely — a regulatory and moral imperative independent of cost.
- 24/7 production demand: A robot running two or three shifts eliminates the premium pay, fatigue, and attendance issues that limit human productivity on extended schedules.
Leading Robotic Welding Manufacturers
The robotic welding market is served by a combination of robot OEMs and welding equipment manufacturers who provide complete integrated systems.
Robotic Welding Success Factors — What Makes Cells Work
- Start with part quality, not the robot. A robotic welding cell is only as consistent as the parts fed into it. Switch from plasma-cut to laser-cut or precision-saw parts where possible — tighter dimensional tolerance means tighter joint fit-up, which means more consistent welds. Pounding parts into fixtures with mallets is the number-one cause of failed robotic welding projects.
- Invest in tooling equally to the robot. The rule of thumb (3x–10x robot cost for the full cell) exists because underinvestment in fixturing is the most common mistake. Good tooling holds parts accurately, indexes repeatably, and allows rapid changeover. It is not an area to cut costs.
- Weld in the flat or horizontal position wherever possible. Gravity assists the puddle in flat (1G/1F) and horizontal (2G/2F) positions, giving more consistent bead geometry and requiring less precise parameter control. Vertical and overhead positions require more sophisticated torch weaving and parameter adjustment.
- Use bulk wire and gas supply. Cylinder changes interrupt production and introduce inconsistency. Bulk liquid Argon supply, bulk CO2, and 300 kg wire drums maximise cell uptime and reduce consumable cost per metre of weld.
- Select and train the cell operator carefully. The cell operator is not a robot programmer but must understand welding fundamentals — they must be able to recognise a bad weld and respond correctly. A welder who becomes a cobot operator is often the best combination of skills.
- Invest in offline programming software. OLP software pays for itself in the first product changeover. Programming on the teach pendant stops production; offline programming does not.
- Build in torch maintenance discipline. Set the torch cleaner interval conservatively (err towards more frequent cleaning) and change contact tips on a schedule, not when they fail. Unplanned stops from contaminated tips cost more than the tips themselves.
- Plan for data — from day one. Connect the welding power source to your quality system on day one. Arc data monitoring is only valuable if it is collected from the start. Retroactively adding data collection after initial installation is harder and less reliable.
AWS CRAW Certification — Robotic Arc Welding Personnel Qualification
AWS D16.4 establishes the specification for qualification of Certified Robotic Arc Welding (CRAW) personnel. It is the only industry-recognised credential specifically for robotic welding operators and technicians in the United States and internationally. The certification covers practical knowledge of robotic welding equipment, WPS compliance, quality assessment, and safety — not just programming ability.
CRAW Operator (Level 2/3)
- Experience: Minimum 4,000 hours of welding experience
- Education: One-year diploma in welding or robotic instruction
- Written exam: 140 multiple-choice questions; 75% passing grade; 2-hour closed book
- Performance test: Timed practical demonstration; 75% passing grade
- Performance includes: Equipment identification (no more than 10 points lost), robot programming (20%), gun/wire/gas maintenance (40%), weld quality assessment (40%)
- GMA weld plate: Made to a qualified WPS — judged for size, location, appearance, WPS compliance
- Written and performance tests: Must be passed within a 3-month window
CRAW Technician (Level 4)
- Experience: Minimum 5 years welding experience across all relevant processes
- Education: Two-year Associate Degree in Welding, Robotics, or Electrical (or equivalent)
- Additional requirement: Must hold current AWS CWI (Certified Welding Inspector) certification
- Written exam: Same 140-question exam as operator; 75% passing grade required
- Elevated privileges: CRAW-T can administer the practical performance demonstration portion of the operator certification test (CRAW-T certified test supervisor)
- Additional training: Quality measuring tools including weld cross-section measurement software; personal computer proficiency
- Retesting: No limit on attempts; maximum 3 times per year; failed sections can be retaken 30 days after receiving results
| Written Exam Topic | Approximate Weighting | Covers |
|---|---|---|
| Safety | ~15% | Arc flash, fumes, robot safe zones, light curtains, lockout/tagout |
| Welding processes & metallurgy | ~20% | GMAW process fundamentals, shielding gas, wire types, defects |
| Robotic system components | ~20% | Controller, manipulator, TCP calibration, teach pendant, encoders |
| Programming concepts | ~20% | Path programming, I/O, weave patterns, coordinate systems |
| Quality and inspection | ~15% | Visual inspection, WPS compliance, weld sizing, discontinuities |
| Maintenance & troubleshooting | ~10% | Torch maintenance, tip dressing, wire feeder, diagnostics |
Future of Robotic Welding — Where the Technology Is Heading
The next decade of robotic welding will be defined by intelligence, accessibility, and integration. The technology is moving away from rigid, specialist-programmed machines toward adaptive, collaborative systems that any manufacturing engineer can configure and any skilled welder can operate.
| Trend | Current Status (2025) | Expected Development |
|---|---|---|
| AI adaptive control | Laser seam tracking, parameter logging in commercial systems | Fully autonomous parameter selection and quality prediction without human review |
| No-code programming | Touchscreen teach on cobots; OLP on industrial robots | Natural language and smartphone-based robot programming for simple jobs |
| Digital twins | Available in premium OLP software | Real-time synchronised virtual replica of every weld cell for remote monitoring and predictive maintenance |
| Cobot market growth | 25,000+ cobots installed in welding globally | Cobots take 20–30% of new welding robot installations as prices fall below USD 20K for complete cells |
| EV battery welding | Largest growth segment — laser welding of battery cells and modules | Robots welding solid-state battery electrodes at sub-millimetre tolerances |
| Autonomous mobile robots (AMR) | Early deployments in shipbuilding and structural steel | Self-navigating welding robots that find large workpieces in open fabrication halls |
| Predictive maintenance | Arc data monitoring available; limited predictive capability | AI predicts contact tip failure, wire feed issues, and power source drift before they cause rejects |
| Robot-to-robot data sharing | Within-brand networks only | De-identified seam quality metrics shared across installed base to improve AI models fleet-wide |
Recommended References for Robotic Welding
AWS D16.4 — Qualification of Robotic Arc Welding Personnel
The official AWS specification for CRAW operator and technician certification. Essential if you are preparing for the AWS exam or writing a training programme for your robotic welding team.
View on AmazonRobotic Welding, Intelligence and Automation — Springer
Academic and industrial reference covering seam tracking, vision systems, AI-driven parameter control, and the latest advances in robotic arc and laser welding systems. Highly technical.
View on AmazonIndustrial Robotics — John J. Craig
Foundational robotics textbook covering kinematics, dynamics, programming, and control of industrial robot manipulators. The mathematical basis for understanding robot motion and path planning.
View on AmazonLincoln Electric Welding Handbook
Comprehensive welding process reference from Lincoln Electric including automated and robotic welding processes, gas selection, parameter optimisation, and troubleshooting for production environments.
View on AmazonDisclosure: WeldFabWorld participates in the Amazon Associates programme (StoreID: neha0fe8-21). If you purchase through these links, we may earn a small commission at no extra cost to you. This helps support free technical content on this site.
Frequently Asked Questions
What is robotic welding?
Robotic welding is the use of programmed, mechanised tools — robots — that completely automate a welding process by both performing the weld and handling or manipulating the part with minimal human intervention during the weld cycle. Common applications include resistance spot welding and GMAW arc welding in high-volume automotive and manufacturing environments. It differs from simple mechanised welding in that the robot operates autonomously during the weld cycle — the operator loads parts and monitors the system rather than controlling welding parameters directly. For pressure vessel and pipeline work, robotic welding systems must still reference a qualified WPS under ASME Section IX and the applicable construction code.
How much does a robotic welding system cost?
A basic robotic welding cell starts at approximately USD 60,000 to 75,000. Mid-range systems cost USD 75,000 to 150,000, while high-end integrated systems exceed USD 150,000. The complete work cell — including tooling, fixturing, safety enclosures, and system integration — typically costs 3 to 10 times the price of the robot arm alone. Cobot welding systems are available for significantly less, starting around USD 25,000 to 50,000 complete, making automation accessible to small and medium enterprises. ROI is typically achieved in 1–3 years for high-volume applications, and payback is most compelling when accounting for the fully burdened labour cost (wages, benefits, training, overheads) rather than just base pay.
What is the difference between a welding robot and a welding cobot?
A traditional industrial welding robot is a large, fast, high-payload machine operating inside a full safety cage, completely separated from human workers. It requires specialist programming and is best for high-volume, low-mix production running the same part for months at a time. A collaborative robot (cobot) is designed to work safely alongside human operators without a full cage — it uses force-limiting and speed-limiting safety features (per ISO/TS 15066) to detect and stop when it contacts a person. Cobots are slower and have lower payload capacities (typically 3–25 kg), but are far easier to program via touchscreen or handheld pendant, more flexible for product changeover, and accessible to shops that produce hundreds rather than thousands of identical parts. Universal Robots has an installed welding cobot base exceeding 75,000 arms globally.
What welding processes can be automated with robots?
Most arc welding processes can be automated. The most common is GMAW (MIG welding), which accounts for approximately 80% of robotic arc welding applications, because it requires no post-weld slag removal and is well suited to the high duty cycles of robotic cells. Resistance spot welding is the largest single robotic welding application globally. Other automated processes include GTAW (TIG welding) for aerospace and pharmaceutical piping, FCAW for heavy structural fabrication, laser welding for EV batteries and thin-gauge stainless, plasma welding, and friction stir welding for aluminium aerospace structures. Laser welding is the fastest-growing segment, expanding at a CAGR of 12.5% due to EV battery manufacturing demand.
What is the AWS CRAW certification for robotic welding?
AWS D16.4 is the specification for qualification of Certified Robotic Arc Welding (CRAW) personnel. It covers two main levels: Operator (CRAW-O), requiring 4,000 hours of welding experience and typically a one-year diploma in welding or robotics; and Technician (CRAW-T), requiring a minimum of 5 years of welding experience, an associate degree in welding, robotics, or electrical, and a current AWS CWI certification. Both require passing a 140-question closed-book written exam (75% passing grade) and a timed performance test — both must be passed within a 3-month window. Testing may be retaken, but no more than 3 times per year with a 30-day minimum between attempts. The technician level additionally permits CRAW-T holders to administer the performance test portion of the operator certification examination.
What are the main advantages of robotic welding over manual welding?
The primary advantages are consistent weld quality every cycle with no operator fatigue variation; 24/7 production capability; higher arc-on time (85–95% vs 20–40% for manual); faster travel speed; reduced rework (30–50% reduction in many deployments); improved worker safety by removing operators from arc flash, UV radiation, fumes, and spatter; precise heat input control important for code-qualified welds on materials like P91 Grade 91; and complete weld data traceability per cycle. Additionally, robotic welding reduces over-welding (depositing more filler metal than required by the joint design), which is a major source of filler metal waste and distortion in manual fabrication. At sufficient production volumes, all of these advantages translate directly to lower cost per weld.
What is AI seam tracking in robotic welding?
AI seam tracking uses laser scanners, structured-light sensors, or vision cameras combined with machine learning algorithms to detect the weld joint position in real time, adjusting torch angle, travel speed, and weave pattern during the weld — without stopping the cycle. This compensates for part-to-part dimensional variation and thermal distortion during multi-pass welding, problems that would cause a fixed-program robot to miss the joint entirely. Systems like Fronius TPS/i Robotics with integrated laser sensors adjust torch position at update rates up to 200 Hz. Lincoln Electric’s HyperFill uses AI to analyse arc stability and bead formation to automatically optimise voltage and wire feed speed. The result is that robotic welding can now tolerate the same level of part-to-part variation that was previously the exclusive domain of skilled manual welders.
When is robotic welding not suitable?
Robotic welding is not suitable when production volumes are too low to justify capital cost and programming time; when parts have severe dimensional variability or poor fit-up that seam tracking cannot reliably compensate for; when the weld joint geometry changes completely from job to job; when the material or process requires real-time quality judgements that automated vision systems cannot yet make reliably; for site welding where the robot cannot physically access the joint; or for truly one-off custom fabrication. For TIG welding of exotic alloys in complex positions, or for structural repair welds with difficult access, skilled manual welding remains superior. The expanding capabilities of AI seam tracking and adaptive control are progressively narrowing the set of applications where robots cannot outperform manual welders, but significant gaps remain for highly complex, variable, or inaccessible welds.
