Submerged Arc Welding (SAW): The Complete Technical Guide
Submerged Arc Welding (SAW) is one of the most productive and metallurgically reliable arc welding processes in heavy fabrication. Unlike open-arc processes such as SMAW or GMAW, SAW buries the arc and molten pool beneath a thick blanket of granular flux, completely eliminating UV radiation, spatter, and welding fumes at the operator level. The result is a clean, consistent, deeply penetrating weld bead achieved at deposition rates that no other arc welding process can match.
This guide covers everything you need to understand SAW: how the process works, the equipment required, flux and electrode selection, the effect of welding parameters on bead geometry, joint preparation, advantages and limitations, applicable codes and standards, and the industrial sectors where SAW is the process of choice.
Whether you are an apprentice welder, a welding engineer qualifying a procedure to ASME Section IX, or a fabrication manager evaluating process options for a new pressure vessel line, this reference has the technical depth you need.
Disclosure: WeldFabWorld participates in the Amazon Associates programme (StoreID: neha0fe8-21). If you purchase through these links, we may earn a small commission at no extra cost to you. This helps support free technical content on this site.
What is Submerged Arc Welding?
Submerged Arc Welding is defined in AWS A3.0 as an arc welding process that produces coalescence of metals by heating them with an arc or arcs between a bare metal electrode or electrodes and the work. The arc and molten weld metal are shielded from atmospheric contamination by a blanket of granular fusible flux deposited on the workpiece ahead of the welding zone. Pressure is not used, and filler metal is supplied entirely from the consumable electrode (and optionally from supplementary wire or strip).
The name comes from the fact that the arc is literally submerged — it is invisible during welding. This distinguishes SAW from all other arc welding processes where the arc is visible and emits intense UV radiation. The flux blanket achieves four simultaneous functions: atmospheric shielding, arc stabilisation, slag formation for bead protection, and weld metal chemistry adjustment through flux-wire metallurgical reactions.

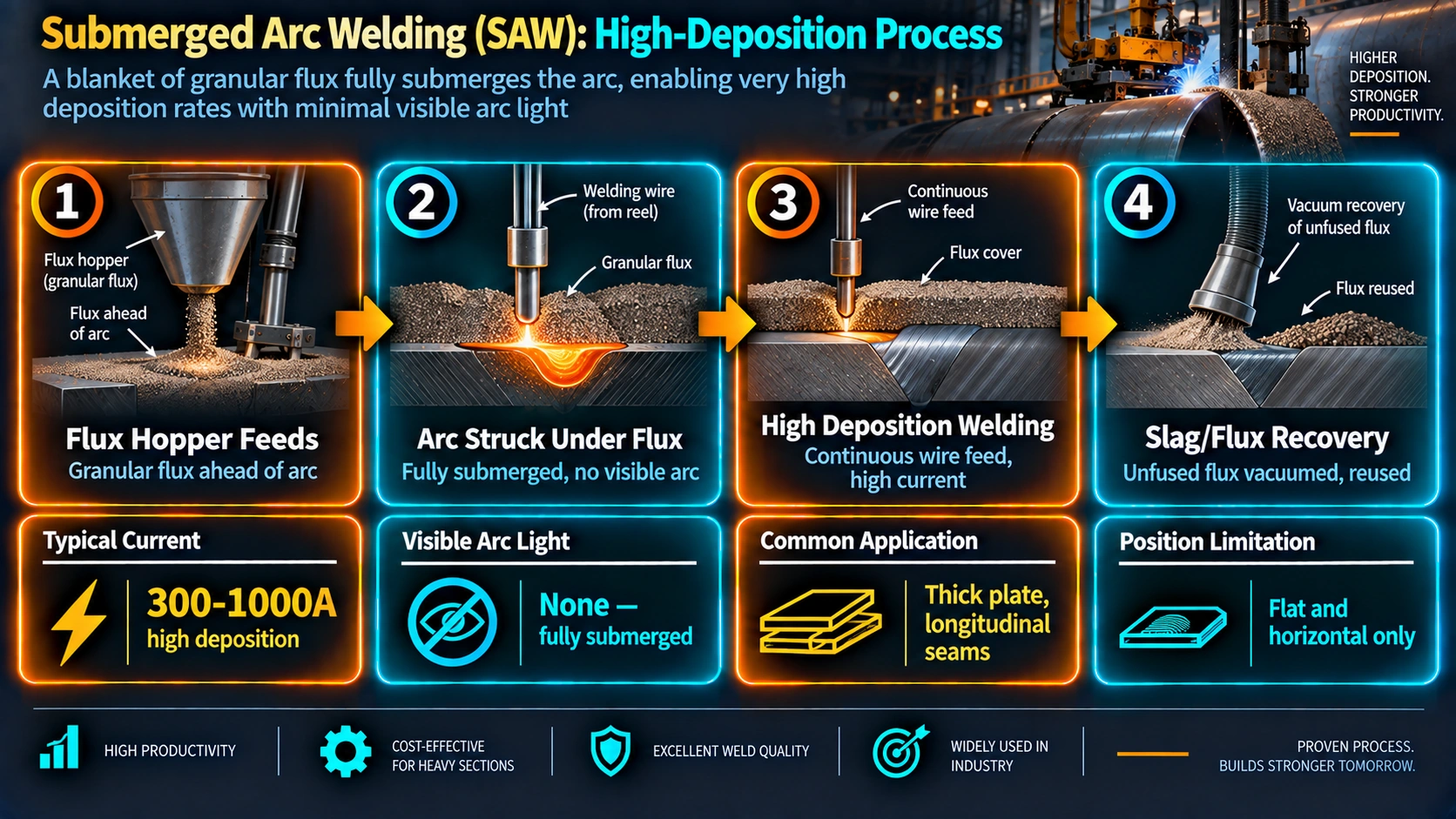

How the Process Works — Step by Step
Understanding the SAW process sequence helps in setting up equipment correctly and diagnosing weld defects. The sequence from arc initiation to weld completion is as follows:
- Flux deposition: Granular flux is deposited from the hopper onto the joint ahead of the welding head, forming a layer typically 25–40 mm deep over the weld seam.
- Arc initiation: Since cold flux is electrically non-conductive, the arc is started by touching the wire to the work (scratch start), using a steel-wool bridge, or with a high-frequency unit. Once initiated, the arc melts a portion of the flux, which becomes conductive and maintains the current path through the molten flux between electrode and workpiece.
- Steady-state welding: The electrode wire is fed continuously at a preset rate. The arc melts the wire and a portion of the base metal, forming a molten pool. The molten flux floats on the pool, shielding it from the atmosphere. The unfused surface flux insulates the arc visually and thermally.
- Pool progression: As the welding head moves (or the workpiece moves under a stationary head), the weld pool solidifies behind the arc, with the molten flux solidifying into a glassy slag layer on top.
- Slag removal and flux recovery: After the pass, the solidified slag is removed (it usually self-detaches due to differential thermal expansion). The unfused surface flux is vacuumed up by the recovery system and returned to the hopper for reuse.
SAW Equipment and Components
A complete SAW installation requires several interconnected components. Understanding each component’s role is critical for commissioning, maintenance, and troubleshooting.
Power Source
The SAW power source must be rated for 100% duty cycle, since weld runs on heavy plate can last 10–30 minutes or more. Both constant voltage (CV) and constant current (CC) power sources are used:
- Constant Voltage (CV): Most common for wire diameters up to 3.2 mm (1/8 in.). CV provides a self-regulating arc — a change in arc length produces a large change in current, which quickly corrects the arc length. CV systems use a constant-speed wire feeder.
- Constant Current (CC): Preferred for larger wire diameters (4 mm and above). CC systems use a voltage-sensing wire feeder that adjusts feed rate to maintain the set voltage. They provide more stable arc conditions at high currents.
Transformer-rectifier units and motor-generator sets are traditional. Modern inverter-based power sources offer improved energy efficiency and digital parameter control but must be sized for the high currents SAW demands (typically 600–1,500 A for production applications).
Wire Feeder and Control System
The wire feeder drives the electrode from the spool to the contact tip at a controlled rate. The control system sets and monitors: wire feed speed (WFS), arc voltage, travel speed (in automatic systems), and flux hopper operation. Modern digital controllers log parameters for QA traceability.
Welding Head and Boom
The welding head holds the contact tip, the flux delivery nozzle, and the flux recovery inlet. In mechanised SAW, the head is mounted on a boom or column-and-boom manipulator that traverses over a stationary workpiece (e.g., a vessel shell on turning rolls). In automatic SAW, the workpiece moves under a stationary head (common in pipe mill longitudinal seam applications).
Flux Hopper and Recovery System
The flux hopper stores and delivers granular flux ahead of the arc through a delivery nozzle. The recovery system (typically a vacuum unit mounted behind the welding head) collects unfused flux immediately after the weld pass for reuse. Proper hopper sizing prevents flux starvation and arc instability.
SAW Flux — Types, Composition, and Selection
The flux is the defining material in SAW. It performs four concurrent functions: atmospheric shielding, arc stabilisation, slag formation, and weld metal metallurgical conditioning. Flux selection has a direct impact on weld metal mechanical properties, particularly toughness and hydrogen content.
Flux Manufacturing Types
| Type | Manufacturing Method | Moisture Resistance | Alloying Capability | Typical Use |
|---|---|---|---|---|
| Fused | Raw materials melted together and crushed to size | Excellent | Limited | Structural steel, consistent particle size needed |
| Bonded (Agglomerated) | Raw powder mixed with binder, extruded and sintered | Moderate (requires storage care) | Excellent — alloys added easily | Low-hydrogen welds, alloyed weld metals, cladding |
| Mechanically Mixed | Physical blend of different flux types | Variable | Moderate | Custom property targets |
Flux Basicity Index (BI)
The Basicity Index (Boniszewski formula) classifies flux by the ratio of basic to acidic oxides in its composition. It has a strong influence on weld metal toughness and oxygen content:
| BI Range | Flux Class | Weld Bead Appearance | Toughness | Slag Removal |
|---|---|---|---|---|
| < 1.0 | Acidic | Excellent — very smooth | Lower | Easy |
| 1.0–1.2 | Neutral | Good | Moderate | Good |
| > 1.2 | Basic | Acceptable | High — low oxygen, low H | Moderate |
For applications requiring Charpy impact testing at sub-zero temperatures (such as pressure vessels per UG-84 of ASME Section VIII Div.1), basic fluxes with BI > 1.2 are generally specified. See also our guide on delta ferrite control in stainless welds for related metallurgical considerations.
Flux Particle Size
Coarser flux particles are used with higher welding currents to allow adequate arc coverage and gas escape. Fine particles are used for lower current applications and strip cladding. Incorrect particle size can cause irregular bead profile, arc instability, or porosity.
SAW Electrodes — Types and Classifications
SAW electrodes are classified in AWS A5.17 (for carbon steel) and AWS A5.23 (for low-alloy steel). They are always used in combination with a specific flux, and the wire-flux combination determines the weld metal chemistry and mechanical properties. The AWS classification always denotes both the wire and the flux together.
Electrode Forms
- Solid wire: Most common. Diameters range from 1.6 mm to 6.4 mm (1/16” to 1/4”). Available in copper-coated (for conductivity and corrosion protection) and bare forms.
- Metal-cored wire: Tubular sheath with metallic powder core. Allows higher deposition rates and some alloy addition.
- Twisted wire: Pairs of wires twisted together, producing an oscillating arc motion for wider bead and improved fusion.
- Strip electrode: Flat strip (e.g., 60 mm × 0.5 mm) used in strip cladding to deposit a corrosion-resistant overlay over carbon steel base metal. Common in pressure vessel lining with 309L or 316L stainless steel.
Wire-Flux Combination Selection
The guiding principle is that the wire and flux must together produce weld metal meeting the required chemical composition and mechanical properties (tensile strength, yield strength, elongation, CVN impact energy). For P91 / Gr.91 creep-resistant steels, see the dedicated guide on P91 welding requirements — SAW is used for heavy P91 seam welds but requires careful PWHT control.
F7A2-EM12K decodes as: F = Flux, 7 = 70 ksi min. tensile strength, A = as-welded condition, 2 = −20 °F CVN test temperature, EM12K = electrode designation (E = electrode, M = medium-manganese, 12 = carbon content, K = silicon-killed).
Welding Parameters and Their Effects
Controlling SAW parameters is central to achieving the required weld bead geometry, mechanical properties, and freedom from defects. The four primary variables are welding current, arc voltage, travel speed, and electrode polarity. Together they define the heat input, which is a key variable in weld procedure qualification under most pressure vessel and structural codes.
Heat Input Formula
Heat input (HI) is calculated as:
HI (kJ/mm) = [Voltage (V) × Current (A) × 60] / [Travel Speed (mm/min) × 1000]
For process efficiency factor, SAW is assigned a factor of 1.0 in ASME and AWS codes (compared to 0.6 for SMAW), reflecting its efficient arc energy utilisation.
Effect of Polarity
| Polarity | Penetration | Deposition Rate | Typical Application |
|---|---|---|---|
| DCEP (DC+) | Deep | Moderate | Most single-arc production welding |
| DCEN (DC−) | Shallow | High | Cladding and surfacing, where minimum dilution is required |
| AC | Intermediate | Intermediate | Multi-wire systems (reduces arc blow between adjacent arcs) |
Joint Design and Preparation for SAW
SAW’s deep penetration and high heat input mean that joint preparation requirements differ from those for other arc welding processes. Correct joint design prevents lack of fusion at the root, excessive weld crown height, and distortion.
For a full overview of weld joint terminology and geometry, see our guide on welding joint types.
Common Joint Configurations for SAW
| Joint Type | Plate Thickness | Notes |
|---|---|---|
| Square butt (single) | Up to 12 mm | Single pass with backing bar or back-gouging |
| Single V-groove | 12–25 mm | Root pass by SMAW or GTAW, fill/cap by SAW |
| Double V-groove (X-groove) | 25–60 mm | Welded from both sides; reduces angular distortion |
| Single U-groove | 25–50 mm | Reduced groove volume vs. V; good for multiple passes |
| Double U-groove | 50–150 mm+ | Used in very heavy pressure vessel shells |
| Fillet (lap and T-joint) | Any | Horizontal position; flux containment critical |
Backing Options
- Copper backing bar: Prevents burn-through on thin plate. The copper’s high thermal conductivity chills the root quickly and does not fuse to steel weld metal.
- Steel backing strip: Becomes an integral part of the weld. Must be of matching or compatible base metal. Common in pressure vessel longitudinal seam welding.
- Flux backing (flux cushion): A layer of flux placed under the joint before welding. Allows a full-penetration root bead on one side. Requires careful flux density control.
- Back-gouging and reweld: Root side is gouged (by air-carbon arc or grinding) after the first side is welded, and then welded from the second side. Provides highest quality assurance.
Base Metals Suitable for SAW
SAW is applicable to a wide range of ferrous base metals. The process is generally not suited to aluminium or titanium due to flux chemistry incompatibility and metallurgical constraints.
| Material Category | Examples | Considerations |
|---|---|---|
| Low / medium carbon steel | ASTM A36, A516 Gr.70 | Widest application; straightforward parameter selection |
| Low-alloy HSLA steel | ASTM A572 Gr.50, A537 | Watch heat input; may need preheat to control HAZ hardness |
| Quenched & tempered steel | ASTM A514, A517 | Low heat input mandatory to preserve HAZ toughness; strict interpass temperature control |
| Creep-resistant alloy steel | P11, P22, P91 / Gr.91 | Preheat, PWHT, strict consumable control; see P91 guide |
| Austenitic stainless steel | 304L, 316L, 347 | Low heat input to control sensitisation (weld decay); see stainless weld decay |
| Duplex stainless steel | S31803 (2205) | Strict heat input and interpass temperature control for phase balance; see duplex guide |
| Nickel alloys | Alloy 625, Alloy 276 | Experimental; flux compatibility is the key challenge |
For sour service applications where hydrogen-induced cracking is a concern, hardness control in the weld and HAZ is critical. Refer to our guide on sour service welding requirements and the use of carbon equivalent (CE) for hardenability assessment.
Advantages and Limitations of SAW
Advantages
| Advantage | Detail |
|---|---|
| Highest deposition rate | Single-wire: up to 40 kg/h. Multi-wire (tandem/triple): over 100 kg/h. No other arc process matches this. |
| Deep penetration | Full-penetration welds on 20–30 mm plate in a single pass from one side are achievable. |
| No UV arc flash / no spatter | The arc is completely submerged. No PPE beyond standard protection is required at the machine level. |
| Low fume generation | The flux blanket suppresses fume. SAW can be operated in enclosed spaces more readily than open-arc processes. |
| Excellent weld quality | High purity weld metal, consistent bead profile, very low porosity incidence when parameters and flux are correctly maintained. |
| High operating factor | In mechanised mode, arc-on time as a fraction of total production time is very high versus manual processes. |
| Flux reuse | Unfused surface flux is recovered and reused, reducing consumable cost relative to electrode-shielded processes. |
Limitations
| Limitation | Detail |
|---|---|
| Position restriction | Primarily flat (1G/1F) and horizontal-fillet (2F) only. Gravity-dependent flux cannot be used overhead or vertically. |
| Joint access requirements | The welding head and flux hopper require clear access to the joint. Confined or complex geometries are not practical. |
| Minimum plate thickness | Generally not economical or controllable below 6 mm plate thickness due to burn-through risk and high heat input. |
| High capital cost | SAW equipment (power source, wire feeder, manipulator, recovery system) represents a significant capital investment versus SMAW or GMAW. |
| Setup time | Mechanised SAW requires careful joint fit-up, alignment, and parameter setup. Short welds are not economical. |
| Flux management | Flux must be stored dry, baked if moisture is suspected, and segregated from slag. Improper flux management is a common source of porosity and hydrogen cracking. |
Multi-Wire SAW — Tandem and Beyond
Multi-wire SAW uses two or more electrodes in the same weld pool (tandem arc) or in separate but closely spaced pools (series arc). This configuration dramatically increases deposition rate and travel speed, and is standard in pipe mill and shipbuilding plate fabrication.
- Tandem (2-wire): Lead wire (DCEP) provides penetration; trailing wire (AC or DC–) adds fill and controls bead shape. Travel speeds 2–3× that of single-wire SAW.
- Triple arc: Three wires in sequence. Used in spiral and longitudinal pipe seam welding for maximum productivity on wall thicknesses of 6–40 mm.
- Strip cladding (SAW strip): A flat strip electrode (e.g., 90 mm × 0.5 mm of 309L) deposits a wide, thin overlay pass. Used for pressure vessel interior cladding with stainless steel or nickel alloy. Minimum dilution (typically < 10%) is the key metallurgical requirement.
Applicable Codes and Standards
SAW procedures must be qualified in accordance with the applicable code for the component being fabricated. The most common code frameworks are:
| Code / Standard | Scope | SAW-Specific Notes |
|---|---|---|
| ASME Section IX | Pressure equipment (boilers, pressure vessels, piping) | SAW is a separate process (P-number grouping, F-number for flux, A-number for weld metal); heat input is a supplementary essential variable for toughness-qualified procedures |
| AWS D1.1 | Structural steel welding | Pre-qualified SAW procedures available for certain joint/material combinations; heat input limits for seismically loaded structures |
| AWS D1.5 | Bridge welding | Stringent CVN requirements; specific flux-wire combination qualification required |
| EN ISO 15614-1 | European welding procedure qualification | SAW qualified similarly to ASME IX; heat input an essential variable when impact testing is required |
| API 1104 | Pipeline welding | SAW used for pipe mill seam; field girth welding by SAW uncommon due to position restriction |
For a comprehensive review of ASME Section IX welding variables relevant to SAW, try our interactive ASME Section IX quiz. For P-number and F-number classification of SAW consumables, see the P-group, F-number, and A-number reference.
Industrial Applications of SAW
SAW’s combination of high productivity, deep penetration, and excellent weld quality makes it the process of choice wherever long, flat, or circumferential welds on thick plate are required. Key application sectors include:
Pressure Vessel and Heat Exchanger Fabrication
Longitudinal and circumferential seam welding of vessel shells is the classic SAW application. The vessel shell is rotated on turning rolls beneath a stationary SAW head. Wall thicknesses from 10 mm to 200 mm are routinely welded. ASME Section VIII Div.1 governs most such fabrication. For tube-to-tubesheet welding in heat exchangers, however, GTAW is typically used — see the tube-to-tubesheet qualification guide.
Shipbuilding
Hull plate splicing, sub-assembly fabrication, and structural member welding all use SAW extensively. The flat position constraint is accommodated by pre-fabricating panels in the flat position before erection. High-speed tandem SAW is standard in modern shipyard plate-line operations.
Structural Steel
Fabricated columns, plate girders, and box sections are routinely produced with SAW fillet and butt welds. Column and beam production lines use automated SAW gantries to achieve consistent weld quality at high throughput. For welding symbol interpretation on structural drawings, see our welding symbols guide.
Pipe and Tube Mills
Spiral-welded and longitudinal-seam pipe are produced using SAW (often inside and outside simultaneously using twin heads). Wall thicknesses from 6 mm to 40 mm are typical for linepipe and structural pipe. Refer to the pipe weight calculator for pipe section property calculations.
Railway and Rolling Stock
Wagon floors, side walls, and undercarriage frames are welded by mechanised SAW for consistent quality and high production rates on mild and HSLA steels.
Offshore and Oil & Gas
Platform deck fabrication, spool piece welding, and vessel cladding all use SAW. SAW strip cladding is used to line carbon steel vessel internals with 316L or Alloy 825 to resist corrosion in sour or chloride environments. For corrosion-resistant alloy selection, see our corrosion guide and the PREN calculator.
Common SAW Weld Defects, Causes, and Remedies
| Defect | Probable Cause | Remedy |
|---|---|---|
| Porosity | Wet flux, contaminated base metal, excessive travel speed, insufficient flux coverage | Rebake flux; clean joint; reduce travel speed; increase flux depth |
| Lack of fusion / cold lap | Travel speed too high, current too low, voltage too high | Reduce travel speed; increase current; reduce voltage |
| Undercut | Excessive voltage, excessive travel speed | Reduce voltage; reduce travel speed |
| Centreline solidification cracking | Width:depth ratio too narrow (< 0.7), high sulphur steel, excessive current | Increase voltage to widen bead; use low-sulphur wire; reduce current |
| Slag inclusion | Irregular flux depth, magnetic arc blow, poor joint fit-up | Even flux distribution; switch to AC; improve fit-up |
| Hydrogen cracking (HAZ) | Wet flux, high-CE steel without preheat, rapid cooling | Bake flux; apply preheat per AWS D1.1 Table 3.2 or ASME; slow cooling |
| Irregular bead contour / humping | Excessive travel speed, inadequate flux depth, wrong wire stickout | Reduce travel speed; increase flux depth; adjust contact-tip-to-work distance (CTWD) |
For a comprehensive framework of weld discontinuity acceptance criteria and mechanical testing requirements, see our guide on mechanical testing of welds.

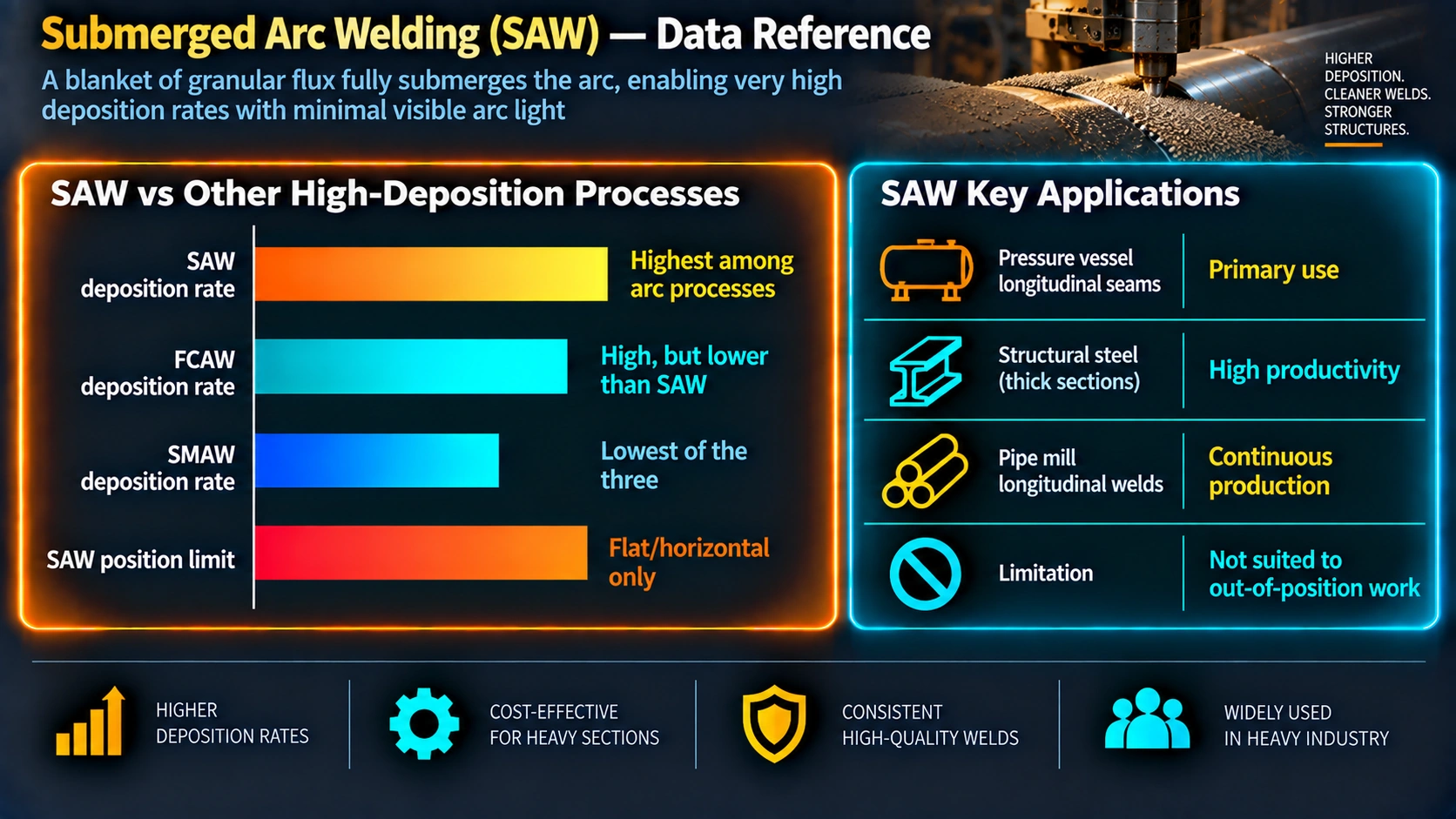

SAW vs. Other Welding Processes
| Characteristic | SAW | GMAW (MIG) | SMAW (Stick) | GTAW (TIG) |
|---|---|---|---|---|
| Deposition rate | Up to 45+ kg/h | Up to 8 kg/h | Up to 5 kg/h | Up to 1.5 kg/h |
| Penetration | Very deep | Moderate | Moderate | Shallow |
| Weld positions | Flat, horizontal-fillet only | All positions | All positions | All positions |
| Min. plate thickness | ∼6 mm | 0.6 mm | ∼3 mm | 0.5 mm |
| Automation suitability | Excellent | Good | Poor | Good |
| Fume/arc flash | Minimal | Moderate | High | Low |
| Consumable cost | Low (flux reusable) | Moderate | Moderate | Low (filler rod) |
| Capital cost | High | Low–Medium | Low | Low–Medium |
Frequently Asked Questions
What is Submerged Arc Welding (SAW)?
Submerged Arc Welding (SAW) is an arc welding process in which the arc and molten weld pool are shielded from atmospheric contamination by a blanket of granular fusible flux. A continuous, consumable solid or metal-cored wire electrode is automatically fed into the joint. The process operates without a visible arc and produces no spatter, making it one of the cleanest and most productive welding methods available. It is used primarily in mechanised or automatic mode for welding thick sections of ferrous metals.
What are the main advantages of SAW over other welding processes?
SAW offers the highest deposition rates of any arc welding process — up to 45 kg/h for single-wire and over 100 kg/h in multi-wire configurations. Additional advantages include deep weld penetration, excellent weld quality with minimal defects, no UV arc flash or spatter, low fume generation, high operating factors in mechanised setups, and the ability to weld thick plate in a single pass with appropriate parameters. The reusability of unfused flux also reduces consumable running costs compared to electrode-based processes.
What materials can be welded using SAW?
SAW is most commonly applied to low and medium carbon steels, low-alloy high-strength steels (HSLA), quenched and tempered steels, and austenitic stainless steels. It has also been applied experimentally to nickel alloys, copper alloys, and surfacing/cladding of base metals with a different alloy layer. Aluminium and titanium are generally not suitable due to flux chemistry and metallurgical constraints. For duplex stainless steels, strict heat input control is essential to maintain the austenite/ferrite phase balance.
What welding positions are possible with SAW?
SAW is primarily restricted to the flat (1G/1F) and horizontal-fillet (2F) positions because the granular flux relies on gravity to remain in place over the weld pool. Horizontal groove (2G) welds are achievable with special flux-retaining fixtures. Vertical and overhead positions are generally impractical with conventional SAW, unlike SMAW or FCAW. This position restriction is the most significant operational limitation of the process. For a full overview of welding position classifications, see our welding positions guide.
What types of flux are used in SAW and how are they selected?
SAW fluxes are classified as fused, bonded, or agglomerated. Fused fluxes offer consistent particle size and excellent moisture resistance but limited alloying capability. Bonded fluxes allow alloying additions and are preferred where weld metal chemistry adjustment is needed. The flux Basicity Index (BI) guides selection: acidic fluxes (BI < 1.0) give excellent bead appearance; neutral fluxes offer balanced properties; basic fluxes (BI > 1.2) maximise toughness and lower diffusible hydrogen content. For impact-tested applications per UG-84 of ASME VIII, basic fluxes are typically specified.
How do welding current, voltage, and travel speed affect the SAW weld bead?
Current primarily controls penetration depth and deposition rate: higher current increases both. Voltage mainly controls bead width and flux consumption: higher voltage produces a wider, flatter bead with more flux melted. Travel speed controls overall heat input per unit length: slower speed increases heat input, bead width, and penetration, while excessive speed leads to undercut and narrow, humped beads. The target width-to-depth ratio for sound, crack-resistant beads is generally 1:1 to 1.5:1. Heat input is calculated as: HI (kJ/mm) = [V × A × 60] / [Travel Speed mm/min × 1000].
Can SAW flux be reused?
Yes. The unfused granular flux on the surface of the weld, which does not melt during the welding pass, can be recovered and reused. It is typically collected by a vacuum recovery system integrated into the welding head assembly. The fused flux beneath the surface solidifies into slag, which is waste and must be mechanically removed. Recovered flux should be kept dry and rebaked at 300–350 °C for 1–2 hours if moisture absorption is suspected, since wet flux is a primary cause of porosity and hydrogen cracking in SAW.
What industries use SAW and for what typical applications?
SAW is extensively used in pressure vessel and boiler fabrication (longitudinal and circumferential seam welding), shipbuilding (hull plate and sub-assembly splicing), structural steel fabrication (fabricated columns, plate girders), pipeline and pipe mill manufacturing (spiral and longitudinal seam welding of linepipe), railway wagon fabrication, and offshore platform structures. Strip cladding using SAW is also widely used to apply corrosion-resistant overlay (316L, Alloy 625) to carbon steel pressure vessel internals.
