AWS CWI Certification — 2025 Complete Exam Guide

The AWS Certified Welding Inspector (CWI) credential is the most widely recognised welding inspection qualification in the world, accepted across structural steel fabrication, oil and gas pipelines, pressure vessel manufacture, shipbuilding, aerospace, and power generation. Earning the CWI demonstrates that you can read and apply welding codes, evaluate weld quality against acceptance criteria, review welding procedure specifications and welder qualification records, and make sound inspection judgements under production conditions. This guide walks you through everything you need to know for 2025: eligibility requirements, exam structure across all three parts, codebook selection, study strategy, cost, and the path from certification to renewal.

The certification is governed by AWS Standard QC1 and AWS B5.1:2025 (Specification for the Qualification of Welding Inspectors). The exam has a well-documented first-attempt pass rate of approximately 25 to 30 percent — not because the material is impossibly difficult, but because the six hours of testing across three distinct parts demands consistent preparation across a very broad knowledge base. Candidates who understand the exam structure and study strategically significantly improve their odds.

What Is the CWI and What Does a Welding Inspector Do?

A Certified Welding Inspector is an independent quality professional responsible for verifying that welded joints conform to the requirements of the applicable welding code or project specification. Unlike a welder, who is qualified to make welds, a CWI is qualified to judge whether welds are acceptable. The distinction matters: a CWI can work at any stage of the fabrication process — before welding (reviewing procedures and material certifications), during welding (monitoring preheat, interpass temperature, and fit-up), and after welding (performing visual inspection and coordinating NDT).

Day-to-day responsibilities of a working CWI typically include reviewing and signing off welding procedure specifications (WPS) and procedure qualification records (PQR), verifying welder performance qualification records, monitoring conformance to the approved WPS during production, documenting inspection findings in formal reports, and interfacing with clients, engineers, and regulatory authorities. In the petrochemical and power generation sectors, CWIs also monitor PWHT compliance for alloy steels such as Grade 91 and confirm that NDT contractor work is correctly scoped and reported.

Eligibility Requirements — Education and Experience

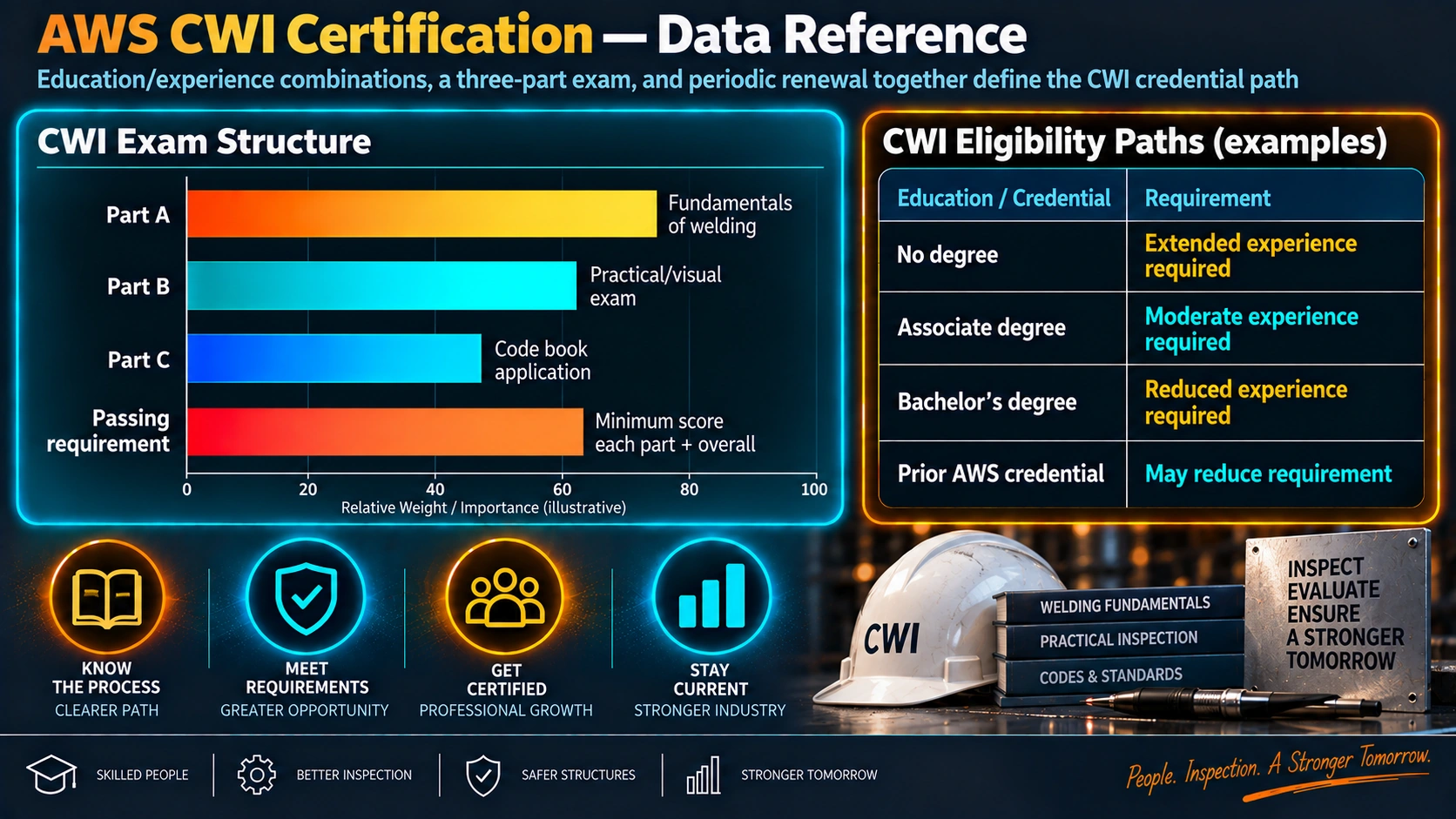

Before applying, every candidate must satisfy a combination of education and welding-related work experience, plus pass a near-vision test. The higher your academic qualification, the less experience is required. The table below summarises the standard eligibility matrix.

Vision Test Requirement

All candidates must pass a near-vision acuity test before certification is issued. The standard requires that candidates read a Jaeger J1 chart at a distance of 12 inches (approximately 300 mm), with or without corrective lenses. There is no colour-vision requirement for CWI, though specific NDT methods applied alongside inspection work may impose additional vision standards. The vision test must have been taken within the last three years at the time of application.

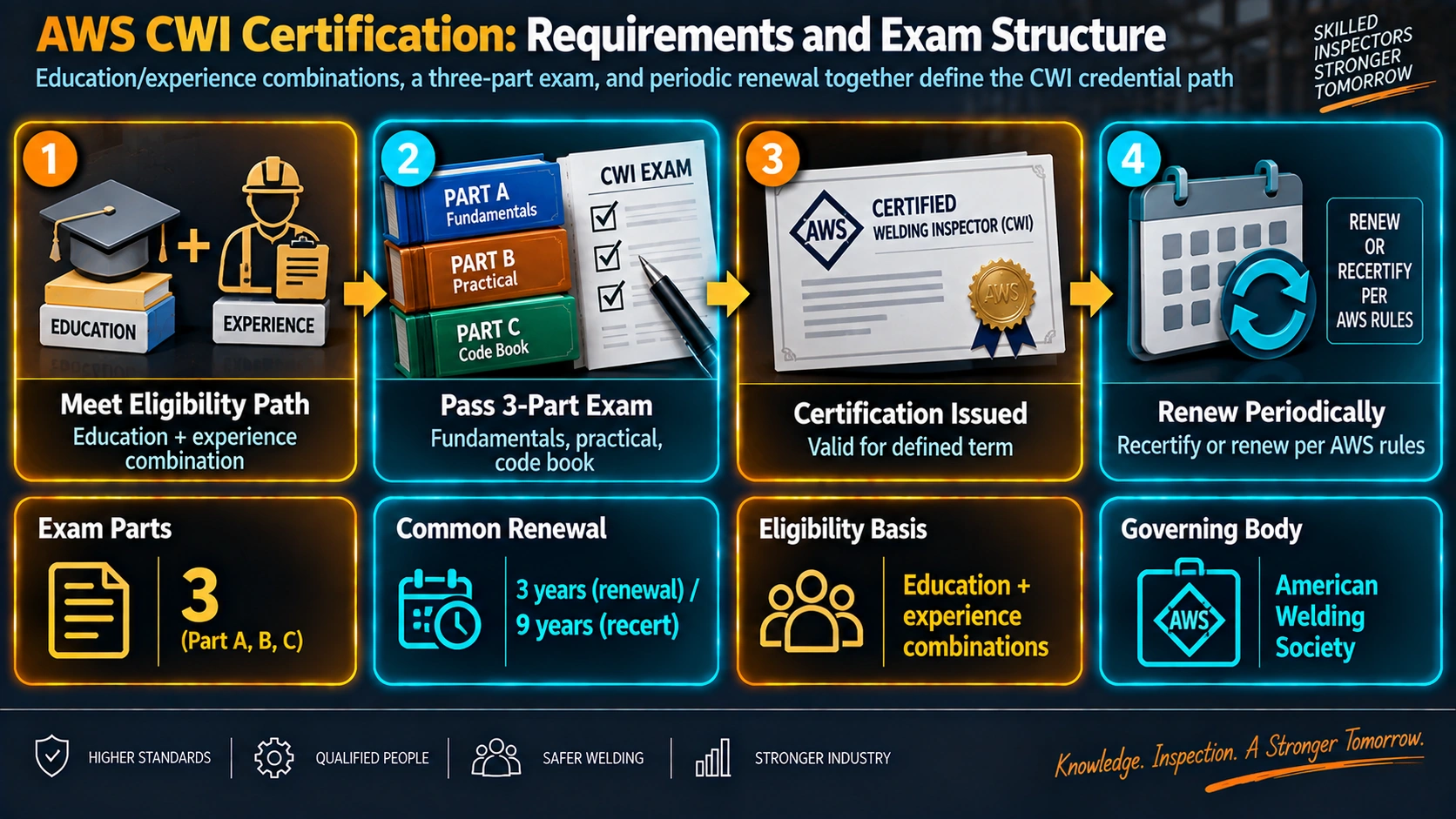

The CWI Exam — Three-Part Structure

The CWI exam consists of three independent parts, each of which must be passed at or above 72% to award the credential. Parts A and C are delivered via computer-based testing (CBT) at over 450 Prometric examination centres worldwide. Part B is a hands-on practical exam conducted at AWS seminar locations in the US and internationally. All three parts carry a two-hour time limit; total maximum exam time is six hours.

Part A — Fundamentals (Closed-Book)

Part A is the broadest section of the exam, covering eight major topic areas across 150 multiple-choice questions in two hours. This works out to roughly 48 seconds per question, which is manageable if you know the material. Questions that stump you should be flagged and revisited; spending more than 90 seconds on any single question during the first pass wastes time that could be used on questions you know. The eight tested domains are:

• Welding Fundamentals: Process principles for SMAW, GMAW, FCAW, GTAW, and SAW; equipment, consumables, and process parameters.
• Welding Metallurgy: Iron-carbon phase diagram, HAZ formation, hardenability, preheat and interpass temperature, hydrogen cracking, martensite, PWHT.
• Weld Defects and Discontinuities: Porosity, incomplete fusion, undercut, overlap, cracks (hot and cold), lamellar tearing — causes, effects, and acceptance limits.
• Welding Symbols: Reading and interpreting standard AWS A2.4 symbols including supplementary symbols, finish symbols, and tail information.
• WPS and PQR: Structure and content of welding procedure specifications and procedure qualification records under ASME Section IX and AWS standards; essential, supplementary essential, and non-essential variables.
• Nondestructive Testing (NDT): Principles of VT, PT, MT, UT, and RT; applications, limitations, and acceptance criteria for each method.
• Destructive Testing: Tensile, bend, macro, hardness, and Charpy impact tests; specimen preparation and acceptance criteria.
• Safety and Fabrication Math: Fume exposure limits, electrical safety, fire prevention, unit conversions, and basic geometric calculations.

Part B — Practical Exam (Hands-On)

Part B is the only section conducted at a physical AWS examination location. Candidates work with weld replicas and actual physical specimens using measurement tools provided by AWS — fillet weld gauges, undercut gauges, hi-lo gauges, and rulers. The 46 questions are directly tied to the hands-on activities performed during the exam session. Activities include evaluating weld specimens for surface discontinuities, measuring weld geometry dimensions, and interpreting WPS/PQR documents against specimen data.

The primary reason candidates fail Part B is unfamiliarity with inspection tools under timed conditions. If you have never used a bridge-type fillet weld gauge or a hi-lo pipe alignment gauge in a production context, practice with physical gauges before exam day. Many AWS-affiliated training seminars provide access to replica specimens for practice — this is the most efficient way to build the speed needed to complete 46 questions in two hours.

Part C — Code Book Application (Open-Book)

Part C tests the candidate’s ability to locate and correctly apply specific code requirements. It is an open-book test, and the PDF version of the codebook is accessible on-screen through the CBT interface. AWS recommends mastering the use of PDF bookmarks for navigation, as flipping through the physical codebook manually during a timed test is significantly slower than navigating a properly bookmarked PDF. The exam has 50 to 65 questions with a maximum of 135 minutes.

Despite being open-book, Part C is not straightforward. Questions are carefully written to test whether you can navigate the code under time pressure and apply specific clauses to realistic inspection scenarios. A common candidate mistake is being overconfident about memory and skipping the codebook lookup; verifying every answer against the code is the correct strategy, even for questions you believe you know. The code is the authoritative source, and small rule nuances often determine the correct answer.

Choosing Your Part C Codebook

The choice of codebook for Part C should reflect the code you are most likely to use in your working career. AWS states that no codebook is officially easier than any other; the credential awarded is simply “CWI” regardless of which code you choose. The most commonly selected options are listed below.

How to Apply — Step-by-Step Process

CWI Exam Cost in 2025

The total exam investment for 2025 is approximately USD $1,255 for AWS members and USD $1,520 for non-members when sitting all three parts together. Joining AWS as an individual member is approximately $95/year and immediately reduces the exam fee enough to recoup the membership cost. Additional cost items to budget for include:

• Paper or email application surcharge: $125 (avoidable by using the online portal)
• Codebook purchase: $100–$300 depending on the publication and format
• AWS seminar attendance (optional but recommended): $1,500–$2,500 for a week-long in-person course
• Individual part retake fee (if required): $295–$495 per part
• 3-year renewal fee: approximately $465–$720

Part A Subject Areas — Detailed Study Guide

Welding Processes and Equipment

You are expected to understand the operating principles, typical applications, advantages, and limitations of the major arc welding processes. For SMAW, know electrode classification under AWS A5.1 and A5.5, polarity requirements, and the low-hydrogen practice rules. For GMAW/MIG welding, understand transfer modes (short-circuit, globular, spray, and pulsed spray), shielding gas selection, and wire classification. For GTAW/TIG welding, know when to use DCEN, DCEP, and AC current, and the role of the shielding gas in arc stability and oxide cleaning. For SAW, understand flux types, polarity effects, and typical heat input ranges.

Welding Metallurgy

Metallurgy is consistently one of the more challenging areas for candidates without a formal engineering background. Focus your study on: the iron-carbon phase diagram and how weld thermal cycles move through phase regions; the definition and significance of the heat-affected zone (HAZ); how carbon equivalent relates to preheat requirement (see the Carbon Equivalent Calculator for a worked understanding); the mechanism of hydrogen-induced cold cracking and why low-hydrogen practice controls it; martensite formation and why it is hard and brittle as-welded; and the metallurgical purpose of PWHT tempering. Grade 91 Cr-Mo steel is a useful case study that links many of these principles together.

Welding Symbols

AWS A2.4 welding symbols are examined thoroughly in Part A. You must be able to read the reference line, identify the arrow side versus other side, interpret groove and fillet weld dimensions, read weld-all-around and field weld flags, interpret finish symbols, and parse tail information for process or specification notes. Study the comprehensive welding symbols guide and work through practice problems on a range of joint configurations including T-joints, butt joints, and lap joints.

WPS, PQR, and Welder Qualification

Understanding the structure of a welding procedure specification and how it links to the procedure qualification record is tested in both Part A and Part C. Know the difference between essential, supplementary essential, and non-essential variables under ASME Section IX. Know what triggers requalification and what the test coupon requirements are for a full PQR. Know the range of qualification for thickness and diameter in the most common codes. The P-Number, F-Number, and A-Number classification guide is essential background reading for this topic area.

CWI Salary Data — What You Can Expect in 2025

Salary data for CWIs varies significantly by industry, region, and additional qualifications held. Candidates in the oil and gas pipeline sector or nuclear power generation with concurrent ASNT NDT Level II certifications (UT, MT, PT) typically command the higher end of the range. The Middle East, Australia, and Canada offer strong demand for AWS-CWI credential holders. In Australia, CWIs or equivalent inspectors earn AUD $80,000–$120,000 annually, with senior roles in mining and oil and gas reaching AUD $130,000–$190,000.

CWI Renewal and Recertification

CWI certification is valid for three years from the date of issue. To renew, you must demonstrate that you have been actively working in welding inspection for at least two of the three certification years, pass a vision test, and submit a renewal application through the AWS portal. CWI renewals are limited to two consecutive three-year renewal cycles; after nine years of total certification, full recertification is required.

Recertification at the nine-year mark can be achieved through one of three routes: retaking the Part B or Part C exam; accumulating 80 Professional Development Hours (PDHs) of approved continuing education with at least 20 PDHs completed in the most recent three-year period; or obtaining a qualifying AWS certification endorsement. The 80-PDH route is the most commonly chosen for practitioners who remain active in the field.
