Pre-Weld and Post-Weld Inspection Checklist
A reliable pre weld post weld inspection checklist is the difference between catching a defect on the shop floor at zero cost and discovering it after a third-party inspector has already rejected a finished joint. Most weld failures traced back through a root cause investigation land on something that could have been caught at fit-up, at preheat, or at the final visual stage — not a mysterious metallurgical event, but a missed step on a routine check. This reference chart lays out exactly what to verify at each stage of the weld cycle, in the order a working inspector or welding supervisor would actually walk the joint.

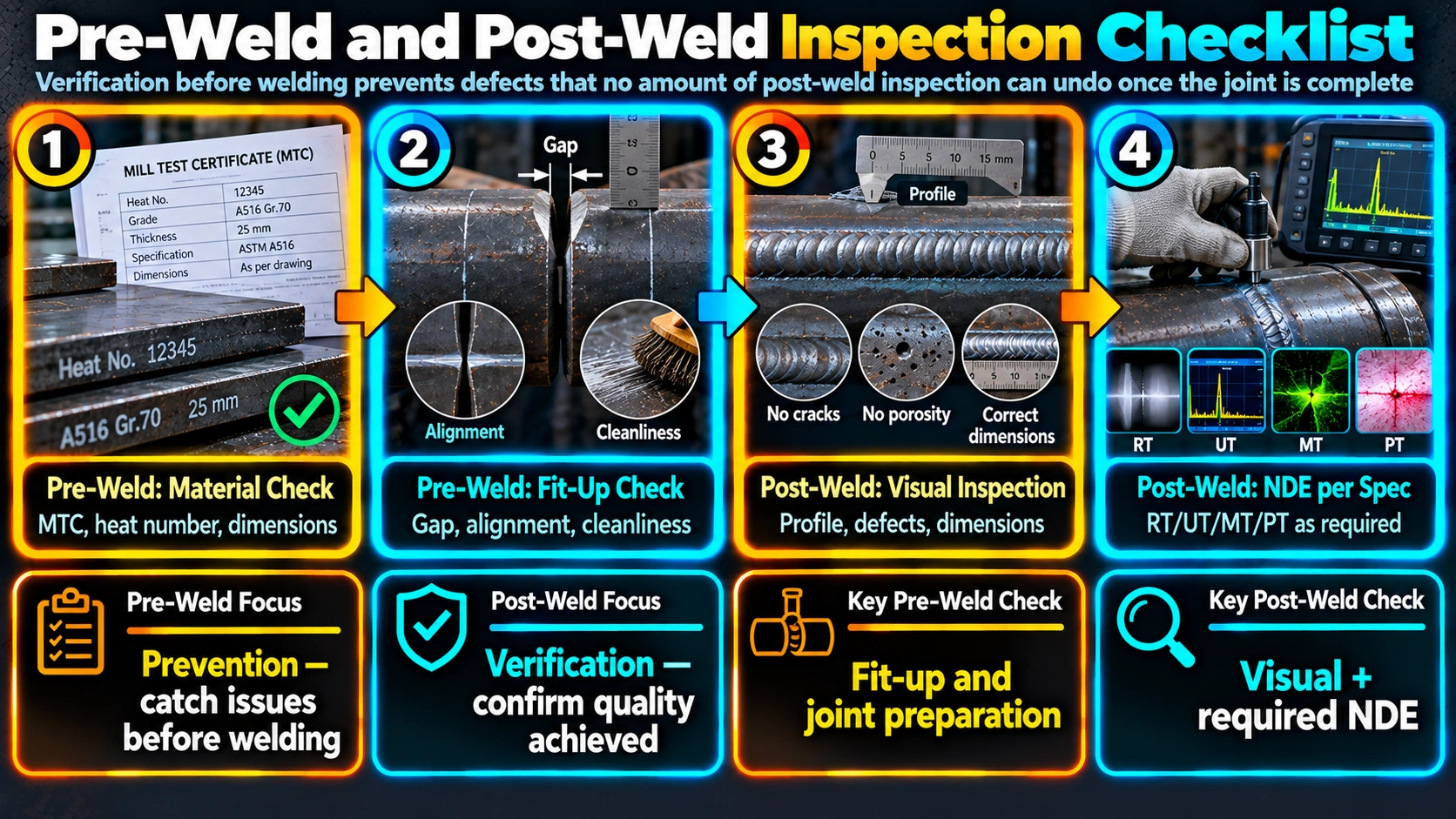

The checklist below is organised into three stages — pre-weld, in-process, and post-weld — matching how most Inspection and Test Plans structure hold and witness points. Use it alongside your project-specific ITP and the qualified WPS for the joint; this chart is a practical memory aid, not a replacement for either document.
How to use this chart: Print or embed this checklist at the fabrication station for the joint being welded, and mark each item off as it is verified. For coded work, retain a signed copy as objective evidence alongside the fit-up and final inspection reports referenced in your ASME Section IX qualification package.

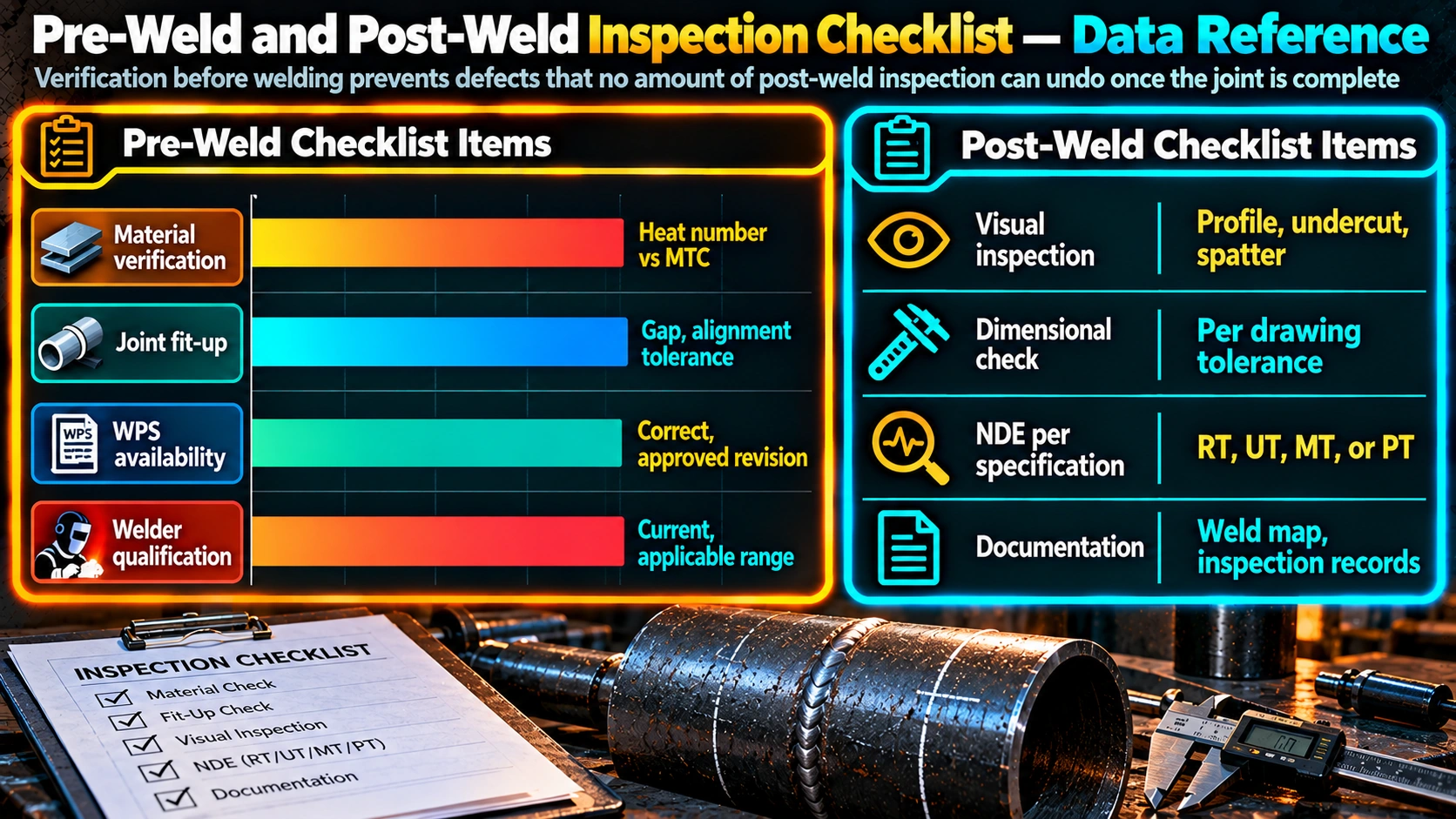

Stage 1 — Pre-Weld Inspection Checklist
Pre-weld inspection exists to prevent defects rather than detect them afterward. Every item below should be verified and, where required by the ITP, signed off before the arc is struck.
Material and Documentation Checks
- Material grade and heat number verified against the mill test certificate and drawing
- Correct filler metal selected and traceable to a valid certificate, matching the consumable nomenclature called out on the WPS
- Consumables (electrodes, wire, flux) stored and baked per manufacturer and WPS requirements
- Approved WPS available at the work station and matches the joint being welded
- Welder holds a current WPQ covering the process, position, and thickness range required
Joint Preparation and Fit-Up Checks
- Bevel angle, root face, and root gap measured against WPS tolerances
- Joint and adjacent surfaces cleaned of oil, mill scale, paint, and moisture
- Alignment and high-low mismatch within the allowable tolerance for the applicable code
- Tack welds placed at correct intervals, of adequate length, and free of visible defects
- Backing strip or purge arrangement installed correctly where specified
Environmental and Preheat Checks
- Preheat temperature verified with a calibrated pyrometer or temperature crayon at the distance specified in the WPS
- Ambient conditions checked — wind shielding, humidity, and temperature within code limits for the process
- Interpass temperature control plan understood and monitoring equipment available before starting
Stage 2 — In-Process (During Welding) Checklist
| Check Item | Verification Method | Priority |
|---|---|---|
| Welding parameters (current, voltage, travel speed) | Compare against qualified WPS range using calibrated meters | Critical |
| Interpass temperature | Contact pyrometer or temperature crayon between passes | Critical |
| Shielding gas type and flow rate | Flow meter reading against WPS specification | Standard |
| Root pass and hot pass visual condition | Visual check for concavity, lack of fusion, or excessive penetration | Critical |
| Inter-run cleaning | Visual check for slag, spatter removal between passes | Standard |
| Welder identification stamping | Physical stamp matches assigned welder log | Documentation |
Common shop-floor miss: Interpass temperature is frequently checked at the start of a joint and then assumed constant. On thick-section or high-heat-input welds, interpass temperature can drift well past the WPS maximum within a few passes if not re-checked, particularly on carbon equivalent-sensitive materials referenced in the carbon equivalent calculator guidance.
Stage 3 — Post-Weld Inspection Checklist
Visual and Dimensional Checks
- Weld size, reinforcement, and profile within code acceptance limits
- Undercut depth and length within allowable tolerance
- No visible surface porosity, cracks, arc strikes, or excessive spatter
- Overall dimensions and joint geometry matching the approved drawing
- Weld identification and traceability markings applied per procedure
Non-Destructive Testing Checks
- Correct NDT method applied per the ITP — radiography, ultrasonic, magnetic particle, or penetrant testing
- NDT personnel certification current and appropriate for the technique used
- Equipment calibration records valid and available for review
- Acceptance criteria applied match the governing code edition, not a superseded revision
Heat Treatment and Final Testing Checks
- PWHT chart reviewed for correct heating rate, soak temperature, soak time, and cooling rate
- Hardness testing performed and results within the specified maximum where required
- Hydrostatic or pneumatic test pressure, hold duration, and gauge accuracy verified
- All records compiled into the data book with inspector sign-off before release
Typical Post-Weld Sequence — Butt Weld on a Pressure Component
1. Visual inspection of cap pass -> accept/reject per code table
e.g. ASME B31.3 Table 341.3.2 or ASME VIII App.4
2. Radiography or UT per ITP extent (spot / random / 100 percent)
Hold point before PWHT on most pressure equipment
3. PWHT per qualified PQR heating/cooling rate and soak time
Chart reviewed and attached to data book
4. Hardness check across weld, HAZ, and base metal
Compare against code maximum, e.g. 200 HB for sour service per NACE MR0175
5. Final data book compilation and TPI release
Quick-Reference Summary Table
| Stage | Primary Focus | Key Reference |
|---|---|---|
| Pre-Weld | Material, fit-up, preheat, WPS/WPQ verification | Approved WPS and drawing |
| In-Process | Parameters, interpass temperature, inter-run cleaning | Qualified WPS range |
| Post-Weld | Visual, dimensional, NDT, PWHT, final testing | Governing fabrication code and ITP |
Frequently Asked Questions
What is the difference between pre-weld and post-weld inspection?
Pre-weld inspection covers everything checked before the arc is struck, such as material verification, joint preparation, fit-up, and preheat, so that defects are prevented rather than found later. Post-weld inspection covers checks performed after welding is complete, including visual examination, dimensional checks, NDT, and any required heat treatment or hydrostatic testing.
What should be checked during fit-up inspection?
Fit-up inspection verifies root gap, bevel angle, land or root face, alignment and high-low mismatch, cleanliness of the joint, and correct tack weld placement and length. All values are checked against the approved WPS and the project drawing before welding is allowed to start.
When is preheat verification required before welding?
Preheat verification is required whenever the WPS specifies a minimum preheat temperature, which is common on higher carbon equivalent steels, thicker sections, and low alloy or chrome-moly materials. Temperature is checked with a calibrated contact pyrometer or temperature-indicating crayon at the specified distance from the joint before arc initiation.
What visual acceptance criteria apply to a finished weld?
Visual acceptance criteria depend on the governing code, but commonly checked items include weld size and reinforcement, undercut depth, surface porosity, arc strikes, spatter, and overall profile and blending into the base metal. ASME B31.3 Table 341.3.2 and ASME Section VIII Appendix 4 are frequently referenced acceptance tables for piping and pressure vessel work respectively.
What post-weld NDT is typically required?
Typical post-weld NDT includes radiographic or ultrasonic testing for volumetric examination of butt welds, and magnetic particle or liquid penetrant testing for surface examination of fillet welds and welds on ferromagnetic or non-magnetic materials respectively. The specific technique, extent, and acceptance criteria are defined in the project ITP and the applicable code.
Why is post-weld heat treatment inspection important?
Post-weld heat treatment inspection confirms that the heating rate, soak temperature, soak time, and cooling rate all match the qualified PQR and code requirements, since deviations can leave residual stress unrelieved or alter the microstructure and mechanical properties of the weld and heat-affected zone.
Is a checklist a substitute for the approved ITP?
No. A pre-weld and post-weld inspection checklist is a practical shop-floor aid that helps inspectors and welders remember what to check at each stage, but the approved Inspection and Test Plan for the specific project remains the controlling document for hold points, witness points, and acceptance criteria.
