Cross-country transmission pipeline welding is a distinct discipline from plant or refinery piping work. The girth welds joining hundreds of kilometres of pipe are made outdoors, under variable weather, by dedicated production crews moving continuously along a right-of-way — and the governing code, API 1104, Welding of Pipelines and Related Facilities, reflects that operating reality in ways that differ meaningfully from ASME B31.3 process piping or plant-based fabrication codes.
API 1104 and the Governing Design Codes
API 1104 is the welding code, but it operates alongside the pipeline’s design code: ASME B31.4 for liquid petroleum transmission pipelines, or ASME B31.8 for gas transmission and distribution piping. The design code establishes the pipeline class location system, wall thickness, and design factors; API 1104 governs the welding procedure qualification, welder qualification, and acceptance criteria for the girth welds themselves. Project client specifications — Aramco SAES, Shell DEP, ADNOC standards — routinely layer additional requirements on top of the base API 1104 rules, and the project-specific welding quality plan always takes precedence where it is more stringent.

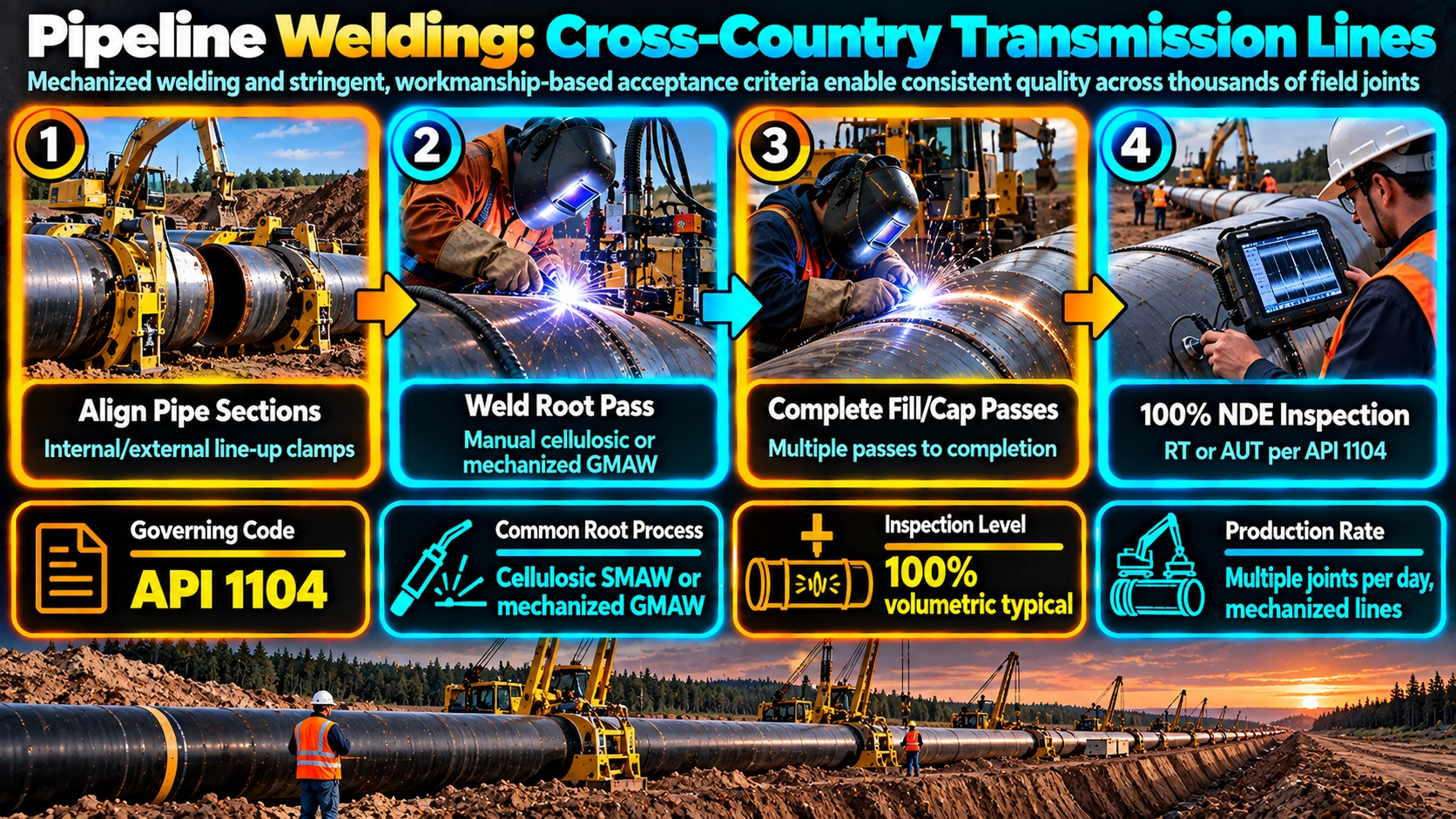

Mainline Welds vs Tie-In Welds
Mainline welds are the girth welds produced in sequence by a dedicated crew progressing continuously down the right-of-way as pipe joints are strung, lined up, and welded. Production is optimized for speed and consistency across long, repetitive runs of near-identical joints. Tie-in welds connect completed mainline sections to each other, to existing in-service pipelines, or to fixed facilities such as valves and pump stations. Tie-ins are typically more constrained — alignment cannot rely on the free pipe movement available during mainline stringing, access may be limited, and scheduling often depends on tie-in windows coordinated with facility shutdowns.

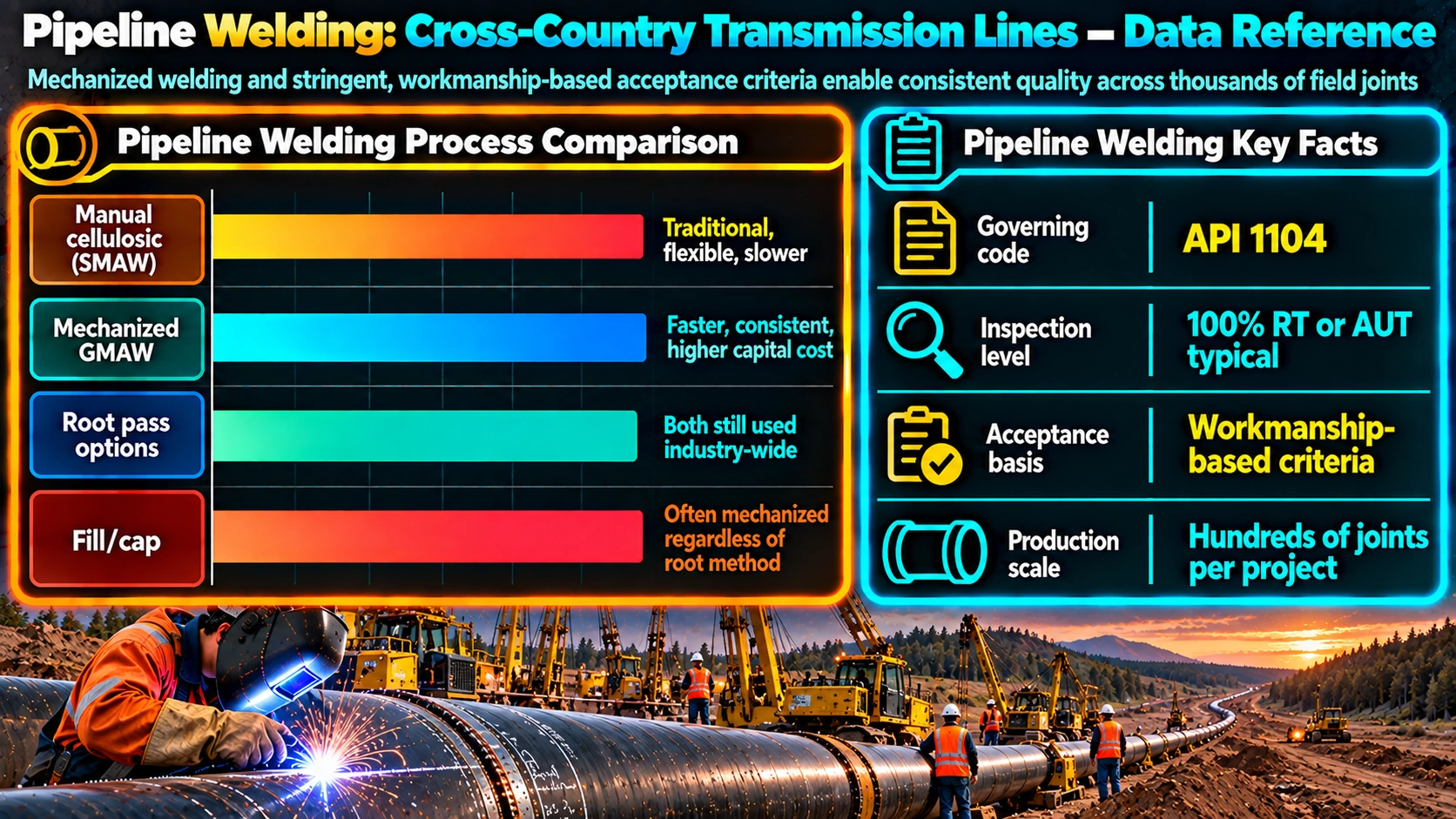

Process and Electrode Selection
Cellulosic E6010 electrodes remain the traditional choice for pipeline root passes because their fast-freezing, deeply penetrating arc tolerates the imperfect fit-up and outdoor wind conditions typical of right-of-way welding, while allowing rapid root completion that keeps pace with mainline crews. Fill and cap passes commonly switch to E7018 for improved mechanical properties and lower diffusible hydrogen — see our electrode baking and storage guide for handling requirements specific to low-hydrogen consumables in field conditions. Mechanized GMAW systems are increasingly used on large-diameter mainline projects for higher production rates, though SMAW remains standard on smaller-diameter lines and in terrain that limits mechanized equipment access.
NDE Extent and Class Location
API 1104, in conjunction with the governing B31.4/B31.8 design code, ties required NDE coverage to pipeline class location — a classification reflecting population density and consequence of failure along the route. Higher-consequence class locations near populated areas require a greater percentage of girth welds to be radiographically or ultrasonically examined, commonly approaching 100 percent, while lower-consequence rural sections may permit a reduced random-sample examination percentage. Bend testing is also a standard destructive qualification method referenced directly in API 1104 for procedure and welder qualification.
| Weld Category | Typical Process | Key Consideration |
|---|---|---|
| Root pass — mainline | SMAW (E6010) or mechanized GMAW | Fast-freeze tolerance to fit-up and wind; production speed Critical |
| Fill and cap — mainline | SMAW (E7018) or GMAW | Mechanical properties, low hydrogen Important |
| Tie-in welds | SMAW typically | Constrained alignment, limited pipe movement Critical |
| NDE — high consequence class location | RT or UT, up to 100% coverage | Population density along route Mandatory |
| NDE — low consequence rural section | RT or UT, random sample | Reduced coverage permitted per class location |
Welder and Procedure Qualification
Welder qualification under API 1104 uses its own qualification test methodology, distinct from ASME Section IX, though both share the underlying logic of essential variables and position/thickness ranges. Many pipeline inspectors hold the AWS CWI credential with the API 1104 codebook endorsement specifically because of this distinction — see our comparison of CSWIP 3.1 vs AWS CWI certification for how pipeline-specific credentialing is recognized regionally, and our complete guide to becoming a welding inspector for the credential path most relevant to pipeline work.
Recommended References on Pipeline Welding
API 1104 Code Book
The governing welding code for cross-country pipeline girth welds — essential reference for pipeline welders and inspectors.
View on AmazonASME B31.4/B31.8 Reference Guide
Pipeline design code reference covering class location, wall thickness, and design factors that govern NDE extent.
View on AmazonPipeline Welding Field Handbook
Practical field reference for right-of-way welding procedures, electrode handling, and production techniques.
View on AmazonCellulosic & Low-Hydrogen Electrode Guide
Consumable selection and handling reference for E6010/E7018 pipeline root and fill applications.
View on AmazonFrequently Asked Questions
What code governs cross-country pipeline welding?
API 1104, Welding of Pipelines and Related Facilities, is the primary code for cross-country oil and gas transmission pipeline girth welds. The pipeline design code itself is typically ASME B31.4 for liquid pipelines or B31.8 for gas transmission pipelines, and both reference API 1104 for the welding requirements. Project-specific client specifications frequently impose additional requirements on top of the base API 1104 rules.
Why is SMAW with cellulosic electrodes still common for pipeline root passes?
Cellulosic electrodes like E6010 produce a fast-freezing, deeply penetrating arc that tolerates the imperfect fit-up and outdoor wind conditions typical of cross-country right-of-way welding, and allow rapid root pass completion that keeps pace with mainline production welding crews. Fill and cap passes commonly switch to E7018 once the root is established.
What is the difference between mainline and tie-in welds?
Mainline welds are the girth welds made in sequence as pipe joints are strung and welded along the pipeline right-of-way. Tie-in welds connect completed mainline sections to each other, to existing pipelines, or to fixed facilities such as valves and pump stations, and are often more constrained in alignment, access, and scheduling.
How much NDE coverage is required on cross-country pipeline girth welds?
API 1104 and the governing B31.4/B31.8 design code specify NDE extent based on pipeline class location, reflecting population density and consequence of failure along the route. Higher-consequence class locations require a greater percentage of girth welds to be radiographically or ultrasonically examined, commonly up to 100 percent, while lower-consequence rural sections may permit reduced random-sample examination.
