Grain Size Measurement per ASTM E112

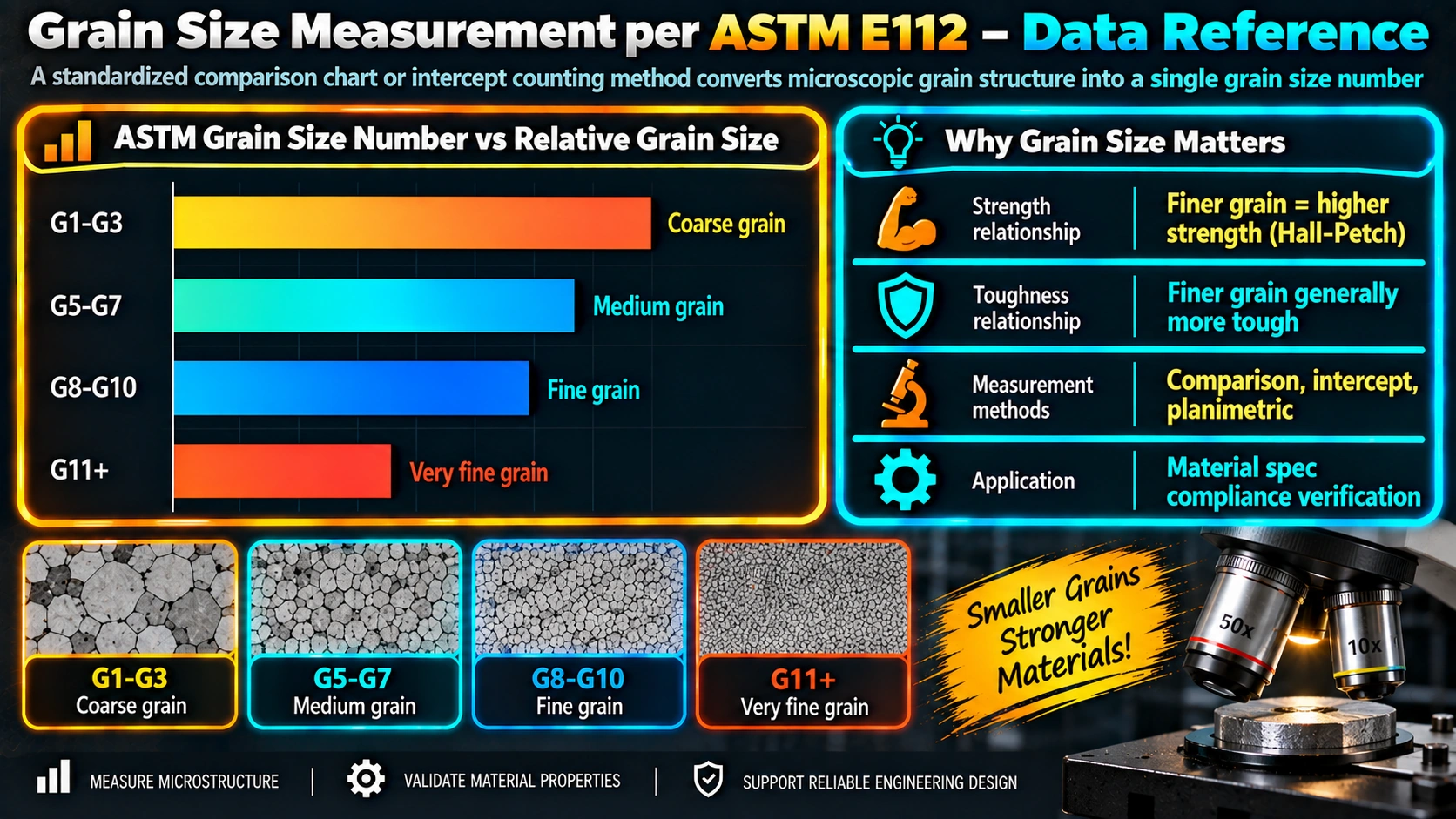

A higher ASTM grain size number (G) corresponds to a finer, smaller average grain size, and a lower G number corresponds to a coarser, larger grain size — this is the opposite of what the number intuitively suggests to someone unfamiliar with the scale. For example, G8 describes a considerably finer grain structure than G2, and the practical significance is that finer grain size (higher G) generally correlates with higher strength and better toughness per the Hall-Petch relationship, which is why HAZ grain coarsening in welding is reported as a drop in G number, not a rise.

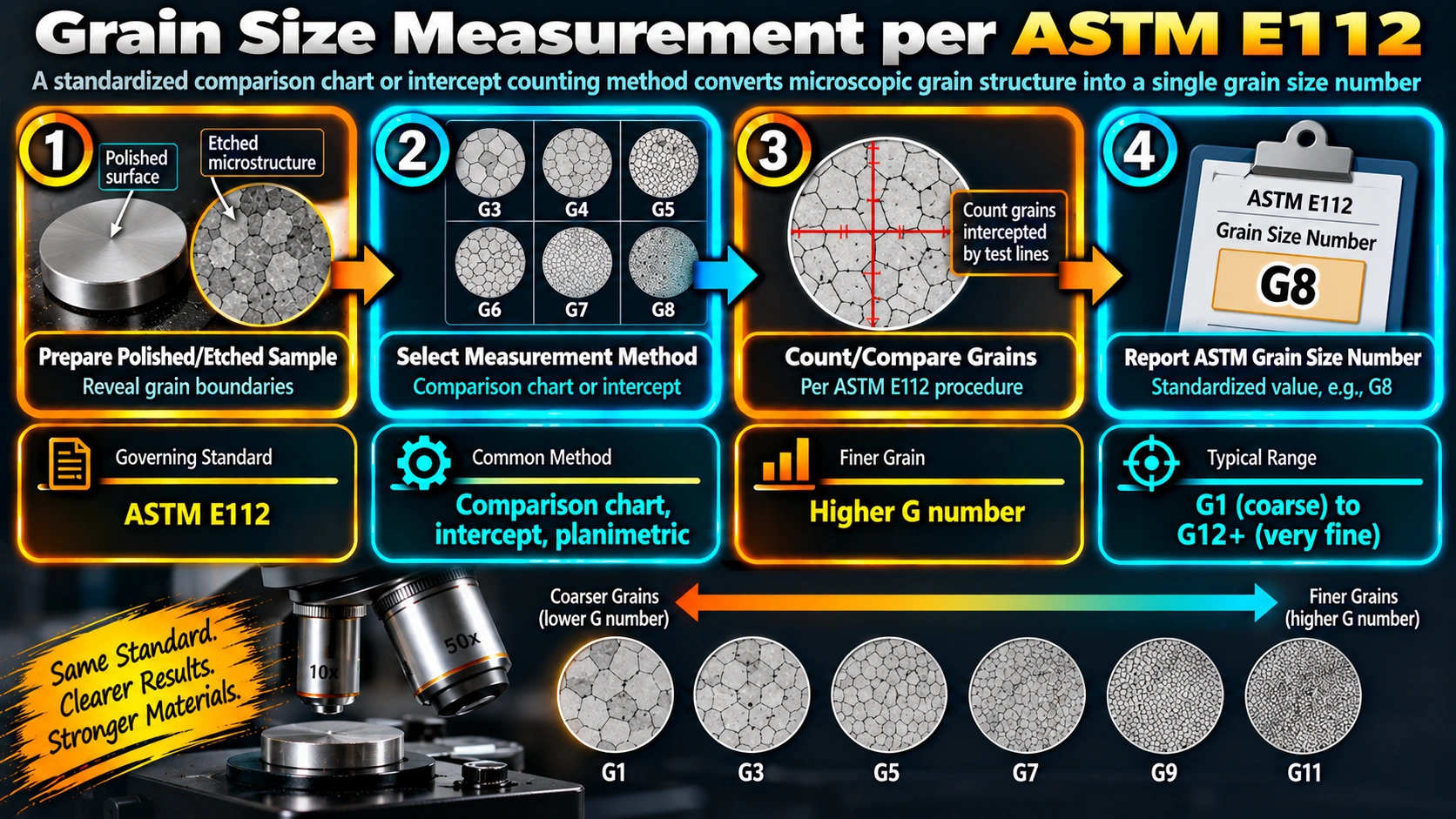

The comparison (chart) method is fastest and is commonly used for routine screening or quick shop-floor estimates, matching the etched specimen against standard reference images at a fixed magnification. For a defensible, quantitative result — procedure qualification records, formal metallurgical reports, or comparisons between two welding procedures where a precise G number difference matters — the planimetric (Jeffries) or intercept (Heyn) methods are preferred, since they produce a calculated number from an actual grain or intersection count rather than a visual match to a reference chart.

Both methods estimate the same underlying grain size number from different measured quantities — area-based grain count for planimetric versus boundary intersections per unit length for intercept — and each carries its own statistical counting uncertainty, especially if the number of grains or intersections counted is small or the microstructure is not uniform across the field of view. ASTM E112 specifies minimum counts and multiple field measurements specifically to reduce this discrepancy, and small differences between methods on the same specimen are expected and generally acceptable within the standard’s stated precision.

For non-equiaxed grains, ASTM E112 recommends taking intercept counts along at least two perpendicular directions (commonly parallel and perpendicular to the rolling or working direction) rather than a single direction, since a single-direction count on elongated grains will give a systematically different and potentially misleading result depending on which way the test lines are oriented relative to the grain elongation. The two directional results are then reported separately or combined per the standard’s guidance, rather than treating the structure as if it were equiaxed.

Yes, this is one of the most common counting errors in austenitic stainless steel and other face-centered cubic metals prone to annealing twins, since twin boundaries can appear very similar to true grain boundaries under standard etching and magnification. ASTM E112 grain size measurement should count only true high-angle grain boundaries, and an operator experienced in recognizing the straighter, often parallel-sided appearance of twin boundaries within a grain — as opposed to the more irregular true grain boundary network — is needed to avoid systematically over-counting and reporting an artificially fine grain size.

ASTM E112 specifies minimum counts to achieve acceptable precision — generally at least 50 grains (planimetric) or a comparable number of intersections (intercept) per field, measured across a minimum number of different fields of view on the specimen, rather than a single field or a small, cherry-picked count. Measuring too few grains or relying on a single field risks a result skewed by local, non-representative microstructure rather than reflecting the specimen’s actual average grain size.

ASTM E112 is designed primarily for single-phase, reasonably uniform grain structures, and applying it directly to a two-phase structure like duplex stainless steel (ferrite and austenite) without accounting for the second phase can give a misleading result. ASTM E1181 specifically addresses characterizing duplex grain size structures, and ferrite content/morphology in duplex welds is more commonly assessed using ferrite number measurement methods described in ASTM E562 or magnetic (Ferritescope) testing rather than a standard E112 grain size number.

A lower heat input welding procedure generally produces a finer HAZ grain size (higher G number) than a higher heat input procedure on the same base metal, because higher heat input keeps the HAZ at elevated temperature longer, allowing more grain growth before cooling. If two procedure qualifications on the same material show meaningfully different Charpy toughness results in the HAZ, a grain size comparison per ASTM E112 on the corresponding macro/micro sections is a standard way to confirm grain coarsening as the likely contributing metallurgical cause, consistent with the Hall-Petch relationship between grain size and toughness.
