ASME Section III, Rules for Construction of Nuclear Facility Components, governs the design, fabrication, and welding of components used in nuclear power plants. It shares its underlying welding qualification framework with the more familiar ASME Section VIII pressure vessel code — both reference ASME Section IX for WPS and welder qualification. What separates Section III is everything layered on top of that shared foundation: a mandatory NQA-1 quality assurance program, Authorized Nuclear Inspector oversight, enhanced impact testing, and NDE personnel certification requirements that go well beyond standard pressure vessel practice.
Why Nuclear Components Are Governed Separately
ASME Section VIII Division 1 explicitly excludes vessels in nuclear power service from its scope, directing them instead to Section III. This isn’t a bureaucratic distinction — the consequence of a weld failure in a reactor coolant pressure boundary component is categorically different from a failure in a conventional process vessel, and the code reflects that through layered, redundant verification at every stage of design, material procurement, fabrication, and inspection.

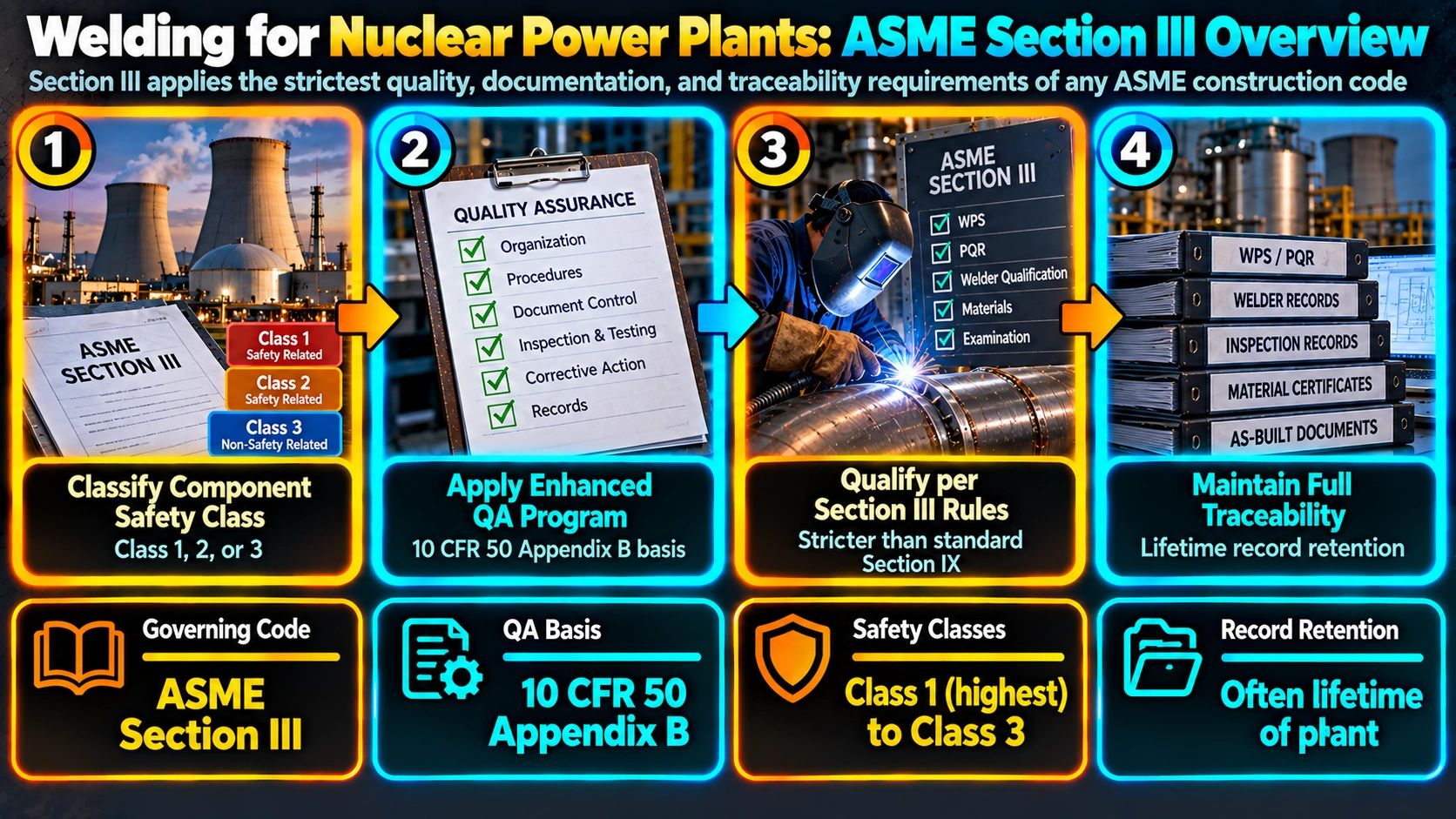

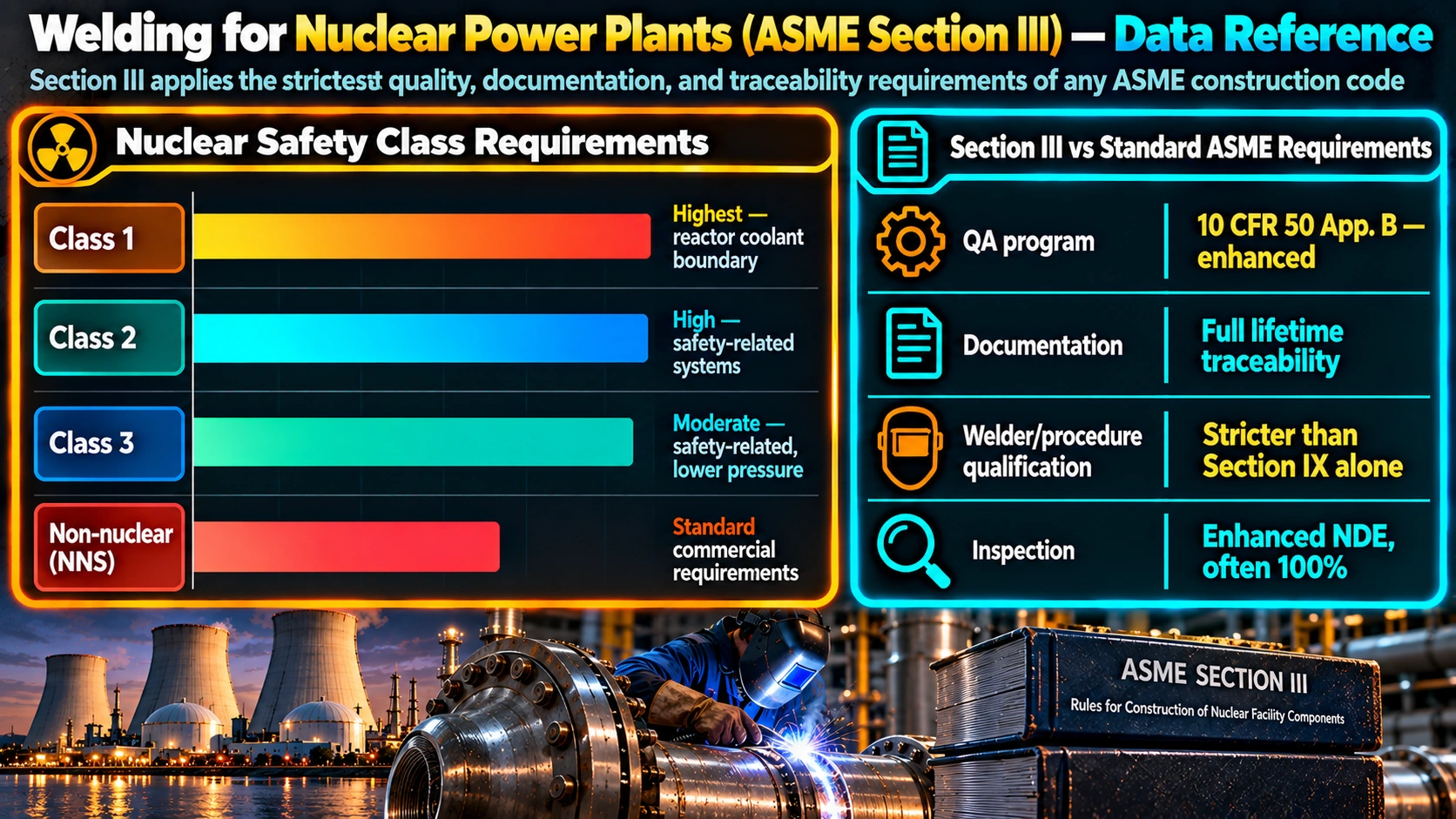

Component Classes Under Section III
Section III organizes nuclear components into safety classes with progressively stricter requirements as the safety consequence of failure increases:
| Subsection | Class | Scope | Rigor Level |
|---|---|---|---|
| NB | Class 1 | Reactor coolant pressure boundary; failure could directly cause loss-of-coolant accident | Highest |
| NC | Class 2 | Systems important to safety, lower failure consequence than Class 1 | Elevated |
| ND | Class 3 | Lower safety-significance systems | Standard-plus |
| NE | Class MC | Metal containment vessels | Highest |
| NG | — | Core support structures | Highest |
| NH | — | Elevated-temperature (creep regime) components | Highest |
Welding Qualification: Section IX as the Shared Foundation
Section III does not restate welding qualification rules from scratch — it invokes ASME Section IX for the underlying WPS, PQR, and welder performance qualification (WPQ) framework, the same as Section VIII, Section I, and B31.1/B31.3. What changes for nuclear work is everything that sits on top:
- Additional supplementary essential variables specific to the nuclear construction code and component class
- Mandatory metallographic micro examination for many nuclear material and process combinations — a requirement not universally mandated under standard Section IX practice, as covered in our macro vs micro weld testing guide
- Enhanced Charpy impact testing across base metal, weld metal, and heat-affected zone, with minimum energy requirements specified for each zone independently rather than the base metal alone
- Full traceability of the WPS/PQR package through the fabricator’s NQA-1 program, reviewed by the Authorized Nuclear Inspector before production welding proceeds
NQA-1 Quality Assurance and the N-Stamp
Holding an ASME N-stamp — the certification mark authorizing nuclear component fabrication — requires an ASME-audited quality assurance program conforming to ASME NQA-1. NQA-1 requirements for design verification, procurement control, and corrective action go substantially further than the general quality system requirements applicable to standard ASME BPVC stamps. Oversight is provided by an Authorized Nuclear Inspector (ANII), who is in turn overseen by a Nuclear Inspector Supervisor accredited specifically for nuclear work — a layer of inspection redundancy beyond the single Authorized Inspector model used for conventional U-stamp fabrication. See our full breakdown of ASME certification stamps for how the N-stamp family compares against U, S, and other stamp types.
NDE Requirements Under Section III
Nondestructive examination for nuclear components is governed by ASME Section V, the same as for other BPVC sections, but Section III applies it under mandatory pre-service examination requirements with enhanced documentation. NDE personnel on nuclear work are typically certified under ANSI/ASNT CP-189 rather than the SNT-TC-1A employer-based scheme common on conventional pressure vessel projects, and procedure qualification demonstrations are more stringent. High-sensitivity fluorescent penetrant testing is standard practice for nuclear pressure-boundary components — see our guide on dye penetrant testing for method-specific sensitivity classes.
Nuclear vs Conventional Pressure Vessel Welding Requirements
| Requirement | Section VIII (Conventional) | Section III (Nuclear) |
|---|---|---|
| Welding qualification basis | ASME Section IX | ASME Section IX + supplementary essential variables |
| Quality assurance program | Standard ASME QA | NQA-1 mandatory Enhanced |
| Inspection oversight | Authorized Inspector (AI) | Authorized Nuclear Inspector (ANII) + Inspector Supervisor Enhanced |
| Impact testing | Required above thickness/temperature thresholds (Div. 2) | Base metal + weld metal + HAZ, independently specified Enhanced |
| NDE personnel certification | SNT-TC-1A (employer-based) | ANSI/ASNT CP-189 (typical) Enhanced |
| In-service inspection | Jurisdictional / API 510 as applicable | ASME Section XI Dedicated code |
Material Traceability
Material traceability requirements for nuclear components are strict, requiring full chain-of-custody documentation from the mill to the finished weld. See our guide on reading a mill test certificate for how this traceability documentation is structured and verified — nuclear work is one of the sectors where MTC scrutiny is contractually and regulatorily non-negotiable.
Recommended References on Nuclear Welding Codes
ASME Section III Code Book
The official ASME Section III rules for construction of nuclear facility components — essential reference for N-stamp fabricators.
View on AmazonASME NQA-1 Quality Assurance Reference
Covers the quality assurance program requirements underlying nuclear N-stamp certification.
View on AmazonNondestructive Testing Handbook (ASNT)
Authoritative NDE reference relevant to CP-189 certification and nuclear examination requirements.
View on AmazonASME Section IX Welding Qualification Guide
The shared welding and brazing qualification standard referenced by both Section III and Section VIII.
View on AmazonFrequently Asked Questions
How does ASME Section III differ from Section VIII for welding requirements?
Both sections reference ASME Section IX for the underlying welding and brazing qualification rules, but Section III layers substantially more on top: mandatory NQA-1 quality assurance, Authorized Nuclear Inspector (ANII) oversight in addition to a normal Authorized Inspector, more stringent impact (Charpy) testing across base metal, weld metal, and heat-affected zone, and enhanced NDE personnel certification typically under ASNT CP-189 rather than SNT-TC-1A.
What are the ASME Section III component classes?
Section III organizes nuclear components into safety classes: Class 1 (NB) covers the reactor coolant pressure boundary and components whose failure could directly cause a loss-of-coolant accident; Class 2 (NC) covers systems important to safety but with a lower consequence of failure; Class 3 (ND) covers lower-safety-significance systems; and separate subsections cover containment (NE), core support structures (NG), and elevated-temperature components (NH).
Does a Section IX qualified WPS automatically satisfy Section III?
No. Section III invokes Section IX for the base welding qualification rules, but nuclear work additionally requires the WPS and PQR to be qualified and documented under the fabricator’s NQA-1 quality assurance program, with ANII review, and often supplementary essential variables and impact testing beyond what a standard Section IX qualification requires for non-nuclear work.
What is the N-stamp and who can hold it?
The N-stamp is the ASME certification mark authorizing a manufacturer to fabricate components for nuclear power plant service under Section III. Holding an N-stamp requires an ASME-audited quality assurance program conforming to NQA-1, oversight by an Authorized Nuclear Inspector accredited by a Nuclear Inspector Supervisor, and demonstrated compliance with the applicable Section III subsection for the component class being fabricated.
