Digital Radiography vs Film Radiography: Complete NDT Comparison for Weld Inspection
Radiographic Testing (RT) remains one of the most widely specified volumetric non-destructive testing methods in the welding and fabrication industry, capable of detecting internal discontinuities such as porosity, lack of fusion, incomplete penetration, and cracks within a weld joint without destroying the component. For decades, conventional silver-halide film was the only practical recording medium. Today, Digital Radiography (DR) — encompassing both Computed Radiography (CR) using photostimulable phosphor plates and Direct Digital Radiography using flat-panel detectors — has emerged as a mature, code-accepted alternative that is transforming inspection practice in oil and gas, power generation, and heavy fabrication.
The choice between digital and film radiography is not merely a technology preference; it affects project turnaround times, chemical waste management, archiving obligations, personnel radiation exposure management, and ultimately the cost per weld inspected. This guide provides a comprehensive technical comparison of digital radiography (DR/CR) versus conventional film radiography across every dimension that matters to welding engineers, inspection engineers, and NDT Level II/III personnel. We cover the physics of image formation, image quality indicators and sensitivity, code compliance under ASME Section V, EN ISO 17636, and AWS standards, and a structured framework for selecting the right method for your specific application.

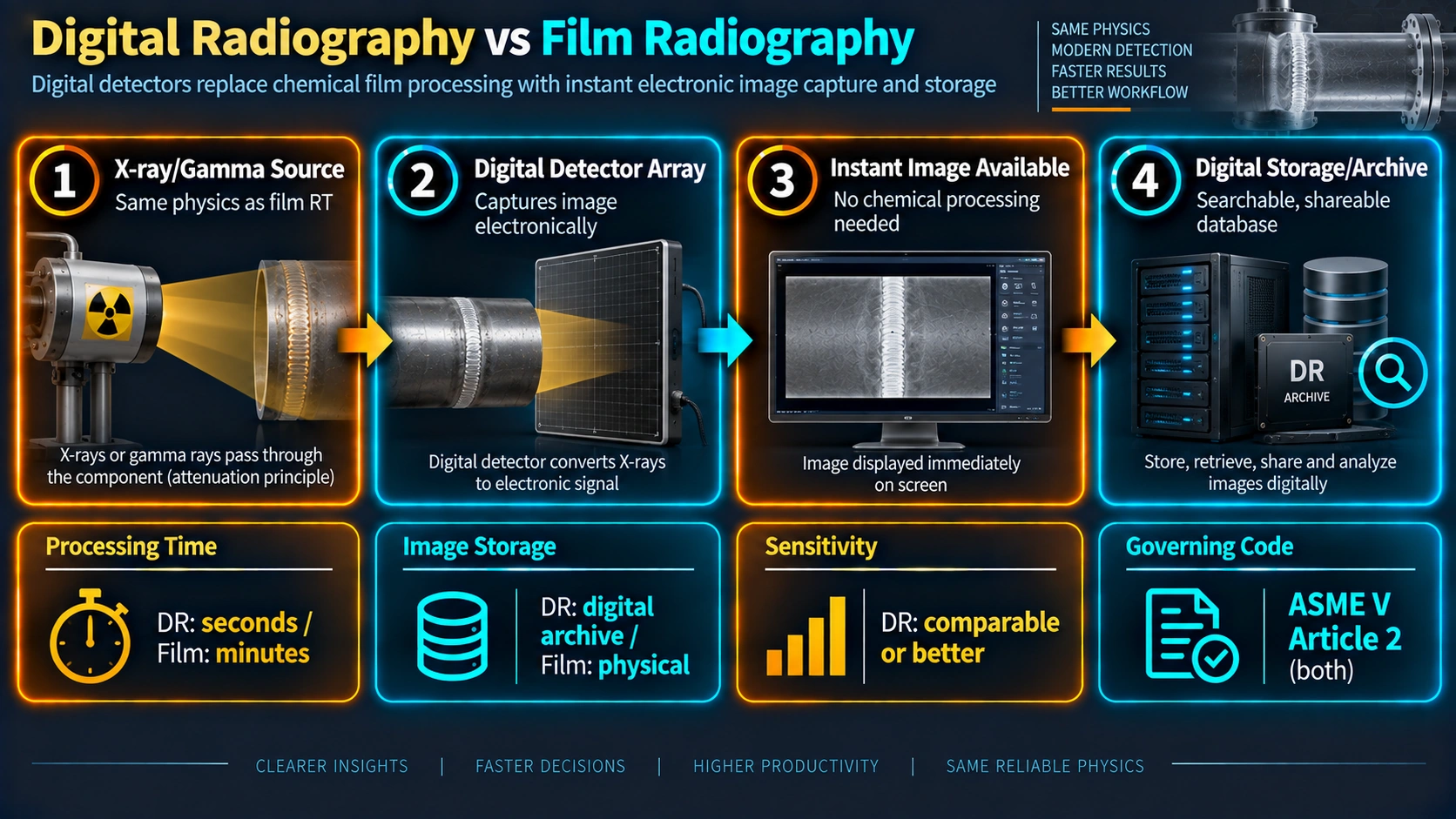

Fundamentals: How Each Method Records a Radiographic Image
Conventional Film Radiography
In conventional film radiography, a cassette containing a silver-halide emulsion film — sandwiched between lead intensifying screens — is placed on the far side of the weld from the radiation source. Ionising radiation that passes through the weld exposes the silver-halide crystals in proportion to the transmitted intensity. Areas of lower density or thinner material (voids, porosity, lack-of-fusion zones) transmit more radiation and appear as darker regions on the processed film after development. Areas of higher density or greater thickness transmit less and appear lighter.
After exposure, the cassette is transported to a darkroom where the film is chemically developed (reducing exposed silver halide to metallic silver), fixed (dissolving unexposed crystals), washed, and dried. The resulting film negative is then evaluated on a illuminated viewer against reference density requirements, typically between optical density (OD) 2.0 and 4.0 as specified by ASME Section V T-282 or EN ISO 17636-1.
The film type significantly affects image quality. ASTM E1815 classifies industrial radiographic film into three classes: Class I (ultra-fine grain, high contrast, best sensitivity), Class II (intermediate), and Class III (faster, coarser grain, for high-energy sources or thick sections). ISO 11699-1 uses a similar classification: D3 through D8 (D7 and D8 being ultra-fine). Class I / D7-D8 films are mandatory for technique class B (enhanced technique) under EN ISO 17636-1.
Computed Radiography (CR)
CR replaces the silver-halide film with a flexible photostimulable phosphor (PSP) imaging plate, typically made from europium-doped barium fluorobromide (BaFBr:Eu). During exposure, ionising radiation elevates electrons within the phosphor into metastable energy states, storing a latent image. The IP is then fed into a laser reader unit, where a red laser beam causes photostimulated luminescence (PSL), releasing blue-green light proportional to the stored energy at each point. A photomultiplier tube converts this light into a digital signal, producing a digital image file (typically 16-bit grey depth).
A key practical advantage of CR plates is their flexibility. Because they are supplied in cassettes and can be cut to size, they can be wrapped around curved pipe sections or inserted into tight geometries — exactly as conventional film cassettes are used today. This makes CR the natural migration path from film for pipe-to-pipe welds and nozzle connections.
Direct Digital Radiography (DR / DDA)
Direct digital radiography uses a flat-panel detector (FPD) containing an array of pixel elements — either amorphous silicon (a-Si) with a scintillator layer (indirect conversion) or amorphous selenium (a-Se) for direct conversion of X-ray photons to charge. The detector produces a digital image in real time, without any post-exposure processing step, typically within 1-5 seconds of exposure completion.
DDA systems offer the highest inspection throughput and the widest dynamic range (up to 14-16 bits, representing 16,000:1 contrast ratio), enabling single exposures to image material thickness ranges that would require multiple film exposures. However, flat-panel detectors are rigid, expensive (>USD 50,000 for a quality unit), and cannot conform to curved geometry — limiting their use primarily to flat-butt welds, pipe welds accessed from the bore, or automated scanning systems.
Image Quality: Sensitivity, Resolution, and Dynamic Range
Spatial Resolution
Spatial resolution describes the ability of an imaging system to resolve fine detail. In film radiography, resolution is primarily governed by film grain size (typically 5-10 micrometers for Class I/D7-D8 films), penumbral unsharpness from the source size, and geometric unsharpness from the SFD/OFD ratio. Fine-grain film can achieve unsharpness values below 50 micrometers under optimal geometry.
Digital systems express resolution in terms of pixel pitch (typical DR flat panels: 100-200 micrometers) and the Basic Spatial Resolution (SRb), which must be measured using a duplex wire IQI (ASTM E2002 / EN 462-5). Under ASME Section V Mandatory Appendix X, the SRb of a DDA system must not exceed the value permitted by the applicable table for the technique and material thickness being radiographed. CR systems typically achieve SRb values in the range of 80-250 micrometers depending on phosphor plate type and scanner.
| Parameter | Film (Class I / D7) | Computed Radiography (CR) | Digital Radiography (DDA) |
|---|---|---|---|
| Effective spatial resolution | 5-50 µm | 80-200 µm (SRb) | 100-200 µm (pixel pitch) |
| Dynamic range | ~100:1 (2 decades OD) | 1,000:1 to 10,000:1 | Up to 100,000:1 (16-bit) |
| Contrast sensitivity | High (fine grain) | High | Very High |
| Typical IQI wire sensitivity | 1-2% (ASTM E747) | 1-2% | 0.5-1% |
| Image noise (SNR) | Grain noise | PSL/quantum noise | Electronic / quantum noise |
| Latitude (thickness range/exposure) | Narrow (1-1.5 T ratio max) | Wide (>4:1) | Very wide (>10:1) |
Dynamic Range and Latitude
Film’s biggest technical limitation is its narrow latitude. The characteristic H&D curve of a film has a steep, linear working range spanning roughly 2 optical density decades (OD 1.5 to OD 3.5). Outside this range, information is lost in the toe (underexposure) or shoulder (overexposure). This means that to image a weld with significant thickness variation — for example, a node joint with a 30 mm crown and 10 mm thinning — multiple exposures at different kilovoltage or mAs settings may be required.
DDA systems with 14-16 bit depth capture this full thickness range in a single exposure, which reduces both exposure time and cumulative radiation dose. The ability to adjust window width and window level in post-processing (analogous to CT window/level) also allows the interpreter to examine any sub-range of the thickness histogram without re-exposure — a significant operational advantage during shutdown inspections on complex piping configurations. This directly benefits projects following sour service or corrosion-related inspection programmes where remaining-life decisions hinge on accurate wall thickness mapping.
Post-Processing and Image Enhancement
Digital images permit legitimate post-processing under ASME Section V T-283.3 and EN ISO 17636-2 clause 11: brightness/contrast adjustment, zoom, edge enhancement (restricted), and noise filtering, provided the procedure specifies permitted manipulations and the final image meets IQI requirements. This is analogous to the latitude available during film processing — an underexposed film can be “pushed” during development with similar limitations. Critically, ASME prohibits processing that could obscure or mask real indications.
Code and Standard Acceptance
ASME Section V
ASME Section V Article 2 (Radiographic Examination) is the governing document for most pressure vessel and piping radiography in ASME-coded jurisdictions. As of the 2017 edition, Mandatory Appendix IX (Computed Radiography) and Mandatory Appendix X (Digital Detector Arrays) are fully incorporated, making CR and DDA formally code-compliant for the first time in the main ASME body code. Before 2017, Code Case 2435 (CR) and Code Case 2599 (DDA) were the route to code acceptance in the US.
SRb (permitted) = f(t, technique class, source type)
— For t = 6-12 mm, Technique Class A, X-ray: SRb ≤ 200 µm
— For t = 6-12 mm, Technique Class B, X-ray: SRb ≤ 160 µm
— Measure SRb using duplex wire IQI per ASTM E2002 before each campaign
IQI Wire Sensitivity:
IQI Sensitivity (%) = (d_visible_wire / t_nominal) × 100
— d_visible_wire = diameter of the thinnest visible wire [mm]
— t_nominal = nominal material thickness [mm]
— Requirement: typically 2% for Technique Class A, 1% for Class B (EN ISO 17636)
EN ISO 17636 (Parts 1 and 2)
EN ISO 17636-1 governs conventional film radiography of welds. EN ISO 17636-2 governs digital techniques (CR and DDR). Both standards define two technique classes: Class A (basic) and Class B (enhanced sensitivity), with Class B requiring finer film grain, shorter SFD geometry, or superior digital detector performance. Code acceptance under EN ISO 17636-2 requires a system qualification procedure per EN 14784 (CR) or EN 13068 (DR real-time) as applicable. Many European pressure equipment directives and client specifications will reference EN ISO 17636 alongside or instead of ASME Section V.
AWS D1.1 Structural Welding Code
AWS D1.1 (Structural Welding Code — Steel) references ASTM standards for film radiography. Digital radiography under AWS D1.1 requires client-approved written procedures and demonstrated IQI sensitivity; the code itself does not prescribe specific digital technique requirements in the same detail as ASME Section V. Engineers using DR/CR under AWS D1.1 should reference the applicable ASTM standards (E2033 for CR, E2698 for DDA) and ensure the procedure is pre-qualified in the quality plan.
API Standards (API 650, 653, 1104)
API 1104 (Pipeline Welding Standard) accepts digital radiography with equivalent sensitivity demonstration. API 653 (Tank Inspection) defers to the applicable ASME or API construction standard for RT requirements. API 650 tank shell weld radiography typically follows ASME Section V requirements in practice. Operators should confirm with the pipeline owner or client whether digital radiography is specifically approved, as some older project specifications still mandate film by default.
| Standard / Code | Film RT | CR Acceptance | DDA Acceptance | Key Reference |
|---|---|---|---|---|
| ASME Section V | Article 2 | Mandatory App. IX | Mandatory App. X | ASME V Article 2 (2017+) |
| EN ISO 17636-1 | Full coverage | Part 1 only = Film | Part 1 only = Film | Part 1: Film; Part 2: Digital |
| EN ISO 17636-2 | N/A | CR + DDR both covered | CR + DDR both covered | EN 14784, EN 13068 |
| AWS D1.1 | Accepted | Procedure-qualified only | Procedure-qualified only | ASTM E2033, E2698 |
| API 1104 | Accepted | With sensitivity demo | With sensitivity demo | API 1104 Section 9 |
| ASME B31.3 | Accepted | Via ASME Section V | Via ASME Section V | ASME B31.3 Clause 344.5 |

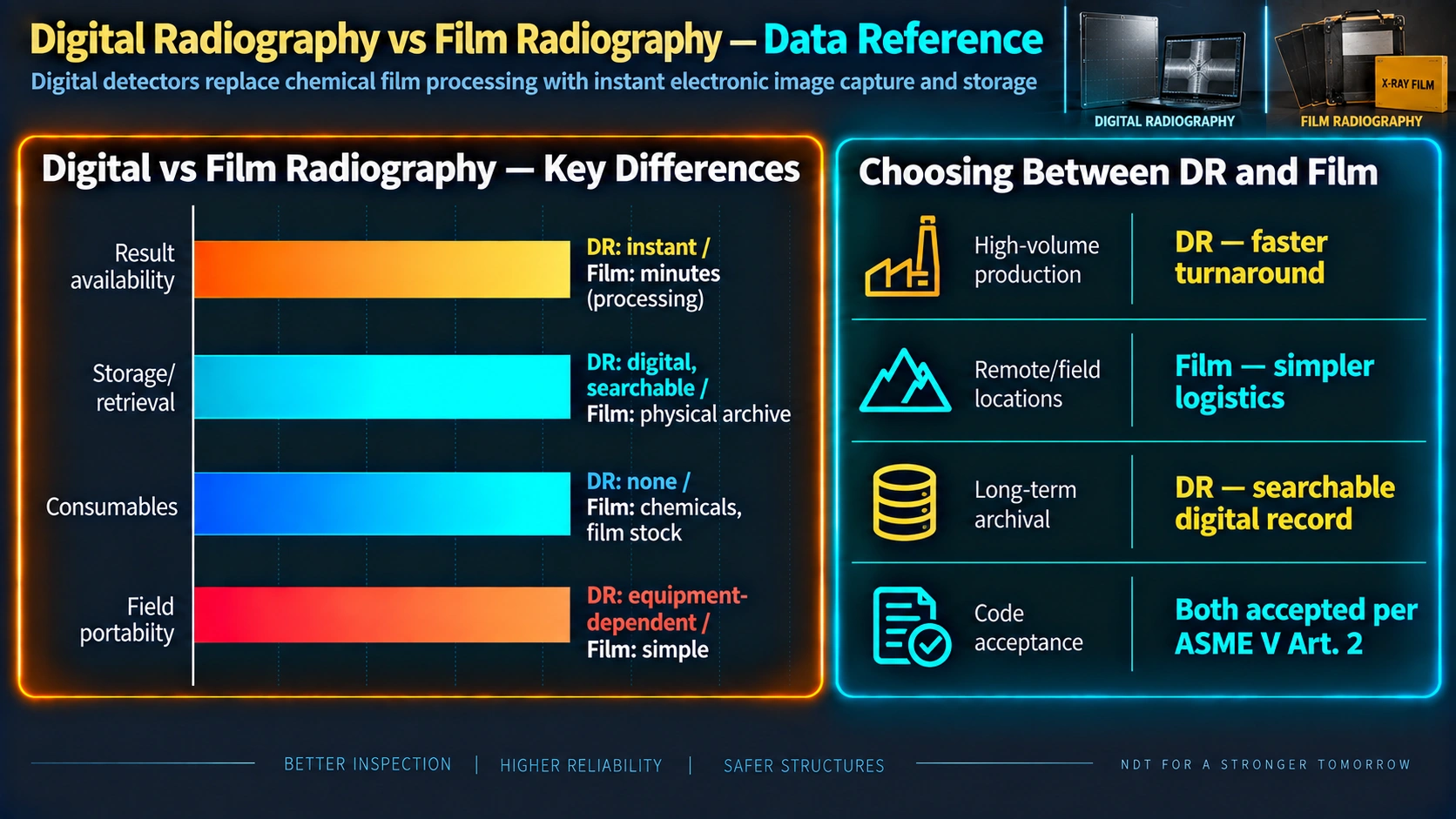

Operational and Practical Comparison
Inspection Turnaround Time
Turnaround time is one of the most commercially significant differences between digital and film radiography. Conventional wet film processing requires a fully equipped darkroom, developer and fixer chemical replenishment, temperature control, and typically 30-60 minutes from end of exposure to a viewable film, not counting transport to the darkroom. On a congested construction site or during a shutdown outage where welding crews are waiting on inspection results before the next pass, this delay directly extends schedule and costs money.
CR systems reduce this to approximately 5-15 minutes per imaging plate using a dedicated scanner, with no wet chemistry involved. DDA systems deliver the image within 1-5 seconds of exposure. Both digital methods allow the RT inspector to review images at a workstation in the field, transmit files for remote Level III review, and release joints for subsequent operations far faster than film allows. In high-pressure shutdown environments, this speed advantage routinely justifies the higher capital cost of digital equipment.
Cost Analysis
The economics of digital vs film radiography depend heavily on inspection volume. Film has a low capital cost — a darkroom and basic film processing equipment can be established for a few thousand dollars — but has a significant ongoing per-shot consumable cost (film, chemicals, processing time). Digital systems have a high upfront capital cost (a quality CR scanner system USD 20,000-50,000; a DDA flat panel detector USD 50,000-120,000) but near-zero per-shot consumable cost.
| Cost Category | Film RT | CR | DDA (DR) |
|---|---|---|---|
| Capital equipment | Low (<USD 5,000) | Medium (USD 20,000-50,000) | High (USD 50,000-150,000) |
| Per-exposure consumable | High (film + chemistry) | Low (plate degrades over ~1,000 cycles) | Negligible |
| Darkroom / processing | Required | Scanner only | None |
| Chemical waste disposal | Significant | None | None |
| Archive storage | Physical (fading over time) | Digital (RAID/cloud) | Digital (RAID/cloud) |
| Break-even vs film (approx.) | — | ~500-1,000 shots | ~3,000-5,000 shots |
Radiation Dose and Safety
The radiation dose delivered to the component is essentially identical for digital and film methods when using the same source — digital techniques do not require more or less radiation than film. However, digital systems can achieve equivalent image quality at lower mAs or shorter exposure times in some configurations because the higher detector efficiency means less radiation is required to generate a statistically adequate image. This reduction in exposure time reduces scattered radiation dose to personnel in the vicinity.
Additionally, digital imaging allows re-processing of sub-optimal images (adjusting window and level) without re-exposure, eliminating the need for retakes due to incorrect density — the single largest source of unnecessary radiation dose in film radiography programmes. ALARA principles under IAEA Radiation Protection and Safety of Radiation Sources are directly supported by digital retake reduction.
Image Archiving and Traceability
Film radiographs degrade over time. Improperly fixed films suffer from chemical staining; all films yellow and lose contrast with age, particularly under non-optimal storage conditions. The ASME and most major project specifications require retention periods of 3-10 years for weld radiographs, and pressure equipment operated under the PED (EU Pressure Equipment Directive) or PD 5500 may carry inspection record obligations for the life of the plant. Maintaining readable film archives for 20-40 years is a significant practical and cost challenge.
Digital archives are immune to physical degradation. DICOM-format or DICONDE (Digital Imaging and Communications in Nondestructive Evaluation) files stored on RAID or cloud storage with off-site backups provide indefinite retention with instant retrieval. DICONDE (ASTM E2339) is the established standard for digital NDT image file format, supporting embedded metadata (component ID, exposure parameters, IQI data, operator identification) and viewer interoperability across software platforms. This is particularly valuable for corrosion monitoring programmes that compare current condition to baseline radiographs taken years earlier.
Environmental and Regulatory Compliance
Film processing generates silver-laden fixer solution (regulated as hazardous waste), developer chemicals, and wash water. Silver recovery systems are legally mandated in most jurisdictions. Offshore platforms and sensitive environmental sites may prohibit chemical processing entirely. Digital techniques eliminate this waste stream completely, simplifying environmental compliance and reducing site waste management costs. This is a significant factor favouring digital methods in offshore oil and gas work, where chemical storage and waste disposal logistics add substantial overhead.
Radiation Sources for Industrial Radiography
The choice of radiation source is largely independent of the recording medium, but has a direct bearing on achievable image quality with both film and digital detectors. The following sources are common in industrial weld inspection:
| Source | Energy / kV | Typical Application | Half-Value Layer (Steel) | Film Grade | Digital Compatibility |
|---|---|---|---|---|---|
| X-ray (160-320 kV) | 160-320 kVp | Steel 5-50 mm, Al to 200 mm | ~12-22 mm | Class I/II | Excellent |
| Se-75 (γ) | 265 / 280 keV | Pipe 10-40 mm, petrochemical | ~18 mm | Class I/II | Excellent |
| Ir-192 (γ) | 340 / 470 keV avg | Steel 25-90 mm, field work | ~42 mm | Class I/II | Excellent |
| Co-60 (γ) | 1.17 / 1.33 MeV | Heavy sections >80 mm | ~88 mm | Class II/III | Verify detector efficiency |
| Linac (X-ray) | 1-9 MeV | Very thick sections, castings | >100 mm | Class III | Verify detector efficiency |
Note that for duplex stainless steel and P91 Cr-Mo steel heavy wall components, Ir-192 gamma remains the most common field source, and both film and CR systems perform comparably. For very thick Co-60 work, verify flat-panel detector efficiency at high gamma energies before specifying a DDA system.
Specific Applications and Recommendations
Pipe-to-Pipe Girth Welds (Field Pipeline)
This is arguably the most common industrial radiography application. Historically, Ir-192 gamma with Class II film using panoramic internal source technique (SWSD or SWDD) has dominated. CR is now widely adopted for pipeline girth welds because flexible imaging plates fit into the bore easily and are compatible with the same pig-and-crawl exposure systems used for film. DR flat panels are gaining traction in automated pipeline construction welding (e.g., mechanised GMAW/FCAW passes) where the weld can be accessed from a fixed workstation.
Pressure Vessel Longitudinal and Circumferential Seams
Shop fabrication of pressure vessels under ASME Section VIII Div 1 requires radiographic examination of all Category A and B weld seams at the appropriate RT joint efficiency. DR flat panels and CR are both routinely used in shop environments where volume justifies capital investment. The wide dynamic range of DDA is particularly beneficial for nozzle-to-shell welds with significant thickness change from shell to reinforcement pad. For ASME Section VIII work, confirm that the digital system procedure has been qualified per Mandatory Appendix IX or X as appropriate.
Structural Weld Inspection (AWS D1.1)
For structural connections and weldments under AWS D1.1, film radiography still predominates, largely due to established procedure libraries and client conservatism. However, digital methods are increasingly accepted on major structural projects where project specifications explicitly permit them. The key requirement is demonstrating equivalent IQI sensitivity before commencing production radiography.
Heat Exchanger Tube-to-Tubesheet Welds
Tube-to-tubesheet weld radiography typically uses micro-focus X-ray systems with fine-grain film or high-resolution flat-panel detectors due to the small weld diameter and the need for extremely fine spatial resolution. Film remains competitive here because Class I / D8 film grain structure approaches the spatial resolution limit of even the best flat-panel detectors at the small pixel pitches required.
Written Procedure Requirements for Digital RT
ASME Section V Mandatory Appendices IX and X both require a written RT procedure covering, at minimum: the digital system manufacturer, model, and configuration; the phosphor plate type (CR) or detector array model (DDA); the radiation source and energy; the source-to-detector distance (SDD); the IQI type and placement; the SRb measurement method (DDA); the permitted post-processing manipulations; the display monitor specification; the image file format (DICONDE preferred); and archive requirements. This procedure must be demonstrated to achieve the required IQI sensitivity before any production radiography commences.
