Standard Welding Procedure Specification (SWPS) — What It Is and How to Use It

A Standard Welding Procedure Specification (SWPS) is an industry-standard welding procedure document published by the American Welding Society (AWS) that a fabricating organisation can adopt for production welding without performing its own full procedure qualification. Governed by AWS B2.1 and permitted under ASME BPVC Section IX Article V, SWPSs offer a potentially faster path to commencing welding work — but only under specific conditions, with important constraints that every welding engineer and quality professional must understand before relying on one.

In the normal Section IX workflow, each organisation must develop and qualify its own Welding Procedure Specification (WPS) by welding a test coupon, performing mechanical tests, and preparing a Procedure Qualification Record (PQR) that the organisation owns. SWPSs bypass the procedure qualification stage by providing ready-made documents backed by AWS-maintained PQRs. The trade-off is strict: the user cannot change a single variable, cannot combine the SWPS with any other procedure on the same joint, and must still complete a Demonstration Coupon before production welding begins.

This guide covers the full technical framework: what SWPSs are, how AWS develops and validates them, the precise requirements of Section IX Article V, the demonstration coupon procedure, the similarity rules under QW-520, permitted supplementary instructions, and a clear-eyed assessment of when an SWPS genuinely saves time and cost versus when qualifying your own WPS is the better route.

What is a Standard Welding Procedure Specification?

A Standard Welding Procedure Specification is a welding procedure document prepared as an industry standard — rather than by an individual organisation — and accepted for use in production fabrication in place of a company-developed and company-qualified WPS. The American Welding Society is the body that develops SWPSs in North America, doing so under its B2.1 series of standards.

The conceptual rationale is straightforward: for widely used, low-complexity material combinations (such as carbon steel P-1 to P-1 welded with SMAW using E7018), the procedure qualification exercise will produce qualitatively identical results in any competent organisation’s facility. The effort of repeatedly re-qualifying the same combination across thousands of fabrication shops represents significant duplication. SWPSs eliminate that duplication for commonly welded combinations by providing a single, rigorously validated procedure document backed by multiple PQRs.

Who Prepares and Validates SWPSs?

SWPSs are developed by the AWS B2G Subcommittee on Procedure Qualification Records. All data supporting an SWPS is derived from PQRs reviewed and validated under the auspices of the Welding Research Council. These PQRs are not provided to buyers of the SWPS document — you receive the specification only. The minimum number of supporting PQRs required by the AWS B2 Committee is two, but in practice the number used is often far higher, covering a broad range of heat inputs, material heats, and welding positions to maximise confidence across the variable ranges listed.

A fundamental policy of the AWS B2 Committee is that the ranges specified in an SWPS are more restrictive than the maximum permitted ranges in AWS B2.1 or ASME Section IX itself. This deliberate tightening ensures a high probability of successful application across all users regardless of their equipment or skill level.

Over 60 SWPSs covering common welding processes (SMAW, GMAW, GTAW, FCAW, SAW) and common base material P-number groups are available for purchase from AWS at pubs.aws.org. Individual SWPS documents typically cost around USD 200–300 each.

Which Codes Permit SWPS Use?

From the year 2000 edition onwards, ASME BPVC Section IX permits the use of SWPSs in lieu of company-qualified WPSs. This means any construction code that invokes Section IX as its procedure qualification standard may also accept SWPSs — unless the construction code explicitly prohibits it. Common codes that invoke Section IX include ASME B31.1 (Power Piping), ASME B31.3 (Process Piping), ASME Section VIII Division 1 (Pressure Vessels), and ASME Section III (Nuclear Components, Class 2 and 3). Always check the specific construction code or contract document to confirm SWPS use is permitted.

What an SWPS Document Contains

An SWPS document closely resembles a standard WPS in its layout, listing all welding variables within ranges that have been validated by the supporting PQRs. A typical AWS SWPS covers the following information:

Every value listed is a mandatory constraint. There is no concept of “non-essential variables” in an SWPS — a deviation from any listed parameter is a violation that invalidates the SWPS for that weld.

ASME Section IX Article V — Requirements for Using an SWPS

Article V of ASME BPVC Section IX (QW-500 through QW-540) is the regulatory framework for SWPS adoption. Before an SWPS can be used in any production weld, the organisation must satisfy all of the following mandatory requirements.

Administrative Prerequisites (QW-510)

1. Enter Organisation Name: The legal name of the fabricating organisation must be recorded on the SWPS at the designated location before any other step.
2. Sign and Date the SWPS: An authorised representative of the organisation must sign and date the document. This establishes organisational responsibility for its use.
3. Record the Governing Code: The applicable construction code or contract document under which welding is being performed (e.g., “ASME B31.3 — 2022 Edition”) must be entered on the SWPS. Note: this entry is the only field that can be updated later without redoing the demonstration coupon.
4. Verify Appendix E Listing: Confirm that the chosen SWPS appears in ASME Section IX Mandatory Appendix E, “Permitted Standard Welding Procedure Specifications.” A document not listed there cannot be used under Section IX, regardless of its AWS designation.

The Demonstration Coupon (QW-510)

The demonstration coupon is the central technical requirement of SWPS adoption. Its purpose is not to prove that the procedure works — that is established by the AWS-maintained PQRs — but to demonstrate that the organisation is competent to follow the SWPS in production.

The requirements for the demonstration coupon are as follows:

• The coupon must be a groove weld made using the SWPS.
• All actual welding variable values used must be recorded (Form QW-485 provides the suggested format).
• All recorded variable values must fall within the ranges specified on the SWPS — no exceptions.
• The coupon must be tested: visual examination plus either mechanical testing (bend tests, mirroring Article III performance qualification criteria) or volumetric examination (RT or UT).
• The resulting record (the Supporting Demonstration Record) must be certified by the organisation. This document has the same standing as a PQR and must be available for review by the Inspector on request.
• Demonstration coupon welding, testing, and certification must be completed before the SWPS is used in any production weld (QW-540(f)).

Similarity Rules for Demonstration Coupons — QW-520

A significant practical advantage of the SWPS system is that a single demonstration coupon can cover multiple related SWPSs. Under QW-520, once an organisation has demonstrated one SWPS, other SWPSs that are “similar” within the definition of QW-520 can be adopted without performing additional demonstration coupons.

Two SWPSs are considered similar — and thus coverable under a single demonstration — when they share the same values for all of the following variables:

If any of these variables differ between the demonstrated SWPS and the new SWPS being adopted, a separate demonstration coupon is required for the new SWPS.

Critical Restrictions on SWPS Use

The restrictions on SWPS use are non-negotiable. Understanding them upfront prevents costly surprises during fabrication or audit.

No Modifications Permitted

Unlike a company-qualified WPS where changes to non-essential variables require no re-qualification and changes to essential variables require a new PQR, an SWPS cannot be modified by the user in any respect. All variables — current, voltage, travel speed, preheat, joint geometry, electrode size — are equally essential. If you cannot comply with every listed parameter in the SWPS, you cannot use that SWPS. Qualification of your own WPS and PQR is then the correct path.

Supplementary Instructions Are Permitted — But Only to Tighten

Section IX permits the user to attach supplementary instructions to an SWPS. These instructions may restrict or tighten the ranges listed (for example, specifying only J-groove when the SWPS lists both J-groove and U-groove, or requiring a higher minimum preheat for a specific material heat). They must never relax or expand any parameter beyond what the SWPS specifies. Supplementary instructions are organisational documents — the SWPS itself remains unchanged.

No Partial Use on a Joint

Section IX QW-540(d) prohibits using an SWPS for part of a joint and a company-qualified WPS for the remainder of the same joint. The entire joint must be welded under a single governing procedure: either an SWPS or a company WPS, never a combination of both. This restriction is particularly important for multi-pass welds where different processes are used for root and fill passes.

Multi-Process SWPSs Must Be Used in Full

If an SWPS specifies a multi-process combination (for example, GTAW for root pass followed by SMAW for fill and cap), the user must employ all specified processes in the specified sequence. Using only part of the multi-process combination is not permitted.

SWPS Cannot Be Supplemented by a PQR

A company PQR cannot be used to extend or expand the scope of an SWPS. The two documents are entirely independent. If a construction application falls outside the range of the SWPS, the correct approach is either to find a different SWPS with wider coverage, or to qualify a proprietary WPS through the standard PQR process.

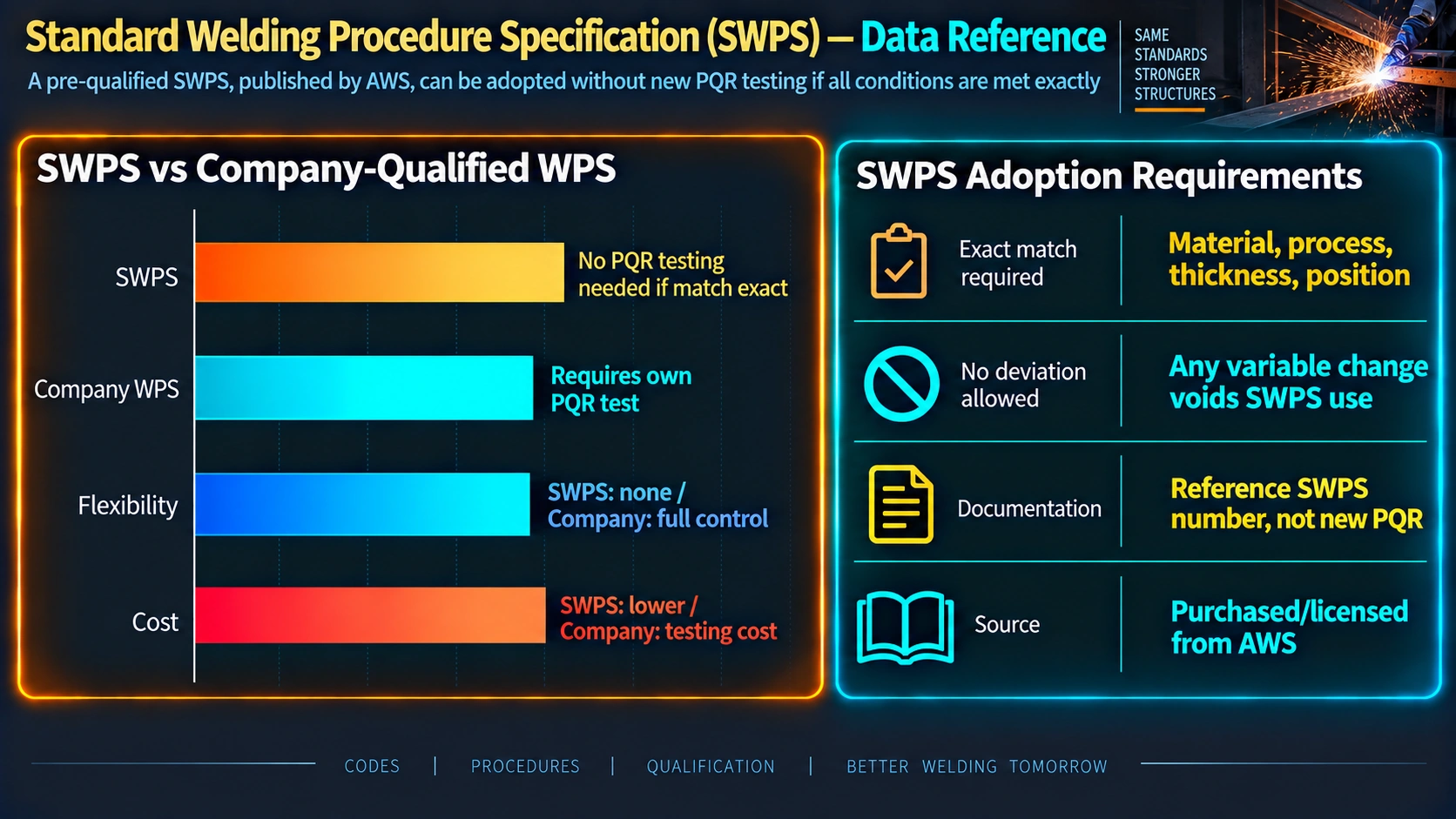

SWPS vs. Company-Qualified WPS — Comparison

Commonly Used AWS SWPS Documents

AWS publishes SWPSs for a range of common process-material combinations under the B2.1 designation series. The table below lists frequently referenced SWPSs and their coverage scope:

Note that each SWPS has a specific revision cycle and must be reviewed every five years by the AWS B2 Committee. When purchasing an SWPS for ongoing use, verify you have the current edition. Superseded editions will be listed as historical documents on the AWS publications portal.

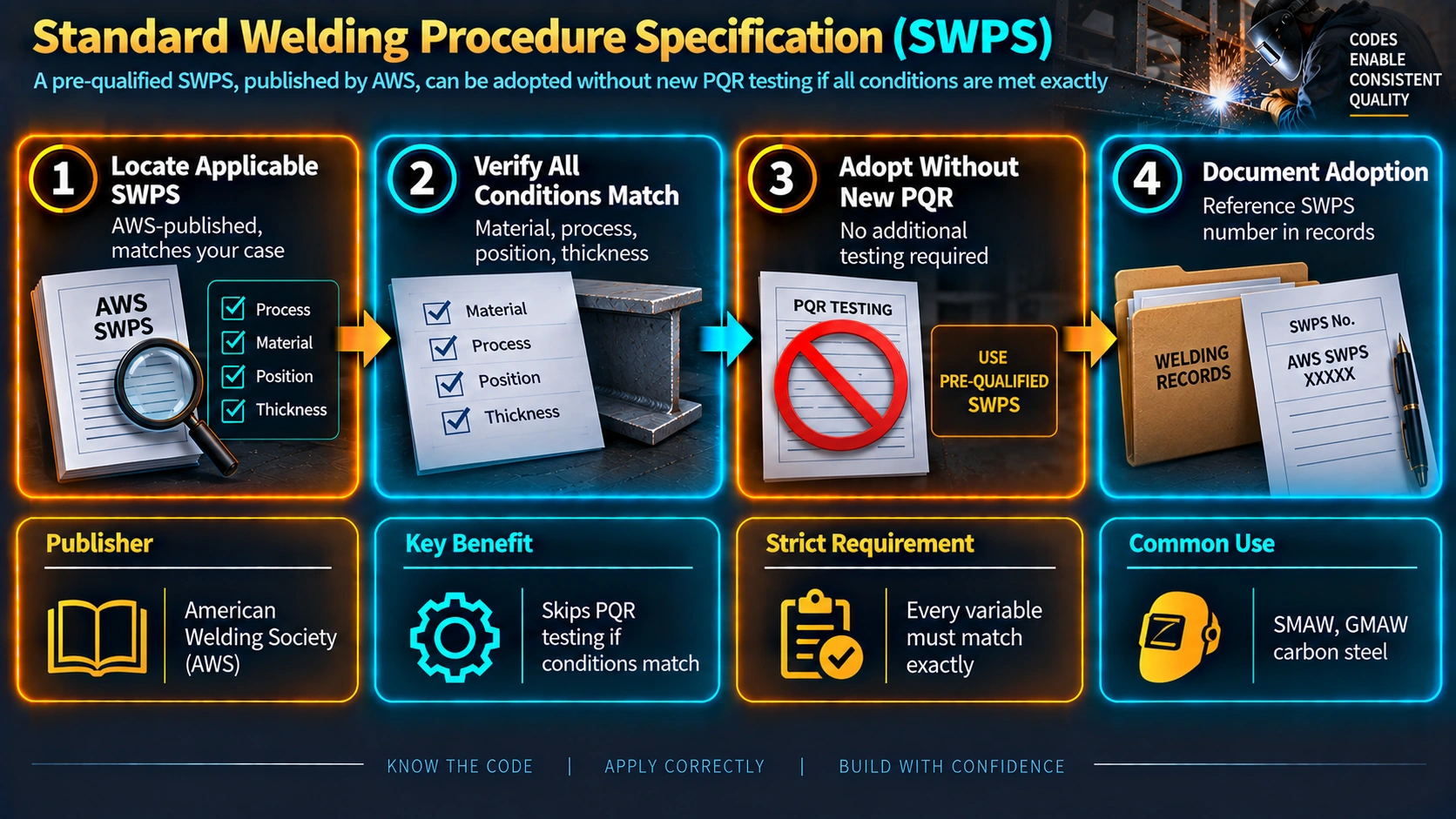

Step-by-Step SWPS Adoption Procedure

The following procedure outlines a practical implementation sequence for an organisation adopting its first SWPS under ASME Section IX. This sequence integrates all administrative and technical requirements of Article V.

PWHT and Demonstration Coupon Conditions

Post-weld heat treatment handling under SWPS is a frequent source of confusion and non-conformances. The rule is straightforward but has implications that must be carefully managed:

• If the demonstration coupon was left as-welded, the SWPS may only be used in production for welds that will not receive PWHT.
• If the demonstration coupon was PWHT’d per the SWPS parameters, the SWPS may only be used in production for welds that will receive PWHT at those parameters.
• If a single SWPS permits both as-welded and PWHT conditions, and the organisation needs to cover both in production, two separate demonstration coupons must be made and documented — one for each condition.

This requirement has a practical impact on project planning. If a piping system includes both welds requiring PWHT (e.g., P91 pipe joints) and welds that will remain as-welded, separate procedures govern each condition. For the specific case of P91 materials, SWPSs are generally not an appropriate solution due to the impact testing and PWHT validation requirements — refer to our guide on P91 welding requirements and procedure qualification for detail on high-chromium creep-resistant steels.

When to Choose an SWPS vs. a Company-Qualified WPS

The decision to adopt an SWPS versus qualifying your own WPS is primarily an economic and operational calculation. Neither option is inherently superior — the right choice depends on your specific circumstances.

SWPS Is Likely the Better Choice When:

• Your application involves a common carbon steel combination (P-1 to P-1) with standard processes (SMAW E7018, GTAW-SMAW combination) and no impact testing is required.
• Your organisation has radiographic testing capability, enabling the demonstration coupon to be cleared without mechanical specimen preparation — substantially reducing lead time.
• You are a larger organisation where the cost of the SWPS (~USD 250–300) is insignificant and time-to-first-production-weld is the critical driver.
• You need to rapidly mobilise for a short-duration project and do not have an existing qualified WPS for the application.
• You plan to adopt multiple related SWPSs and can use the QW-520 similarity rules to cover several with a single demonstration coupon.

Company-Qualified WPS is Likely the Better Choice When:

• Impact toughness (Charpy) testing is required for the application — SWPSs are explicitly prohibited in this case.
• You need flexibility to adjust welding parameters (current, voltage, travel speed) to suit varying joint configurations encountered in production.
• Your application involves materials or processes not covered by available SWPSs (exotic alloys, high-alloy steels, P-15E, P-45, P-49 groups).
• The construction code or contract document explicitly prohibits SWPS use.
• Your organisation regularly qualifies procedures and the laboratory infrastructure to perform mechanical testing is already in place and competitively priced.
• You want to own a procedure document that can be developed and refined over time as your production experience grows.

Qualifying Welders Simultaneously with the Demonstration Coupon

One efficiency often overlooked by organisations adopting an SWPS is the opportunity to simultaneously qualify welders using the same demonstration coupon. Because the testing required for the SWPS demonstration — visual examination plus bend tests (or RT) — covers the same scope as a welder performance qualification test under Article III of Section IX, a single coupon can serve dual purpose.

To achieve this, the welder who performs the demonstration coupon must also be formally performance-qualified at the same time:

• The coupon is tested per Article III acceptance criteria (which are already required for the demonstration).
• A separate Welder Performance Qualification Record (WPQR) is prepared and certified for the welder, in addition to the Supporting Demonstration Record.
• The welder’s qualified thickness and position ranges are documented per Article III rules.

This approach saves both time and resources. The demonstration coupon already requires mechanical testing to acceptance criteria that mirror Article III; using it to simultaneously qualify a welder adds only the documentation step. For more detail on welder qualification requirements, refer to our article on P-Numbers, F-Numbers, and A-Numbers in ASME Section IX, which explains how these grouping systems determine the scope of welder qualification.
