Crystal Structures of Metals Explained: BCC, FCC, BCT and HCP
Crystal structures of metals are the microscopic foundation upon which every macroscopic property — strength, ductility, toughness, hardenability, and weldability — is ultimately built. All solid metals are crystalline, meaning their atoms are arranged in specific, repeating three-dimensional patterns rather than randomly distributed. For the welding inspector, fabricator, or metallurgist, understanding the four principal crystal structures — Body-Centered Cubic (BCC), Face-Centered Cubic (FCC), Body-Centered Tetragonal (BCT), and Hexagonal Close-Packed (HCP) — is not academic background; it is the conceptual key that unlocks an understanding of why different metals behave as they do under heat, stress, and the thermal cycle of welding.
Iron, the base metal in all carbon and alloy steels, is particularly remarkable in that it can adopt more than one crystal structure depending on temperature. This phenomenon — called allotropic transformation — is the very reason heat treatment of steel is possible and is the underlying mechanism behind HAZ hardening, martensite formation, preheat requirements, and post-weld heat treatment (PWHT). The following sections explain each crystal structure in detail, define the unit cell concept, and directly connect crystal structure theory to real fabrication and inspection scenarios.
The Unit Cell: Smallest Repeating Unit
A crystalline solid is one whose atoms are arranged in a regular, periodic, three-dimensional pattern that extends throughout the entire solid. The smallest group of atoms that, when repeated in all three spatial directions, recreates the full crystal is called the unit cell. It is important to understand that unit cells do not exist as independent entities — every atom in a unit cell is simultaneously shared among multiple adjacent unit cells in a continuous three-dimensional array called the crystal lattice.
The geometry of the unit cell — the lengths of its edges (lattice parameters a, b, c) and the angles between them — defines the crystal system. For the most important engineering metals, only two crystal systems are significant: the cubic system (BCC and FCC) where all three edge lengths are equal and all angles are 90 degrees, and the tetragonal system (BCT) where two edge lengths are equal and the third differs. HCP metals belong to the hexagonal system.

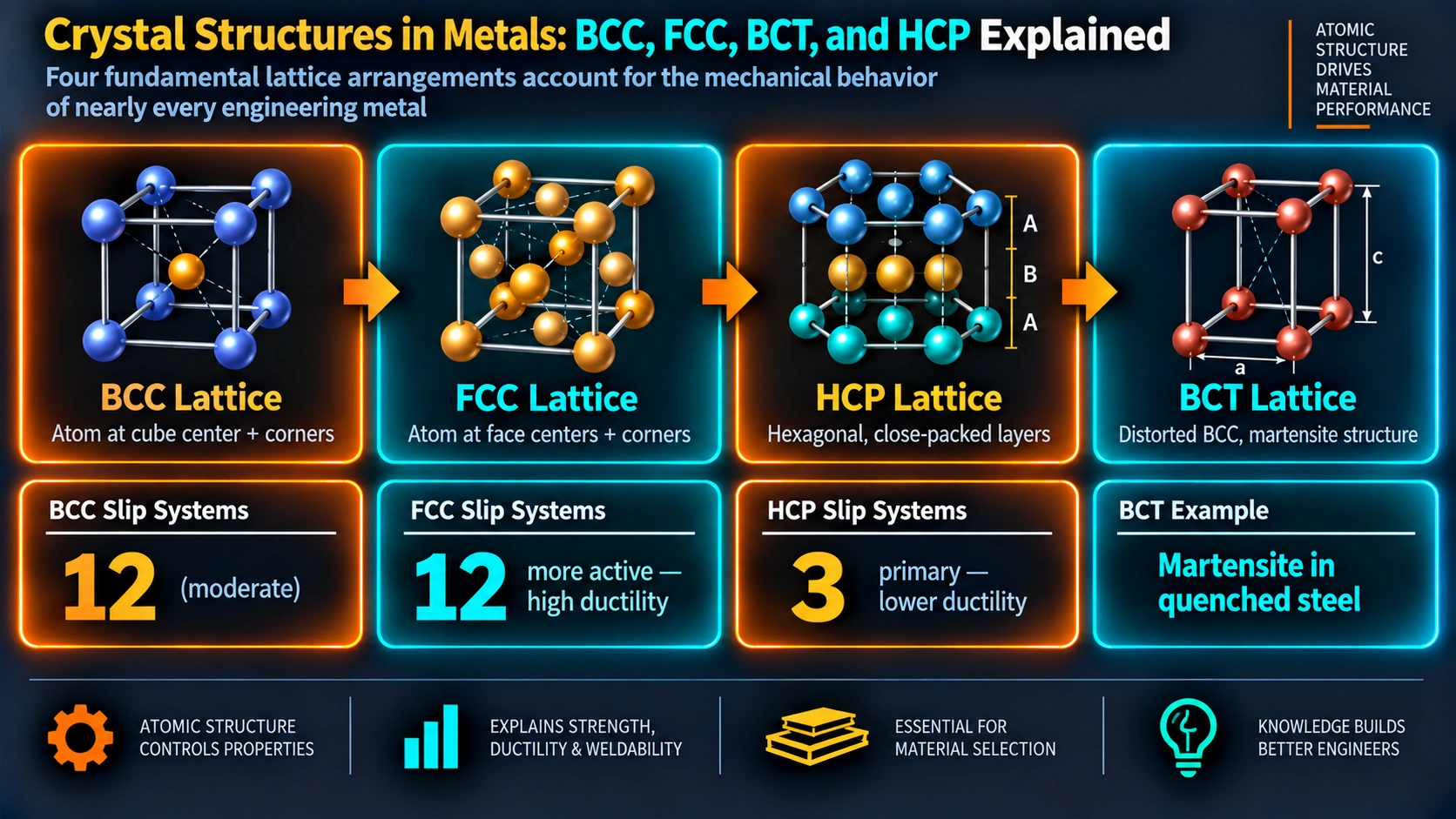

Body-Centered Cubic (BCC) Structure
The BCC unit cell is a cube with one atom at each of the eight corners and a single atom at the exact geometric centre. Because corner atoms are shared among eight adjacent unit cells, each contributes one-eighth of an atom to the cell. The centre atom is wholly within the cell. The total effective count is therefore 2 atoms per unit cell.
Mechanical Behaviour of BCC Metals
BCC metals exhibit moderate to high yield strength but limited ductility at low temperatures. This is because the BCC lattice has a higher Peierls-Nabarro stress — the intrinsic lattice friction opposing dislocation movement — compared to FCC. At low temperatures, insufficient thermal energy is available to help dislocations overcome this friction, and BCC metals undergo a characteristic ductile-to-brittle transition (DBTT). Below the DBTT, BCC steels fracture in a brittle, cleavage mode with little plastic deformation.
This behaviour is critically important in pressure vessel and structural fabrication. ASME Section VIII Division 1 Clause UG-84 and ASME B31.3 contain Charpy impact testing requirements specifically to verify that ferritic (BCC) steels retain adequate toughness at design temperatures. Carbon content, grain refinement, and alloying elements such as nickel all influence the DBTT. For detailed Charpy impact test requirements under ASME Section VIII, refer to our dedicated UG-84 guide.
| Metal | Structure | Key Properties | Welding Note |
|---|---|---|---|
| Iron (α-ferrite, room temp) | BCC | Moderate ductility, DBTT above 0°C in plain carbon steel | Baseline — all carbon steel HAZ is BCC on cooling |
| Carbon & Low-Alloy Steels | BCC | Strength varies with C and alloying; DBTT critical for pressure vessels | Preheat required above CE limits; Charpy testing for low-temp service |
| Chromium (pure) | BCC | High hardness, poor ductility | Primary BCC alloying element in ferritic stainless steels |
| Molybdenum | BCC | High melting point (2623°C), creep resistant | Added to P91/P92 for creep strength; affects Ac1/Ac3 temperatures |
| Tungsten | BCC | Highest melting point of all metals (3422°C) | TIG electrode material; non-consumable in GTAW process |
| Vanadium | BCC | Good strength, promotes grain refinement | Microalloying element in HSLA steels; increases CE value |
Face-Centered Cubic (FCC) Structure
The FCC unit cell places one atom at each corner of the cube and one atom at the centre of each of the six faces. The effective atom count is 4 per unit cell: 8 corners × 1/8 = 1, plus 6 face centres × 1/2 = 3, totalling 4. The FCC structure achieves an atomic packing factor of 74% — the theoretical maximum for sphere packing — which it shares with the HCP structure.
Why FCC Metals Are More Ductile
The superior ductility of FCC metals arises from two factors: higher atomic packing (leaving less empty space for dislocations to be pinned) and the availability of 12 equivalent slip systems. Plastic deformation in crystalline metals occurs by the movement of line defects called dislocations along specific crystallographic planes and directions — the slip systems. A metal with more independent slip systems can accommodate deformation in more orientations without localising stress, which delays fracture.
FCC metals do not exhibit a sharp ductile-to-brittle transition. They remain ductile even at cryogenic temperatures, which is why austenitic stainless steels and nickel alloys are specified for LNG, liquid nitrogen, and other cryogenic service applications. Austenitic stainless steels (grades 304, 316, 321, 347, and similar) are FCC at all service temperatures and retain excellent Charpy impact values down to -196°C without requiring special impact testing qualification.
Austenite: The High-Temperature FCC Phase of Iron
When carbon steel is heated above the A1 transformation temperature (approximately 723°C for plain carbon steel), the BCC ferrite structure transforms to the FCC austenite phase. This transformation is the foundation of all steel heat treatment. Austenite can dissolve significantly more carbon (up to 2.14 wt% at the eutectic temperature) compared to BCC ferrite (maximum ~0.022 wt% at 723°C). This large difference in carbon solubility between the FCC and BCC phases is a direct consequence of the larger interstitial spaces available in the FCC lattice.
During welding, the immediate vicinity of the weld pool is heated well above the A3 temperature, fully austenitising the steel. The rate at which this austenite then cools through the transformation range determines whether the resulting microstructure is fine pearlite, bainite, or martensite — and consequently whether the HAZ is tough or hard and crack-prone. Understanding this FCC-to-BCC/BCT transformation cycle is the core of heat treatment practice in welding fabrication.
Body-Centered Tetragonal (BCT) — Martensite
The BCT structure is formed when austenite is cooled so rapidly that carbon atoms cannot diffuse out of the iron lattice. In normal slow cooling, carbon has sufficient time to migrate out of the FCC structure and form carbide phases (such as cementite, Fe3C), allowing the iron to adopt the equilibrium BCC ferrite structure. Under rapid quenching, this diffusion is suppressed.
The iron atoms attempt to rearrange from the FCC pattern to the BCC pattern, but the interstitially-trapped carbon atoms — which are 77 pm in radius and too large for the interstitial sites in BCC iron — distort the lattice. The unit cell stretches along one axis (the c-axis), converting the cubic geometry into a tetragonal one, with c greater than a. This distorted lattice is martensite, and the ratio c/a increases linearly with carbon content.
Martensite Start (Ms) and Finish (Mf) Temperatures
Martensite does not form progressively during slow cooling — it forms athermally. Below a specific temperature called the martensite start (Ms) temperature, martensite begins to form instantaneously. Below the martensite finish (Mf) temperature, transformation is theoretically complete. The Ms temperature decreases with increasing carbon content and with most alloying elements. In high-carbon and highly alloyed steels, Mf can fall below room temperature, leaving retained austenite in the final microstructure.
The practical implication for fabrication is that welding procedures for hardenable steels must specify both preheat temperature (to slow cooling rate and reduce martensite formation) and often post-weld heat treatment (PWHT) (to temper any martensite that did form, reducing hardness and restoring toughness). This is the metallurgical basis for the PWHT requirements in ASME Section VIII, ASME B31.1, and ASME B31.3 for carbon and low-alloy steels above certain thicknesses or when welding materials such as P91 chromium-molybdenum steel.
Hexagonal Close-Packed (HCP) Structure
The HCP unit cell takes the form of a hexagonal prism. Visualise it as two hexagonal layers — a top face and a bottom face — each with one atom at the centre of the hexagon and six atoms at the hexagon corners, plus three atoms located between the two hexagonal layers at the points of an equilateral triangle. The theoretical APF for HCP is 74%, identical to FCC, because both structures represent maximum sphere packing in three dimensions — they differ only in the stacking sequence of close-packed layers.
Stacking Sequences: FCC vs HCP
Both FCC and HCP are close-packed structures built from layers of atoms in which each atom touches six others in the same plane. The difference is how successive layers stack. In FCC, the stacking follows an ABCABC sequence across three layers before repeating. In HCP, the sequence is ABABAB, with only two distinct layer positions repeating alternately. This subtle difference in stacking profoundly affects the number of independent slip systems available and therefore the ductility of the metal.
| Metal | Structure | Approximate Melting Point | Welding / Fabrication Note |
|---|---|---|---|
| Zinc | HCP | 420°C | Hot-dip galvanising; zinc fumes toxic — ventilation critical |
| Magnesium | HCP | 650°C | Low density structural alloys; fire risk when machined or welded |
| Titanium (α phase) | HCP | 1668°C | Excellent corrosion resistance; requires full inert gas shielding — even back-purge mandatory for GTAW |
| Cobalt (ε phase) | HCP | 1495°C | Hard-facing alloys (Stellite); wear-resistant overlay applications |
| Zirconium (α phase) | HCP | 1855°C | Nuclear reactor components; corrosion-resistant in high-purity water |
HCP and Weldability
The limited slip systems in HCP metals translate directly into fabrication challenges. Titanium, the most structurally important HCP metal in industrial applications, requires meticulous gas shielding during welding. Its HCP alpha phase is prone to cracking and embrittlement if contaminated by oxygen, nitrogen, or hydrogen above very low thresholds. Even the back face of a titanium weld must be shielded by an argon back-purge to prevent atmospheric contamination. For detailed GTAW procedure requirements, refer to the TIG/GTAW welding guide.
Allotropic Transformation in Iron
The most significant allotropic transformation in engineering is that of iron. Iron is polymorphic — it can exist in more than one crystal structure, with the stable structure depending on temperature. This allotropy is the reason that steel can be heat treated to produce radically different properties from the same composition, and it is the reason that the welding thermal cycle permanently alters the microstructure of steel in and around the weld.
| Temperature Range | Phase Name | Crystal Structure | Max Carbon Solubility | Significance |
|---|---|---|---|---|
| Room temp to ~723°C | Alpha iron (Ferrite) | BCC | 0.022 wt% at 723°C | Stable room-temperature phase of all carbon steels |
| ~723°C to ~1390°C | Gamma iron (Austenite) | FCC | 2.14 wt% at 1147°C | Fully austenitised zone immediately adjacent to weld pool during welding |
| ~1390°C to 1538°C (melt) | Delta iron | BCC | 0.09 wt% at 1493°C | Exists only near melting point; delta ferrite in weld metal of austenitic SS |
| Above 1538°C | Liquid iron | Amorphous | Unlimited | Weld pool region |
| Rapid cooling from γ | Martensite | BCT | C atoms trapped | HAZ hardening in hardenable steels; source of hydrogen cracking risk |

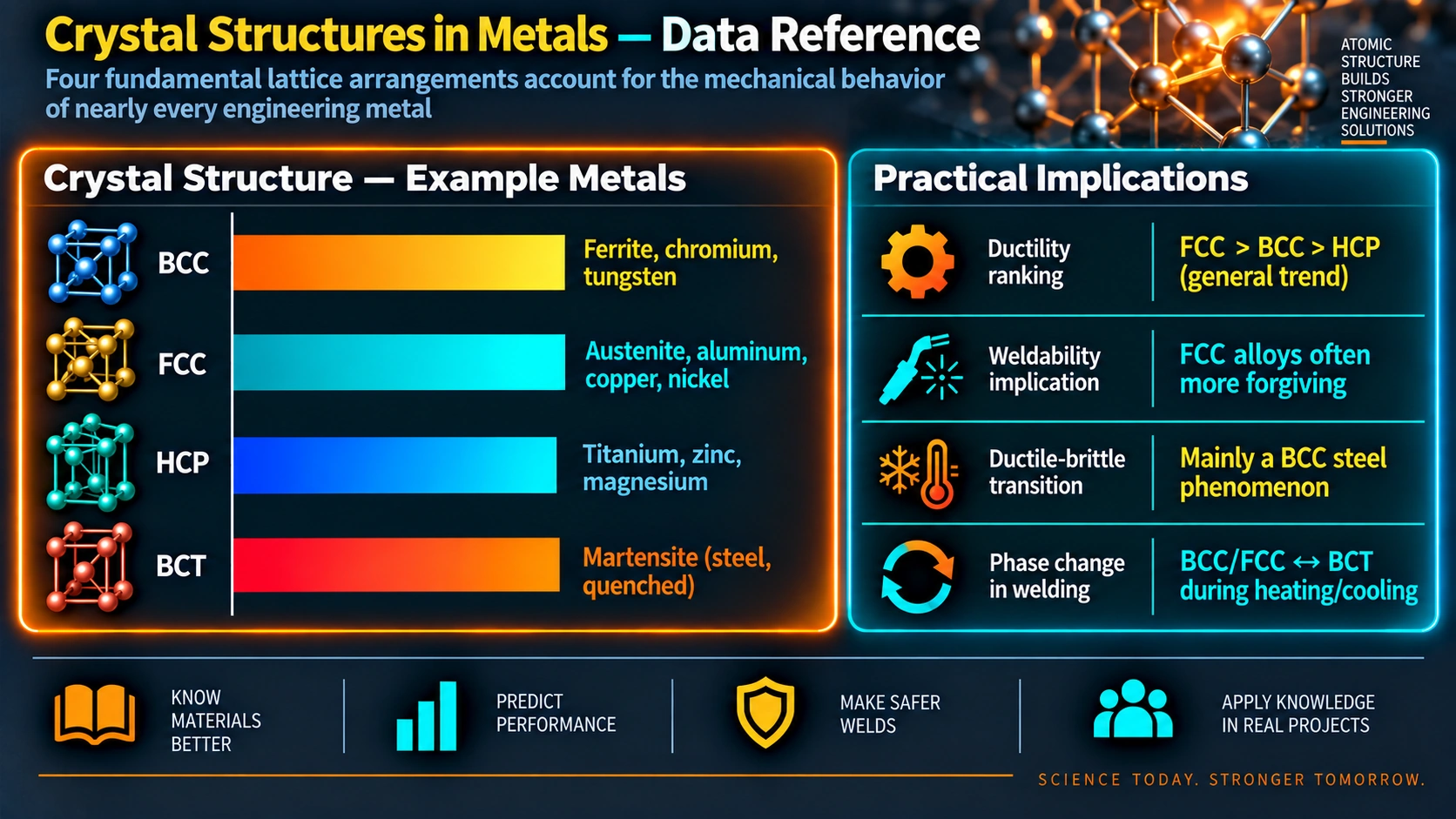

Crystal Structure and Mechanical Properties — Comparative Summary
The following table summarises the key mechanical and physical property implications of each crystal structure, providing a ready reference for engineers making material selection, welding procedure, and heat treatment decisions.
| Property | BCC | FCC | BCT (Martensite) | HCP |
|---|---|---|---|---|
| Atoms per unit cell | 2 | 4 | 2 | 6 |
| Atomic packing factor | 68% | 74% | <68% (varies with C) | 74% |
| Slip systems | 48 (12 primary) | 12 | Few (highly distorted) | 3 (room temp) |
| Ductility at room temp | Moderate | High | Very low (brittle) | Low to moderate |
| Ductile-to-brittle transition | Yes — DBTT critical for pressure vessels | No | N/A — inherently brittle | Partial — limited slip |
| Max carbon solubility (iron) | 0.022 wt% | 2.14 wt% | C trapped (lattice distorted) | N/A |
| Thermal conductivity (relative) | Higher | Lower | Low | Variable |
| Weldability concern | HAZ hardening if C high; PWHT for thick sections | Hot cracking risk in SS; residual stress due to low thermal conductivity | Hydrogen cracking; must be tempered by PWHT | Cracking due to few slip systems; atmosphere contamination in Ti |
| Example metals | Fe (α), Cr, Mo, W, V | Fe (γ), Al, Cu, Ni, 304 SS | Martensite in C steel | Zn, Mg, Ti (α), Co (ε) |
Crystal Structure and Weldability: Key Connections
Every aspect of weldability can be traced back to crystal structure. The following sections summarise the four most practically important connections for welding inspectors and fabricators.
1. HAZ Hardening and Preheat Requirements
Carbon and low-alloy steels that are heated into the austenite (FCC) range and then cooled at the rate typical of a structural or pressure vessel weld will partially or fully transform to martensite (BCT) in the heat-affected zone. The hardness of this martensite depends on the carbon content. When hardness exceeds approximately 350 HV (approximately 38 HRC), the risk of hydrogen cracking and brittle fracture is significant. The carbon equivalent (CE) formula is the primary tool for predicting this transformation tendency and prescribing the appropriate preheat temperature to slow cooling rate and limit martensite formation.
2. Austenitic Stainless Steel — Hot Cracking and Sensitisation
Austenitic stainless steels retain the FCC (austenite) structure throughout their service temperature range. Their lower thermal conductivity and higher coefficient of thermal expansion — both consequences of the FCC lattice — create higher thermal gradients and residual stresses during welding compared to ferritic steel. These stresses, combined with segregation at grain boundaries during solidification, promote hot cracking. The sensitisation phenomenon — chromium carbide precipitation at austenite grain boundaries on slow cooling — is also a direct consequence of the FCC austenite grain boundary structure and the reduced solubility of chromium carbides in the FCC lattice at lower temperatures.
3. P91 and Creep-Resistant Steels
P91 (9Cr-1Mo-V) chromium-molybdenum steel is a BCC ferritic material that transforms to austenite on heating above Ac1 and must be properly tempered after welding to convert martensite back to stable tempered martensite with the correct microstructure for creep resistance. PWHT for P91 is mandatory and tightly controlled: the holding temperature must be high enough to temper the BCT martensite but below the Ac1 temperature to avoid re-austenitising. The entire PWHT rationale is a direct application of crystal structure principles. See the P91 welding and heat treatment guide for detailed requirements.
4. Mechanical Testing and Microstructure Verification
The crystal structure present after welding determines the results of mechanical tests. Hardness surveys across the weld and HAZ detect martensite formation. Charpy impact tests assess the ductile-to-brittle transition behaviour of BCC microstructures. Tensile tests verify that FCC austenitic stainless steel weld metal retains its characteristic high elongation. Ferrite number measurement using a ferritescope checks that the BCC delta ferrite content of austenitic stainless steel weld metal is within the specified range. All of these test methods are ultimately measuring the consequences of crystal structure. For a comprehensive overview of welding mechanical test requirements, see the Mechanical Testing guide.
Recommended Books on Welding Metallurgy
Frequently Asked Questions
What is the difference between BCC and FCC crystal structures?
BCC (Body-Centered Cubic) has one atom at each corner of a cube and one atom at the centre, giving 2 atoms per unit cell. FCC (Face-Centered Cubic) has one atom at each corner and one atom at the centre of each face, giving 4 atoms per unit cell. FCC has a higher atomic packing factor (74%) than BCC (68%), which generally makes FCC metals more ductile at room temperature.
The FCC structure provides 12 slip systems versus 12 for BCC, but BCC slip systems involve higher lattice friction and are strongly temperature-dependent. This makes BCC metals susceptible to brittle fracture below a ductile-to-brittle transition temperature (DBTT) — a critical consideration for pressure vessel and low-temperature service steels under ASME Section VIII UG-84 Charpy requirements.
Why is martensite body-centered tetragonal (BCT) rather than BCC?
When austenite (FCC) is quenched rapidly, carbon atoms cannot diffuse out of the iron lattice in the available time. The iron atoms attempt to rearrange from FCC to BCC, but the trapped carbon atoms — too large for the interstitial sites in BCC iron — force the lattice to distort along one axis. This stretches the cube into a tetragonal shape, creating the BCT structure of martensite.
The degree of tetragonality (c/a ratio) increases with carbon content, which is why higher-carbon martensites are harder, more brittle, and present a greater hydrogen cracking risk during welding. Post-weld heat treatment (tempering) at an appropriate temperature below Ac1 allows some carbon diffusion, relieving the BCT distortion and converting brittle martensite into tougher tempered martensite.
At what temperatures does iron change its crystal structure?
Iron undergoes allotropic transformations at specific temperatures. From room temperature to approximately 723°C (1333°F), iron exists as alpha-iron (ferrite) with a BCC structure. Above 723°C, it transforms to gamma-iron (austenite) with an FCC structure. Above approximately 1390°C (2535°F), it transforms again to delta-iron, which is also BCC. Iron melts at approximately 1538°C (2800°F).
These temperatures shift when carbon and alloying elements are present, which is the basis of the iron-carbon phase diagram used in heat treatment design. In welding, the entire region heated above A1 (the lower critical temperature) is austenitised during the weld thermal cycle, and the rate of subsequent cooling determines the final HAZ microstructure.
Why do HCP metals have poor ductility compared to FCC metals?
Ductility in metals depends on the ability of dislocations to move along slip systems — specific crystallographic planes and directions. HCP metals have far fewer independent slip systems than FCC metals at room temperature; typically only three are active compared to five or more in FCC. Without sufficient independent slip systems, HCP metals cannot accommodate plastic deformation in all directions, leading to brittle fracture rather than yielding.
This is why titanium (alpha-HCP phase) requires elevated forming temperatures and special welding procedures to avoid cracking, and why pure zinc and magnesium crack rather than deform when worked at room temperature. At elevated temperatures, additional slip systems activate in HCP metals, improving their formability — which is why titanium alloy forgings are produced above the beta transus temperature.
How does crystal structure affect the weldability of austenitic stainless steel?
Austenitic stainless steels retain the FCC (austenite) crystal structure at all temperatures, which gives them excellent ductility and toughness including at cryogenic temperatures. However, the FCC structure has lower thermal conductivity and a higher coefficient of thermal expansion compared to BCC ferritic steels. This means austenitic stainless steels develop higher residual stresses and are more susceptible to hot cracking and distortion during welding.
The FCC austenite structure also makes austenitic steels susceptible to sensitisation — chromium carbide precipitation at grain boundaries on slow cooling through 425°C to 850°C — which depletes chromium from the grain boundary region and causes intergranular corrosion. Low-carbon (L-grade) steels such as 316L or stabilised grades (321, 347) are specified to prevent sensitisation in service. For more, see the stainless steel weld decay guide.
What is atomic packing factor and why does it matter for welding metallurgy?
The atomic packing factor (APF) is the fraction of the unit cell volume actually occupied by atoms, assuming hard sphere geometry. BCC has an APF of approximately 68%, FCC and HCP share the maximum possible APF of approximately 74%, and BCT martensite has a variable APF depending on carbon content. A higher APF means more closely packed atoms, lower diffusion rates, and generally higher ductility.
The lower APF in BCC iron compared to FCC austenite directly explains why carbon solubility is dramatically lower in ferrite (0.022 wt%) than in austenite (2.14 wt%) — there is simply less interstitial space in the BCC lattice. This difference is the thermodynamic driving force behind the precipitation of carbides and the redistribution of carbon during heat treatment and the weld thermal cycle.
How does crystal structure relate to hydrogen cracking in welds?
Hydrogen cracking (cold cracking or hydrogen-induced cracking) is strongly linked to the BCT martensite structure. When the HAZ of a carbon or low-alloy steel cools rapidly, austenite transforms to martensite. The highly strained BCT lattice has a high dislocation density and a strong tendency to trap hydrogen at defect sites. Hydrogen diffuses through the BCC/BCT lattice and concentrates at grain boundaries and stress concentrators, reducing cohesive strength.
The combination of hard martensite, residual tensile stress, and dissolved hydrogen is the classic three-factor condition for hydrogen cracking. Preheat, controlled heat input, PWHT, and low-hydrogen consumables all address this by reducing martensite formation, lowering stress, and minimising hydrogen content. AWS D1.1 and ASME Section IX qualification requirements incorporate these controls. See the Carbon Equivalent Calculator to assess preheat requirements based on CE.
Which crystal structure gives the highest hardness in steel, and why?
BCT martensite gives the highest hardness among common crystal structures in steel because the interstitially trapped carbon atoms create an extremely distorted lattice with an very high dislocation density. These dislocations cannot move freely — they interact strongly with each other and with the lattice strain field created by the carbon atoms — which means the metal resists plastic deformation and therefore registers very high hardness values.
Among equilibrium structures, BCC ferrite at room temperature typically shows higher yield strength than FCC austenite of similar composition because the BCC lattice has higher intrinsic resistance to dislocation glide (higher Peierls-Nabarro stress). However, FCC metals respond more strongly to work hardening and can achieve very high strengths through cold deformation. Maximum martensite hardness in steel is approximately 65 HRC, reached at around 0.6 weight percent carbon.
